COOLING - RADIATORS AND AIR DUCTS of Ferrari Ferrari F12 TDF

View All

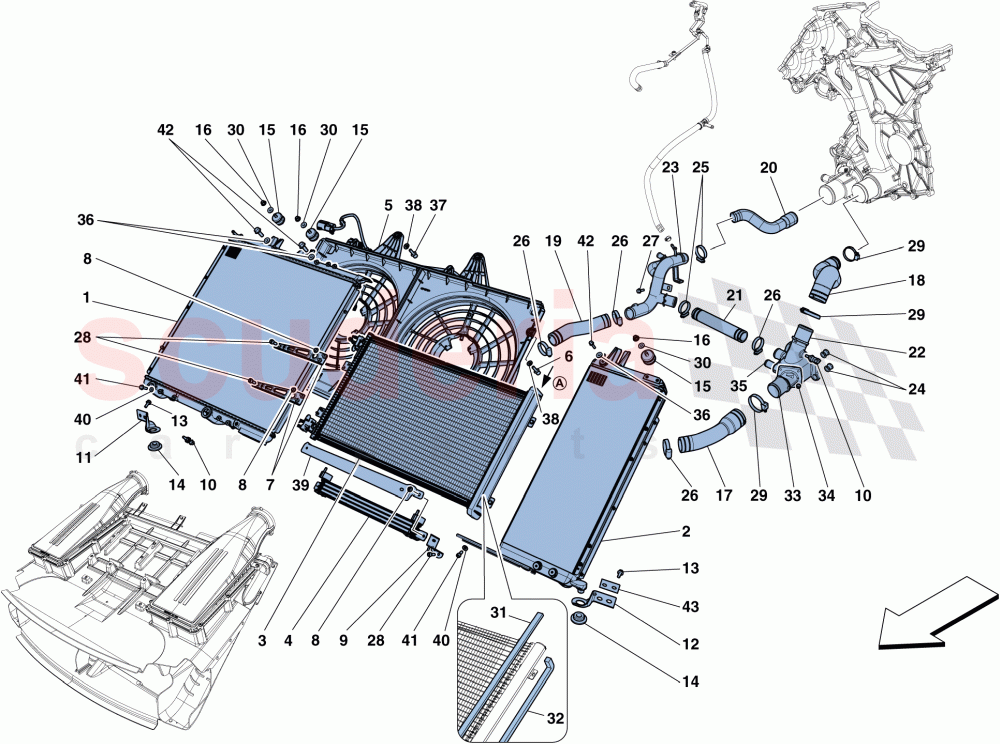

Ferrari F12 TDF - COOLING - RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	333926	ENGINE WATER RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277227	ENGINE OIL RADIATOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	265489	AC FILTER CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310424	OIL RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328095	COWL WITH ELECTRIC FANS	Enquire	To Order
	328095	COWL WITH ELECTRIC FANS	Enquire	To Order
	295049	COWL WITH ELECTRIC FANS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16285227	SCREW M5 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268656	CONDENSER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297845	RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET	Enquire	To Order
	297846	LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328405	LOWER RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328406	LH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307674	RADIATOR MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271472	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260080	WATER HOSE FROM VALVE TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290951	WATER HOSE FROM ENGINE TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258630	RETURN HOSE FROM RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290949	RETURN HOSE TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270452	WATER HOSE FROM VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267849	THERMOSTAT HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290950	METAL WATER RECIRCULATION CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262113	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282469	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282580	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262913	THERMOSTAT/PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228438	THREADED UNION M20 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82242400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285227	SCREW M5 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289445	POWER STEERING RADIATOR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW M5 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329502	PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	333926	ENGINE WATER RADIATOR	333926 ENGINE WATER RADIATOR	-	1	Enquire
2	277227	ENGINE OIL RADIATOR ARRIVING SOON	277227 ENGINE OIL RADIATOR ARRIVING SOON	-	1	Enquire
3	265489	AC FILTER CONDENSER	265489 AC FILTER CONDENSER	-	1	Enquire
4	310424	OIL RADIATOR	310424 OIL RADIATOR	-	1	Enquire
5	328095	COWL WITH ELECTRIC FANS	328095 COWL WITH ELECTRIC FANS Plastic; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 133882	-	1	Enquire
5	328095	COWL WITH ELECTRIC FANS	328095 COWL WITH ELECTRIC FANS Plastic; Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 135426	-	1	Enquire
5	295049	COWL WITH ELECTRIC FANS	295049 COWL WITH ELECTRIC FANS Plastic; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 133881	-	1	Enquire
5	295049	COWL WITH ELECTRIC FANS	295049 COWL WITH ELECTRIC FANS Plastic; Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 135425	-	1	Enquire
6	16285227	SCREW M5 X 20	16285227 SCREW M5 X 20	-	6	Enquire
7	268656	CONDENSER MOUNTING BRACKET	268656 CONDENSER MOUNTING BRACKET	-	2	Enquire
8	13046011	NUT	13046011 NUT	-	6	Enquire
9	297845	RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET	297845 RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET	-	1	Enquire
9	297846	LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET	297846 LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET	-	1	Enquire
10	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	2	Enquire
11	328405	LOWER RH BRACKET	328405 LOWER RH BRACKET	-	1	Enquire
12	328406	LH LOWER BRACKET	328406 LH LOWER BRACKET	-	1	Enquire
13	16287127	SCREW	16287127 SCREW M8 X 20	-	4	Enquire
14	307674	RADIATOR MOUNTING BUSH	307674 RADIATOR MOUNTING BUSH	-	2	Enquire
15	271472	BUSH	271472 BUSH	-	3	Enquire
16	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	3	Enquire
17	260080	WATER HOSE FROM VALVE TO RADIATOR	260080 WATER HOSE FROM VALVE TO RADIATOR	-	1	Enquire
18	290951	WATER HOSE FROM ENGINE TO VALVE	290951 WATER HOSE FROM ENGINE TO VALVE	-	1	Enquire
19	258630	RETURN HOSE FROM RADIATOR	258630 RETURN HOSE FROM RADIATOR	-	1	Enquire
20	290949	RETURN HOSE TO PUMP	290949 RETURN HOSE TO PUMP	-	1	Enquire
21	270452	WATER HOSE FROM VALVE	270452 WATER HOSE FROM VALVE	-	1	Enquire
22	267849	THERMOSTAT HOUSING	267849 THERMOSTAT HOUSING	-	1	Enquire
23	290950	METAL WATER RECIRCULATION CONNECTOR PIPE	290950 METAL WATER RECIRCULATION CONNECTOR PIPE	-	1	Enquire
24	267300	DAMPED MOUNT	267300 DAMPED MOUNT	-	4	Enquire
25	262113	COLLAR	262113 COLLAR	-	2	Enquire
26	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	5	Enquire
27	86574700	SCREW	86574700 SCREW M6 X 16	-	1	Enquire
28	11568124	SCREW	11568124 SCREW M5 X 10	-	4	Enquire
29	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	3	Enquire
30	12647021	WASHER	12647021 WASHER	-	3	Enquire
31	282469	RUBBER SHIM	282469 RUBBER SHIM	-	1	Enquire
32	282580	RUBBER SHIM	282580 RUBBER SHIM	-	1	Enquire
33	262913	THERMOSTAT/PRESSURE SWITCH	262913 THERMOSTAT/PRESSURE SWITCH	-	1	Enquire
34	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
35	228438	THREADED UNION M20 X 15	228438 THREADED UNION M20 X 15	-	1	Enquire
36	82242400	WASHER	82242400 WASHER	-	4	Enquire
37	16285227	SCREW M5 X 20	16285227 SCREW M5 X 20	-	5	Enquire
38	12643724	WASHER	12643724 WASHER	-	11	Enquire
39	289445	POWER STEERING RADIATOR SHIELD	289445 POWER STEERING RADIATOR SHIELD	-	1	Enquire
40	62769800	WASHER	62769800 WASHER	-	3	Enquire
41	11568124	SCREW	11568124 SCREW M5 X 16	-	3	Enquire
42	16281827	SCREW M5 X 14	16281827 SCREW M5 X 14	-	4	Enquire
43	329502	PLATE	329502 PLATE	-	1	Enquire
