Name: REAR SUSPENSION - ARMS
Rating: 4.5 (1 reviews)

REAR SUSPENSION - ARMS of Ferrari Ferrari F12 TDF

View All

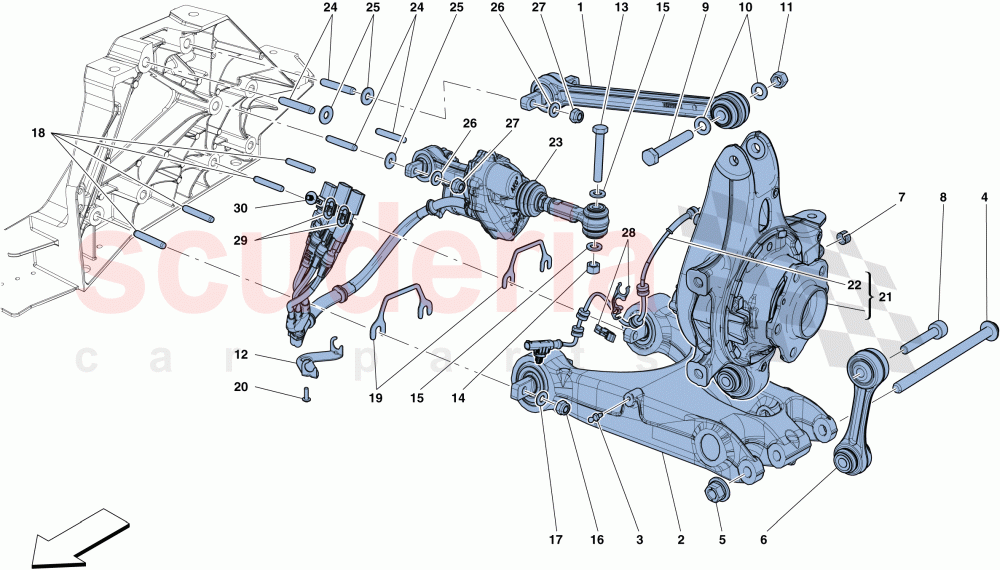

Ferrari F12 TDF - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	295792	COMPL. REAR UPPER ARM	$754.15	To Order

Photo	Part No	Description	Price (each)	Stock
	329244	COMPL. LOWER RH REAR ARM	$997.18	To Order
	911176	LH LOWER REAR ARM	$1,139.25	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	$25.85	To Order

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	259688	ANTI-ROTATION LINKAGE	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	222956	COMPENSATOR RING	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	$33.39	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	314125	ACTUATOR CABLE FASTENER BRACKET	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	262540	ADJUSTER SHIM	$9.50	To Order
	262539	ADJUSTER SHIM	$9.50	To Order
	262546	ADJUSTER SHIM	$9.50	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	299935	RH REAR HUB CARRIER	$2,548.09	To Order
	299933	LH REAR HUB CARRIER	$2,548.09	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	269415	ABS SENSOR	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	302406	THREADED ROD	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	310942	CLIP	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	291678	CONNECTOR RETAINER CLIP	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	322737	CLIP	$0.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	295792	COMPL. REAR UPPER ARM	295792 COMPL. REAR UPPER ARM	$754.15	2
2	329244	COMPL. LOWER RH REAR ARM	329244 COMPL. LOWER RH REAR ARM	$997.18	1
2	911176	LH LOWER REAR ARM	911176 LH LOWER REAR ARM	$1,139.25	1
3	343376	BALL JOINT	343376 BALL JOINT	$22.45	2
4	238656	SPECIAL SCREW	238656 SPECIAL SCREW	$25.85 MSRP: ~~27.38~~ (5.6% off)	2
5	238063	NUT	238063 NUT	$4.17 MSRP: ~~5.50~~ (24.2% off)	2
6	259688	ANTI-ROTATION LINKAGE	259688 ANTI-ROTATION LINKAGE	$192.54	2
7	222956	COMPENSATOR RING	222956 COMPENSATOR RING	$17.63	2
8	238258	SCREW	238258 SCREW M12 X 1.25 X 75	$33.39	2
9	15541434	SCREW	15541434 SCREW M12 X 1.25 X 80	$2.12 MSRP: ~~2.98~~ (28.9% off)	2
10	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5	$0.28 MSRP: ~~0.50~~ (44% off)	4
11	203666	NUT	203666 NUT	$0.94 MSRP: ~~2.00~~ (53% off)	2
12	314125	ACTUATOR CABLE FASTENER BRACKET	314125 ACTUATOR CABLE FASTENER BRACKET	$25.66	2
13	15541434	SCREW	15541434 SCREW M12 X 1.25 X 80	$2.12 MSRP: ~~2.98~~ (28.9% off)	2
14	203666	NUT	203666 NUT	$0.94 MSRP: ~~2.00~~ (53% off)	2
15	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5	$0.28 MSRP: ~~0.50~~ (44% off)	4
16	12574521	Nyloc Nut	12574521 Nyloc Nut	$0.92 MSRP: ~~2.00~~ (54% off)	8
17	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	8
18	264528	THREADED ROD	264528 THREADED ROD	$3.94	8
19	262540	ADJUSTER SHIM	262540 ADJUSTER SHIM Th. 2.5 mm	$9.50	4
19	262539	ADJUSTER SHIM	262539 ADJUSTER SHIM Th. 2 mm	$9.50	4
19	262546	ADJUSTER SHIM	262546 ADJUSTER SHIM Th. 1.5 mm	$9.50	4
19	262545	ADJUSTER SHIM	262545 ADJUSTER SHIM Th. 1 mm	$9.50	4
19	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Th. 0.5 mm	$9.50	4
19	262543	ADJUSTER SHIM	262543 ADJUSTER SHIM Th. 4 mm	$9.50	4
19	262542	ADJUSTER SHIM	262542 ADJUSTER SHIM Th. 3.5 mm	$9.50	4
19	262541	ADJUSTER SHIM	262541 ADJUSTER SHIM Th. 3 mm	$9.50	4
20	81911600	SCREW	81911600 SCREW M6 X 18	$0.50	2
21	299935	RH REAR HUB CARRIER	299935 RH REAR HUB CARRIER	$2,548.09	1
21	299933	LH REAR HUB CARRIER ARRIVING SOON	299933 LH REAR HUB CARRIER ARRIVING SOON	$2,548.09 MSRP: ~~3,347.52~~ (23.9% off)	1
22	269415	ABS SENSOR	269415 ABS SENSOR	$401.13	2
24	302406	THREADED ROD	302406 THREADED ROD	$2.43	8
25	13578321	WASHER	13578321 WASHER	$0.52	8
26	14496524	WASHER	14496524 WASHER	$0.11 MSRP: ~~1.50~~ (92.7% off)	8
27	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	8
28	310942	CLIP	310942 CLIP	$1.56	4
29	291678	CONNECTOR RETAINER CLIP	291678 CONNECTOR RETAINER CLIP	$0.26	4
30	322737	CLIP	322737 CLIP For LH suspension	$0.60	1
