Ferrari 599 SA Aperta - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
227190 DRIVE GEAR $1,056.77 To Order
Photo Part No Description Price (each) Stock
186854 CRANKSHAFT GEAR $142.79 To Order
Photo Part No Description Price (each) Stock
175286 DRIVE CHAIN $44.91 To Order
Photo Part No Description Price (each) Stock
183761 MOBILE SHOE $2,038.65 To Order
Photo Part No Description Price (each) Stock
175303 BUSH $33.68 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
175306 SHOULDER $4.04 To Order
Photo Part No Description Price (each) Stock
198034 FIXED SHOE $68.98 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
183929 BUSH $7.42 To Order
Photo Part No Description Price (each) Stock
187656 PUMP DRIVE GEAR $401.13 To Order
Photo Part No Description Price (each) Stock
186668 SCREW $14.28 To Order
Photo Part No Description Price (each) Stock
186186 FIXED SHOE $28.87 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192922 MOUNTING $44.91 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
175314 OIL PUMP DRIVE CHAIN $46.52 To Order
Photo Part No Description Price (each) Stock
186159 CHAIN SUPPORT $30.47 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
175410 STUD BOLT $7.84 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
196683 SHOE ASSEMBLY $44.91 To Order
Photo Part No Description Price (each) Stock
198035 VALVE TIMING CHAIN $1,010.88 To Order
Photo Part No Description Price (each) Stock
239566 COMPL. UPPER FIXED SHOE $46.52 To Order
Photo Part No Description Price (each) Stock
14082210 SCREW $2.93 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
194262 SHOULDER $38.49 To Order
Photo Part No Description Price (each) Stock
185725 CHAIN TENSIONER SHOE $86.63 To Order
Photo Part No Description Price (each) Stock
187742 ROLLER BEARING CAGE $11.33 To Order
Photo Part No Description Price (each) Stock
199101 GEAR MOUNT $513.46 To Order
Photo Part No Description Price (each) Stock
181336 SCREW $3.19 IN STOCK
Photo Part No Description Price (each) Stock
140071 O-Ring $0.58 IN STOCK
Photo Part No Description Price (each) Stock
197880 HYDRAULIC TENSIONER $144.40 To Order
Photo Part No Description Price (each) Stock
190060 TENSIONER BUSHING $37.65 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
190171 SPACER $6.53 IN STOCK
Photo Part No Description Price (each) Stock
192069 O-RING D.26 X 1.5 $0.52 IN STOCK
Photo Part No Description Price (each) Stock
13543824 STUD BOLT $3.19 IN STOCK
Photo Part No Description Price (each) Stock
13543124 STUD BOLT $6.63 IN STOCK
Photo Part No Description Price (each) Stock
187818 NOZZLE $93.05 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.16 IN STOCK
Photo Part No Description Price (each) Stock
86768100 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
View All

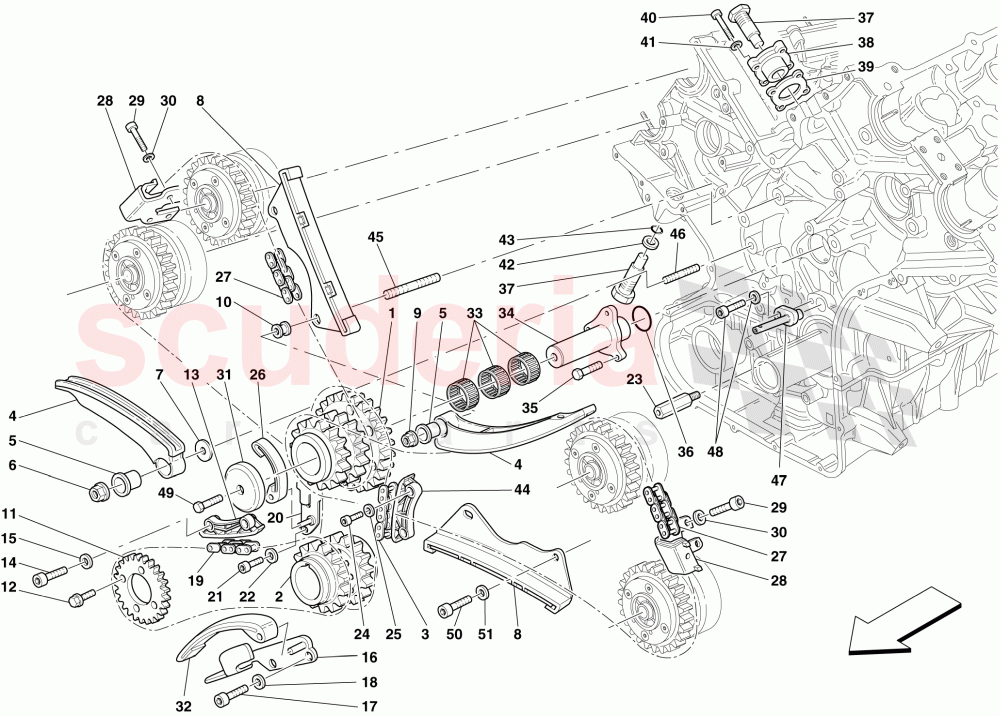

TIMING SYSTEM - DRIVE of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 227190
DRIVE GEAR 		$1,056.77 1
2 186854
CRANKSHAFT GEAR 		$142.79 1
3 175286
DRIVE CHAIN 		$44.91 1
4 183761
MOBILE SHOE 		$2,038.65 2
5 175303
BUSH 		$33.68 2
6 14040711
NUT
IN STOCK 		$0.42 1
7 175306
SHOULDER 		$4.04 1
8 198034
FIXED SHOE 		$68.98 2
9 14040711
NUT
IN STOCK 		$0.42 1
10 183929
BUSH 		$7.42 1
11 187656
PUMP DRIVE GEAR 		$401.13 1
12 186668
SCREW 		$14.28 4
13 186186
FIXED SHOE 		$28.87 1
14 231620
SCREW
L. 25 mm
IN STOCK 		$0.32 (8.6% off) 2
15 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
16 192922
MOUNTING 		$44.91 1
17 248334
SCREW 		$0.68 2
18 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
19 175314
OIL PUMP DRIVE CHAIN 		$46.52 1
20 186159
CHAIN SUPPORT
IN STOCK 		$30.47 1
21 248334
SCREW 		$0.68 2
22 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
23 175410
STUD BOLT 		$7.84 1
24 231619
SCREW
IN STOCK 		$0.31 2
25 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
26 196683
SHOE ASSEMBLY 		$44.91 1
27 198035
VALVE TIMING CHAIN 		$1,010.88 2
28 239566
COMPL. UPPER FIXED SHOE 		$46.52 2
29 14082210
SCREW 		$2.93 8
30 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
31 194262
SHOULDER 		$38.49 1
32 185725
CHAIN TENSIONER SHOE 		$86.63 (29% off) 1
33 187742
ROLLER BEARING CAGE 		$11.33 3
34 199101
GEAR MOUNT 		$513.46 1
35 181336
SCREW
IN STOCK 		$3.19 (32.8% off) 3
36 140071
O-Ring
IN STOCK 		$0.58 (80.3% off) 1
37 197880
HYDRAULIC TENSIONER 		$144.40 (24.2% off) 2
38 190060
TENSIONER BUSHING 		$37.65 1
40 231619
SCREW
IN STOCK 		$0.31 4
41 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
42 190171
SPACER
IN STOCK 		$6.53 1
43 192069
O-RING D.26 X 1.5
IN STOCK 		$0.52 (13.3% off) 1
45 13543824
STUD BOLT
M8 X 16; Shank length 40 mm
IN STOCK 		$3.19 1
46 13543124
STUD BOLT
IN STOCK 		$6.63 1
47 187818
NOZZLE 		$93.05 1
48 248334
SCREW 		$0.68 1
49 16043124
SCREW
IN STOCK 		$0.16 1
50 86768100
SCREW 		$0.47 3
51 11193874
WASHER
IN STOCK 		$0.06 3
52 259673
VALVE TIMING AND PUMP DRIVE SYSTEM 		$1,235.52 1
