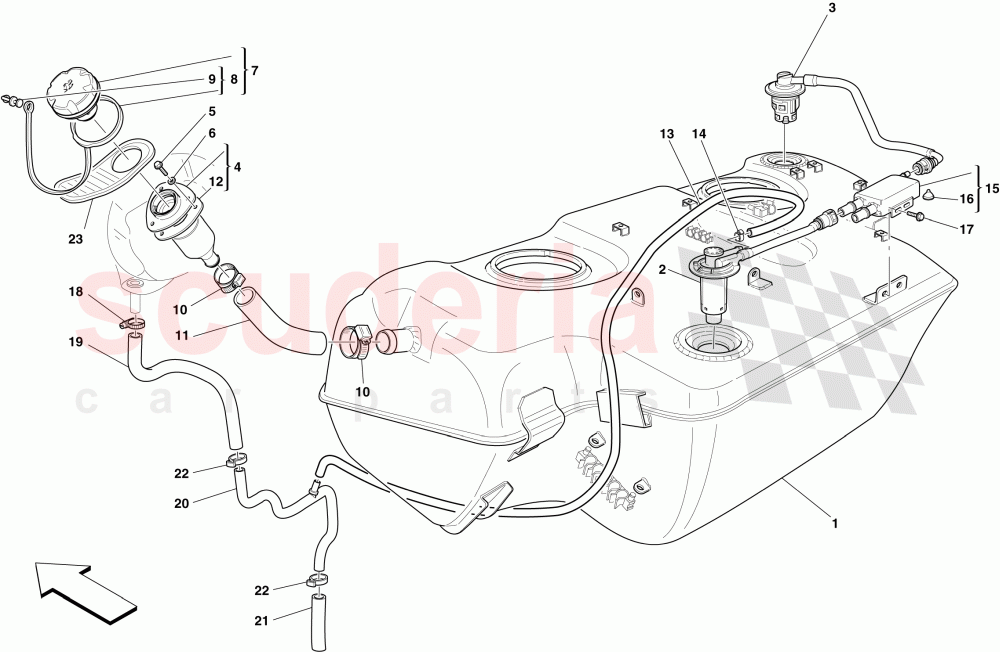

Name: FUEL TANK - FILLER NECK AND PIPES
Rating: 5.0 (1 reviews)

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248259	FUEL TANK	$3,384.08	To Order

Photo	Part No	Description	Price (each)	Stock
	252104	MULTIFUNCTION VALVE	$544.69	To Order

Photo	Part No	Description	Price (each)	Stock
	252105	TANK BREATHER VALVE	$109.10	To Order

Photo	Part No	Description	Price (each)	Stock
	213365	PIPE UNION	$175.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	190469	TANK CAP	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	196949	RING - FUEL TANK	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	186172	CLIP	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	232570	FUEL FILLER NECK CONNECTOR PIPE	$417.18	To Order

Photo	Part No	Description	Price (each)	Stock
	213254	GASKET	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	230745	RUBBER PIPE	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	252103	VAPOUR SEPARATOR	$209.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14622387	CAP	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	226109	RUBBER PIPE	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	226111	TWO-WAY UNION	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	226217	RUBBER PIPE	$9.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13432870	COLLAR FOR HOSE UNION	$12.30	To Order

Photo	Part No	Description	Price (each)	Stock
	67194500	GUARD	$10.34	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	248259	FUEL TANK	248259 FUEL TANK	$3,384.08	1
2	252104	MULTIFUNCTION VALVE	252104 MULTIFUNCTION VALVE	$544.69	1
3	252105	TANK BREATHER VALVE	252105 TANK BREATHER VALVE	$109.10	1
4	213365	PIPE UNION	213365 PIPE UNION	$175.06 MSRP: ~~232.43~~ (24.7% off)	1
5	16286124	SCREW	16286124 SCREW	$0.37	3
6	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	3
7	190469	TANK CAP	190469 TANK CAP	$385.09 MSRP: ~~402.32~~ (4.3% off)	1
8	196949	RING - FUEL TANK	196949 RING - FUEL TANK	$28.87 MSRP: ~~37.95~~ (23.9% off)	1
9	186172	CLIP	186172 CLIP	$0.52	1
10	11449470	COLLAR	11449470 COLLAR	$2.92	2
11	232570	FUEL FILLER NECK CONNECTOR PIPE	232570 FUEL FILLER NECK CONNECTOR PIPE	$417.18	1
12	213254	GASKET	213254 GASKET	$22.45	1
13	230745	RUBBER PIPE	230745 RUBBER PIPE	$256.72	1
14	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	1
15	252103	VAPOUR SEPARATOR	252103 VAPOUR SEPARATOR	$209.02	1
16	14622387	CAP	14622387 CAP	$3.13	1
17	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	2
18	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	1
19	226109	RUBBER PIPE	226109 RUBBER PIPE	$186.33	1
20	226111	TWO-WAY UNION	226111 TWO-WAY UNION	$85.03	1
21	226217	RUBBER PIPE	226217 RUBBER PIPE	$9.45	1
22	13432870	COLLAR FOR HOSE UNION	13432870 COLLAR FOR HOSE UNION	$12.30	2
23	67194500	GUARD	67194500 GUARD	$10.34	1
