Crankshaft - Connecting Rods And Pistons

Ferrari 599 SA Aperta

Find Your Part

Ferrari 599 SA Aperta - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
278276 CRANKSHAFT $5,927.37 To Order
278276 CRANKSHAFT $5,927.37 To Order
278276 CRANKSHAFT $5,927.37 To Order
Photo Part No Description Price (each) Stock
282617 COMPLETE HALF-BEARING SET $97.82 To Order
282618 COMPLETE HALF-BEARING SET $97.82 To Order
282619 COMPLETE HALF-BEARING SET $97.82 To Order
Photo Part No Description Price (each) Stock
255290 COMPL. CONNECTING ROD AND CAP $1,026.93 To Order
Photo Part No Description Price (each) Stock
254806 CONNECTING ROD FASTENER SCREW $31.70 To Order
Photo Part No Description Price (each) Stock
175367 GUDGEON PIN $70.59 To Order
Photo Part No Description Price (each) Stock
178890 STOP RING $3.29 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $30.39 IN STOCK
Photo Part No Description Price (each) Stock
240214 GASKET $59.35 To Order
Photo Part No Description Price (each) Stock
190981 TAB $1.07 To Order
Photo Part No Description Price (each) Stock
261646 TORSION DAMPER $272.77 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $72.73 IN STOCK
Photo Part No Description Price (each) Stock
263683 WASHER $50.54 To Order
263683 WASHER $50.54 To Order
263683 WASHER $50.54 To Order
Photo Part No Description Price (each) Stock
265102 COMPLETE PISTON RING SET $150.52 To Order
Photo Part No Description Price (each) Stock
244416 CONNECTING ROD HALF-BEARING $25.66 To Order
244416 CONNECTING ROD HALF-BEARING $25.66 To Order
261718 CONNECTING ROD HALF-BEARING $18.83 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
261491 RH PISTON COMPLETE WITH RINGS $601.89 To Order
Photo Part No Description Price (each) Stock
261492 LH PISTON COMPLETE WITH RINGS $706.01 To Order
Photo Part No Description Price (each) Stock
286834 UPPER HALF-BEARING $24.05 IN STOCK
286834 UPPER HALF-BEARING $24.05 IN STOCK
268866 UPPER HALF-BEARING $24.05 IN STOCK
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
286838 LOWER HALF-BEARING $22.45 To Order
286838 LOWER HALF-BEARING $22.45 To Order
268871 LOWER HALF-BEARING $24.05 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
222874 SHIM RING $31.90 To Order
222874 SHIM RING $31.90 To Order
261727 SHIM RING $10.26 To Order
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $5.35 To Order
View All

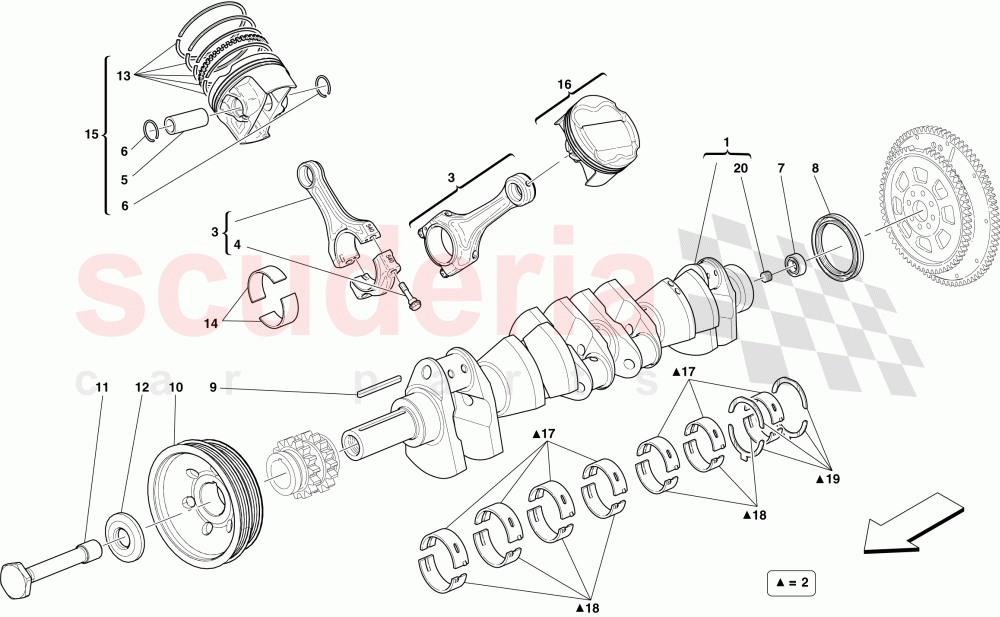

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 278276
CRANKSHAFT
Not for EU GS, UK 		$5,927.37 1
1 278276
CRANKSHAFT
Applicable for EU GS, UK; Applicable up to engine No. 175088 		$5,927.37 1
1 278276
CRANKSHAFT
Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$5,927.37 1
2 282617
COMPLETE HALF-BEARING SET
Green; Lead free; After depletion, order individual parts; Applicable for EU GS, UK; Applicable from engine No. 175089; Applicable until depletion 		$97.82 1
2 282618
COMPLETE HALF-BEARING SET
Blue; Lead free; After depletion, order individual parts; Applicable for EU GS, UK; Applicable from engine No. 175089; Applicable until depletion 		$97.82 1
2 282619
COMPLETE HALF-BEARING SET
Yellow; Lead free; After depletion, order individual parts; Applicable for EU GS, UK; Applicable from engine No. 175089; Applicable until depletion 		$97.82 1
3 255290
COMPL. CONNECTING ROD AND CAP 		$1,026.93 12
4 254806
CONNECTING ROD FASTENER SCREW 		$31.70 24
5 175367
GUDGEON PIN
Applicable until depletion 		$70.59 12
6 178890
STOP RING
Applicable until depletion 		$3.29 24
7 103877
BEARING
IN STOCK 		$30.39 1
8 240214
GASKET 		$59.35 (23.6% off) 1
9 190981
TAB 		$1.07 1
10 261646
TORSION DAMPER 		$272.77 1
11 196216
SCREW
IN STOCK 		$72.73 1
12 263683
WASHER
Not for EU GS, UK 		$50.54 1
12 263683
WASHER
Applicable for EU GS, UK; Applicable up to engine No. 175088 		$50.54 1
12 263683
WASHER
Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$50.54 1
13 265102
COMPLETE PISTON RING SET 		$150.52 12
14 244416
CONNECTING ROD HALF-BEARING
Red; Not for EU GS, UK 		$25.66 24
14 244416
CONNECTING ROD HALF-BEARING
Red; Applicable for EU GS, UK; Applicable up to engine No. 175088 		$25.66 24
14 261718
CONNECTING ROD HALF-BEARING
Red; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$18.83 24
14 244417
CONNECTING ROD HALF-BEARING
Blue; Not for EU GS, UK 		$25.66 24
14 244417
CONNECTING ROD HALF-BEARING
Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088 		$25.66 24
14 261719
CONNECTING ROD HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$18.83 24
14 244418
CONNECTING ROD HALF-BEARING
Black; Not for EU GS, UK 		$25.66 24
14 244418
CONNECTING ROD HALF-BEARING
Black; Applicable for EU GS, UK; Applicable up to engine No. 175088 		$25.66 24
14 261720
CONNECTING ROD HALF-BEARING
Black; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$18.83 24
15 261491
RH PISTON COMPLETE WITH RINGS 		$601.89 6
16 261492
LH PISTON COMPLETE WITH RINGS 		$706.01 6
17 286834
UPPER HALF-BEARING
Green; Not for EU GS, UK
IN STOCK 		$24.05 7
17 286834
UPPER HALF-BEARING
Green; Applicable for EU GS, UK; Applicable up to engine No. 175088
IN STOCK 		$24.05 7
17 268866
UPPER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089
IN STOCK 		$24.05 7
17 286832
UPPER MAIN HALF BEARING BLUE
Blue; Not for EU GS, UK
IN STOCK 		$24.05 7
17 286832
UPPER MAIN HALF BEARING BLUE
Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088
IN STOCK 		$24.05 7
17 268864
UPPER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$25.66 7
17 286833
UPPER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$24.05 7
17 286833
UPPER HALF-BEARING
Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175088
IN STOCK 		$24.05 7
17 268865
UPPER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$22.45 7
18 286838
LOWER HALF-BEARING
Green; Not for EU GS, UK 		$22.45 7
18 286838
LOWER HALF-BEARING
Green; Applicable for EU GS, UK; Applicable up to engine No. 175088 		$22.45 7
18 268871
LOWER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$24.05 7
18 200194
Lower Main Half Bearing Blue
Blue; Not for EU GS, UK
IN STOCK 		$30.47 7
18 200194
Lower Main Half Bearing Blue
Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088
IN STOCK 		$30.47 7
18 268869
LOWER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$25.66 7
18 286837
LOWER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$22.45 7
18 286837
LOWER HALF-BEARING
Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175088
IN STOCK 		$22.45 7
18 268870
LOWER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$22.45 7
19 222874
SHIM RING
Not for EU GS, UK 		$31.90 4
19 222874
SHIM RING
Applicable for EU GS, UK; Applicable up to engine No. 175088 		$31.90 4
19 261727
SHIM RING
Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089 		$10.26 4
20 176396
THREADED PLUG 		$5.35 1
