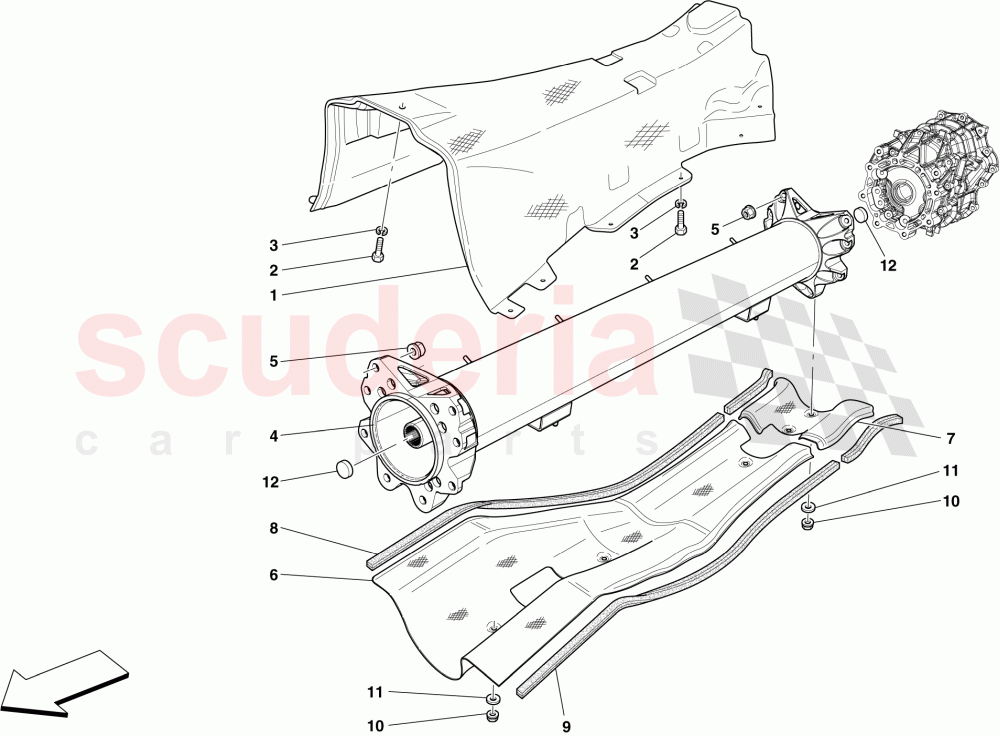

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69248100	COMPLETE TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255108	ENGINE-GEARBOX CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80209900	PIPE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210000	REAR UNDERSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144443	SHIM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69248100	COMPLETE TUNNEL HEAT SHIELD	69248100 COMPLETE TUNNEL HEAT SHIELD	-	1	Enquire
2	10902380	SCREW	10902380 SCREW	-	12	Enquire
3	12648978	WASHER	12648978 WASHER	-	12	Enquire
4	255108	ENGINE-GEARBOX CONNECTOR PIPE	255108 ENGINE-GEARBOX CONNECTOR PIPE	-	1	Enquire
5	14059421	NUT	14059421 NUT	-	15	Enquire
6	80209900	PIPE SHIELD	80209900 PIPE SHIELD	-	1	Enquire
7	80210000	REAR UNDERSHIELD	80210000 REAR UNDERSHIELD	-	1	Enquire
8	238988	GASKET	238988 GASKET	-	1	Enquire
9	238988	GASKET	238988 GASKET	-	1	Enquire
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
11	12643724	WASHER	12643724 WASHER	-	4	Enquire
12	144443	SHIM	144443 SHIM	-	2	Enquire
