BLOW-BY SYSTEM of Ferrari Ferrari 599 SA Aperta

View All

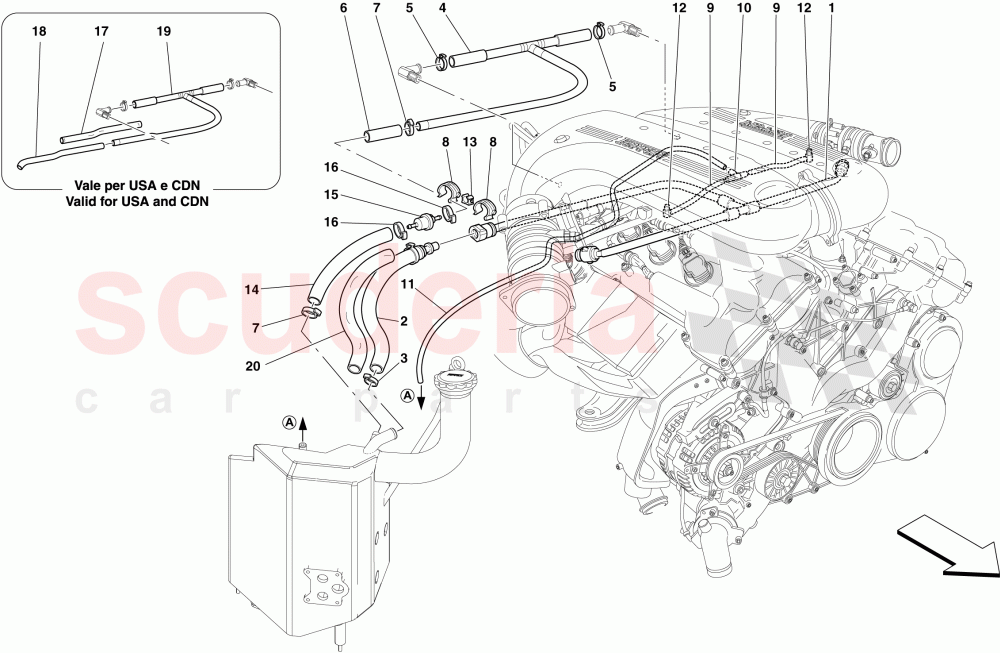

Ferrari 599 SA Aperta - BLOW-BY SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	262388	BLOW-BY PIPE	Enquire	To Order
	259689	BLOW-BY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264326	VAPOUR ASPIRATOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433370	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262387	VAPOUR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257673	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171358	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131042	RUBBER PIPE	Enquire	To Order
	277569	COMPL. BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263410	RUBBER PIPE	Enquire	To Order
	269607	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264327	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294255	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262390	HEAT REFLECTIVE SLEEVE	Enquire	To Order
	262390	HEAT REFLECTIVE SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268004	FIRST SECTION OF VAPOUR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268005	SECOND SECTION OF VAPOUR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269653	HEAT REFLECTIVE SLEEVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	262388	BLOW-BY PIPE	262388 BLOW-BY PIPE Not for USA, CDN	-	1	Enquire
1	259689	BLOW-BY PIPE	259689 BLOW-BY PIPE Applicable for USA, CDN	-	1	Enquire
2	264326	VAPOUR ASPIRATOR PIPE	264326 VAPOUR ASPIRATOR PIPE	-	1	Enquire
3	13433370	Screw Collar	13433370 Screw Collar	-	1	Enquire
4	262387	VAPOUR PIPE	262387 VAPOUR PIPE	-	1	Enquire
5	13127070	COLLAR	13127070 COLLAR	-	2	Enquire
6	257673	RUBBER PIPE	257673 RUBBER PIPE	-	1	Enquire
7	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
8	171358	FASTENER CLIP	171358 FASTENER CLIP	-	2	Enquire
9	131042	RUBBER PIPE	131042 RUBBER PIPE Not for GD	-	2	Enquire
9	277569	COMPL. BREATHER PIPE	277569 COMPL. BREATHER PIPE Applicable for GD	-	2	Enquire
10	258855	3-WAY CONNECTOR	258855 3-WAY CONNECTOR	-	1	Enquire
11	263410	RUBBER PIPE	263410 RUBBER PIPE Not for GD	-	1	Enquire
11	269607	RUBBER PIPE	269607 RUBBER PIPE Applicable for GD	-	1	Enquire
12	128016	CONNECTOR	128016 CONNECTOR Zn/white	-	2	Enquire
13	140130	CLIP	140130 CLIP	-	1	Enquire
14	264327	RUBBER PIPE	264327 RUBBER PIPE	-	1	Enquire
15	294255	CHECK VALVE	294255 CHECK VALVE	-	1	Enquire
16	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
17	262390	HEAT REFLECTIVE SLEEVE	262390 HEAT REFLECTIVE SLEEVE Not for USA, CDN	-	2	Enquire
17	262390	HEAT REFLECTIVE SLEEVE	262390 HEAT REFLECTIVE SLEEVE Applicable for USA, CDN	-	1	Enquire
18	268004	FIRST SECTION OF VAPOUR PIPE	268004 FIRST SECTION OF VAPOUR PIPE Applicable for USA, CDN	-	1	Enquire
19	268005	SECOND SECTION OF VAPOUR PIPE	268005 SECOND SECTION OF VAPOUR PIPE Applicable for USA, CDN	-	1	Enquire
20	269653	HEAT REFLECTIVE SLEEVE	269653 HEAT REFLECTIVE SLEEVE Applicable for USA, CDN	-	1	Enquire
