Name: LUBRICATION SYSTEM - TANK
Rating: 5.0 (1 reviews)

LUBRICATION SYSTEM - TANK of Ferrari Ferrari 599 SA Aperta

View All

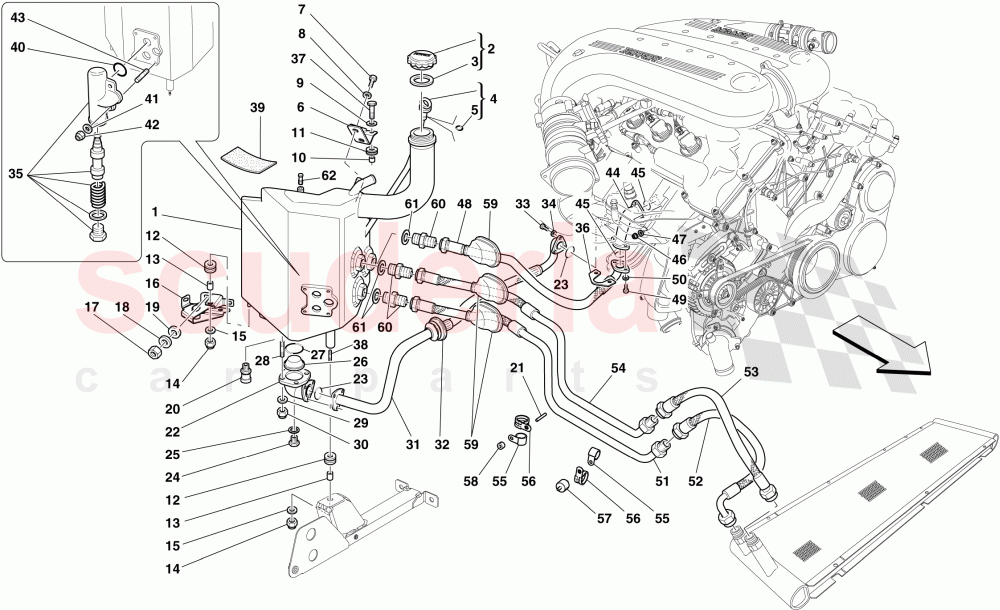

Ferrari 599 SA Aperta - LUBRICATION SYSTEM - TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	264320	OIL TANK	$3,406.55	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	$719.28	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	265206	DIPSTICK	$296.28	To Order

Photo	Part No	Description	Price (each)	Stock
	233118	O-RING D.6 X 2.2	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	252336	UPPER BRACKET	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	82657700	FRONT RH SKILLET BRACKET	$111.79	To Order
	82657400	FRONT LH SKILLET BRACKET	$111.79	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11501024	STUD BOLT	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	210914	OIL TANK PICKUP	$561.59	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$90.10	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$20.65	To Order

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING	$11.20	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	259126	OIL PIPE FROM PUMP TO PICKUP	$1,696.45	To Order

Photo	Part No	Description	Price (each)	Stock
	202151	BELLOW	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	235648	COMPLETE THERMOSTAT VALVE	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	231837	SHIELD	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	219688	OIL OUTLET PIPE	$148.22	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	259127	OIL PIPE FROM ENGINE TO TANK	$1,604.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16043524	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	225623	OIL PIPE FROM TANK TO RADIATOR	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	225628	OIL PIPE FROM TANK TO RADIATOR	$1,690.76	To Order

Photo	Part No	Description	Price (each)	Stock
	225630	OIL PIPE FROM RADIATOR TO TANK	$561.19	To Order

Photo	Part No	Description	Price (each)	Stock
	225633	OIL PIPE FROM RADIATOR TO TANK	$2,067.76	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	202152	BELLOW	$89.26	To Order

Photo	Part No	Description	Price (each)	Stock
	138150	CONNECTOR	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$41.04	To Order

Photo	Part No	Description	Price (each)	Stock
	291502	CONNECTOR	$72.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	264320	OIL TANK	264320 OIL TANK	$3,406.55	1
2	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	$719.28 MSRP: ~~822.01~~ (12.5% off)	1
3	180585	Oil Tank Cap Gasket	180585 Oil Tank Cap Gasket	$94.66 MSRP: ~~113.57~~ (16.7% off)	1
4	265206	DIPSTICK	265206 DIPSTICK	$296.28	1
5	233118	O-RING D.6 X 2.2	233118 O-RING D.6 X 2.2	$9.00	1
6	252336	UPPER BRACKET	252336 UPPER BRACKET	$27.21	1
7	10977524	SCREW	10977524 SCREW	$0.15	2
8	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
9	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	1
10	149707	SPACER	149707 SPACER	$1.17 MSRP: ~~1.75~~ (33.1% off)	1
11	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.65	1
12	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.65	2
13	149707	SPACER	149707 SPACER	$1.17 MSRP: ~~1.75~~ (33.1% off)	2
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
15	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
16	82657700	FRONT RH SKILLET BRACKET	82657700 FRONT RH SKILLET BRACKET	$111.79	1
16	82657400	FRONT LH SKILLET BRACKET	82657400 FRONT LH SKILLET BRACKET	$111.79 MSRP: ~~142.23~~ (21.4% off)	1
17	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	$0.24 MSRP: ~~0.50~~ (52% off)	2
18	12647021	WASHER	12647021 WASHER	$0.32	2
19	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
20	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
21	11501024	STUD BOLT	11501024 STUD BOLT	$1.07 MSRP: ~~5.67~~ (81.1% off)	1
22	210914	OIL TANK PICKUP	210914 OIL TANK PICKUP	$561.59 MSRP: ~~1,064.35~~ (47.2% off)	1
23	862084	GASKET	862084 GASKET	$5.61	2
24	293107	THREADED PLUG	293107 THREADED PLUG	$90.10	1
25	10261460	COPPER WASHER 16 X 24 X 1.5	10261460 COPPER WASHER 16 X 24 X 1.5	$0.36 MSRP: ~~1.00~~ (64% off)	1
26	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	$20.65	1
27	125521	O-RING	125521 O-RING	$11.20	1
28	11500524	STUD BOLT	11500524 STUD BOLT	$0.39 MSRP: ~~1.00~~ (61% off)	4
29	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
31	259126	OIL PIPE FROM PUMP TO PICKUP	259126 OIL PIPE FROM PUMP TO PICKUP	$1,696.45	1
32	202151	BELLOW	202151 BELLOW	$49.73	1
33	231619	SCREW	231619 SCREW	$0.31	3
34	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
35	235648	COMPLETE THERMOSTAT VALVE	235648 COMPLETE THERMOSTAT VALVE	$818.33	1
36	231837	SHIELD	231837 SHIELD	$59.35	1
37	231620	SCREW	231620 SCREW	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
38	11500524	STUD BOLT	11500524 STUD BOLT	$0.39 MSRP: ~~1.00~~ (61% off)	2
39	142798	RUBBER SHIM	142798 RUBBER SHIM	$1.54	2
40	139934	O-RING	139934 O-RING	$0.94 MSRP: ~~2.25~~ (58.2% off)	3
41	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
42	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
43	13540924	STUD BOLT	13540924 STUD BOLT	$39.17	4
44	219688	OIL OUTLET PIPE	219688 OIL OUTLET PIPE	$148.22	1
45	862084	GASKET	862084 GASKET	$5.61	2
46	14040711	NUT	14040711 NUT	$0.41	3
47	12604474	WASHER	12604474 WASHER	$0.06 MSRP: ~~0.10~~ (40% off)	3
48	259127	OIL PIPE FROM ENGINE TO TANK	259127 OIL PIPE FROM ENGINE TO TANK	$1,604.58	1
49	16043524	SCREW	16043524 SCREW	$0.10 MSRP: ~~0.40~~ (75% off)	2
50	12604474	WASHER	12604474 WASHER	$0.06 MSRP: ~~0.10~~ (40% off)	2
51	225623	OIL PIPE FROM TANK TO RADIATOR	225623 OIL PIPE FROM TANK TO RADIATOR	$465.32	1
52	225628	OIL PIPE FROM TANK TO RADIATOR	225628 OIL PIPE FROM TANK TO RADIATOR	$1,690.76	1
53	225630	OIL PIPE FROM RADIATOR TO TANK	225630 OIL PIPE FROM RADIATOR TO TANK	$561.19	1
54	225633	OIL PIPE FROM RADIATOR TO TANK	225633 OIL PIPE FROM RADIATOR TO TANK	$2,067.76	1
55	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.73 MSRP: ~~3.45~~ (78.8% off)	2
56	10442190	BRACKET WITH SHEATH	10442190 BRACKET WITH SHEATH	$0.78 MSRP: ~~2.25~~ (65.3% off)	2
57	102947	VIBRATION DAMPER	102947 VIBRATION DAMPER	$19.24 MSRP: ~~19.52~~ (1.4% off)	1
58	65708600	SPACER BUSHING	65708600 SPACER BUSHING	$7.52 MSRP: ~~9.85~~ (23.7% off)	1
59	202152	BELLOW	202152 BELLOW	$89.26	3
60	138150	CONNECTOR	138150 CONNECTOR	$57.75	3
61	907923	DOWTY WASHER	907923 DOWTY WASHER	$41.04	3
62	291502	CONNECTOR	291502 CONNECTOR	$72.19	1
