Name: INTAKE MANIFOLD
Rating: 5.0 (1 reviews)

INTAKE MANIFOLD of Ferrari Ferrari 599 SA Aperta

View All

Ferrari 599 SA Aperta - INTAKE MANIFOLD

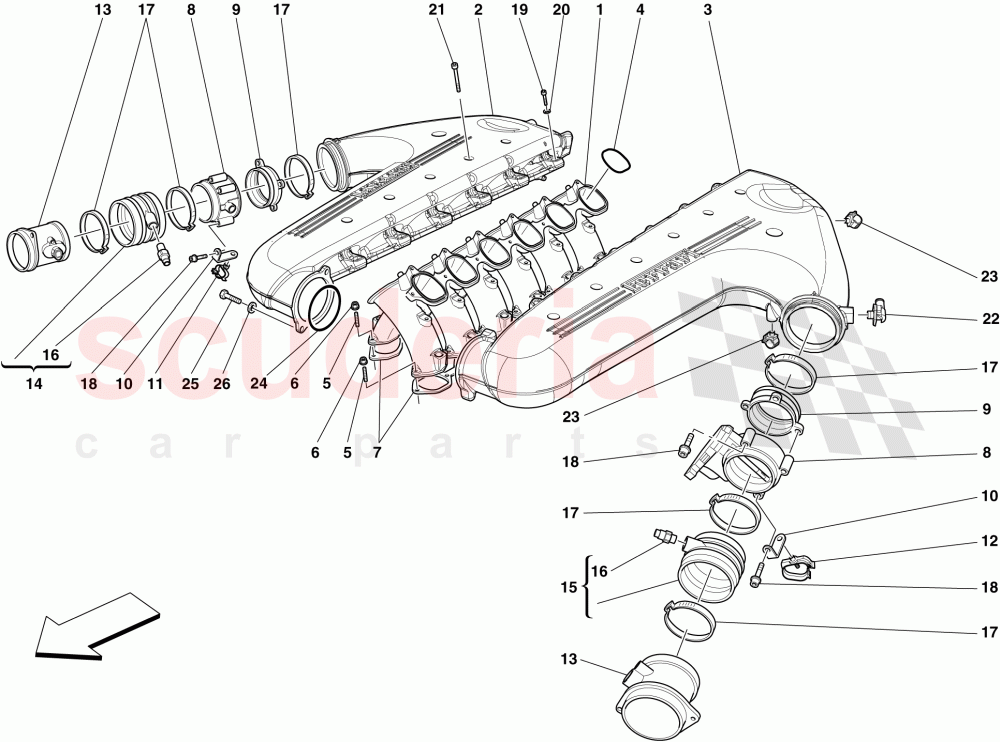

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	263798	INTAKE MANIFOLD	$4,821.80	To Order

Photo	Part No	Description	Price (each)	Stock
	263927	RH INTAKE PLENUM	$2,856.09	To Order

Photo	Part No	Description	Price (each)	Stock
	263928	LH INTAKE PLENUM	$2,495.47	To Order

Photo	Part No	Description	Price (each)	Stock
	263799	GASKET	$7.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	253809	GASKET	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	$722.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	$104.28	To Order

Photo	Part No	Description	Price (each)	Stock
	265754	BRACKET	$12.50	To Order
	219946	BRACKET	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	149773	CLIP	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149773	CLIP	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255237	AIR FLOW METER	$290.06	To Order

Photo	Part No	Description	Price (each)	Stock
	255553	RH CONNECTOR PIPE	$160.44	To Order
	255556	RH CONNECTOR PIPE	$174.03	To Order

Photo	Part No	Description	Price (each)	Stock
	255554	LH CONNECTOR PIPE	$160.44	To Order
	255558	LH CONNECTOR PIPE	$174.03	To Order

Photo	Part No	Description	Price (each)	Stock
	209132	CONNECTOR	Enquire	To Order
	203150	CONNECTOR	$47.04	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	$3.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519478	WASHER	$8.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	216771	SCREW M6 X 75 TCEI	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243208	CONNECTOR	$24.05	To Order
	243207	CONNECTOR	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	$3.57	To Order
	222072	CLIP	$3.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263800	GASKET	$15.87	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	263798	INTAKE MANIFOLD	263798 INTAKE MANIFOLD	$4,821.80	6
2	263927	RH INTAKE PLENUM	263927 RH INTAKE PLENUM	$2,856.09	1
3	263928	LH INTAKE PLENUM	263928 LH INTAKE PLENUM	$2,495.47	1
4	263799	GASKET	263799 GASKET	$7.84	12
5	11500524	STUD BOLT	11500524 STUD BOLT	$0.37 MSRP: ~~1.00~~ (63% off)	22
6	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	48
7	253809	GASKET	253809 GASKET	$10.10	4
8	331005	THROTTLE BODY IN STOCK	331005 THROTTLE BODY IN STOCK	$722.05	2
9	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	$104.28 MSRP: ~~178.74~~ (41.7% off)	2
10	265754	BRACKET	265754 BRACKET Not for USA, CDN	$12.50	2
10	219946	BRACKET	219946 BRACKET Applicable for USA, CDN	$4.15 MSRP: ~~6.50~~ (36.2% off)	2
11	149773	CLIP IN STOCK	149773 CLIP IN STOCK	$0.42	1
12	149773	CLIP IN STOCK	149773 CLIP IN STOCK	$0.42	1
13	255237	AIR FLOW METER	255237 AIR FLOW METER	$290.06	2
14	255553	RH CONNECTOR PIPE	255553 RH CONNECTOR PIPE Not for USA, CDN	$160.44	1
14	255556	RH CONNECTOR PIPE	255556 RH CONNECTOR PIPE Applicable for USA, CDN	$174.03	1
15	255554	LH CONNECTOR PIPE	255554 LH CONNECTOR PIPE Not for USA, CDN	$160.44	1
15	255558	LH CONNECTOR PIPE	255558 LH CONNECTOR PIPE Applicable for USA, CDN	$174.03	1
16	209132	CONNECTOR	209132 CONNECTOR Not for USA, CDN	-	2	Enquire
16	203150	CONNECTOR	203150 CONNECTOR Applicable for USA, CDN	$47.04	2
17	190151	Clamp IN STOCK	190151 Clamp IN STOCK	$3.68 MSRP: ~~4.20~~ (12.4% off)	6
18	231624	SCREW IN STOCK	231624 SCREW L. 45 mm IN STOCK	$0.44	8
19	231620	SCREW IN STOCK	231620 SCREW L. 30 mm IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	12
20	10519478	WASHER IN STOCK	10519478 WASHER IN STOCK	$8.22 MSRP: ~~14.96~~ (45.1% off)	12
21	216771	SCREW M6 X 75 TCEI IN STOCK	216771 SCREW M6 X 75 TCEI IN STOCK	$2.20	12
22	243208	CONNECTOR	243208 CONNECTOR	$24.05	1
22	243207	CONNECTOR	243207 CONNECTOR	$20.84	1
23	198253	CLIP	198253 CLIP D. 14	$3.57 MSRP: ~~3.85~~ (7.3% off)	2
23	222072	CLIP IN STOCK	222072 CLIP D. 18 IN STOCK	$3.36	2
24	263800	GASKET	263800 GASKET	$15.87	1
25	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	2
26	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2

Intake Manifold

Ferrari 599 SA Aperta

Ferrari 599 SA Aperta - INTAKE MANIFOLD
