STRUCTURES AND ELEMENTS, REAR OF VEHICLE

Find Your Part

Ferrari 599 GTB Fiorano - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985195250 REAR MODULE $13,600.56 To Order
Photo Part No Description Price (each) Stock
69003511 LUGGAGE SHELF $1,684.81 To Order
69259611 LUGGAGE SHELF $1,919.08 To Order
69260011 LUGGAGE SHELF $1,651.12 To Order
Photo Part No Description Price (each) Stock
68770911 RH REAR SHIELD $372.69 To Order
68771011 LH REAR SHIELD $372.69 To Order
Photo Part No Description Price (each) Stock
69003911 REAR BRACKET $78.61 To Order
Photo Part No Description Price (each) Stock
68770711 RH LATERAL SHIELD $372.69 To Order
68770811 LH LATERAL SHIELD $372.69 To Order
Photo Part No Description Price (each) Stock
68059611 RH REAR FLANK $106.73 To Order
68059711 LH REAR FLANK $641.82 To Order
Photo Part No Description Price (each) Stock
68059911 REAR CORNER PIECE $44.91 To Order
Photo Part No Description Price (each) Stock
68059811 RH FRONT CORNER PIECE $52.94 To Order
69017211 LH FRONT CORNER PIECE $52.94 To Order
Photo Part No Description Price (each) Stock
985223102 RH REAR LATERAL MODULE $8,620.79 To Order
Photo Part No Description Price (each) Stock
985223103 LH REAR LATERAL MODULE $8,620.79 To Order
Photo Part No Description Price (each) Stock
985221742 CROSS MEMBER $1,075.06 To Order
Photo Part No Description Price (each) Stock
985223670 RH ARM $401.34 To Order
Photo Part No Description Price (each) Stock
985223669 LH ARM $529.50 To Order
Photo Part No Description Price (each) Stock
985195235 LH UPPER DIAGONAL BRACE $192.54 To Order
Photo Part No Description Price (each) Stock
68784300 AIR DUCT $818.33 To Order
Photo Part No Description Price (each) Stock
68785911 FLAT UNDERTRAY FASTENER BRACKET $73.80 To Order
Photo Part No Description Price (each) Stock
985217435 LUGGAGE COMPARTMENT SILL PANEL $545.55 To Order
Photo Part No Description Price (each) Stock
69138511 COMPLETE SPARE WHEEL TRAY $1,477.43 To Order
Photo Part No Description Price (each) Stock
985205731 LH LOWER DIAGONAL BRACE $449.27 To Order
Photo Part No Description Price (each) Stock
68551511 RH REAR TRELLIS $1,123.20 To Order
Photo Part No Description Price (each) Stock
68551611 LH REAR TRELLIS $1,123.20 To Order
Photo Part No Description Price (each) Stock
68053111 RH LATERAL FLOOR $125.14 To Order
Photo Part No Description Price (each) Stock
68053211 LH LATERAL FLOOR $125.14 To Order
Photo Part No Description Price (each) Stock
187303 R.H. REINFORCEMENT $57.75 To Order
Photo Part No Description Price (each) Stock
985187302 LH REINFORCEMENT $224.63 To Order
Photo Part No Description Price (each) Stock
985205754 REAR CROSS MEMBER $1,412.03 To Order
Photo Part No Description Price (each) Stock
985212086 REAR BULKHEAD SHIELD $1,155.29 To Order
Photo Part No Description Price (each) Stock
985189265 GEARBOX TRELLIS $6,158.43 To Order
Photo Part No Description Price (each) Stock
68555511 RH REAR WHEELHOUSE $793.01 To Order
Photo Part No Description Price (each) Stock
68555611 LH REAR WHEELHOUSE $858.28 To Order
68780511 LH REAR WHEELHOUSE $1,080.80 To Order
Photo Part No Description Price (each) Stock
68054211 RH REAR LATERAL PARTITION $104.28 To Order
Photo Part No Description Price (each) Stock
68054311 LH REAR LATERAL PARTITION $88.24 To Order
Photo Part No Description Price (each) Stock
985187308 REAR SHOCK TOWER CONNECTION CROSS MEMBER $1,976.85 To Order
View All

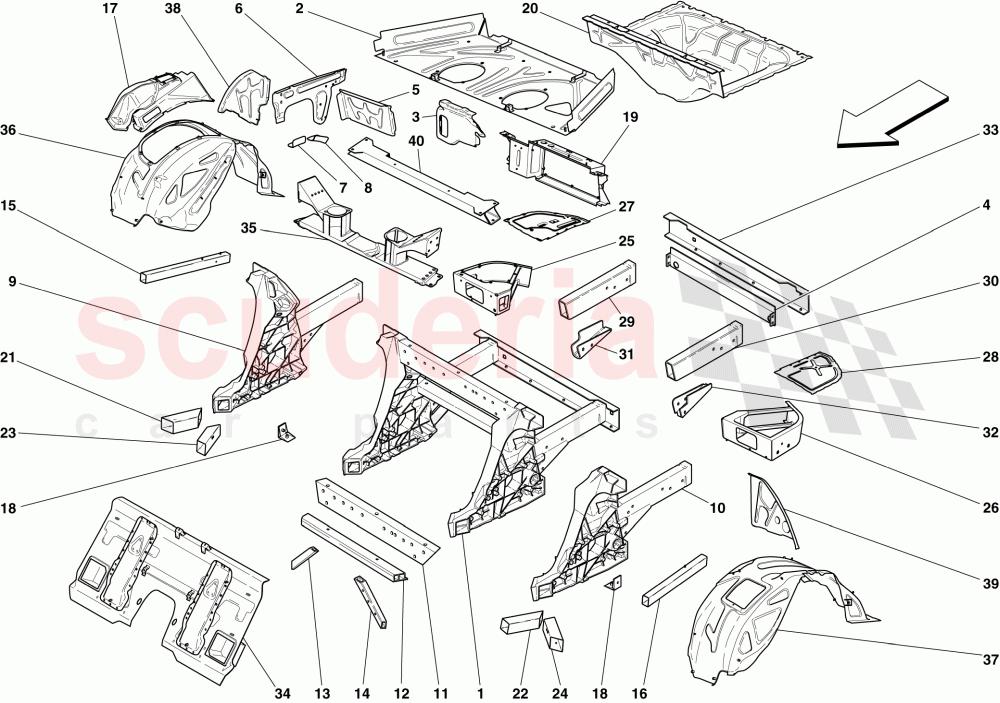

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985195250
REAR MODULE
Request SAT authorisation 		$13,600.56 1
2 69003511
LUGGAGE SHELF
Standard; Not for USA, CDN 		$1,684.81 1
2 69259611
LUGGAGE SHELF
Version with rollbar; Not for AUS, USA, CDN 		$1,919.08 1
2 69260011
LUGGAGE SHELF
Applicable for USA, CDN 		$1,651.12 1
3 68770911
RH REAR SHIELD 		$372.69 1
3 68771011
LH REAR SHIELD 		$372.69 1
4 69003911
REAR BRACKET 		$78.61 1
5 68770711
RH LATERAL SHIELD 		$372.69 1
5 68770811
LH LATERAL SHIELD 		$372.69 1
6 68059611
RH REAR FLANK 		$106.73 1
6 68059711
LH REAR FLANK 		$641.82 1
7 68059911
REAR CORNER PIECE 		$44.91 2
8 68059811
RH FRONT CORNER PIECE 		$52.94 1
8 69017211
LH FRONT CORNER PIECE 		$52.94 1
9 985223102
RH REAR LATERAL MODULE 		$8,620.79 1
10 985223103
LH REAR LATERAL MODULE 		$8,620.79 1
11 985221742
CROSS MEMBER 		$1,075.06 1
13 985223670
RH ARM 		$401.34 1
14 985223669
LH ARM 		$529.50 1
16 985195235
LH UPPER DIAGONAL BRACE 		$192.54 1
17 68784300
AIR DUCT 		$818.33 1
18 68785911
FLAT UNDERTRAY FASTENER BRACKET 		$73.80 2
19 985217435
LUGGAGE COMPARTMENT SILL PANEL 		$545.55 1
20 69138511
COMPLETE SPARE WHEEL TRAY 		$1,477.43 1
22 985205731
LH LOWER DIAGONAL BRACE 		$449.27 1
25 68551511
RH REAR TRELLIS 		$1,123.20 1
26 68551611
LH REAR TRELLIS 		$1,123.20 1
27 68053111
RH LATERAL FLOOR 		$125.14 1
28 68053211
LH LATERAL FLOOR 		$125.14 1
31 187303
R.H. REINFORCEMENT 		$57.75 1
32 985187302
LH REINFORCEMENT 		$224.63 1
33 985205754
REAR CROSS MEMBER 		$1,412.03 1
34 985212086
REAR BULKHEAD SHIELD 		$1,155.29 1
35 985189265
GEARBOX TRELLIS 		$6,158.43 1
36 68555511
RH REAR WHEELHOUSE 		$793.01 1
37 68555611
LH REAR WHEELHOUSE
Not for F1 gearbox 		$858.28 1
37 68780511
LH REAR WHEELHOUSE
Applicable for F1 gearbox 		$1,080.80 1
38 68054211
RH REAR LATERAL PARTITION 		$104.28 1
39 68054311
LH REAR LATERAL PARTITION 		$88.24 1
40 985187308
REAR SHOCK TOWER CONNECTION CROSS MEMBER 		$1,976.85 1
