Ferrari 599 GTB Fiorano - REAR EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220193 RH REAR SILENCER Enquire To Order
220193 RH REAR SILENCER Enquire To Order
246940 RH REAR SILENCER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
220194 LH REAR SILENCER Enquire To Order
220194 LH REAR SILENCER Enquire To Order
246941 LH REAR SILENCER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16044124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
222366 LH FRONT BRACKET Enquire To Order
222364 RH FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
222367 LH REAR BRACKET Enquire To Order
222365 RH REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
199731 VIBRATION DAMPER MOUNTING Enquire To Order
199731 VIBRATION DAMPER MOUNTING Enquire To Order
226357 VIBRATION DAMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
217349 RH CENTRAL EXTENSION Enquire To Order
Photo Part No Description Price (each) Stock
217350 LH CENTRAL EXTENSION Enquire To Order
Photo Part No Description Price (each) Stock
223224 CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
220196 LH BRACKET Enquire To Order
220195 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
175283 Nut Enquire To Order
Photo Part No Description Price (each) Stock
279272 RH REAR SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
279271 LH REAR SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
196105 SILENCER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
196106 SILENCER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13578305 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
175283 Nut Enquire To Order
Photo Part No Description Price (each) Stock
199075 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14048327 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12626024 WASHER Enquire To Order
View All

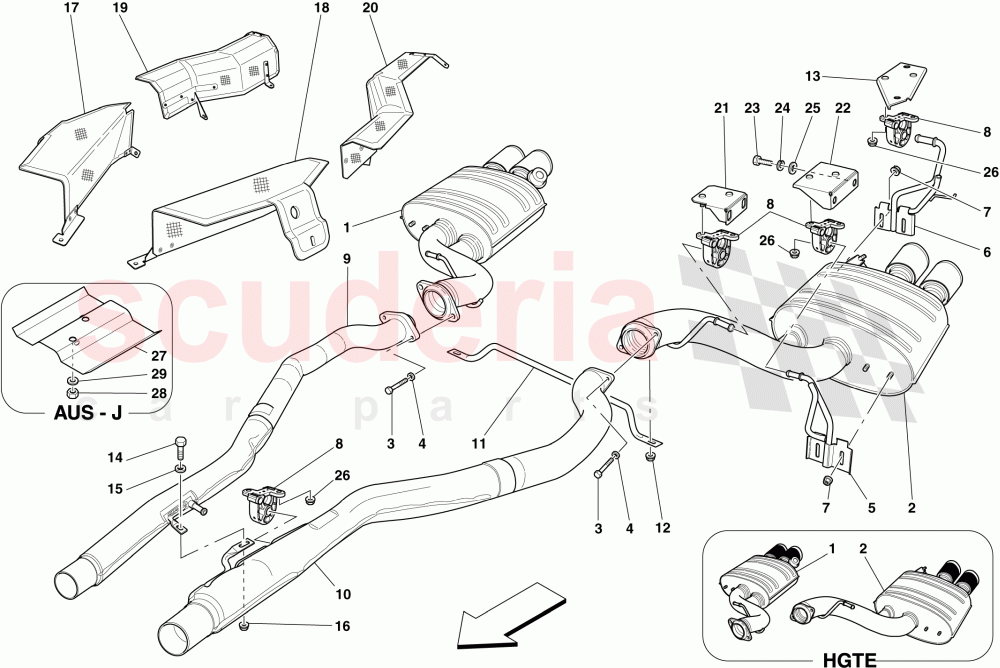

REAR EXHAUST SYSTEM of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220193
RH REAR SILENCER
Not for J 		- 1 Enquire
1 220193
RH REAR SILENCER
Applicable for J; Applicable up to Ass. No. 77275 		- 1 Enquire
1 246940
RH REAR SILENCER
Not for J 		- 1 Enquire
1 246940
RH REAR SILENCER
Applicable for J; Applicable from Ass. No. 77276 		- 1 Enquire
1 256987
RH REAR SILENCER
Applicable for HGTE and HGTE 60 F1 versions; Not for J 		- 1 Enquire
1 257949
RH REAR SILENCER
Applicable for HGTE and HGTE 60 F1 versions; Applicable for J 		- 1 Enquire
2 220194
LH REAR SILENCER
Not for J 		- 1 Enquire
2 220194
LH REAR SILENCER
Applicable for J; Applicable up to Ass. No. 77275 		- 1 Enquire
2 246941
LH REAR SILENCER
Not for J 		- 1 Enquire
2 246941
LH REAR SILENCER
Applicable for J; Applicable from Ass. No. 77276 		- 1 Enquire
2 256988
LH REAR SILENCER
Applicable for HGTE and HGTE 60 F1 versions; Not for J 		- 1 Enquire
2 257950
LH REAR SILENCER
Applicable for HGTE and HGTE 60 F1 versions; Applicable for J 		- 1 Enquire
3 16044124
SCREW 		- 4 Enquire
4 127496
WASHER 		- 4 Enquire
5 222366
LH FRONT BRACKET 		- 1 Enquire
5 222364
RH FRONT BRACKET 		- 1 Enquire
6 222367
LH REAR BRACKET 		- 1 Enquire
6 222365
RH REAR BRACKET 		- 1 Enquire
7 14059311
NUT 		- 8 Enquire
8 199731
VIBRATION DAMPER MOUNTING
Applicable up to Ass. No. 70374 		- 7 Enquire
8 199731
VIBRATION DAMPER MOUNTING
Applicable from Ass. No. 70375 		- 3 Enquire
8 226357
VIBRATION DAMPER MOUNTING
Applicable from Ass. No. 70375 		- 4 Enquire
9 217349
RH CENTRAL EXTENSION 		- 1 Enquire
10 217350
LH CENTRAL EXTENSION 		- 1 Enquire
11 223224
CROSS MEMBER 		- 1 Enquire
12 14059311
NUT 		- 2 Enquire
13 220196
LH BRACKET 		- 1 Enquire
13 220195
RH BRACKET 		- 1 Enquire
14 14306924
SCREW 		- 1 Enquire
15 84653800
WASHER 		- 1 Enquire
16 175283
Nut 		- 1 Enquire
19 279272
RH REAR SHIELD 		- 1 Enquire
20 279271
LH REAR SHIELD 		- 1 Enquire
21 196105
SILENCER MOUNTING BRACKET 		- 2 Enquire
22 196106
SILENCER MOUNTING BRACKET 		- 2 Enquire
23 14306924
SCREW 		- 12 Enquire
24 13578305
WASHER 		- 12 Enquire
25 12601374
WASHER 		- 12 Enquire
26 175283
Nut 		- 14 Enquire
27 199075
HEAT SHIELD
Applicable for AUS, J 		- 1 Enquire
28 14048327
NUT
Applicable for AUS, J 		- 2 Enquire
29 12626024
WASHER
Applicable for AUS, J 		- 2 Enquire
