Ferrari 599 GTB Fiorano - DOORS - POWER WINDOWS AND REAR-VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68040400 RH SIDE WINDOW Enquire To Order
68040500 LH SIDE WINDOW Enquire To Order
Photo Part No Description Price (each) Stock
67131100 RH WINDOW LIFTER Enquire To Order
67131200 LH WINDOW LIFTER Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68568110 RH EXTERNAL MIRROR Enquire To Order
69129810 RH EXTERNAL MIRROR Enquire To Order
69134410 RH EXTERNAL MIRROR Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68577600 RH GASKET Enquire To Order
68577700 LH GASKET Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
16285224 SCREW Enquire To Order
81591700 SCREW Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT Enquire To Order
Photo Part No Description Price (each) Stock
68559600 RH INTERNAL SURROUND Enquire To Order
68559700 LH INTERNAL SURROUND Enquire To Order
Photo Part No Description Price (each) Stock
69376100 RH BRACKET Enquire To Order
69376200 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14184374 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
69895900 RH EXTERNAL REAR VIEW MIRROR GLASS Enquire To Order
69896000 RH EXTERNAL REAR VIEW MIRROR GLASS Enquire To Order
69896200 RH EXTERNAL REAR VIEW MIRROR GLASS Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69969500 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68723000 EXTERNAL TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
65134500 SPACER BUSHING Enquire To Order
View All

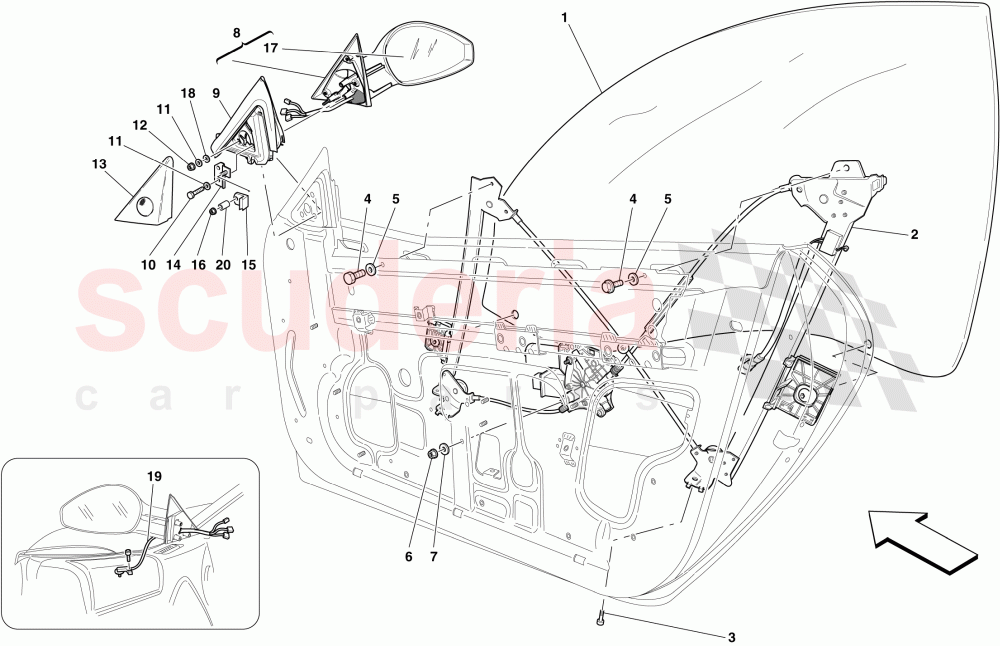

DOORS - POWER WINDOWS AND REAR-VIEW MIRROR of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68040400
RH SIDE WINDOW 		- 1 Enquire
1 68040500
LH SIDE WINDOW 		- 1 Enquire
2 67131100
RH WINDOW LIFTER 		- 1 Enquire
2 67131200
LH WINDOW LIFTER 		- 1 Enquire
3 248334
SCREW M6 X 14MM 		- 4 Enquire
4 10902224
SCREW 		- 4 Enquire
5 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
6 14059290
FLANGED NUT M6 		- 6 Enquire
7 12643724
WASHER 		- 6 Enquire
8 68568110
RH EXTERNAL MIRROR
Standard; Not for USA, CDN, GD 		- 1 Enquire
8 69129810
RH EXTERNAL MIRROR
Standard; Applicable for USA, CDN 		- 1 Enquire
8 69134410
RH EXTERNAL MIRROR
Standard; Applicable for GD 		- 1 Enquire
8 69704910
RH EXTERNAL MIRROR
Full electric version; Not for USA, CDN, GD 		- 1 Enquire
8 69705110
RH EXTERNAL MIRROR
Full electric version; Applicable for USA, CDN 		- 1 Enquire
8 69705310
RH EXTERNAL MIRROR
Full electric version; Applicable for GD 		- 1 Enquire
8 68568210
LH EXTERNAL MIRROR
Standard; Not for USA, CDN, GD 		- 1 Enquire
8 69129910
LH EXTERNAL MIRROR
Standard; Applicable for USA, CDN 		- 1 Enquire
8 69134510
LH EXTERNAL MIRROR
Standard; Applicable for GD 		- 1 Enquire
8 69705010
LH EXTERNAL MIRROR
Full electric version; Not for USA, CDN, GD 		- 1 Enquire
8 69705210
LH EXTERNAL MIRROR
Full electric version; Applicable for USA, CDN 		- 1 Enquire
8 69705410
LH EXTERNAL MIRROR
Full electric version; Applicable for GD 		- 1 Enquire
9 68577600
RH GASKET 		- 1 Enquire
9 68577700
LH GASKET 		- 1 Enquire
10 11568124
SCREW
M5 X 16; No longer supplied; Replaced by 16285224 		- 4 Enquire

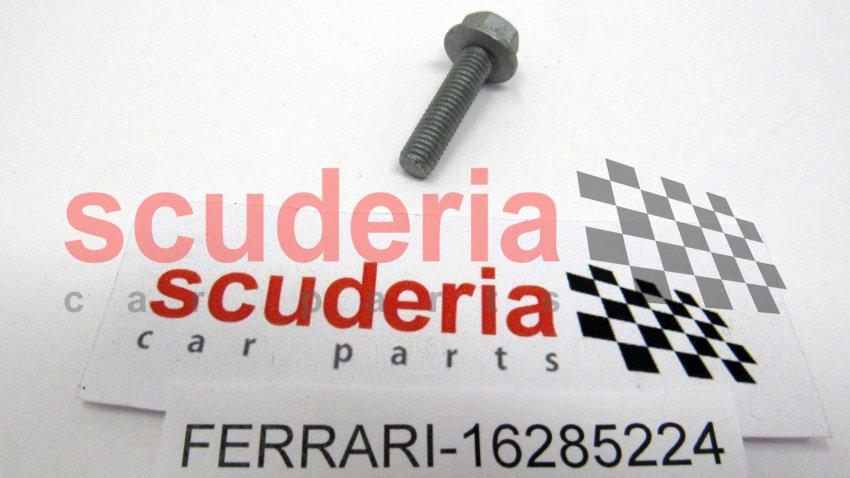

10 16285224
SCREW
M5 X 20; No longer supplied; Replaced by 169815 		- 4 Enquire
10 81591700
SCREW
M5 X 20; No longer supplied; Replaced by 10978024 		- 4 Enquire
10 10978024
SCREW
M5 X 20 		- 4 Enquire
10 80217200
SCREW
M4 X 8 		- 4 Enquire
11 860172
WASHER 		- 6 Enquire
12 13046011
NUT 		- 2 Enquire
13 68559600
RH INTERNAL SURROUND 		- 1 Enquire
13 68559700
LH INTERNAL SURROUND 		- 1 Enquire
14 69376100
RH BRACKET 		- 1 Enquire
14 69376200
LH BRACKET 		- 1 Enquire
15 14184374
CLIP 		- 2 Enquire
16 14059211
NUT 		- 2 Enquire
17 69895900
RH EXTERNAL REAR VIEW MIRROR GLASS
Not for USA, CDN, GD 		- 1 Enquire
17 69896000
RH EXTERNAL REAR VIEW MIRROR GLASS
Applicable for USA, CDN 		- 1 Enquire
17 69896200
RH EXTERNAL REAR VIEW MIRROR GLASS
Applicable for GD 		- 1 Enquire
17 69895700
LH EXTERNAL REAR VIEW MIRROR GLASS
Not for USA, CDN, GD 		- 1 Enquire
17 69895800
LH EXTERNAL REAR VIEW MIRROR GLASS
Applicable for USA, CDN 		- 1 Enquire
17 69896100
LH EXTERNAL REAR VIEW MIRROR GLASS
Applicable for GD 		- 1 Enquire
18 69969500
WASHER 		- 2 Enquire
19 68723000
EXTERNAL TEMPERATURE SENSOR 		- 1 Enquire
20 65134500
SPACER BUSHING 		- 2 Enquire
