DOORS - SUBSTRUCTURE AND TRIM of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - DOORS - SUBSTRUCTURE AND TRIM

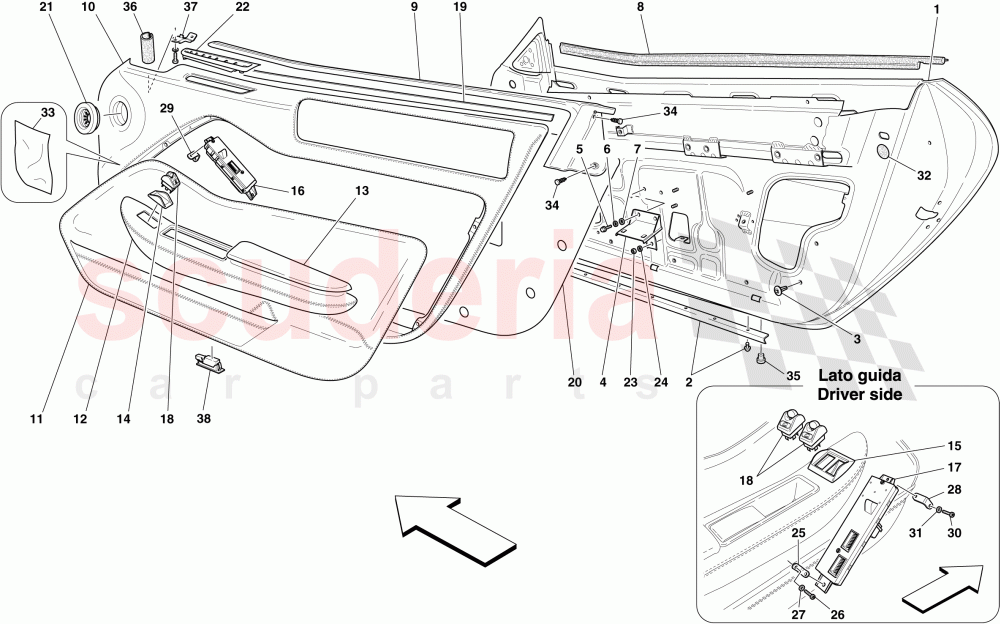

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68058411	RH DOOR BODYWORK	Enquire	To Order
	68058511	LH DOOR BODYWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67131000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67302800	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67108200	ARMREST FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67584200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67129400	RH EXTERNAL WINDOW SCRAPER	Enquire	To Order
	67129500	LH EXTERNAL WINDOW SCRAPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68560100	RH INTERNAL WINDOW SCRAPER	Enquire	To Order
	68560200	LH INTERNAL WINDOW SCRAPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68782812	R.H.DOOR PANEL BLACK	Enquire	To Order
	82708612	RH DOOR PANEL	Enquire	To Order
	68782900	LH DOOR PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68773600	CENTRE RH PANEL	Enquire	To Order
	69259212	R.H.CENTRAL PANEL	Enquire	To Order
	82341712	CENTRE RH PANEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68558900	RH ARMREST	Enquire	To Order
	80202200	RH ARMREST	Enquire	To Order
	69132100	RH ARMREST	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68559100	RH CUSHION	Enquire	To Order
	68559200	LH CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68560500	RH SEAT BELT SLOT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68560600	LH SEAT BELT SLOT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68560000	RH WINDOW SCRAPER	Enquire	To Order
	68559900	LH WINDOW SCRAPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67131700	RH WATERPROOF MEMBRANE	Enquire	To Order
	67131800	LH WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80289400	RH AIR VENT	Enquire	To Order
	80289500	LH AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204790	INFERIOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204792	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204791	UPPER BRACKET	Enquire	To Order
	217872	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84832400	ADHESIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69968300	RH WATERPROOF MEMBRANE	Enquire	To Order
	69968400	LH WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178949	Trim Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69101000	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68559800	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	68058411	RH DOOR BODYWORK	68058411 RH DOOR BODYWORK	-	1	Enquire
1	68058511	LH DOOR BODYWORK	68058511 LH DOOR BODYWORK	-	1	Enquire
2	67131000	GASKET	67131000 GASKET	-	2	Enquire
3	67302800	BUSHING	67302800 BUSHING	-	8	Enquire
4	67108200	ARMREST FASTENER BRACKET	67108200 ARMREST FASTENER BRACKET	-	2	Enquire
5	16285224	SCREW	16285224 SCREW M5 X 20	-	4	Enquire
6	67584200	WASHER	67584200 WASHER	-	4	Enquire
7	13577724	WASHER	13577724 WASHER	-	4	Enquire
8	67129400	RH EXTERNAL WINDOW SCRAPER	67129400 RH EXTERNAL WINDOW SCRAPER	-	1	Enquire
8	67129500	LH EXTERNAL WINDOW SCRAPER	67129500 LH EXTERNAL WINDOW SCRAPER	-	1	Enquire
9	68560100	RH INTERNAL WINDOW SCRAPER	68560100 RH INTERNAL WINDOW SCRAPER	-	1	Enquire
9	68560200	LH INTERNAL WINDOW SCRAPER	68560200 LH INTERNAL WINDOW SCRAPER	-	1	Enquire
10	68782812	R.H.DOOR PANEL BLACK	68782812 R.H.DOOR PANEL BLACK	-	1	Enquire
10	82708612	RH DOOR PANEL	82708612 RH DOOR PANEL Formula 1 technical fabric; Applicable for HGTE 60 F1 version	-	1	Enquire
10	68782900	LH DOOR PANEL	68782900 LH DOOR PANEL	-	1	Enquire
10	82710512	LH DOOR PANEL	82710512 LH DOOR PANEL Formula 1 technical fabric; Applicable for HGTE 60 F1 version	-	1	Enquire
11	68773600	CENTRE RH PANEL	68773600 CENTRE RH PANEL Version in leather	-	1	Enquire
11	69259212	R.H.CENTRAL PANEL	69259212 R.H.CENTRAL PANEL Version in carbon with leather lined pocket	-	1	Enquire
11	82341712	CENTRE RH PANEL	82341712 CENTRE RH PANEL Applicable for HGTE version	-	1	Enquire
11	84742600	CENTRE RH PANEL	84742600 CENTRE RH PANEL HGTE 60 F1 version	-	1	Enquire
11	68773700	LH CENTRE PANEL	68773700 LH CENTRE PANEL Version in leather	-	1	Enquire
11	69259300	LH CENTRE PANEL	69259300 LH CENTRE PANEL Version in carbon with leather lined pocket	-	1	Enquire
11	82342212	L.H.CENTRAL PANEL	82342212 L.H.CENTRAL PANEL Applicable for HGTE version	-	1	Enquire
11	84742900	LH CENTRE PANEL	84742900 LH CENTRE PANEL HGTE 60 F1 version	-	1	Enquire
12	68558900	RH ARMREST	68558900 RH ARMREST Not for GD; Applicable up to Ass. No. 69157	-	1	Enquire
12	80202200	RH ARMREST	80202200 RH ARMREST Not for GD; Applicable from Ass. No. 69158	-	1	Enquire
12	69132100	RH ARMREST	69132100 RH ARMREST Applicable for GD; Applicable up to Ass. No. 69157	-	1	Enquire
12	80202800	RH ARMREST	80202800 RH ARMREST Applicable for GD; Applicable from Ass. No. 69158	-	1	Enquire
12	82340312	RH ARMREST	82340312 RH ARMREST HGTE and HGTE 60 F1 versions; Not for GD	-	1	Enquire
12	82342612	RH ARMREST	82342612 RH ARMREST HGTE and HGTE 60 F1 versions; Applicable for GD	-	1	Enquire
12	68559000	LH ARMREST	68559000 LH ARMREST Not for GD; Applicable up to Ass. No. 69157	-	1	Enquire
12	80202500	LH ARMREST	80202500 LH ARMREST Not for GD; Applicable from Ass. No. 69158	-	1	Enquire
12	69132200	LH ARMREST	69132200 LH ARMREST Applicable for GD; Applicable up to Ass. No. 69157	-	1	Enquire
12	80203000	LH ARMREST	80203000 LH ARMREST Applicable for GD; Applicable from Ass. No. 69158	-	1	Enquire
12	82340412	L.H. ARM REST	82340412 L.H. ARM REST HGTE and HGTE 60 F1 versions; Not for GD	-	1	Enquire
12	82343012	LH ARMREST	82343012 LH ARMREST HGTE and HGTE 60 F1 versions; Applicable for GD	-	1	Enquire
13	68559100	RH CUSHION	68559100 RH CUSHION Applicable up to Ass. No. 69157	-	1	Enquire
13	68559200	LH CUSHION	68559200 LH CUSHION Applicable up to Ass. No. 69157	-	1	Enquire
14	68560500	RH SEAT BELT SLOT SURROUND	68560500 RH SEAT BELT SLOT SURROUND	-	1	Enquire
15	68560600	LH SEAT BELT SLOT SURROUND	68560600 LH SEAT BELT SLOT SURROUND	-	1	Enquire
19	68560000	RH WINDOW SCRAPER	68560000 RH WINDOW SCRAPER	-	1	Enquire
19	68559900	LH WINDOW SCRAPER	68559900 LH WINDOW SCRAPER	-	1	Enquire
20	67131700	RH WATERPROOF MEMBRANE	67131700 RH WATERPROOF MEMBRANE	-	1	Enquire
20	67131800	LH WATERPROOF MEMBRANE	67131800 LH WATERPROOF MEMBRANE	-	1	Enquire
22	80289400	RH AIR VENT	80289400 RH AIR VENT Soft touch black version; Applicable from Ass. No. 73897	-	1	Enquire
22	80289500	LH AIR VENT	80289500 LH AIR VENT Soft touch black version; Applicable from Ass. No. 73897	-	1	Enquire
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
24	12643724	WASHER	12643724 WASHER	-	2	Enquire
25	204790	INFERIOR BRACKET	204790 INFERIOR BRACKET	-	2	Enquire
26	13273911	SCREW	13273911 SCREW	-	2	Enquire
27	12637824	WASHER	12637824 WASHER	-	2	Enquire
28	204792	UPPER BRACKET	204792 UPPER BRACKET Driver side	-	1	Enquire
29	204791	UPPER BRACKET	204791 UPPER BRACKET Passenger side; Not for GD	-	1	Enquire
29	217872	UPPER BRACKET	217872 UPPER BRACKET Passenger side; Applicable for GD	-	1	Enquire
30	13273911	SCREW	13273911 SCREW	-	2	Enquire
31	12637824	WASHER	12637824 WASHER	-	2	Enquire
32	84832400	ADHESIVE CAP	84832400 ADHESIVE CAP	-	2	Enquire
33	69968300	RH WATERPROOF MEMBRANE	69968300 RH WATERPROOF MEMBRANE	-	1	Enquire
33	69968400	LH WATERPROOF MEMBRANE	69968400 LH WATERPROOF MEMBRANE	-	1	Enquire
34	178949	Trim Screw	178949 Trim Screw	-	2	Enquire
35	69101000	RUBBER	69101000 RUBBER	-	2	Enquire
36	255515	BUSH	255515 BUSH 100 X 50	-	2	Enquire
37	68559800	BRACKET	68559800 BRACKET	-	2	Enquire
38	188250	DOME LAMP UNIT ARRIVING SOON	188250 DOME LAMP UNIT ARRIVING SOON	-	2	Enquire
