STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

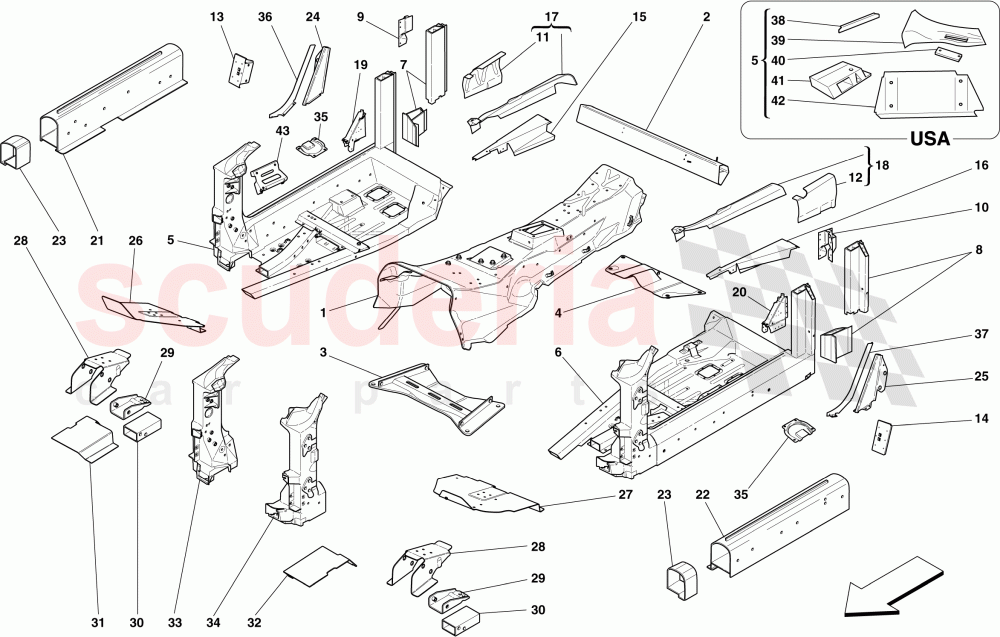

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985195256	TUNNEL	Enquire	To Order
	985226378	TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985206261	TANK CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216839	UNDER EXHAUSTS PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985187276	STRUCTURE CONNECTOR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985195252	RH CENTRAL LATERAL WALL	Enquire	To Order
	985260477	RH CENTRAL LATERAL WALL	Enquire	To Order
	985212492	RH CENTRAL LATERAL WALL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985195251	LH CENTRAL LATERAL WALL	Enquire	To Order
	985260476	LH CENTRAL LATERAL WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985196327	COMPLETE RH REAR PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985196269	COMPLETE LH REAR PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985214614	RH UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985214612	LH UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67103211	RH END-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67103311	LH END-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68555100	RH STRIKER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68555200	LH STRIKER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68044711	RH REAR CORNER PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68044811	LH REAR CORNER PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68771611	RH OUTER REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68771711	LH OUTER REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985214142	RH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985213940	LH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985211909	RH SILL	Enquire	To Order
	985260480	RH SILL	Enquire	To Order
	260480	RH SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985211908	LH SILL	Enquire	To Order
	985260479	LH SILL	Enquire	To Order
	260479	LH SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67133411	RH END-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67133511	LH END-PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985222147	FRONT RH FIREWALL FOOTREST	Enquire	To Order
	985222146	FRONT RH FIREWALL FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985218156	FRONT LH FIREWALL FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187287	FRONT COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192814	LOWER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985192815	BENT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985187338	RH ROOF BEAM JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985187337	LH ROOF BEAM JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985223100	COMPLETE RH FRONT DOOR PILLAR	Enquire	To Order
	985278942	COMPLETE RH FRONT DOOR PILLAR	Enquire	To Order
	278942	COMPLETE RH FRONT DOOR PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985223101	COMPLETE LH FRONT DOOR PILLAR	Enquire	To Order
	985278943	COMPLETE LH FRONT DOOR PILLAR	Enquire	To Order
	278943	COMPLETE LH FRONT DOOR PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67925900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67133611	RH REAR PILLAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67133711	LH REAR PILLAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217870	TUNNEL CORNER PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233307	INTERNAL SEAT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233308	INTERNAL SEAT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233306	EXTERNAL SEAT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233305	FRONT SEAT CROSS-MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69120500	FIRE EXTINGUISHER FASTENER BRACKET FRAME	Enquire	To Order
	69860400	FIRE EXTINGUISHER FASTENER BRACKET FRAME	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	985195256	TUNNEL	985195256 TUNNEL ; Not for GD	-	1	Enquire
1	985226378	TUNNEL	985226378 TUNNEL ; Applicable for GD	-	1	Enquire
2	985206261	TANK CROSS MEMBER	985206261 TANK CROSS MEMBER	-	1	Enquire
3	216839	UNDER EXHAUSTS PLATE	216839 UNDER EXHAUSTS PLATE	-	1	Enquire
4	985187276	STRUCTURE CONNECTOR PLATE	985187276 STRUCTURE CONNECTOR PLATE	-	1	Enquire
5	985195252	RH CENTRAL LATERAL WALL	985195252 RH CENTRAL LATERAL WALL ; Not for USA; Applicable up to Ass. No. 87312	-	1	Enquire
5	985260477	RH CENTRAL LATERAL WALL	985260477 RH CENTRAL LATERAL WALL ; Not for USA; Applicable from Ass. No. 87313	-	1	Enquire
5	985212492	RH CENTRAL LATERAL WALL	985212492 RH CENTRAL LATERAL WALL ; Applicable for USA; Applicable up to Ass. No. 87312	-	1	Enquire
5	985260478	RH CENTRAL LATERAL WALL	985260478 RH CENTRAL LATERAL WALL ; Applicable for USA; Applicable from Ass. No. 87313	-	1	Enquire
6	985195251	LH CENTRAL LATERAL WALL	985195251 LH CENTRAL LATERAL WALL ; Applicable up to Ass. No. 87312	-	1	Enquire
6	985260476	LH CENTRAL LATERAL WALL	985260476 LH CENTRAL LATERAL WALL ; Applicable from Ass. No. 87313	-	1	Enquire
7	985196327	COMPLETE RH REAR PILLAR	985196327 COMPLETE RH REAR PILLAR	-	1	Enquire
8	985196269	COMPLETE LH REAR PILLAR	985196269 COMPLETE LH REAR PILLAR	-	1	Enquire
9	985214614	RH UPPER BRACKET	985214614 RH UPPER BRACKET	-	1	Enquire
10	985214612	LH UPPER BRACKET	985214612 LH UPPER BRACKET	-	1	Enquire
11	67103211	RH END-PIECE	67103211 RH END-PIECE	-	1	Enquire
12	67103311	LH END-PIECE	67103311 LH END-PIECE	-	1	Enquire
13	68555100	RH STRIKER REINFORCEMENT	68555100 RH STRIKER REINFORCEMENT	-	1	Enquire
14	68555200	LH STRIKER REINFORCEMENT	68555200 LH STRIKER REINFORCEMENT	-	1	Enquire
15	68044711	RH REAR CORNER PIECE	68044711 RH REAR CORNER PIECE	-	1	Enquire
16	68044811	LH REAR CORNER PIECE	68044811 LH REAR CORNER PIECE	-	1	Enquire
17	68771611	RH OUTER REAR BRACKET	68771611 RH OUTER REAR BRACKET	-	1	Enquire
18	68771711	LH OUTER REAR BRACKET	68771711 LH OUTER REAR BRACKET	-	1	Enquire
19	985214142	RH REAR BRACKET	985214142 RH REAR BRACKET	-	1	Enquire
20	985213940	LH REAR BRACKET	985213940 LH REAR BRACKET	-	1	Enquire
21	985211909	RH SILL	985211909 RH SILL ; Applicable up to Ass. No. 87312	-	1	Enquire
21	985260480	RH SILL	985260480 RH SILL ; Applicable from Ass. No. 87313; Applicable until depletion	-	1	Enquire
21	260480	RH SILL	260480 RH SILL ; Applicable from Ass. No. 87313; Applicable after depletion of 985260480	-	1	Enquire
22	985211908	LH SILL	985211908 LH SILL ; Applicable up to Ass. No. 87312	-	1	Enquire
22	985260479	LH SILL	985260479 LH SILL ; Applicable from Ass. No. 87313; Applicable until depletion	-	1	Enquire
22	260479	LH SILL	260479 LH SILL ; Applicable from Ass. No. 87313; Applicable after depletion of 985260479	-	1	Enquire
24	67133411	RH END-PIECE	67133411 RH END-PIECE	-	1	Enquire
25	67133511	LH END-PIECE	67133511 LH END-PIECE	-	1	Enquire
26	985222147	FRONT RH FIREWALL FOOTREST	985222147 FRONT RH FIREWALL FOOTREST ; Not for GD	-	1	Enquire
26	985222146	FRONT RH FIREWALL FOOTREST	985222146 FRONT RH FIREWALL FOOTREST ; Applicable for GD	-	1	Enquire
27	985218156	FRONT LH FIREWALL FOOTREST	985218156 FRONT LH FIREWALL FOOTREST	-	1	Enquire
28	187287	FRONT COUPLING	187287 FRONT COUPLING	-	2	Enquire
29	192814	LOWER PIN	192814 LOWER PIN	-	2	Enquire
30	985192815	BENT INSERT	985192815 BENT INSERT	-	2	Enquire
31	985187338	RH ROOF BEAM JOINT	985187338 RH ROOF BEAM JOINT	-	1	Enquire
32	985187337	LH ROOF BEAM JOINT	985187337 LH ROOF BEAM JOINT	-	1	Enquire
33	985223100	COMPLETE RH FRONT DOOR PILLAR	985223100 COMPLETE RH FRONT DOOR PILLAR ; Applicable up to Ass. No. 87312	-	1	Enquire
33	985278942	COMPLETE RH FRONT DOOR PILLAR	985278942 COMPLETE RH FRONT DOOR PILLAR ; Applicable from Ass. No. 87313; Applicable until depletion	-	1	Enquire
33	278942	COMPLETE RH FRONT DOOR PILLAR	278942 COMPLETE RH FRONT DOOR PILLAR ; Applicable from Ass. No. 87313; Applicable after depletion of 985278942	-	1	Enquire
34	985223101	COMPLETE LH FRONT DOOR PILLAR	985223101 COMPLETE LH FRONT DOOR PILLAR ; Applicable up to Ass. No. 87312	-	1	Enquire
34	985278943	COMPLETE LH FRONT DOOR PILLAR	985278943 COMPLETE LH FRONT DOOR PILLAR ; Applicable from Ass. No. 87313; Applicable until depletion	-	1	Enquire
34	278943	COMPLETE LH FRONT DOOR PILLAR	278943 COMPLETE LH FRONT DOOR PILLAR ; Applicable from Ass. No. 87313; Applicable after depletion of 985278943	-	1	Enquire
35	67925900	BRACKET	67925900 BRACKET	-	2	Enquire
36	67133611	RH REAR PILLAR REINFORCEMENT	67133611 RH REAR PILLAR REINFORCEMENT	-	1	Enquire
37	67133711	LH REAR PILLAR REINFORCEMENT	67133711 LH REAR PILLAR REINFORCEMENT	-	1	Enquire
38	217870	TUNNEL CORNER PIECE	217870 TUNNEL CORNER PIECE Applicable for USA	-	1	Enquire
39	233307	INTERNAL SEAT FASTENER BRACKET	233307 INTERNAL SEAT FASTENER BRACKET Applicable for USA	-	1	Enquire
40	233308	INTERNAL SEAT FASTENER BRACKET	233308 INTERNAL SEAT FASTENER BRACKET Applicable for USA	-	1	Enquire
41	233306	EXTERNAL SEAT FASTENER BRACKET	233306 EXTERNAL SEAT FASTENER BRACKET Applicable for USA	-	1	Enquire
42	233305	FRONT SEAT CROSS-MEMBER	233305 FRONT SEAT CROSS-MEMBER Applicable for USA	-	1	Enquire
43	69120500	FIRE EXTINGUISHER FASTENER BRACKET FRAME	69120500 FIRE EXTINGUISHER FASTENER BRACKET FRAME Not for GD	-	1	Enquire
43	69860400	FIRE EXTINGUISHER FASTENER BRACKET FRAME	69860400 FIRE EXTINGUISHER FASTENER BRACKET FRAME Applicable for GD	-	1	Enquire
