Name: FRONT EXHAUST SYSTEM
Rating: 5.0 (1 reviews)

FRONT EXHAUST SYSTEM of Ferrari Ferrari 599 GTB Fiorano

View All

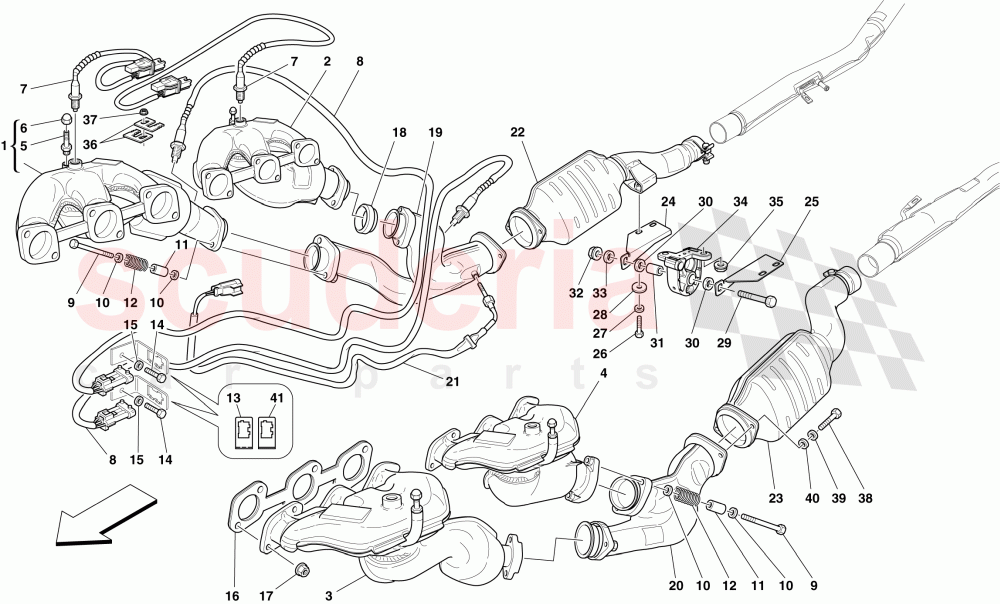

Ferrari 599 GTB Fiorano - FRONT EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	222281	RH FRONT EXHAUST MANIFOLD	$3,750.11	To Order
	253875	RH FRONT EXHAUST MANIFOLD	$3,605.52	To Order

Photo	Part No	Description	Price (each)	Stock
	222282	RH REAR EXHAUST MANIFOLD	$3,660.46	To Order
	253877	RH REAR EXHAUST MANIFOLD	$3,605.52	To Order

Photo	Part No	Description	Price (each)	Stock
	222283	LH FRONT EXHAUST MANIFOLD	$4,181.57	To Order
	253876	LH FRONT EXHAUST MANIFOLD	$3,802.88	To Order

Photo	Part No	Description	Price (each)	Stock
	222284	LH REAR EXHAUST MANIFOLD	$4,303.52	To Order
	253878	LH REAR EXHAUST MANIFOLD	$3,802.88	To Order

Photo	Part No	Description	Price (each)	Stock
	152630	THREADED CONNECTOR	$52.82	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lambda Sensor	$491.98	To Order
	187587	FRONT LAMBDA SENSOR	$527.98	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	$227.98	To Order
	187586	REAR LAMBDA SENSOR	$246.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16044834	BOLT M8 X 80	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	128010	Washer	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	$43.96	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	212702	GASKET	$13.60	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	COPPER NUT	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	154981	GASKET	$43.75	To Order

Photo	Part No	Description	Price (each)	Stock
	213131	RH BRANCH	$1,545.16	To Order

Photo	Part No	Description	Price (each)	Stock
	213130	LH BRANCH	$1,635.12	To Order

Photo	Part No	Description	Price (each)	Stock
	200934	EXHAUST GAS TEMPERATURE SENSOR	$202.68	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	220686	RH CATALYTIC CONVERTER	$7,732.54	To Order
	253880	RH CATALYTIC CONVERTER	$5,657.80	To Order

Photo	Part No	Description	Price (each)	Stock
	220687	LH CATALYTIC CONVERTER	$7,732.54	To Order
	253881	LH CATALYTIC CONVERTER	$5,657.80	To Order

Photo	Part No	Description	Price (each)	Stock
	214716	RH BRACKET	$12.98	To Order

Photo	Part No	Description	Price (each)	Stock
	214717	LH BRACKET	$12.98	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	12646678	WASHER	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	16044324	SCREW	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	190622	SHIM	$11.73	To Order

Photo	Part No	Description	Price (each)	Stock
	114748	Nut	$16.18	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	199731	VIBRATION DAMPER MOUNTING	$73.50	To Order

Photo	Part No	Description	Price (each)	Stock
	175283	Nut	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	16044124	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	$18.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	222281	RH FRONT EXHAUST MANIFOLD	222281 RH FRONT EXHAUST MANIFOLD	$3,750.11	1
1	253875	RH FRONT EXHAUST MANIFOLD	253875 RH FRONT EXHAUST MANIFOLD Applicable for Korea; Applicable for USA LIGHT	$3,605.52	1
2	222282	RH REAR EXHAUST MANIFOLD	222282 RH REAR EXHAUST MANIFOLD	$3,660.46	1
2	253877	RH REAR EXHAUST MANIFOLD	253877 RH REAR EXHAUST MANIFOLD Applicable for Korea; Applicable for USA LIGHT	$3,605.52	1
3	222283	LH FRONT EXHAUST MANIFOLD	222283 LH FRONT EXHAUST MANIFOLD	$4,181.57	1
3	253876	LH FRONT EXHAUST MANIFOLD	253876 LH FRONT EXHAUST MANIFOLD Applicable for Korea; Applicable for USA LIGHT	$3,802.88	1
4	222284	LH REAR EXHAUST MANIFOLD	222284 LH REAR EXHAUST MANIFOLD	$4,303.52	1
4	253878	LH REAR EXHAUST MANIFOLD	253878 LH REAR EXHAUST MANIFOLD Applicable for Korea; Applicable for USA LIGHT	$3,802.88	1
5	152630	THREADED CONNECTOR	152630 THREADED CONNECTOR	$52.82	4
6	150595	CAP NUT	150595 CAP NUT	$0.89 MSRP: ~~1.50~~ (40.7% off)	4
7	182837	Front Lambda Sensor	182837 Front Lambda Sensor L. 500 mm; For front cylinder bank, cylinders 1-2-3/10-11-12	$491.98	2
7	187587	FRONT LAMBDA SENSOR	187587 FRONT LAMBDA SENSOR For front cylinder bank, cylinders 4-5-6/7-8-9	$527.98	2
8	180915	Rear Lambda Sensor	180915 Rear Lambda Sensor L. 1200 mm; For front cylinder bank, cylinders 1-2-3/10-11-12	$227.98	2
8	187586	REAR LAMBDA SENSOR	187586 REAR LAMBDA SENSOR For front cylinder bank, cylinders 4-5-6/7-8-9	$246.12	2
9	16044834	BOLT M8 X 80	16044834 BOLT M8 X 80	$0.58 MSRP: ~~1.10~~ (47.3% off)	8
10	128010	Washer	128010 Washer	$2.46 MSRP: ~~9.17~~ (73.2% off)	16
11	114749	Spacer D8. 10 x 23	114749 Spacer D8. 10 x 23	$3.84 MSRP: ~~4.85~~ (20.8% off)	8
12	111743	EXHAUST BRACKET SPRING	111743 EXHAUST BRACKET SPRING	$43.96	8
13	185408	BRACKET	185408 BRACKET	$18.62	2
14	248334	SCREW	248334 SCREW	$0.68	4
15	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
16	212702	GASKET	212702 GASKET	$13.60	4
17	307964	COPPER NUT	307964 COPPER NUT	$3.84	24
18	154981	GASKET	154981 GASKET	$43.75	4
19	213131	RH BRANCH	213131 RH BRANCH	$1,545.16	1
20	213130	LH BRANCH	213130 LH BRANCH	$1,635.12	1
21	200934	EXHAUST GAS TEMPERATURE SENSOR ARRIVING SOON	200934 EXHAUST GAS TEMPERATURE SENSOR ARRIVING SOON	$202.68 MSRP: ~~217.00~~ (6.6% off)	2
22	220686	RH CATALYTIC CONVERTER	220686 RH CATALYTIC CONVERTER	$7,732.54	1
22	253880	RH CATALYTIC CONVERTER	253880 RH CATALYTIC CONVERTER Applicable for Korea	$5,657.80	1
23	220687	LH CATALYTIC CONVERTER	220687 LH CATALYTIC CONVERTER	$7,732.54	1
23	253881	LH CATALYTIC CONVERTER	253881 LH CATALYTIC CONVERTER Applicable for Korea	$5,657.80	1
24	214716	RH BRACKET	214716 RH BRACKET	$12.98	1
25	214717	LH BRACKET	214717 LH BRACKET	$12.98	1
26	16043224	SCREW	16043224 SCREW	$0.16 MSRP: ~~0.50~~ (68% off)	4
27	12646678	WASHER	12646678 WASHER	$0.78	4
28	84653800	WASHER	84653800 WASHER	$5.75	4
29	16044324	SCREW	16044324 SCREW	$0.36 MSRP: ~~0.45~~ (20% off)	1
30	12647021	WASHER	12647021 WASHER	$0.32	2
31	190622	SHIM	190622 SHIM	$11.73	1
32	114748	Nut	114748 Nut	$16.18	1
33	14496524	WASHER	14496524 WASHER	$0.11 MSRP: ~~1.50~~ (92.7% off)	1
34	199731	VIBRATION DAMPER MOUNTING	199731 VIBRATION DAMPER MOUNTING	$73.50	1
35	175283	Nut	175283 Nut	$0.76	2
36	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	$2.43	2
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
38	16044124	SCREW	16044124 SCREW	$0.52	4
39	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
40	263276	WASHER	263276 WASHER	$0.16	4
41	185408	BRACKET	185408 BRACKET	$18.62	2
