FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 599 GTB Fiorano

View All

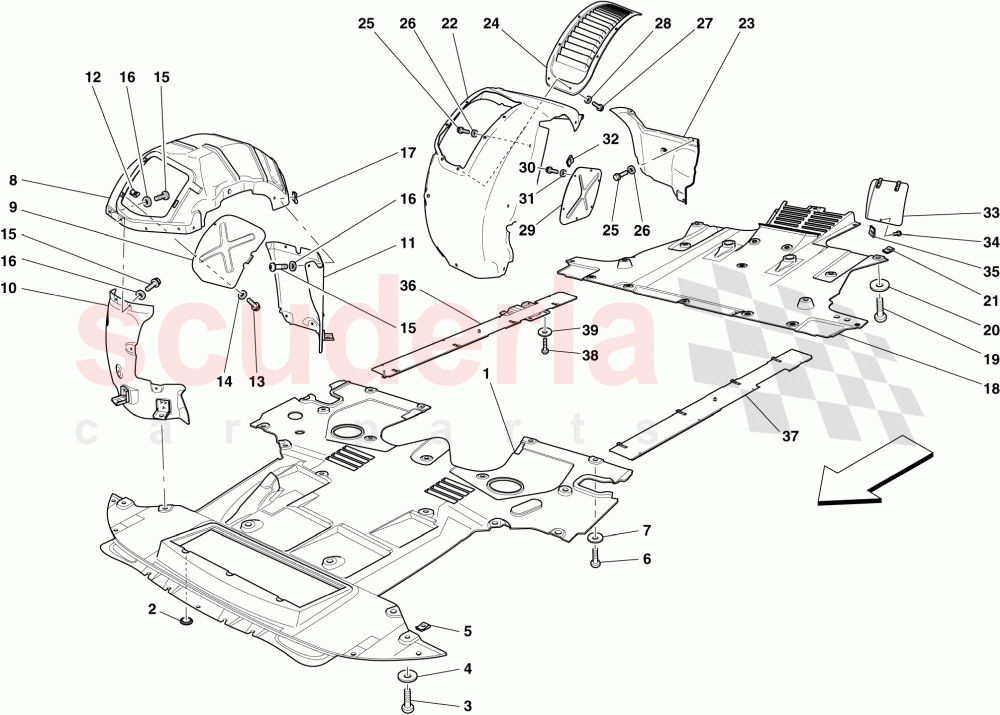

Ferrari 599 GTB Fiorano - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68563900	FRONT SECTION OF FLAT UNDERFLOOR	Enquire	To Order
	82867100	FRONT SECTION OF FLAT UNDERFLOOR	Enquire	To Order
	69864900	FRONT SECTION OF FLAT UNDERFLOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order
	64783600	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168133	Screw M5 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66252300	Clip for Screw	Enquire	To Order
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12641378	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68575600	RH FRONT WHEELHOUSE	Enquire	To Order
	68575700	LH FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68576200	RH WHEELHOUSE COVER PLATE	Enquire	To Order
	68576300	LH WHEELHOUSE COVER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68575800	Front Gravel Guard RH	Enquire	To Order
	80200900	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	Enquire	To Order
	82367800	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68576000	REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE	Enquire	To Order
	68576100	REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68119800	PLATE FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274214	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14778914	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68564000	REAR SECTION OF FLAT UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12641378	WASHER	Enquire	To Order
	1264660112647624	WASHER	Enquire	To Order
	12642078	WASHER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67134400	RH WHEEL BAY SHIELD	Enquire	To Order
	67134500	LH WHEEL BAY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68575400	REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE	Enquire	To Order
	68575500	REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67134200	RH DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977887	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274214	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67106200	RH CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68771400	LH CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169813	SCREW M5 X 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68781100	RH SILL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68781200	LH SILL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	68563900	FRONT SECTION OF FLAT UNDERFLOOR	68563900 FRONT SECTION OF FLAT UNDERFLOOR Not for GD; Applicable up to Ass. No. 87312	-	1	Enquire
1	82867100	FRONT SECTION OF FLAT UNDERFLOOR	82867100 FRONT SECTION OF FLAT UNDERFLOOR Not for GD; Applicable from Ass. No. 87313	-	1	Enquire
1	69864900	FRONT SECTION OF FLAT UNDERFLOOR	69864900 FRONT SECTION OF FLAT UNDERFLOOR Applicable for GD; Applicable up to Ass. No. 87312	-	1	Enquire
1	82867300	FRONT SECTION OF FLAT UNDERFLOOR	82867300 FRONT SECTION OF FLAT UNDERFLOOR Applicable for GD; Applicable from Ass. No. 87313	-	1	Enquire
2	14507987	PLUG	14507987 PLUG	-	3	Enquire
2	64783600	CAP	64783600 CAP	-	1	Enquire
3	168133	Screw M5 x 20	168133 Screw M5 x 20	-	8	Enquire
4	12647724	WASHER	12647724 WASHER	-	8	Enquire
5	66252300	Clip for Screw	66252300 Clip for Screw No longer supplied; Replaced by 14189071	-	4	Enquire
5	62766300	CLIP	62766300 CLIP	-	4	Enquire
6	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	21	Enquire
7	12641378	WASHER	12641378 WASHER	-	21	Enquire
8	68575600	RH FRONT WHEELHOUSE	68575600 RH FRONT WHEELHOUSE	-	1	Enquire
8	68575700	LH FRONT WHEELHOUSE	68575700 LH FRONT WHEELHOUSE	-	1	Enquire
9	68576200	RH WHEELHOUSE COVER PLATE	68576200 RH WHEELHOUSE COVER PLATE	-	1	Enquire
9	68576300	LH WHEELHOUSE COVER PLATE	68576300 LH WHEELHOUSE COVER PLATE	-	1	Enquire

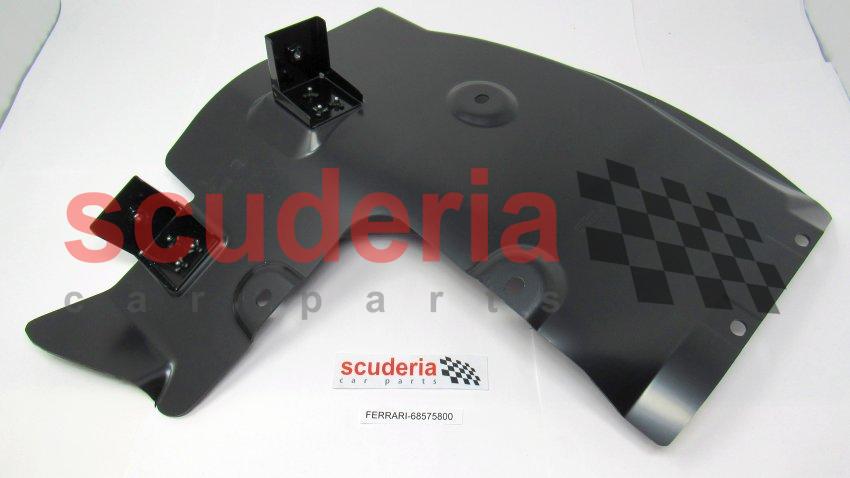

10	68575800	Front Gravel Guard RH	68575800 Front Gravel Guard RH Not for AUS	-	1	Enquire
10	80200900	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	80200900 FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE Applicable for AUS	-	1	Enquire
10	82367800	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	82367800 FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE Applicable for HGTE version; Not for AUS	-	1	Enquire
10	80200900	FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE	80200900 FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE Applicable for HGTE version; Applicable for AUS	-	1	Enquire

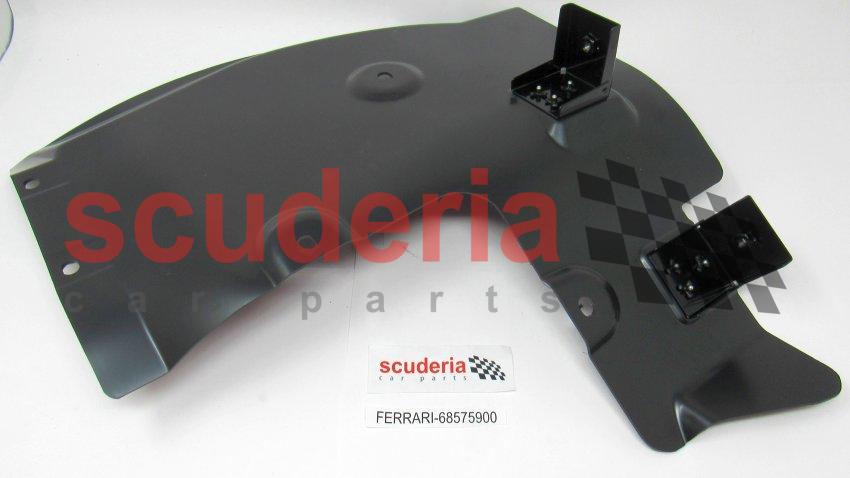

10	68575900	Front Gravel Guard LH	68575900 Front Gravel Guard LH Not for AUS	-	1	Enquire
10	80201000	FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE	80201000 FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE Applicable for AUS	-	1	Enquire
10	82368000	FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE	82368000 FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE Applicable for HGTE version; Not for AUS	-	1	Enquire
10	80201000	FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE	80201000 FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE Applicable for HGTE version; Applicable for AUS	-	1	Enquire
11	68576000	REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE	68576000 REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE	-	1	Enquire
11	68576100	REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE	68576100 REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE	-	1	Enquire
12	68119800	PLATE FOR SCREW	68119800 PLATE FOR SCREW	-	4	Enquire
13	13274214	SCREW	13274214 SCREW	-	4	Enquire
14	12638124	WASHER	12638124 WASHER	-	4	Enquire
15	14778914	Screw	14778914 Screw	-	32	Enquire
16	12643724	WASHER	12643724 WASHER	-	32	Enquire
17	62766300	CLIP	62766300 CLIP	-	6	Enquire
18	68564000	REAR SECTION OF FLAT UNDERFLOOR	68564000 REAR SECTION OF FLAT UNDERFLOOR	-	1	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	19	Enquire
19	88831000	GRUB SCREW	88831000 GRUB SCREW	-	2	Enquire
20	12641378	WASHER	12641378 WASHER	-	16	Enquire
20	1264660112647624	WASHER	1264660112647624 WASHER D. 6.45-16 X 2	-	2	Enquire
20	12642078	WASHER	12642078 WASHER D. 8.45-25 X 1.5	-	2	Enquire
20	10523107	WASHER	10523107 WASHER	-	1	Enquire
21	62766300	CLIP	62766300 CLIP	-	2	Enquire
22	67134400	RH WHEEL BAY SHIELD	67134400 RH WHEEL BAY SHIELD	-	1	Enquire
22	67134500	LH WHEEL BAY SHIELD	67134500 LH WHEEL BAY SHIELD	-	1	Enquire
23	68575400	REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE	68575400 REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE	-	1	Enquire
23	68575500	REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE	68575500 REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE	-	1	Enquire
24	67134200	RH DOOR	67134200 RH DOOR	-	1	Enquire
25	10977887	SCREW	10977887 SCREW Version in leather	-	22	Enquire
26	12643778	WASHER	12643778 WASHER	-	22	Enquire
27	13274214	SCREW	13274214 SCREW	-	2	Enquire
28	12638124	WASHER	12638124 WASHER	-	2	Enquire
29	67106200	RH CAP	67106200 RH CAP	-	1	Enquire
30	85833700	SCREW	85833700 SCREW	-	5	Enquire
31	62769800	WASHER	62769800 WASHER	-	5	Enquire
32	62764200	CLIP	62764200 CLIP	-	5	Enquire
33	68771400	LH CAP	68771400 LH CAP	-	1	Enquire
34	169813	SCREW M5 X 12	169813 SCREW M5 X 12	-	1	Enquire
35	62764200	CLIP	62764200 CLIP	-	1	Enquire
36	68781100	RH SILL PLATE	68781100 RH SILL PLATE	-	1	Enquire
37	68781200	LH SILL PLATE	68781200 LH SILL PLATE	-	1	Enquire
38	88831000	GRUB SCREW	88831000 GRUB SCREW	-	6	Enquire
39	12604178	Washer	12604178 Washer	-	6	Enquire
