Lubrication - Pumps and oil filter of Ferrari Ferrari 512 TR

View All

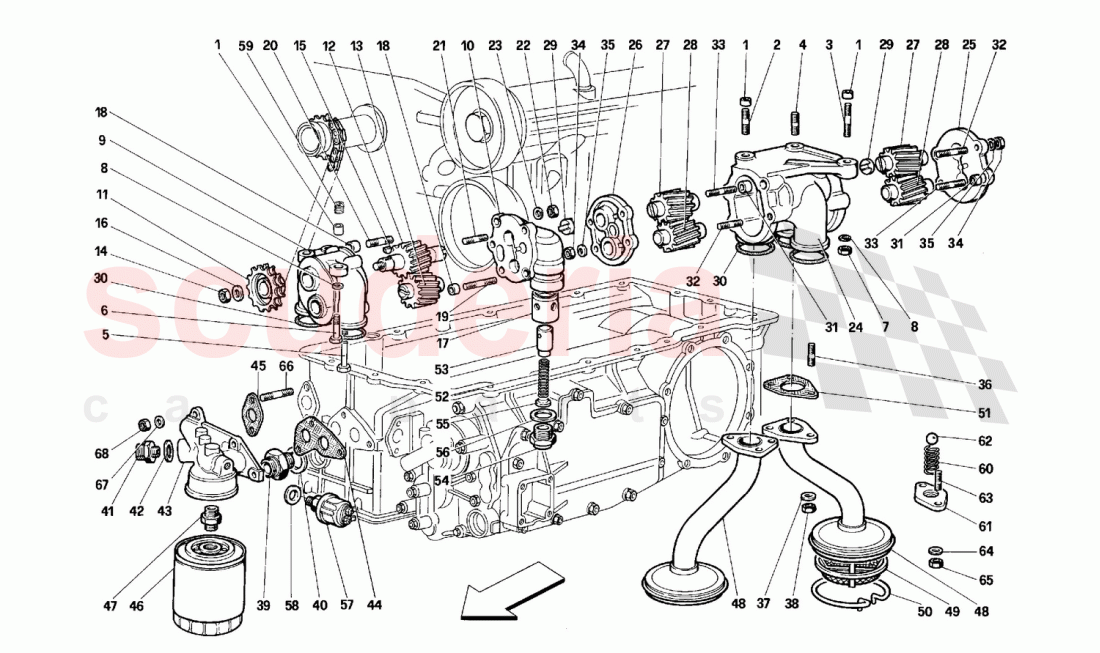

Ferrari 512 TR - Lubrication - Pumps and oil filter

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121059	Body of oil delivery pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121060	Cover of oil delivery pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121058	Oil pump control gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120940	Driving gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121057	Driven gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121532	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10205820	Feather key	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125321	Bushing -Valid from engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11501424	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120560	Body of oil scavenge pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121029	Rear cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121069	Front cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121062	Driving gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116056	Driven gear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109309	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123236	O.R. Gasket	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138149	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138150	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144487	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146682	Oil filter support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150828	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150829	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148404	Oil filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124229	Union for filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120917	Suction pipe for oil scavenge pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103944	Sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134961	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133550	Spring -Valid from engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125885	Piston -Valid from engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106237	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135679	Spacer -Valid from engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144487	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135940	Transmitter Oil Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109980	SPRING FOR BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121305	Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121306	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	10519424	WASHER	10519424 WASHER Possible fitting	-	1	Enquire
-	10257460	GASKET	10257460 GASKET Valid from engine / Nr. 31948	-	1	Enquire
-	156143	CAP	156143 CAP Valid from engine / Nr. 31948	-	1	Enquire
-	13579221	WASHER	13579221 WASHER Valid from engine / Nr. 31948	-	1	Enquire
-	137614	SPRING	137614 SPRING Valid from engine / Nr. 31948	-	1	Enquire
-	156950	PISTON	156950 PISTON Valid from engine / Nr. 31948	-	1	Enquire
-	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel For front cover 152593	-	1	Enquire
-	152593	Front cover	152593 Front cover Valid from engine / Nr. 31948	-	1	Enquire
-	151269	Cover of oil delivery pump	151269 Cover of oil delivery pump Valid from engine / Nr. 31948	-	1	Enquire
1	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	4	Enquire
2	13517224	STUD BOLT	13517224 STUD BOLT	-	1	Enquire
3	13543624	STUD BOLT	13543624 STUD BOLT	-	1	Enquire
4	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	1	Enquire
5	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	2	Enquire
6	16043634	SCREW	16043634 SCREW	-	1	Enquire
7	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	3	Enquire
8	986899	WASHER	986899 WASHER	-	6	Enquire
9	121059	Body of oil delivery pump	121059 Body of oil delivery pump	-	1	Enquire
10	121060	Cover of oil delivery pump	121060 Cover of oil delivery pump Valid till engine / Nr. 31947	-	1	Enquire
11	121058	Oil pump control gear	121058 Oil pump control gear	-	1	Enquire
12	120940	Driving gear	120940 Driving gear	-	1	Enquire
13	121057	Driven gear	121057 Driven gear	-	1	Enquire
14	121532	Nut	121532 Nut	-	1	Enquire
15	10205820	Feather key	10205820 Feather key	-	1	Enquire
16	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	1	Enquire
17	125321	Bushing -Valid from engine	125321 Bushing -Valid from engine Not as spare parts / With oil delivery pump / body 121060	-	1	Enquire
18	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
19	11501424	STUD	11501424 STUD	-	1	Enquire
20	11500524	STUD BOLT	11500524 STUD BOLT	-	1	Enquire
21	11500324	STUD BOLT	11500324 STUD BOLT	-	3	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	5	Enquire
24	120560	Body of oil scavenge pump	120560 Body of oil scavenge pump	-	1	Enquire
25	121029	Rear cover	121029 Rear cover	-	1	Enquire
26	121069	Front cover	121069 Front cover Valid till engine / Nr. 31947	-	1	Enquire
27	121062	Driving gear	121062 Driving gear	-	2	Enquire
28	116056	Driven gear	116056 Driven gear	-	2	Enquire
29	109309	JOINT	109309 JOINT	-	2	Enquire
30	123236	O.R. Gasket ARRIVING SOON	123236 O.R. Gasket ARRIVING SOON	-	5	Enquire
31	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	4	Enquire
32	11500124	STUD BOLT	11500124 STUD BOLT	-	3	Enquire
33	11500324	STUD BOLT	11500324 STUD BOLT	-	4	Enquire
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
35	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
36	13540924	STUD BOLT	13540924 STUD BOLT	-	6	Enquire
37	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
38	134041	NUT	134041 NUT	-	6	Enquire
39	138149	THREADED CONNECTOR	138149 THREADED CONNECTOR	-	1	Enquire
40	898271	GASKET	898271 GASKET	-	1	Enquire
41	138150	CONNECTOR	138150 CONNECTOR	-	1	Enquire
42	144487	GASKET	144487 GASKET	-	1	Enquire
43	146682	Oil filter support	146682 Oil filter support	-	1	Enquire
44	150828	Gasket	150828 Gasket	-	1	Enquire
45	150829	Gasket	150829 Gasket	-	1	Enquire
46	148404	Oil filter	148404 Oil filter	-	1	Enquire
47	124229	Union for filter	124229 Union for filter	-	1	Enquire
48	120917	Suction pipe for oil scavenge pump	120917 Suction pipe for oil scavenge pump	-	2	Enquire
49	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	-	2	Enquire
50	103944	Sealing ring	103944 Sealing ring	-	2	Enquire
51	134961	Gasket	134961 Gasket	-	2	Enquire
52	133550	Spring -Valid from engine	133550 Spring -Valid from engine Valid till engine / Nr. 31947	-	1	Enquire
53	125885	Piston -Valid from engine	125885 Piston -Valid from engine Valid till engine / Nr. 31947	-	1	Enquire
54	106237	Plug	106237 Plug Valid till engine / Nr. 31947	-	1	Enquire
55	135679	Spacer -Valid from engine	135679 Spacer -Valid from engine Valid till engine / Nr. 31947	-	1	Enquire
56	144487	GASKET	144487 GASKET Valid till engine / Nr. 31947	-	1	Enquire
57	135940	Transmitter Oil Pressure	135940 Transmitter Oil Pressure	-	1	Enquire
58	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	-	1	Enquire
59	13525770	THREADED INSERT	13525770 THREADED INSERT	-	3	Enquire
60	109980	SPRING FOR BALL	109980 SPRING FOR BALL adjusting valve	-	1	Enquire
61	121305	Flange	121305 Flange	-	1	Enquire
62	121306	BALL	121306 BALL	-	1	Enquire
63	13540724	STUD BOLT	13540724 STUD BOLT	-	2	Enquire
64	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
65	134041	NUT	134041 NUT	-	2	Enquire
66	12354524	Stud Securing Exhaust	12354524 Stud Securing Exhaust	-	5	Enquire
67	12601374	WASHER	12601374 WASHER	-	5	Enquire
68	133989	NUT	133989 NUT	-	5	Enquire
