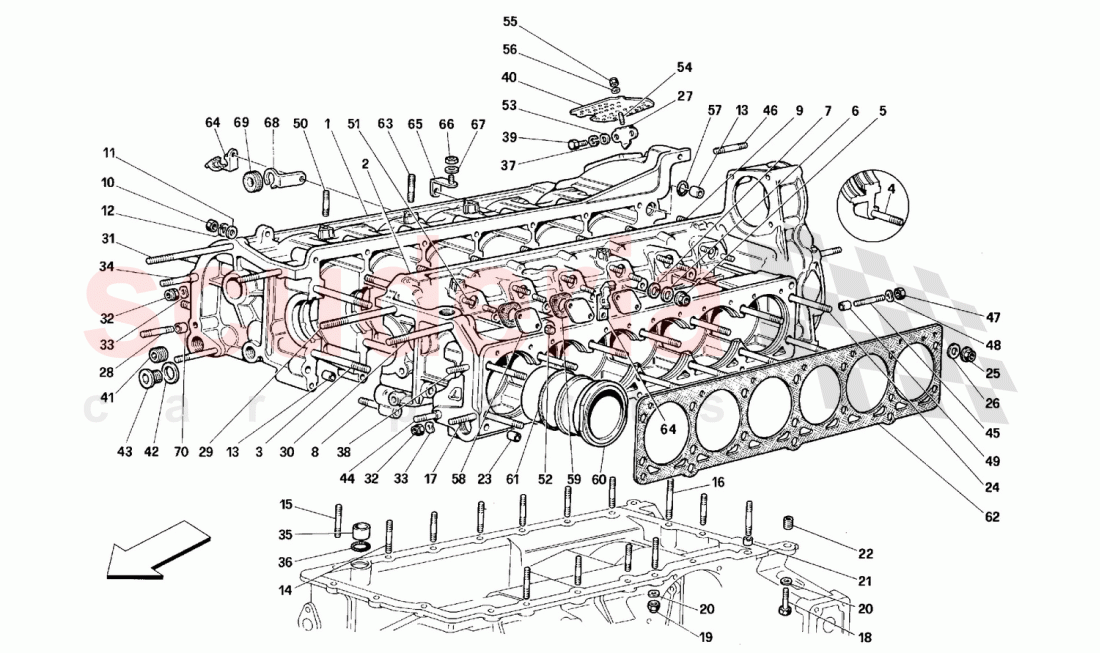

Ferrari 512 TR - Crankcase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	141384	R.H. semi-crankcase	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137712	Crankcase, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102687	Semi crankcase securing stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109539	Semi crankcase securing stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102693	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102694	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127499	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546635	Semi crankcase securing stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102689	Semi crankcase securing stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102695	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102692	Semi crankcase securing stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13449624	Stud securing crankcase to gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13449824	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13450124	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526070	Heli-coil securing cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152327	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130646	Cyl. heads securing studs	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126646	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141064	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124676	Plate with timing mark	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13970924	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13970424	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13970524	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544324	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121201	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123263	Seal ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147816	Cover for flywheel inspection slot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10264560	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10304611	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544224	Stud on dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544124	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100044	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100044	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102743	Seal ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102698	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

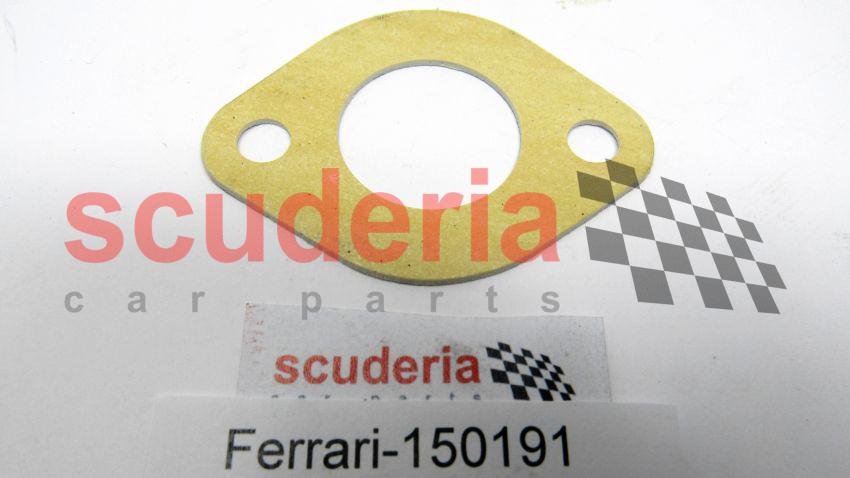

	150191	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138519	Cylinder liner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136902	Seal ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151532	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129544	Spring -For cars with	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124220	Bracket -Valid for cars with	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396580	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	14326050	CAP	14326050 CAP	-	2	Enquire
-	14326150	CAP	14326150 CAP	-	1	Enquire
-	107314	Nut	107314 Nut	-	2	Enquire
-	102690	Semi crankcase securing stud	102690 Semi crankcase securing stud	-	1	Enquire
-	137712	Crankcase, complete	137712 Crankcase, complete	-	1	Enquire
1	141384	R.H. semi-crankcase	141384 R.H. semi-crankcase Not as spare parts / With crankcase complete	-	1	Enquire
2	137712	Crankcase, complete	137712 Crankcase, complete Not as spare parts / With crankcase complete	-	1	Enquire
3	102687	Semi crankcase securing stud	102687 Semi crankcase securing stud	-	14	Enquire
4	109539	Semi crankcase securing stud	109539 Semi crankcase securing stud	-	1	Enquire
5	102693	Nut	102693 Nut	-	15	Enquire
6	102694	Washer	102694 Washer	-	15	Enquire
7	127499	Washer	127499 Washer	-	15	Enquire
8	13546635	Semi crankcase securing stud	13546635 Semi crankcase securing stud	-	3	Enquire
9	102689	Semi crankcase securing stud	102689 Semi crankcase securing stud	-	9	Enquire
10	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	13	Enquire
11	102695	WASHER	102695 WASHER	-	13	Enquire
12	127497	WASHER	127497 WASHER	-	13	Enquire
13	102692	Semi crankcase securing stud	102692 Semi crankcase securing stud	-	2	Enquire
14	13449624	Stud securing crankcase to gearbox	13449624 Stud securing crankcase to gearbox to gearbox	-	12	Enquire
15	13449824	Stud	13449824 Stud	-	1	Enquire
16	13450124	Stud	13450124 Stud	-	2	Enquire
17	13543824	STUD BOLT	13543824 STUD BOLT	-	1	Enquire
18	11306934	SCREW	11306934 SCREW	-	2	Enquire
19	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	13	Enquire
20	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	18	Enquire
21	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	1	Enquire
22	13526070	Heli-coil securing cover	13526070 Heli-coil securing cover	-	3	Enquire
23	152327	Dowel	152327 Dowel	-	4	Enquire
24	130646	Cyl. heads securing studs	130646 Cyl. heads securing studs	-	28	Enquire
25	126646	Nut	126646 Nut	-	28	Enquire
26	141064	Washer	141064 Washer	-	28	Enquire
27	124676	Plate with timing mark	124676 Plate with timing mark	-	1	Enquire
28	13543624	STUD BOLT	13543624 STUD BOLT	-	1	Enquire
29	13970924	Stud	13970924 Stud	-	1	Enquire
30	13970424	STUD	13970424 STUD	-	1	Enquire
31	13970524	Stud	13970524 Stud	-	1	Enquire
32	147985	NUT	147985 NUT	-	10	Enquire
33	12601374	WASHER	12601374 WASHER	-	10	Enquire
34	13544324	STUD	13544324 STUD	-	3	Enquire
35	121201	Dowel	121201 Dowel	-	1	Enquire
36	123263	Seal ring	123263 Seal ring	-	1	Enquire
37	127493	WASHER	127493 WASHER	-	2	Enquire
38	13543424	STUD BOLT	13543424 STUD BOLT	-	1	Enquire
39	10977624	SCREW	10977624 SCREW	-	2	Enquire
40	147816	Cover for flywheel inspection slot	147816 Cover for flywheel inspection slot slot	-	1	Enquire
41	282753	THREADED PLUG	282753 THREADED PLUG	-	1	Enquire
42	10264560	GASKET	10264560 GASKET	-	2	Enquire
43	10304611	Plug	10304611 Plug	-	2	Enquire
44	13543724	STUD BOLT	13543724 STUD BOLT	-	1	Enquire
45	13544224	Stud on dowel	13544224 Stud on dowel	-	2	Enquire
46	13544124	STUD	13544124 STUD	-	3	Enquire
47	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	5	Enquire
48	12601374	WASHER	12601374 WASHER	-	5	Enquire
49	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
50	13541124	STUD BOLT	13541124 STUD BOLT	-	2	Enquire
51	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	-	24	Enquire
52	100044	Selflocking nut	100044 Selflocking nut	-	24	Enquire
53	62769800	WASHER	62769800 WASHER	-	2	Enquire
54	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel inspection slot	-	2	Enquire
55	100044	Selflocking nut	100044 Selflocking nut	-	2	Enquire
56	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
57	102743	Seal ring	102743 Seal ring	-	1	Enquire
58	102698	Cover	102698 Cover	-	12	Enquire
59	150191	Gasket	150191 Gasket	-	12	Enquire
60	138519	Cylinder liner	138519 Cylinder liner	-	12	Enquire
61	136902	Seal ring	136902 Seal ring	-	12	Enquire
62	151532	Gasket	151532 Gasket	-	2	Enquire
63	13541324	STUD BOLT	13541324 STUD BOLT	-	2	Enquire
64	129544	Spring -For cars with	129544 Spring -For cars with generator 147220 Q.ty 2 / See ref. 1 draw. 52	-	4	Enquire
65	149694	PIPE FASTENER BRACKET	149694 PIPE FASTENER BRACKET	-	1	Enquire
66	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
67	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
68	124220	Bracket -Valid for cars with	124220 Bracket -Valid for cars with generator 147220 / See ref. 1 draw. 52	-	1	Enquire
69	10396580	CABLE GROMMET	10396580 CABLE GROMMET Valid for cars with / generator 147220 / See ref. 1 draw. 52	-	1	Enquire
70	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
