Ferrari 512 TR - Air injection - Ignition

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
147567 Connectors and cables box Enquire To Order
Photo Part No Description Price (each) Stock
145476 L.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
154916 AIR FLOW METER Enquire To Order
Photo Part No Description Price (each) Stock
144092 PLUG -Not for catalyzed cars- Enquire To Order
Photo Part No Description Price (each) Stock
149338 Ignition/supply control system Enquire To Order
Photo Part No Description Price (each) Stock
144256 Injector Enquire To Order
Photo Part No Description Price (each) Stock
133902 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
149924 Delivery pipe Enquire To Order
Photo Part No Description Price (each) Stock
11500024 Stud for cover of flywheel Enquire To Order
Photo Part No Description Price (each) Stock
101239 CAP NUT Enquire To Order
Photo Part No Description Price (each) Stock
14499370 Washer Enquire To Order
Photo Part No Description Price (each) Stock
11499924 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
148533 Protection Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
150907 INJECTION SYSTEM CABLES (CYL.7/12) Enquire To Order
150906 INJECTION SYSTEM CABLES (CYL. 1/6) Enquire To Order
Photo Part No Description Price (each) Stock
139465 BELLOWS FOR CABLE Enquire To Order
Photo Part No Description Price (each) Stock
149023 Cap Enquire To Order
Photo Part No Description Price (each) Stock
130975A ANGOLAR SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
140621 THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
14305021 Screw Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
11001224 Stud bolt Enquire To Order
Photo Part No Description Price (each) Stock
144805 SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11199279 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
167321 PRESSURE REGULATOR Enquire To Order
Photo Part No Description Price (each) Stock
277569 COMPL. BREATHER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
148861 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
150180 Spark Plug Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148421 Coil and module support Enquire To Order
Photo Part No Description Price (each) Stock
10903724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14499370 Washer Enquire To Order
Photo Part No Description Price (each) Stock
138224 IGNITION COIL Enquire To Order
Photo Part No Description Price (each) Stock
13274972 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
149951 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
201401 POWER MODULE Enquire To Order
Photo Part No Description Price (each) Stock
13274672 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
188916 High tension complete cables Enquire To Order
Photo Part No Description Price (each) Stock
150753 Cap Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
152211 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
149320 Connectors fix. box Enquire To Order
Photo Part No Description Price (each) Stock
148682 BRACKET FOR CABLES FIXING Enquire To Order
Photo Part No Description Price (each) Stock
145810 TESTER PUSH Enquire To Order
Photo Part No Description Price (each) Stock
146196 TESTER PUSH CABLE Enquire To Order
Photo Part No Description Price (each) Stock
146042 PM connector (black) Enquire To Order
Photo Part No Description Price (each) Stock
146043 PF connector (black) Enquire To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP Enquire To Order
View All

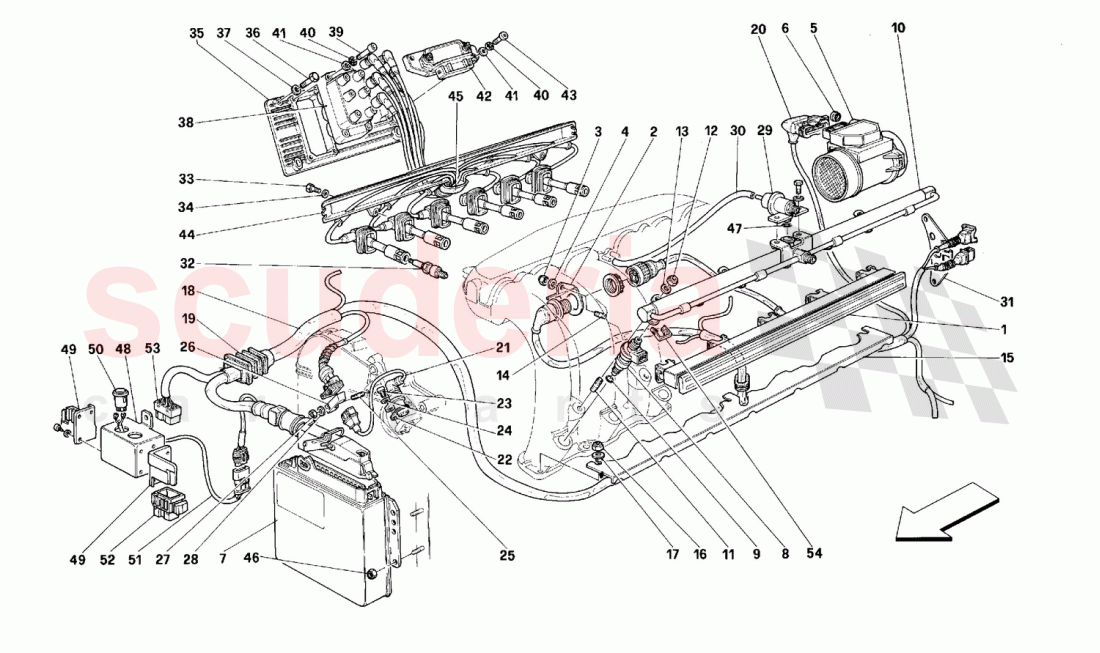

Air injection - Ignition of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 188963
High tension complete cables
for 7/12 cylinders 		- 1 Enquire
- 150180
Spark Plug
As an alternative 		- - Enquire
- 147202
INJECTION SYSTEM CABLES (CYL. 1/6)
Valid for USA, CDN, AUS, / CH, SA, ZA, J 		- 1 Enquire
- 147203
INJECTION SYSTEM CABLES (CYL.7/12)
Valid for USA, CDN, AUS, / CH, SA, ZA, J 		- 1 Enquire
1 147567
Connectors and cables box 		- 2 Enquire
2 145476
L.H. BRACKET 		- 2 Enquire
3 14059290
FLANGED NUT M6 		- 2 Enquire
4 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
5 154916
AIR FLOW METER 		- 2 Enquire
6 144092
PLUG -Not for catalyzed cars- 		- 2 Enquire
7 149338
Ignition/supply control system
system 		- 2 Enquire
8 144256
Injector 		- 12 Enquire
9 133902
O-Ring 		- 24 Enquire
10 149924
Delivery pipe 		- 2 Enquire
11 11500024
Stud for cover of flywheel 		- 8 Enquire
12 101239
CAP NUT 		- 8 Enquire
13 14499370
Washer 		- 8 Enquire
14 11499924
STUD BOLT 		- 2 Enquire
15 148533
Protection 		- 2 Enquire
16 14040711
NUT M8 FLANGED 		- 6 Enquire
17 84653800
WASHER 		- 6 Enquire
18 150907
INJECTION SYSTEM CABLES (CYL.7/12)
Not for USA, CDN, AUS, / CH, SA, ZA, J 		- 1 Enquire
18 150906
INJECTION SYSTEM CABLES (CYL. 1/6)
Not for USA, CDN, AUS, / CH, SA, ZA, J 		- 1 Enquire
19 139465
BELLOWS FOR CABLE 		- 2 Enquire
20 149023
Cap 		- 2 Enquire
21 130975A
ANGOLAR SPEED SENSOR 		- 2 Enquire
22 140621
THICKNESS 		- 2 Enquire
23 14305021
Screw 		- 2 Enquire
24 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
25 11001224
Stud bolt 		- 2 Enquire
26 144805
SUPPORT 		- 2 Enquire
27 15896470
NUT 		- 2 Enquire
28 11199279
WASHER 		- 2 Enquire
29 167321
PRESSURE REGULATOR 		- 2 Enquire
30 277569
COMPL. BREATHER PIPE 		- 2 Enquire
31 148861
BRACKET 		- 2 Enquire
32 150180
Spark Plug 		- 12 Enquire
33 81591700
SCREW 		- 4 Enquire
34 11193274
WASHER 		- 4 Enquire
35 148421
Coil and module support 		- 2 Enquire
36 10903724
SCREW 		- 8 Enquire
37 14499370
Washer 		- 8 Enquire
38 138224
IGNITION COIL 		- 2 Enquire
39 13274972
SCREW 		- 8 Enquire
40 149951
WASHER 		- 12 Enquire
41 62769800
WASHER 		- 12 Enquire
42 201401
POWER MODULE 		- 2 Enquire
43 13274672
SCREW 		- 4 Enquire
44 188916
High tension complete cables
for 1/6 cylinders 		- 1 Enquire
45 150753
Cap 		- 2 Enquire
46 14059290
FLANGED NUT M6 		- 8 Enquire
47 152211
SEAL RING 		- 2 Enquire
48 149320
Connectors fix. box 		- 1 Enquire
49 148682
BRACKET FOR CABLES FIXING 		- 2 Enquire
50 145810
TESTER PUSH
Valid for USA 		- 2 Enquire
51 146196
TESTER PUSH CABLE
Valid for USA 		- 2 Enquire
52 146042
PM connector (black) 		- 2 Enquire
53 146043
PF connector (black) 		- 2 Enquire
54 144730
INJECTORS RETENTION CLIP 		- 6 Enquire
