Throttle Control -Valid For Gd-

Ferrari 512 TR

Find Your Part

Ferrari 512 TR - Throttle control -Valid for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
151478 Throttle pedal $569.08 To Order
Photo Part No Description Price (each) Stock
116526 Pedal support Enquire To Order
Photo Part No Description Price (each) Stock
122430 Ball joint $199.70 To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut $0.21 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
121477 Spacer Enquire To Order
Photo Part No Description Price (each) Stock
100640 Pedal adjustment push rod $5.28 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
116528 Support for relay lever Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
124997 Throttle control lever $9.71 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
117991 Spacer Enquire To Order
Photo Part No Description Price (each) Stock
124998 Tie rod $11.02 To Order
Photo Part No Description Price (each) Stock
119550 R.H. fastened $0.70 To Order
Photo Part No Description Price (each) Stock
119551 L.H. fastened $0.70 To Order
Photo Part No Description Price (each) Stock
150408 Relay lever Enquire To Order
Photo Part No Description Price (each) Stock
125001 Inner ring $10.19 To Order
Photo Part No Description Price (each) Stock
101677 ROLLER BEARING $8.95 To Order
Photo Part No Description Price (each) Stock
11065676 Seeger Ring $0.05 To Order
Photo Part No Description Price (each) Stock
117311 Washer Enquire To Order
Photo Part No Description Price (each) Stock
165417 Throttles control cable $124.49 To Order
Photo Part No Description Price (each) Stock
105929 Thrust washer Enquire To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING $0.19 IN STOCK
Photo Part No Description Price (each) Stock
154742 BRACKET $28.59 To Order
Photo Part No Description Price (each) Stock
10396680 CABLE GROMMET $0.92 To Order
Photo Part No Description Price (each) Stock
11065676 Seeger Ring $0.05 To Order
Photo Part No Description Price (each) Stock
10725011 NUT $1.57 To Order
Photo Part No Description Price (each) Stock
145696 Throttle support $135.39 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
14499370 Washer $0.28 To Order
Photo Part No Description Price (each) Stock
136705 Pin $47.75 To Order
Photo Part No Description Price (each) Stock
153354 Spring Enquire To Order
Photo Part No Description Price (each) Stock
132873 ROLLER BEARING $4.72 IN STOCK
Photo Part No Description Price (each) Stock
136880 SPACER $28.87 To Order
Photo Part No Description Price (each) Stock
153356 Lever $227.63 To Order
Photo Part No Description Price (each) Stock
11065676 Seeger Ring $0.05 To Order
Photo Part No Description Price (each) Stock
145762 Tie rod $1.43 To Order
Photo Part No Description Price (each) Stock
105619 Spheric joint (L.H. thread) $23.81 To Order
Photo Part No Description Price (each) Stock
173999 BALL-JOINT HEAD $7.84 To Order
Photo Part No Description Price (each) Stock
10795101 Cotter pin $0.05 To Order
Photo Part No Description Price (each) Stock
105586 LEFT NUT $3.16 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
146632 R.H. throttle body complete Enquire To Order
Photo Part No Description Price (each) Stock
148708 L.H. throttle body complete Enquire To Order
Photo Part No Description Price (each) Stock
142934 O.R. Gasket $12.27 IN STOCK
Photo Part No Description Price (each) Stock
158170 POTENTIOMETER FOR THROTTLE VALVE $401.13 To Order
View All

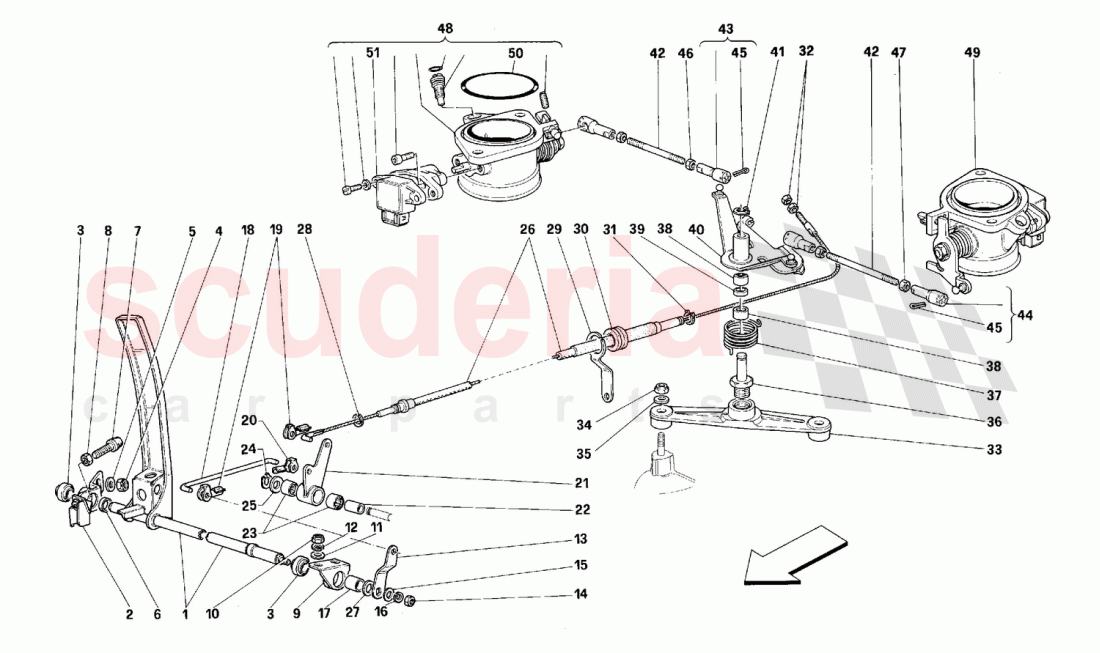

Throttle control -Valid for GD- of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 166419
Safety plug for by-pass screw 		$5.90 2
- 105931
SPACER WASHER mm. 0.7 		$0.75 1
- 165417
Throttles control cable
Valid after stock exhaustion / of 150410 		$124.49 1
- 105930
Thrust washer 		$0.32 1
1 151478
Throttle pedal 		$569.08 (53% off) 1
2 116526
Pedal support 		- 1 Enquire
3 122430
Ball joint 		$199.70 2
4 16104411
Selflocking nut
IN STOCK 		$0.21 (77.2% off) 2
5 84653800
WASHER
IN STOCK 		$5.53 2
6 121477
Spacer 		- 1 Enquire
7 100640
Pedal adjustment push rod 		$5.28 (45.3% off) 1
8 16102314
NUT 		$0.06 (95.3% off) 1
9 116528
Support for relay lever 		- 1 Enquire
10 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
11 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
12 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
13 124997
Throttle control lever 		$9.71 1
14 14040711
NUT
IN STOCK 		$0.42 1
15 84653800
WASHER
IN STOCK 		$5.53 1
16 127496
WASHER 		$0.06 (80% off) 1
17 117991
Spacer 		- 1 Enquire
18 124998
Tie rod 		$11.02 1
19 119550
R.H. fastened 		$0.70 2
20 119551
L.H. fastened 		$0.70 1
21 150408
Relay lever 		- 1 Enquire
22 125001
Inner ring 		$10.19 2
23 101677
ROLLER BEARING 		$8.95 2
24 11065676
Seeger Ring 		$0.05 (93.3% off) 1
25 117311
Washer 		- 1 Enquire
26 165417
Throttles control cable 		$124.49 1
27 105929
Thrust washer 		- 1 Enquire
28 11087974
SNAP RING
IN STOCK 		$0.19 (61.2% off) 1
29 154742
BRACKET 		$28.59 (30.2% off) 1
30 10396680
CABLE GROMMET 		$0.92 1
31 11065676
Seeger Ring 		$0.05 (93.3% off) 1
32 10725011
NUT 		$1.57 2
33 145696
Throttle support 		$135.39 1
34 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
35 14499370
Washer 		$0.28 2
36 136705
Pin 		$47.75 1
37 153354
Spring 		- 1 Enquire
38 132873
ROLLER BEARING
IN STOCK 		$4.72 (25.9% off) 2
39 136880
SPACER 		$28.87 (28.8% off) 1
40 153356
Lever 		$227.63 1
41 11065676
Seeger Ring 		$0.05 (93.3% off) 1
42 145762
Tie rod 		$1.43 2
43 105619
Spheric joint (L.H. thread) 		$23.81 (43.3% off) 2
44 173999
BALL-JOINT HEAD 		$7.84 (26.2% off) 2
45 10795101
Cotter pin 		$0.05 4
46 105586
LEFT NUT 		$3.16 2
47 15896470
NUT 		$0.05 (95.7% off) 2
48 146632
R.H. throttle body complete 		- 1 Enquire
49 148708
L.H. throttle body complete 		- 1 Enquire
50 142934
O.R. Gasket
IN STOCK 		$12.27 2
51 158170
POTENTIOMETER FOR THROTTLE VALVE 		$401.13 2
