BRAKE SYSTEM of Ferrari Ferrari 488 Spider

View All

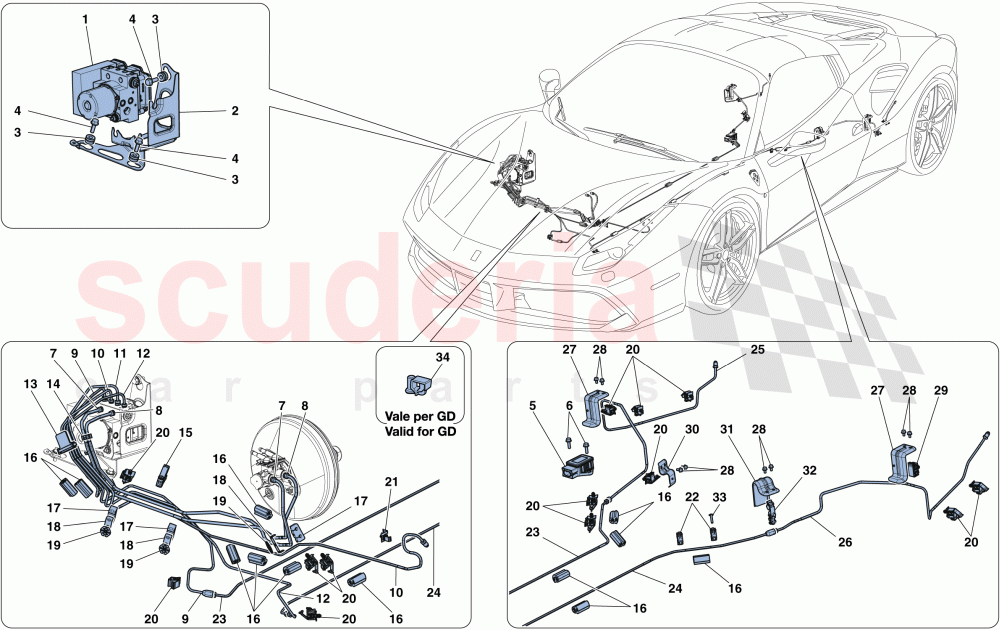

Ferrari 488 Spider - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	324856	HYDRAULIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305932	BRACKET	Enquire	To Order
	316707	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232869	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307688	YAW SENSOR	Enquire	To Order
	317783	YAW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316780	FRONT PUMP BRAKE PIPE MC2	Enquire	To Order
	305343	FRONT PUMP BRAKE PIPE MC2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305339	REAR PUMP BRAKE PIPE MC1	Enquire	To Order
	316779	REAR PUMP BRAKE PIPE MC1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313590	REAR RH BRAKE PIPE	Enquire	To Order
	324973	REAR RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318984	FRONT LH BRAKE PIPE	Enquire	To Order
	316776	FRONT LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313588	FRONT RH BRAKE PIPE	Enquire	To Order
	316775	FRONT RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325065	REAR LH BRAKE PIPE	Enquire	To Order
	318982	REAR LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254195	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255286	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278412	RETAINER BLOCK FOR 2 PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279844	RETAINER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301063	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309527	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310659	UNDERBODY REAR RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316287	UNDERBODY REAR LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315798	REAR SUBFRAME RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315800	REAR SUBFRAME LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317585	CLIP HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285211	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312163	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317589	CLIP HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317588	CLIP HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218200	Screw M5 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249649	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	324856	HYDRAULIC UNIT	324856 HYDRAULIC UNIT	-	1	Enquire
2	305932	BRACKET	305932 BRACKET Not for GD	-	1	Enquire
2	316707	BRACKET	316707 BRACKET Applicable for GD	-	1	Enquire
3	232869	BUSH	232869 BUSH	-	3	Enquire
4	13839224	SCREW	13839224 SCREW M8 X 25	-	3	Enquire
5	307688	YAW SENSOR	307688 YAW SENSOR Applicable until depletion	-	1	Enquire
5	317783	YAW SENSOR	317783 YAW SENSOR Applicable after depletion of 206070	-	1	Enquire
6	16286124	SCREW	16286124 SCREW M6 X 20	-	2	Enquire
7	316780	FRONT PUMP BRAKE PIPE MC2	316780 FRONT PUMP BRAKE PIPE MC2 Applicable for GD	-	1	Enquire
7	305343	FRONT PUMP BRAKE PIPE MC2	305343 FRONT PUMP BRAKE PIPE MC2 Not for GD	-	1	Enquire
8	305339	REAR PUMP BRAKE PIPE MC1	305339 REAR PUMP BRAKE PIPE MC1 Not for GD	-	1	Enquire
8	316779	REAR PUMP BRAKE PIPE MC1	316779 REAR PUMP BRAKE PIPE MC1 Applicable for GD	-	1	Enquire
9	313590	REAR RH BRAKE PIPE	313590 REAR RH BRAKE PIPE Not for GD	-	1	Enquire
9	324973	REAR RH BRAKE PIPE	324973 REAR RH BRAKE PIPE Applicable for GD	-	1	Enquire
10	318984	FRONT LH BRAKE PIPE	318984 FRONT LH BRAKE PIPE Not for GD	-	1	Enquire
10	316776	FRONT LH BRAKE PIPE	316776 FRONT LH BRAKE PIPE Applicable for GD	-	1	Enquire
11	313588	FRONT RH BRAKE PIPE	313588 FRONT RH BRAKE PIPE Not for GD	-	1	Enquire
11	316775	FRONT RH BRAKE PIPE	316775 FRONT RH BRAKE PIPE Applicable for GD	-	1	Enquire
12	325065	REAR LH BRAKE PIPE	325065 REAR LH BRAKE PIPE Applicable for GD	-	1	Enquire
12	318982	REAR LH BRAKE PIPE	318982 REAR LH BRAKE PIPE Not for GD	-	1	Enquire
13	254195	CLIP	254195 CLIP Not for GD	-	1	Enquire
14	255286	CLIP	255286 CLIP Not for GD	-	1	Enquire
15	234286	CLIP	234286 CLIP	-	1	Enquire
16	262737	RUBBER RETAINER	262737 RUBBER RETAINER	-	14	Enquire
17	278412	RETAINER BLOCK FOR 2 PIPES	278412 RETAINER BLOCK FOR 2 PIPES	-	3	Enquire
18	279844	RETAINER PLATE	279844 RETAINER PLATE	-	3	Enquire
19	67315400	WASHER	67315400 WASHER	-	3	Enquire
20	301063	CLIP	301063 CLIP	-	13	Enquire
21	309527	CLIP	309527 CLIP	-	2	Enquire
22	234285	CLIP	234285 CLIP	-	2	Enquire
23	310659	UNDERBODY REAR RH BRAKE PIPE	310659 UNDERBODY REAR RH BRAKE PIPE	-	1	Enquire
24	316287	UNDERBODY REAR LH BRAKE PIPE	316287 UNDERBODY REAR LH BRAKE PIPE	-	1	Enquire
25	315798	REAR SUBFRAME RH BRAKE PIPE	315798 REAR SUBFRAME RH BRAKE PIPE	-	1	Enquire
26	315800	REAR SUBFRAME LH BRAKE PIPE	315800 REAR SUBFRAME LH BRAKE PIPE	-	1	Enquire
27	317585	CLIP HEAT SHIELD	317585 CLIP HEAT SHIELD	-	2	Enquire
28	16285211	SCREW	16285211 SCREW M5 X 20; No longer supplied; Replaced by 256323	-	8	Enquire
28	85833700	SCREW	85833700 SCREW M5 X 16	-	6	Enquire
29	312163	CLIP	312163 CLIP	-	1	Enquire
30	317589	CLIP HEAT SHIELD	317589 CLIP HEAT SHIELD No longer supplied	-	1	Enquire
31	317588	CLIP HEAT SHIELD	317588 CLIP HEAT SHIELD	-	1	Enquire
32	284622	CLIP	284622 CLIP	-	1	Enquire
33	218200	Screw M5 x 30	218200 Screw M5 x 30 M5 X 30	-	2	Enquire
34	249649	CLIP	249649 CLIP Applicable for GD	-	1	Enquire
