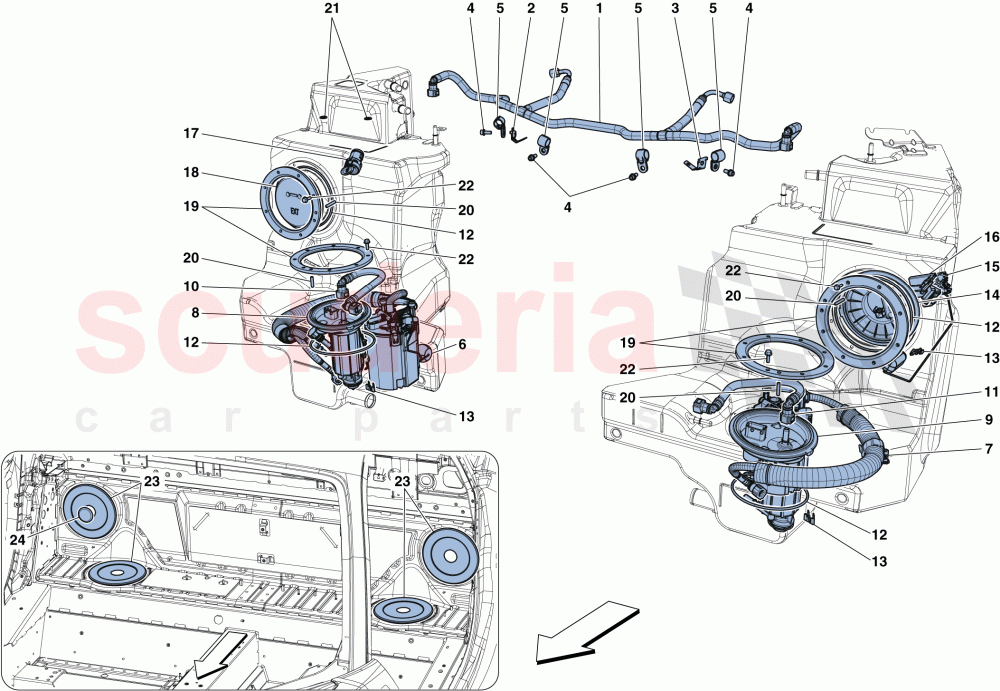

Ferrari 488 Spider - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316734	FUEL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316737	COMPL. RH FUEL PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316735	COMPL. LH FUEL PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305832	COMPL. FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272086	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282785	FUEL PUMP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282784	FUEL PUMP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320533	RH FUEL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320534	LH FUEL DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275314	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238688	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311381	FUEL LEVEL SENSOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305808	FUEL LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254311	CORNER ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237407	ANTI SPIT-BACK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314783	RH HATCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275998	FASTENER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237581	QUICK CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	781834	INSPECTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507187	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	316734	FUEL DELIVERY PIPE	316734 FUEL DELIVERY PIPE	-	1	Enquire
2	316737	COMPL. RH FUEL PIPE MOUNTING BRACKET	316737 COMPL. RH FUEL PIPE MOUNTING BRACKET	-	1	Enquire
3	316735	COMPL. LH FUEL PIPE MOUNTING BRACKET	316735 COMPL. LH FUEL PIPE MOUNTING BRACKET	-	1	Enquire
4	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	4	Enquire
5	320598	CLIP	320598 CLIP	-	4	Enquire
6	305832	COMPL. FUEL PUMP	305832 COMPL. FUEL PUMP	-	1	Enquire
7	272086	FUEL PUMP	272086 FUEL PUMP	-	1	Enquire
8	282785	FUEL PUMP FILTER	282785 FUEL PUMP FILTER	-	1	Enquire
9	282784	FUEL PUMP FILTER	282784 FUEL PUMP FILTER	-	1	Enquire
10	320533	RH FUEL DELIVERY PIPE	320533 RH FUEL DELIVERY PIPE	-	1	Enquire
11	320534	LH FUEL DELIVERY PIPE	320534 LH FUEL DELIVERY PIPE	-	1	Enquire
12	275314	O-RING	275314 O-RING	-	4	Enquire
13	238688	CONNECTOR	238688 CONNECTOR	-	3	Enquire
14	311381	FUEL LEVEL SENSOR MOUNT	311381 FUEL LEVEL SENSOR MOUNT	-	1	Enquire
15	305808	FUEL LEVEL SENSOR	305808 FUEL LEVEL SENSOR	-	1	Enquire
16	254311	CORNER ADAPTER	254311 CORNER ADAPTER	-	1	Enquire
17	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE	-	1	Enquire
18	314783	RH HATCH COVER	314783 RH HATCH COVER	-	1	Enquire
19	275998	FASTENER RING	275998 FASTENER RING	-	4	Enquire
20	11001124	STUD BOLT	11001124 STUD BOLT	-	4	Enquire
21	237581	QUICK CLIP	237581 QUICK CLIP	-	2	Enquire
22	86574700	SCREW	86574700 SCREW M5 X 16	-	32	Enquire
23	781834	INSPECTION CAP	781834 INSPECTION CAP	-	4	Enquire
24	14507187	PLUG	14507187 PLUG	-	1	Enquire
