Ferrari 488 Spider - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
329417 CAP WITH BREATHER $304.86 IN STOCK
Photo Part No Description Price (each) Stock
321090 COMPL. HEADER TANK RUBBER DRAIN HOSE $73.80 To Order
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.76 IN STOCK
Photo Part No Description Price (each) Stock
239829 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
323681 RUBBER HEADER TANK PIPE $125.14 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.47 To Order
Photo Part No Description Price (each) Stock
317021 HEADER TANK PIPE $136.37 To Order
Photo Part No Description Price (each) Stock
130295 O-RING $1.43 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
322388 COMPL. PIPING $126.75 To Order
Photo Part No Description Price (each) Stock
287632 O-RING $3.06 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
318109 WATER RETURN PIPE FROM SINGLE OIL HEAT EXCHANGER $272.77 To Order
Photo Part No Description Price (each) Stock
287632 O-RING $3.06 To Order
Photo Part No Description Price (each) Stock
318989 O-RING $5.35 To Order
Photo Part No Description Price (each) Stock
318329 O-RING $38.64 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
310680 SINGLE OIL HEAT EXCHANGER RETURN PIPE MOUNTING BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
312851 COMPL. HEADER TANK AND DISCONNECTER PIPE BRACKET $110.70 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 IN STOCK
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
320947 PUMP DELIVERY PIPE $158.84 To Order
Photo Part No Description Price (each) Stock
296778 SCREW COLLAR $7.23 To Order
Photo Part No Description Price (each) Stock
303560 SWIVEL CLIP $1.15 To Order
Photo Part No Description Price (each) Stock
160013 CLIP $0.92 To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP $3,723.51 To Order
Photo Part No Description Price (each) Stock
291645 CLIP $3.95 To Order
Photo Part No Description Price (each) Stock
320964 PUMP MOUNTING BRACKET $44.91 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
324937 PUMP HEAT SHIELD $152.42 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
320347 HEADER TANK RIGID DRAIN PIPE $62.56 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.47 To Order
View All

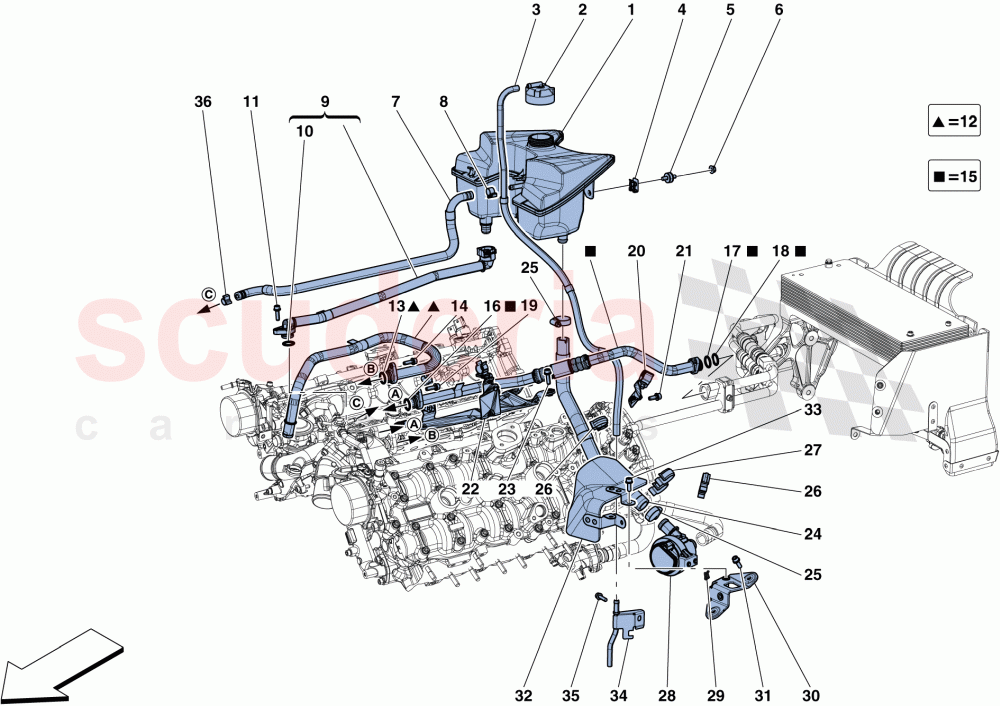

COOLING - HEADER TANK AND PIPES of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 329417
CAP WITH BREATHER
IN STOCK 		$304.86 1
3 321090
COMPL. HEADER TANK RUBBER DRAIN HOSE 		$73.80 1
4 62766300
SCRE CLIP M6
IN STOCK 		$0.76 2
5 239829
VIBRATION DAMPER 		- 2 Enquire
6 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
7 323681
RUBBER HEADER TANK PIPE 		$125.14 1
8 13126970
COLLAR 		$1.47 1
9 317021
HEADER TANK PIPE 		$136.37 1
10 130295
O-RING 		$1.43 1
11 231619
SCREW
M6 X 22; No longer supplied; Replaced by 231617
IN STOCK 		$0.31 1
11 231619
SCREW
M6 X 18
IN STOCK 		$0.31 1
12 322388
COMPL. PIPING 		$126.75 1
13 287632
O-RING
Also comes with engine gasket set 		$3.06 1
14 231619
SCREW
M6 X 20
IN STOCK 		$0.31 1
15 318109
WATER RETURN PIPE FROM SINGLE OIL HEAT EXCHANGER 		$272.77 1
16 287632
O-RING
Also comes with engine gasket set 		$3.06 1
17 318989
O-RING
Also comes with engine gasket set 		$5.35 1
18 318329
O-RING
Also comes with engine gasket set
IN STOCK 		$38.64 1
19 231619
SCREW
M6 X 20
IN STOCK 		$0.31 1
20 310680
SINGLE OIL HEAT EXCHANGER RETURN PIPE MOUNTING BRACKET 		$24.05 1
21 248334
SCREW
M6 X 16 		$0.68 1
22 312851
COMPL. HEADER TANK AND DISCONNECTER PIPE BRACKET 		$110.70 1
23 231622
SCREW
M6 X 22
IN STOCK 		$0.36 (28% off) 3
23 231619
SCREW
M6 X 22; No longer supplied; Replaced by 231622
IN STOCK 		$0.31 3
24 320947
PUMP DELIVERY PIPE 		$158.84 1
25 296778
SCREW COLLAR 		$7.23 2
26 303560
SWIVEL CLIP 		$1.15 2
27 160013
CLIP 		$0.92 1
28 291349
WATER RECIRCULATION PUMP 		$3,723.51 1
29 291645
CLIP 		$3.95 2
30 320964
PUMP MOUNTING BRACKET 		$44.91 1
31 231619
SCREW
M6 X 18
IN STOCK 		$0.31 2
32 324937
PUMP HEAT SHIELD 		$152.42 1
33 231619
SCREW
M6 X 18
IN STOCK 		$0.31 2
34 320347
HEADER TANK RIGID DRAIN PIPE 		$62.56 1
35 231619
SCREW
M6 X 22
IN STOCK 		$0.31 1
36 13126970
COLLAR 		$1.47 1
