HYDRAULIC POWER STEERING BOX of Ferrari Ferrari 488 Spider

View All

Ferrari 488 Spider - HYDRAULIC POWER STEERING BOX

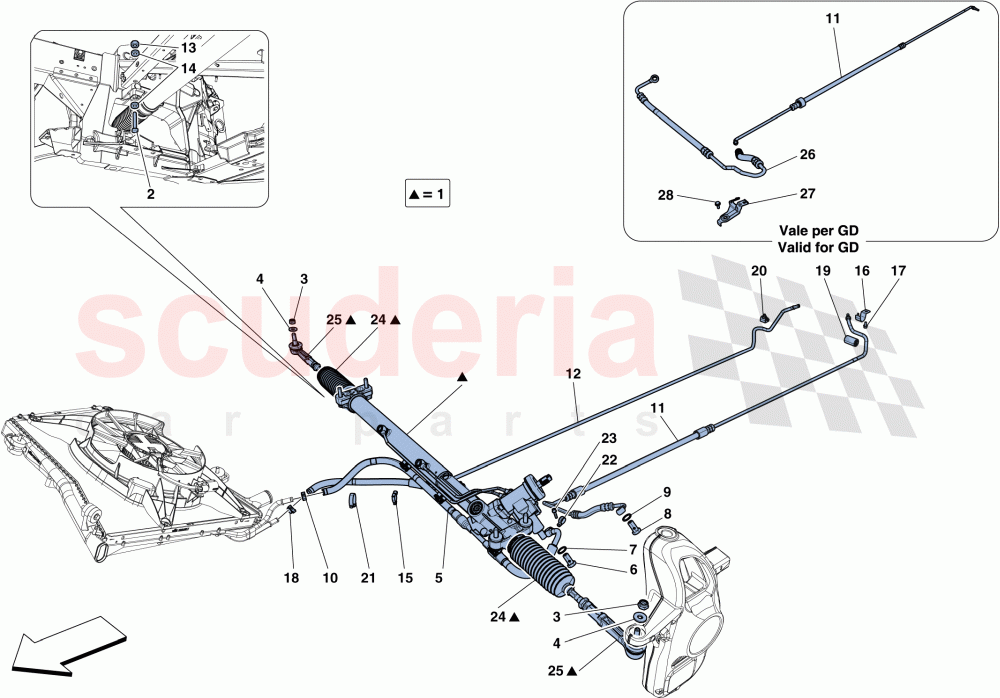

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	301996	STEERING BOX	Enquire	To Order
	291133	STEERING BOX	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305041	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order
	262429	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270360	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319930	UNDERBODY POWER STEERING DELIVERY PIPE	Enquire	To Order
	317214	UNDERBODY POWER STEERING DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320025	UNDERBODY POWER STEERING RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266248	CLIP	Enquire	To Order
	267177	CLIP	Enquire	To Order
	267177	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322054	POWER STEERING PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322605	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263230	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229521	STEERING BOX GAITER REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250196	ROD END FOR STEERING BOX	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	316543	OIL DELIVERY PIPE TO STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265838	POWER STEERING PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	301996	STEERING BOX	301996 STEERING BOX Applicable for GD	-	1	Enquire
1	291133	STEERING BOX ARRIVING SOON	291133 STEERING BOX Not for GD ARRIVING SOON	-	1	Enquire
2	277720	SCREW	277720 SCREW	-	4	Enquire
3	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
4	12626224	WASHER	12626224 WASHER	-	2	Enquire
5	305041	PIPE FROM STEERING BOX TO RADIATOR	305041 PIPE FROM STEERING BOX TO RADIATOR Not for GD	-	1	Enquire
5	262429	PIPE FROM STEERING BOX TO RADIATOR	262429 PIPE FROM STEERING BOX TO RADIATOR Applicable for GD	-	1	Enquire
6	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	1	Enquire
7	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
8	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5	-	1	Enquire
9	11270360	GASKET	11270360 GASKET	-	2	Enquire
10	13127070	COLLAR	13127070 COLLAR	-	1	Enquire
11	319930	UNDERBODY POWER STEERING DELIVERY PIPE	319930 UNDERBODY POWER STEERING DELIVERY PIPE Applicable for GD	-	1	Enquire
11	317214	UNDERBODY POWER STEERING DELIVERY PIPE	317214 UNDERBODY POWER STEERING DELIVERY PIPE Not for GD	-	1	Enquire
12	320025	UNDERBODY POWER STEERING RETURN PIPE	320025 UNDERBODY POWER STEERING RETURN PIPE	-	1	Enquire
13	14058621	NUT	14058621 NUT	-	4	Enquire
14	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	8	Enquire
15	266248	CLIP	266248 CLIP Applicable for GD	-	1	Enquire
15	267177	CLIP	267177 CLIP Not for GD	-	4	Enquire
15	267177	CLIP	267177 CLIP Applicable for GD	-	3	Enquire
16	322054	POWER STEERING PIPE MOUNTING BRACKET	322054 POWER STEERING PIPE MOUNTING BRACKET	-	1	Enquire
17	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	1	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; No longer supplied; Replaced by 231617	-	1	Enquire
18	13127070	COLLAR	13127070 COLLAR	-	1	Enquire
19	322605	SPACER	322605 SPACER	-	1	Enquire
20	263230	CLIP	263230 CLIP	-	1	Enquire
21	259508	CLIP	259508 CLIP	-	1	Enquire
22	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
24	229521	STEERING BOX GAITER REPLACEMENT KIT	229521 STEERING BOX GAITER REPLACEMENT KIT	-	1	Enquire
25	250196	ROD END FOR STEERING BOX ARRIVING SOON	250196 ROD END FOR STEERING BOX ARRIVING SOON	-	1	Enquire
26	316543	OIL DELIVERY PIPE TO STEERING BOX	316543 OIL DELIVERY PIPE TO STEERING BOX Applicable for GD	-	1	Enquire
27	265838	POWER STEERING PIPE MOUNTING BRACKET	265838 POWER STEERING PIPE MOUNTING BRACKET Applicable for GD	-	1	Enquire
28	11625824	SCREW	11625824 SCREW M6 X 18; Applicable for GD	-	1	Enquire
