Name: COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM
Rating: 4.6 (1 reviews)

COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM of Ferrari Ferrari 488 Spider

View All

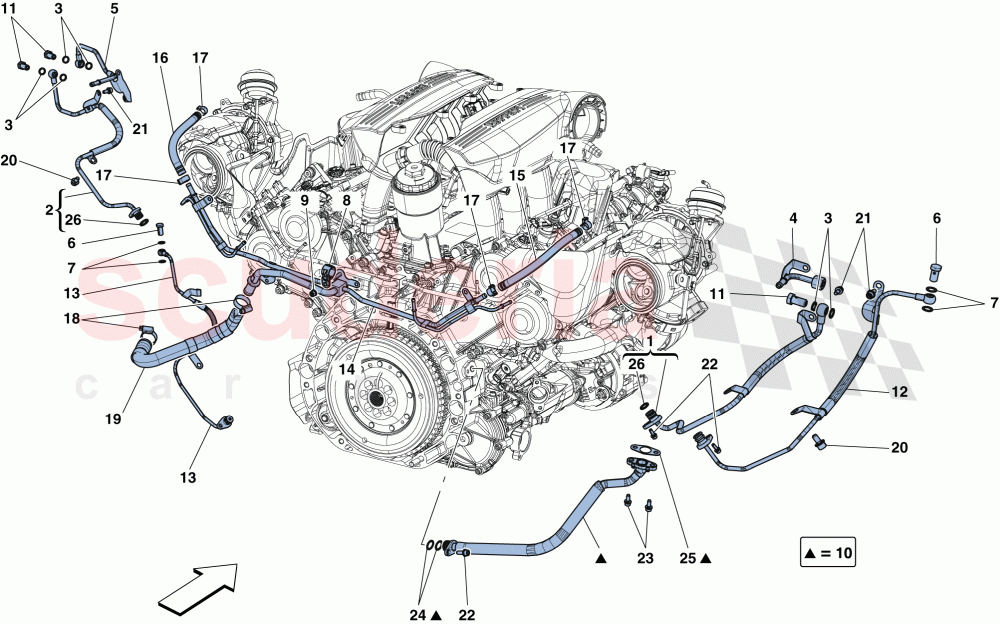

Ferrari 488 Spider - COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314531	WATER DELIVERY PIPE TO RH TURBO	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	320746	WATER DELIVERY PIPE TO LH TURBO	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	317597	WATER RETURN PIPE FROM RH TURBO	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	317598	WATER RETURN PIPE FROM LH TURBO	$89.84	To Order

Photo	Part No	Description	Price (each)	Stock
	315276	HOSE CONNECTOR	$20.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	317008	OIL RETURN PIPE FROM LH TURBO	$641.82	To Order
	317090	OIL RETURN PIPE FROM RH TURBO	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	308429	HOSE CONNECTOR	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	320963	COMPL. RIGID COOLING PIPE	$559.03	To Order

Photo	Part No	Description	Price (each)	Stock
	318497	RUBBER PIPE	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	318500	RUBBER PIPE	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	$7.15	To Order

Photo	Part No	Description	Price (each)	Stock
	320949	AUX PUMP RETURN PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING	$6.97	To Order

Photo	Part No	Description	Price (each)	Stock
	308203	OIL RECOVERY PIPE SEAL	$28.72	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	$0.99	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	314531	WATER DELIVERY PIPE TO RH TURBO	314531 WATER DELIVERY PIPE TO RH TURBO	$481.36	1
2	320746	WATER DELIVERY PIPE TO LH TURBO	320746 WATER DELIVERY PIPE TO LH TURBO	$240.67	1
3	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Also comes with engine gasket set	$0.16 MSRP: ~~0.49~~ (67.3% off)	6
4	317597	WATER RETURN PIPE FROM RH TURBO	317597 WATER RETURN PIPE FROM RH TURBO	$72.19	1
5	317598	WATER RETURN PIPE FROM LH TURBO	317598 WATER RETURN PIPE FROM LH TURBO	$89.84	1
6	315276	HOSE CONNECTOR	315276 HOSE CONNECTOR	$20.05	2
7	10260160	Copper Washer D. 10 - 14 x 1	10260160 Copper Washer D. 10 - 14 x 1 Also comes with engine gasket set	$0.83 MSRP: ~~0.90~~ (7.8% off)	4
8	320599	CLIP	320599 CLIP	$1.85	1
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
10	317008	OIL RETURN PIPE FROM LH TURBO	317008 OIL RETURN PIPE FROM LH TURBO	$641.82	1
10	317090	OIL RETURN PIPE FROM RH TURBO	317090 OIL RETURN PIPE FROM RH TURBO	$641.82	1
11	308429	HOSE CONNECTOR	308429 HOSE CONNECTOR	$13.14	3
14	320963	COMPL. RIGID COOLING PIPE	320963 COMPL. RIGID COOLING PIPE	$559.03	1
15	318497	RUBBER PIPE	318497 RUBBER PIPE	$56.14	1
16	318500	RUBBER PIPE	318500 RUBBER PIPE	$48.12	1
17	13126970	COLLAR	13126970 COLLAR	$1.56	4
18	296778	SCREW COLLAR	296778 SCREW COLLAR	$7.15	2
19	320949	AUX PUMP RETURN PIPE	320949 AUX PUMP RETURN PIPE	$240.67	1
20	231627	SCREW	231627 SCREW M8 X 16	$0.63 MSRP: ~~0.70~~ (10% off)	2
21	248334	SCREW	248334 SCREW M6 X 14	$0.68	4
22	231619	SCREW	231619 SCREW M6 X 18	$0.31	6
23	248334	SCREW	248334 SCREW M6 X 16	$0.68	4
24	287722	O-RING	287722 O-RING	$6.97	4
25	308203	OIL RECOVERY PIPE SEAL	308203 OIL RECOVERY PIPE SEAL	$28.72	2
26	14456981	GASKET	14456981 GASKET	$0.99 MSRP: ~~1.25~~ (20.8% off)	2
