TUNNEL - SUBSTRUCTURE AND ACCESSORIES of Ferrari Ferrari 488 Spider

View All

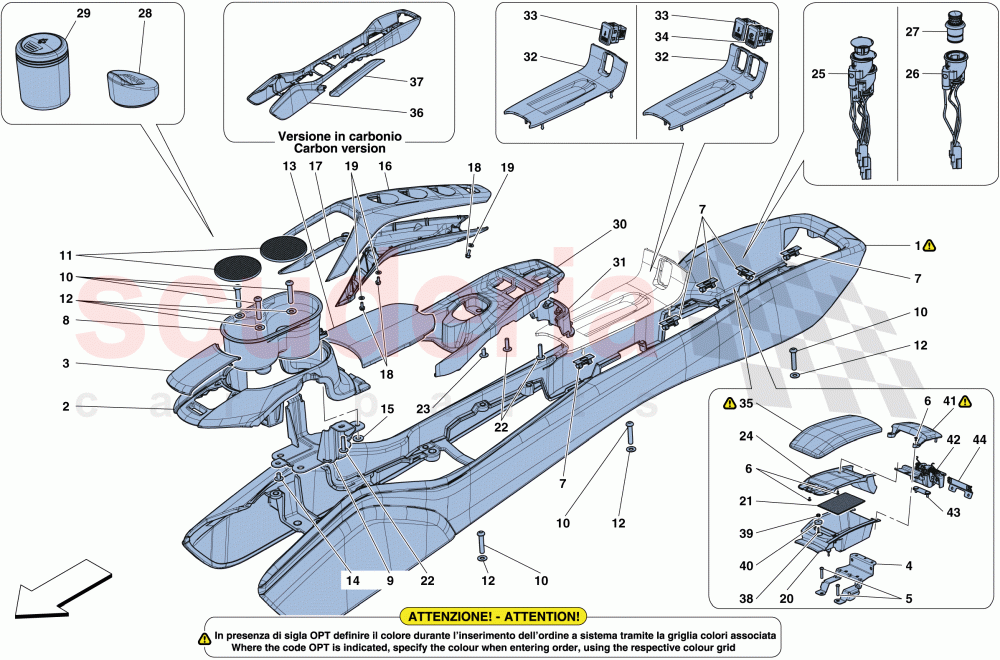

Ferrari 488 Spider - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87928412	CORPO MOBILETTO CPL. -INTA- -Alcantara- -STC1- -STC2-	Enquire	To Order
	87452712	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87278300	FRONT COVER TRIM FOR CENTRE CONSOLE UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86924300	HINGE REINFORCEMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65925000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	SNAP FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86159700	COMPL. CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86153300	BRIDGE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86153200	CUP HOLDER BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550221	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86159500	UNDER-BRIDGE TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86884200	BRIDGE UPPER SHELL	Enquire	To Order
	87105200	UPPER BRIDGE SHELL	Enquire	To Order
	87814900	UPPER BRIDGE SHELL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86155400	BRIDGE LOWER SHELL	Enquire	To Order
	86884300	BRIDGE LOWER SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83996600	SCREW	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86716400	COMPL. REAR COMPARTMENT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86924200	BASE MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order
	13272077	SCREW	Enquire	To Order
	13271814	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86724900	REAR COMPARTMENT DOOR BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215406	12 V SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183271	CIGARETTE LIGHTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87399000	KEY HOLDER FOR CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003500	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87278600	UPPER BRIDGE CONSOLE STRUCTURE	Enquire	To Order
	86884000	UPPER BRIDGE CONSOLE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87278700	BRIDGE CONSOLE REAR TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88668800	COMPL. CENTRAL COMPARTMENT	Enquire	To Order
	86885100	COMPL. CENTRAL COMPARTMENT	Enquire	To Order
	86680800	COMPL. CENTRAL COMPARTMENT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317086	NDM USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87471500	REAR COMPARTMENT DOOR	Enquire	To Order
	87944312	SPORTELLO VANO POSTERIORE -INTA- -Alcantara	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87712100	CENTRE CONSOLE UNIT SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87671100	COMPL. LH LATERAL UNDER-CHIN ELEMENT	Enquire	To Order
	87671200	COMPL. RH LATERAL UNDER-CHIN ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13296314	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61002200	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86725000	MAGNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87458200	COMPL. REAR TRIM ELEMENT	Enquire	To Order
	87944512	RIPORTO POSTERIORE CPL. -INTA- -Alcantara-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87453100	COMPL. REAR UNIT HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87453000	HINGE FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87790800	TUNNEL REINFORCEMENT BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87928412	CORPO MOBILETTO CPL. -INTA- -Alcantara- -STC1- -STC2-	87928412 CORPO MOBILETTO CPL. -INTA- -Alcantara- -STC1- -STC2- INTA; Alcantara; STC1; STC2	-	1	Enquire
1	87452712	COMPL. CENTRE CONSOLE UNIT STRUCTURE	87452712 COMPL. CENTRE CONSOLE UNIT STRUCTURE INTP; Leather; STC1; STC2	-	1	Enquire
2	87278300	FRONT COVER TRIM FOR CENTRE CONSOLE UNIT	87278300 FRONT COVER TRIM FOR CENTRE CONSOLE UNIT	-	1	Enquire
4	86924300	HINGE REINFORCEMENT BRACKET	86924300 HINGE REINFORCEMENT BRACKET	-	1	Enquire
5	65925000	SCREW	65925000 SCREW M6 X 30	-	9	Enquire
6	795930	SCREW	795930 SCREW M4 X 8	-	4	Enquire
6	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
7	68700200	SNAP FASTENING CLIP	68700200 SNAP FASTENING CLIP	-	10	Enquire
8	86159700	COMPL. CUP HOLDER	86159700 COMPL. CUP HOLDER	-	1	Enquire
9	86153300	BRIDGE FASTENER BRACKET	86153300 BRIDGE FASTENER BRACKET	-	1	Enquire
10	231622	SCREW	231622 SCREW M6 X 22	-	9	Enquire
11	86153200	CUP HOLDER BASE	86153200 CUP HOLDER BASE	-	2	Enquire
12	13550221	WASHER	13550221 WASHER No longer supplied	-	9	Enquire
13	86159500	UNDER-BRIDGE TRIM PANEL	86159500 UNDER-BRIDGE TRIM PANEL	-	1	Enquire
14	85833700	SCREW	85833700 SCREW M5 X 8	-	1	Enquire
15	860172	WASHER	860172 WASHER	-	1	Enquire
16	86884200	BRIDGE UPPER SHELL	86884200 BRIDGE UPPER SHELL Carbon; Not for GD	-	1	Enquire
16	87105200	UPPER BRIDGE SHELL	87105200 UPPER BRIDGE SHELL Carbon; Applicable for GD	-	1	Enquire
16	87814900	UPPER BRIDGE SHELL	87814900 UPPER BRIDGE SHELL NART grey; Interior in paint finish aluminium; Not for GD	-	1	Enquire
16	87106100	UPPER BRIDGE SHELL	87106100 UPPER BRIDGE SHELL Burnished grey; Applicable for GD	-	1	Enquire
16	87815100	UPPER BRIDGE SHELL	87815100 UPPER BRIDGE SHELL NART grey; Interior in paint finish aluminium; Applicable for GD	-	1	Enquire
16	87263000	BRIDGE UPPER SHELL	87263000 BRIDGE UPPER SHELL Burnished grey; Not for GD	-	1	Enquire
17	86155400	BRIDGE LOWER SHELL	86155400 BRIDGE LOWER SHELL	-	1	Enquire
17	86884300	BRIDGE LOWER SHELL	86884300 BRIDGE LOWER SHELL Carbon	-	1	Enquire
18	83996600	SCREW	83996600 SCREW Version with carbon centre tunnel console	-	13	Enquire
18	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM Not for carbon centre tunnel console	-	13	Enquire
19	14496101	WASHER	14496101 WASHER	-	13	Enquire
20	86716400	COMPL. REAR COMPARTMENT STRUCTURE	86716400 COMPL. REAR COMPARTMENT STRUCTURE	-	1	Enquire
21	86924200	BASE MAT	86924200 BASE MAT	-	1	Enquire
22	81591700	SCREW	81591700 SCREW M5 X 20; Not for carbon centre tunnel console	-	6	Enquire
22	13272077	SCREW	13272077 SCREW M4 X 20; Applicable for carbon centre tunnel console	-	2	Enquire
22	13271814	SCREW	13271814 SCREW M4 X 8; Applicable for carbon centre tunnel console	-	4	Enquire
23	85833700	SCREW	85833700 SCREW M5 X 10	-	1	Enquire
24	86724900	REAR COMPARTMENT DOOR BACKING	86724900 REAR COMPARTMENT DOOR BACKING	-	1	Enquire
25	215406	12 V SOCKET	215406 12 V SOCKET Not for smoker's kit	-	1	Enquire
26	183271	CIGARETTE LIGHTER SOCKET	183271 CIGARETTE LIGHTER SOCKET Applicable for smoker's kit	-	1	Enquire
27	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER Applicable for smoker's kit	-	1	Enquire
28	87399000	KEY HOLDER FOR CUP HOLDER	87399000 KEY HOLDER FOR CUP HOLDER	-	1	Enquire
29	83003500	ASHTRAY	83003500 ASHTRAY Applicable for smoker's kit	-	1	Enquire
30	87278600	UPPER BRIDGE CONSOLE STRUCTURE	87278600 UPPER BRIDGE CONSOLE STRUCTURE	-	1	Enquire
30	86884000	UPPER BRIDGE CONSOLE STRUCTURE	86884000 UPPER BRIDGE CONSOLE STRUCTURE Version with carbon centre tunnel console	-	1	Enquire
31	87278700	BRIDGE CONSOLE REAR TRIM PANEL	87278700 BRIDGE CONSOLE REAR TRIM PANEL For Russia:; not applicable for ERA GLONASS system	-	1	Enquire
32	88668800	COMPL. CENTRAL COMPARTMENT	88668800 COMPL. CENTRAL COMPARTMENT Version with Alcantara centre tunnel console; Version with telemetry or Apple Car Play; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
32	86885100	COMPL. CENTRAL COMPARTMENT	86885100 COMPL. CENTRAL COMPARTMENT Version with Alcantara centre tunnel console; Version with telemetry or Apple Car Play; For Russia:; not applicable for ERA GLONASS system	-	1	Enquire
32	86680800	COMPL. CENTRAL COMPARTMENT	86680800 COMPL. CENTRAL COMPARTMENT Version with telemetry or Apple Car Play; For Russia:; not applicable for ERA GLONASS system	-	1	Enquire
32	88668400	COMPL. CENTRAL COMPARTMENT	88668400 COMPL. CENTRAL COMPARTMENT Version with telemetry or Apple Car Play; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
32	86882700	COMPL. CENTRAL COMPARTMENT	86882700 COMPL. CENTRAL COMPARTMENT Version with Alcantara centre tunnel console; For Russia:; not applicable for ERA GLONASS system	-	1	Enquire
32	88668000	COMPL. CENTRAL COMPARTMENT	88668000 COMPL. CENTRAL COMPARTMENT Version with Alcantara centre tunnel console; Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
32	88669600	COMPL. CENTRAL COMPARTMENT	88669600 COMPL. CENTRAL COMPARTMENT Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	-	1	Enquire
32	86151500	COMPL. CENTRAL COMPARTMENT	86151500 COMPL. CENTRAL COMPARTMENT For Russia:; not applicable for ERA GLONASS system	-	1	Enquire
33	303226	USB SOCKET	303226 USB SOCKET	-	1	Enquire
34	317086	NDM USB PORT	317086 NDM USB PORT Version with telemetry or Apple Car Play	-	1	Enquire
35	87471500	REAR COMPARTMENT DOOR	87471500 REAR COMPARTMENT DOOR INTP; Leather	-	1	Enquire
35	87944312	SPORTELLO VANO POSTERIORE -INTA- -Alcantara	87944312 SPORTELLO VANO POSTERIORE -INTA- -Alcantara INTA; Alcantara	-	1	Enquire
36	87712100	CENTRE CONSOLE UNIT SUBSTRUCTURE	87712100 CENTRE CONSOLE UNIT SUBSTRUCTURE Carbon	-	1	Enquire
37	87671100	COMPL. LH LATERAL UNDER-CHIN ELEMENT	87671100 COMPL. LH LATERAL UNDER-CHIN ELEMENT Black leather; Applicable for carbon centre tunnel console	-	1	Enquire
37	87671200	COMPL. RH LATERAL UNDER-CHIN ELEMENT	87671200 COMPL. RH LATERAL UNDER-CHIN ELEMENT Black leather; Applicable for carbon centre tunnel console	-	1	Enquire
38	13296314	SCREW	13296314 SCREW M3 X 14	-	1	Enquire
39	61002200	NUT	61002200 NUT	-	1	Enquire
40	86725000	MAGNET	86725000 MAGNET	-	1	Enquire
41	87458200	COMPL. REAR TRIM ELEMENT	87458200 COMPL. REAR TRIM ELEMENT INTP; Leather	-	1	Enquire
41	87944512	RIPORTO POSTERIORE CPL. -INTA- -Alcantara-	87944512 RIPORTO POSTERIORE CPL. -INTA- -Alcantara- INTA; Alcantara	-	1	Enquire
42	87453100	COMPL. REAR UNIT HINGE	87453100 COMPL. REAR UNIT HINGE	-	1	Enquire
43	87453000	HINGE FASTENER PLATE	87453000 HINGE FASTENER PLATE	-	2	Enquire
44	87790800	TUNNEL REINFORCEMENT BRACKET	87790800 TUNNEL REINFORCEMENT BRACKET	-	1	Enquire
