SEATS - SEAT BELTS, GUIDES AND ADJUSTMENT of Ferrari Ferrari 488 Spider

View All

Ferrari 488 Spider - SEATS - SEAT BELTS, GUIDES AND ADJUSTMENT

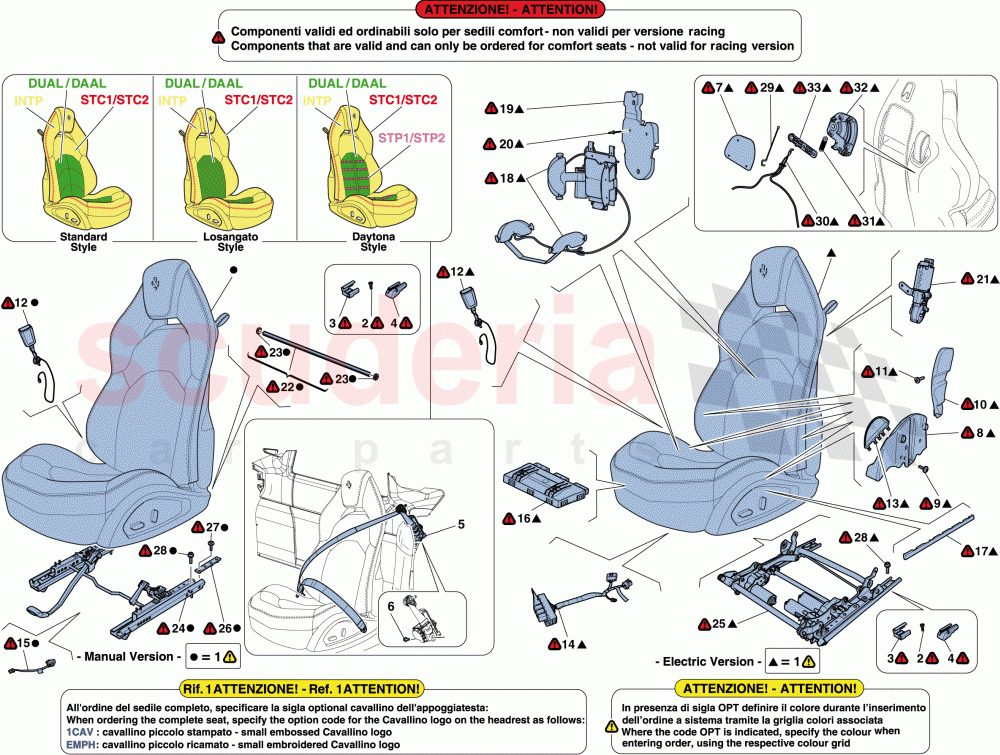

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	88000300	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order
	87999900	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order
	87999800	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order

...and 51 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82140000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84703000	REAR RH GUIDE RAIL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84702900	REAR LH GUIDE RAIL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84935100	RH THREE POINT SEAT BELT	Enquire	To Order
	84935300	RH THREE POINT SEAT BELT	Enquire	To Order
	84935000	LH THREE POINT SEAT BELT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82447100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85384100	PROTECTIVE COVER FOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85377800	LH LATERAL RETAINER MOUNT	Enquire	To Order
	85377700	RH LATERAL RETAINER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82588000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82588000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80515900	SEAT BELT SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82586900	DRIVER SIDE WIRING HARNESS	Enquire	To Order
	83248100	PASSENGER SIDE WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89399100	NAG/NAP ECU FS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83472500	LH MOULDING	Enquire	To Order
	83472600	RH MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85382600	LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86854200	RH LUMBAR SUPPORT FRAME	Enquire	To Order
	86755100	LH LUMBAR SUPPORT FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82588300	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82589000	ADJUSTMENT MOTOR	Enquire	To Order
	82588900	ADJUSTMENT MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66326300	ADJUSTER CONNECTING BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328700	CROWN FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83564000	LH SEAT GUIDE RAIL SET	Enquire	To Order
	83564200	RH SEAT GUIDE RAIL SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82585900	UNDER BASE ELEMENT	Enquire	To Order
	82586000	UNDER BASE ELEMENT	Enquire	To Order
	83245400	UNDERSEAT FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66323500	UPPER THREADED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66327100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82140000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	852246	RELEASE TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85383100	RH RELEASE CABLE	Enquire	To Order
	85383000	LH RELEASE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85383200	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85383300	LH LEVER MOUNTING BRACKET	Enquire	To Order
	85383600	RH LEVER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85383900	RELEASE LEVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	88000300	RH SEAT COMPLETE WITH GUIDE RAILS	88000300 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87999900	RH SEAT COMPLETE WITH GUIDE RAILS	87999900 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87999800	RH SEAT COMPLETE WITH GUIDE RAILS	87999800 RH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88000200	RH SEAT COMPLETE WITH GUIDE RAILS	88000200 RH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87999700	RH SEAT COMPLETE WITH GUIDE RAILS	87999700 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87999600	RH SEAT COMPLETE WITH GUIDE RAILS	87999600 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88559600	RH SEAT COMPLETE WITH GUIDE RAILS	88559600 RH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Daytona; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88559500	RH SEAT COMPLETE WITH GUIDE RAILS	88559500 RH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88000000	RH SEAT COMPLETE WITH GUIDE RAILS	88000000 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88299800	RH SEAT COMPLETE WITH GUIDE RAILS	88299800 RH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88000100	RH SEAT COMPLETE WITH GUIDE RAILS	88000100 RH SEAT COMPLETE WITH GUIDE RAILS Daytona; 4-way manual; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	88000400	RH SEAT COMPLETE WITH GUIDE RAILS	88000400 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87468700	LH SEAT COMPLETE WITH GUIDE RAILS	87468700 LH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468900	LH SEAT COMPLETE WITH GUIDE RAILS	87468900 LH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468000	LH SEAT COMPLETE WITH GUIDE RAILS	87468000 LH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468300	LH SEAT COMPLETE WITH GUIDE RAILS	87468300 LH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468512	LH SEAT COMPLETE WITH GUIDE RAILS	87468512 LH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87467800	LH SEAT COMPLETE WITH GUIDE RAILS	87467800 LH SEAT COMPLETE WITH GUIDE RAILS Daytona; 4-way manual; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87206912	LH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Applicable for GD-	87206912 LH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Applicable for GD- Standard; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87207600	LH SEAT COMPLETE WITH GUIDE RAILS	87207600 LH SEAT COMPLETE WITH GUIDE RAILS Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87206700	LH SEAT COMPLETE WITH GUIDE RAILS	87206700 LH SEAT COMPLETE WITH GUIDE RAILS Standard; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468800	RH SEAT COMPLETE WITH GUIDE RAILS	87468800 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468100	RH SEAT COMPLETE WITH GUIDE RAILS	87468100 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468600	RH SEAT COMPLETE WITH GUIDE RAILS	87468600 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way manual; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468412	RH SEAT COMPLETE WITH GUIDE RAILS	87468412 RH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87467900	RH SEAT COMPLETE WITH GUIDE RAILS	87467900 RH SEAT COMPLETE WITH GUIDE RAILS Daytona; 4-way manual; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87468200	RH SEAT COMPLETE WITH GUIDE RAILS	87468200 RH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87207412	RH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Applicable for GD-	87207412 RH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Applicable for GD- Standard; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87207100	RH SEAT COMPLETE WITH GUIDE RAILS	87207100 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	87207200	RH SEAT COMPLETE WITH GUIDE RAILS	87207200 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Applicable for GD	-	1	Enquire
1	88559100	LH SEAT COMPLETE WITH GUIDE RAILS	88559100 LH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Daytona; 4-way manual; INTP; INTA; DUAL; DAAL; 1CAV; EMPH; STC1; STC2	-	1	Enquire
1	88558900	LH SEAT COMPLETE WITH GUIDE RAILS	88558900 LH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Diamond style pattern; 4-way manual; INTP; INTA; DUAL; DAAL; 1CAV; EMPH; STC1; STC2	-	1	Enquire
1	87296000	LH SEAT COMPLETE WITH GUIDE RAILS	87296000 LH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	88299600	LH SEAT COMPLETE WITH GUIDE RAILS	88299600 LH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Standard; 4-way manual; INTP; INTA; DUAL; DAAL; 1CAV; EMPH; STC1; STC2	-	1	Enquire
1	87466500	LH SEAT COMPLETE WITH GUIDE RAILS	87466500 LH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	87295900	LH SEAT COMPLETE WITH GUIDE RAILS	87295900 LH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	87295612	LH SEAT COMPLETE WITH GUIDE RAILS	87295612 LH SEAT COMPLETE WITH GUIDE RAILS Daytona; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	87466700	LH SEAT COMPLETE WITH GUIDE RAILS	87466700 LH SEAT COMPLETE WITH GUIDE RAILS Daytona; 4-way manual; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	87295512	LH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -8-way electric- -Not Full electric- -INTP- -DUAL- -STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for GD-	87295512 LH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -8-way electric- -Not Full electric- -INTP- -DUAL- -STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for GD- Daytona; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	86587000	LH SEAT COMPLETE WITH GUIDE RAILS	86587000 LH SEAT COMPLETE WITH GUIDE RAILS Standard; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	86587212	LH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Not for GD-	86587212 LH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Not for GD- Standard; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	86485912	LH SEAT COMPLETE WITH GUIDE RAILS	86485912 LH SEAT COMPLETE WITH GUIDE RAILS Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for GD	-	1	Enquire
1	88559300	RH SEAT COMPLETE WITH GUIDE RAILS	88559300 RH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Daytona; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	88559200	RH SEAT COMPLETE WITH GUIDE RAILS	88559200 RH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	88299700	RH SEAT COMPLETE WITH GUIDE RAILS	88299700 RH SEAT COMPLETE WITH GUIDE RAILS Version with backrest in vehicle interior colour; INTP for backrest colour selection; Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	87295700	RH SEAT COMPLETE WITH GUIDE RAILS	87295700 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	87295812	RH SEAT COMPLETE WITH GUIDE RAILS -Diamond style pattern- -8-way electric- -Full electric- -INTP- -DUAL- -1CAV- -EMPH- -STC1- -STC2- -Not for USA	87295812 RH SEAT COMPLETE WITH GUIDE RAILS -Diamond style pattern- -8-way electric- -Full electric- -INTP- -DUAL- -1CAV- -EMPH- -STC1- -STC2- -Not for USA Diamond style pattern; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	87466600	RH SEAT COMPLETE WITH GUIDE RAILS	87466600 RH SEAT COMPLETE WITH GUIDE RAILS Diamond style pattern; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	87295412	RH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -8-way electric- -Full electric- -INTP- -DUAL--STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for USA	87295412 RH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -8-way electric- -Full electric- -INTP- -DUAL--STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for USA Daytona; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	87466812	RH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -4-way manual- -INTP- -DUAL- -STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for USA	87466812 RH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -4-way manual- -INTP- -DUAL- -STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for USA Daytona; 4-way manual; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	87295312	RH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -8-way electric- -Not Full electric- -INTP- -DUAL- -STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for USA	87295312 RH SEAT COMPLETE WITH GUIDE RAILS -Daytona- -8-way electric- -Not Full electric- -INTP- -DUAL- -STP1- -STP2- -1CAV- -EMPH- -STC1- -STC2- -Not for USA Daytona; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; STP1; STP2; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	86587312	RH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Not for USA	86587312 RH SEAT COMPLETE WITH GUIDE RAILS -Standard- -8-way electric- -Full electric- -INTP- -DUAL--1CAV- -EMPH- -STC1- -STC2- -Not for USA Standard; 8-way electric; Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	86587100	RH SEAT COMPLETE WITH GUIDE RAILS	86587100 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 8-way electric; Not Full electric; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
1	86491600	RH SEAT COMPLETE WITH GUIDE RAILS	86491600 RH SEAT COMPLETE WITH GUIDE RAILS Standard; 4-way manual; INTP; INTA; DUAL; Daal; 1CAV; EMPH; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
2	82140000	SCREW	82140000 SCREW Not for USA, CDN, GD, USA LIGHT	-	8	Enquire
3	84703000	REAR RH GUIDE RAIL COVER	84703000 REAR RH GUIDE RAIL COVER	-	2	Enquire
4	84702900	REAR LH GUIDE RAIL COVER	84702900 REAR LH GUIDE RAIL COVER	-	2	Enquire
5	84935100	RH THREE POINT SEAT BELT	84935100 RH THREE POINT SEAT BELT Not for GD	-	1	Enquire
5	84935300	RH THREE POINT SEAT BELT	84935300 RH THREE POINT SEAT BELT Applicable for GD	-	1	Enquire
5	84935000	LH THREE POINT SEAT BELT	84935000 LH THREE POINT SEAT BELT Not for GD	-	1	Enquire
5	84935200	LH THREE POINT SEAT BELT	84935200 LH THREE POINT SEAT BELT Applicable for GD	-	1	Enquire
6	82447100	SCREW	82447100 SCREW	-	2	Enquire
7	85384100	PROTECTIVE COVER FOR MOUNT	85384100 PROTECTIVE COVER FOR MOUNT Electric	-	2	Enquire
8	85377800	LH LATERAL RETAINER MOUNT	85377800 LH LATERAL RETAINER MOUNT Electric	-	1	Enquire
8	85377700	RH LATERAL RETAINER MOUNT	85377700 RH LATERAL RETAINER MOUNT Electric	-	1	Enquire
9	82588000	SCREW	82588000 SCREW Electric	-	2	Enquire
10	85378300	LH BACKREST LATERAL RETAINER MOUNT	85378300 LH BACKREST LATERAL RETAINER MOUNT Electric	-	1	Enquire
10	85378200	RH BACKREST LATERAL RETAINER MOUNT	85378200 RH BACKREST LATERAL RETAINER MOUNT Electric	-	1	Enquire
11	82588000	SCREW	82588000 SCREW Electric	-	2	Enquire
12	80515900	SEAT BELT SECTION	80515900 SEAT BELT SECTION	-	2	Enquire
13	83472100	LH BOLSTER SUPPORT	83472100 LH BOLSTER SUPPORT Electric	-	1	Enquire
13	83472000	RH BOLSTER SUPPORT	83472000 RH BOLSTER SUPPORT Electric	-	1	Enquire
14	82586900	DRIVER SIDE WIRING HARNESS	82586900 DRIVER SIDE WIRING HARNESS Electric	-	1	Enquire
14	83248100	PASSENGER SIDE WIRING HARNESS	83248100 PASSENGER SIDE WIRING HARNESS Electric	-	1	Enquire
15	83248300	DRIVER/PASSENGER SIDE WIRING HARNESS	83248300 DRIVER/PASSENGER SIDE WIRING HARNESS Manual	-	2	Enquire
16	89399100	NAG/NAP ECU FS	89399100 NAG/NAP ECU FS Electric	-	1	Enquire
17	83472500	LH MOULDING	83472500 LH MOULDING Electric	-	1	Enquire
17	83472600	RH MOULDING	83472600 RH MOULDING Electric	-	1	Enquire
18	85382600	LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT	85382600 LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT Electric	-	2	Enquire
19	86854200	RH LUMBAR SUPPORT FRAME	86854200 RH LUMBAR SUPPORT FRAME Electric	-	1	Enquire
19	86755100	LH LUMBAR SUPPORT FRAME	86755100 LH LUMBAR SUPPORT FRAME Electric	-	1	Enquire
20	82588300	RIVET	82588300 RIVET Electric	-	8	Enquire
21	82589000	ADJUSTMENT MOTOR	82589000 ADJUSTMENT MOTOR Electric; For vehicles up to Ass. No. 141310, also order ECU 89399100, pos. 16	-	1	Enquire
21	82588900	ADJUSTMENT MOTOR	82588900 ADJUSTMENT MOTOR Electric, full optional, passenger side; For vehicles up to Ass. No. 141310, also order ECU 89399100, pos. 16	-	1	Enquire
22	66326300	ADJUSTER CONNECTING BAR	66326300 ADJUSTER CONNECTING BAR Manual	-	2	Enquire
23	66328700	CROWN FASTENER	66328700 CROWN FASTENER Manual	-	4	Enquire
24	83564000	LH SEAT GUIDE RAIL SET	83564000 LH SEAT GUIDE RAIL SET Manual	-	1	Enquire
24	83564200	RH SEAT GUIDE RAIL SET	83564200 RH SEAT GUIDE RAIL SET Manual	-	1	Enquire
25	82585900	UNDER BASE ELEMENT	82585900 UNDER BASE ELEMENT Electric, full optional, passenger side	-	1	Enquire
25	82586000	UNDER BASE ELEMENT	82586000 UNDER BASE ELEMENT Electric, full optional, driver side	-	1	Enquire
25	83245400	UNDERSEAT FRAME	83245400 UNDERSEAT FRAME Electric, base	-	1	Enquire
26	66323500	UPPER THREADED PLATE	66323500 UPPER THREADED PLATE Manual	-	4	Enquire
27	66327100	SCREW	66327100 SCREW Manual	-	8	Enquire
28	82140000	SCREW	82140000 SCREW	-	8	Enquire
29	852246	RELEASE TIE-ROD	852246 RELEASE TIE-ROD Electric	-	2	Enquire
30	85383100	RH RELEASE CABLE	85383100 RH RELEASE CABLE Electric	-	1	Enquire
30	85383000	LH RELEASE CABLE	85383000 LH RELEASE CABLE Electric	-	1	Enquire
31	85383200	SPRING	85383200 SPRING Electric	-	2	Enquire
32	85383300	LH LEVER MOUNTING BRACKET	85383300 LH LEVER MOUNTING BRACKET Electric	-	1	Enquire
32	85383600	RH LEVER MOUNTING BRACKET	85383600 RH LEVER MOUNTING BRACKET Electric	-	1	Enquire
33	85383900	RELEASE LEVER	85383900 RELEASE LEVER Electric	-	2	Enquire
