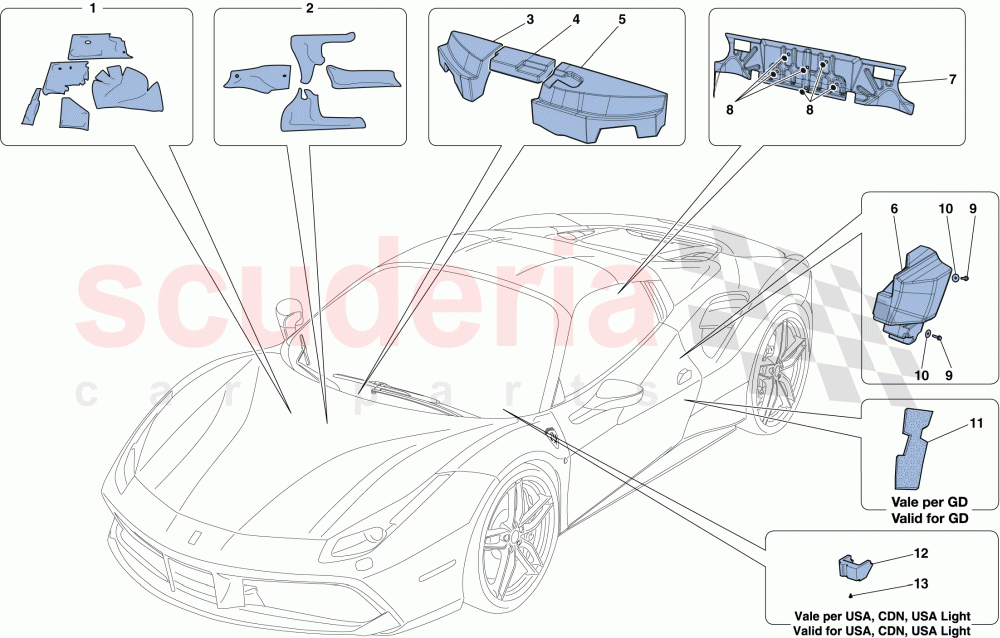

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82923500	HVAC UNIT INSULATION KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82923400	AC MOBILE DUCT INSULATION KIT	Enquire	To Order
	83030200	AC MOBILE DUCT INSULATION KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84709200	RH PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84709100	CENTRAL PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84709000	LH PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86719300	LH FOAM ELEMENT FOR COMPL. CRASH BOX	Enquire	To Order
	86719400	RH FOAM ELEMENT FOR COMPL. CRASH BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86567600	ENGINE COMPARTMENT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82982400	LH LATERAL FIREWALL SOUNDPROOFING	Enquire	To Order
	82982700	RH LATERAL FIREWALL SOUNDPROOFING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87274300	IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689809	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82923500	HVAC UNIT INSULATION KIT	82923500 HVAC UNIT INSULATION KIT	-	1	Enquire
2	82923400	AC MOBILE DUCT INSULATION KIT	82923400 AC MOBILE DUCT INSULATION KIT Not for GD	-	1	Enquire
2	83030200	AC MOBILE DUCT INSULATION KIT	83030200 AC MOBILE DUCT INSULATION KIT Applicable for GD	-	1	Enquire
3	84709200	RH PULER	84709200 RH PULER Not for GD	-	1	Enquire
4	84709100	CENTRAL PULER	84709100 CENTRAL PULER Not for GD	-	1	Enquire
5	84709000	LH PULER	84709000 LH PULER Not for GD	-	1	Enquire
6	86719300	LH FOAM ELEMENT FOR COMPL. CRASH BOX	86719300 LH FOAM ELEMENT FOR COMPL. CRASH BOX	-	1	Enquire
6	86719400	RH FOAM ELEMENT FOR COMPL. CRASH BOX	86719400 RH FOAM ELEMENT FOR COMPL. CRASH BOX	-	1	Enquire
7	86567600	ENGINE COMPARTMENT INSULATION	86567600 ENGINE COMPARTMENT INSULATION	-	1	Enquire
8	67315400	WASHER	67315400 WASHER	-	6	Enquire
9	231625	SCREW	231625 SCREW	-	4	Enquire
10	12648978	WASHER	12648978 WASHER	-	4	Enquire
11	82982400	LH LATERAL FIREWALL SOUNDPROOFING	82982400 LH LATERAL FIREWALL SOUNDPROOFING Applicable for GD; No longer supplied	-	1	Enquire
11	82982700	RH LATERAL FIREWALL SOUNDPROOFING	82982700 RH LATERAL FIREWALL SOUNDPROOFING Applicable for GD; No longer supplied	-	1	Enquire
12	87274300	IMPACT ABSORBER	87274300 IMPACT ABSORBER Applicable for USA, CDN, USA LIGHT	-	1	Enquire
13	15689809	SCREW	15689809 SCREW Applicable for USA, CDN, USA LIGHT	-	1	Enquire
