WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari 488 Spider

View All

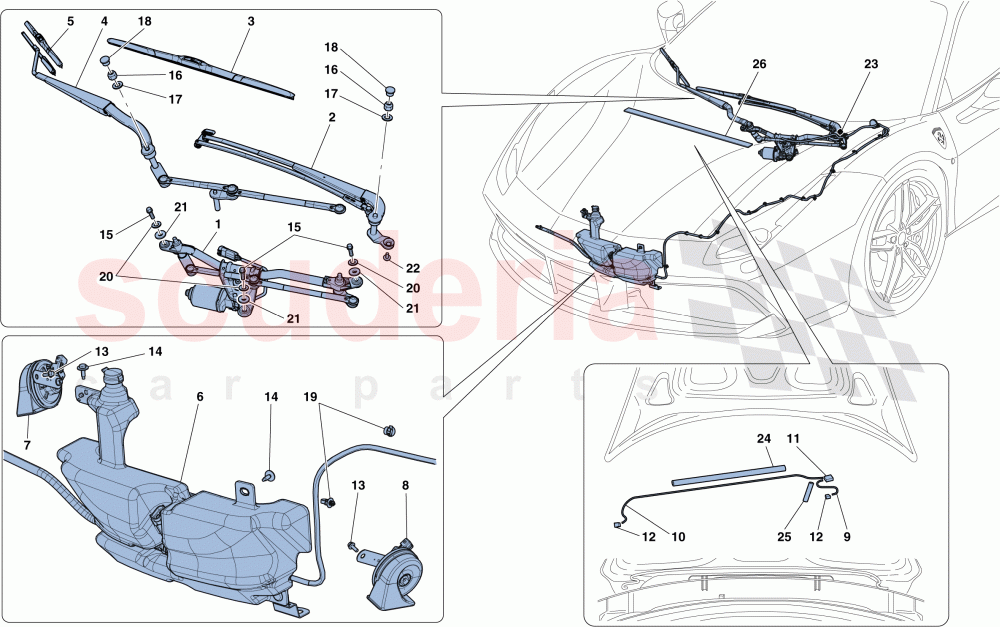

Ferrari 488 Spider - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85774200	COMPL. WINDSCREEN WIPER ASSEMBLY	Enquire	To Order
	85890100	COMPL. WINDSCREEN WIPER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81511900	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	82964300	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	Enquire	To Order
	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81511800	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	82964200	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81511600	WINDSCREEN WIPER BLADE PASSENGER SIDE LHD	Enquire	To Order
	82964000	Windscreen Wiper Blade Passenger Side RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

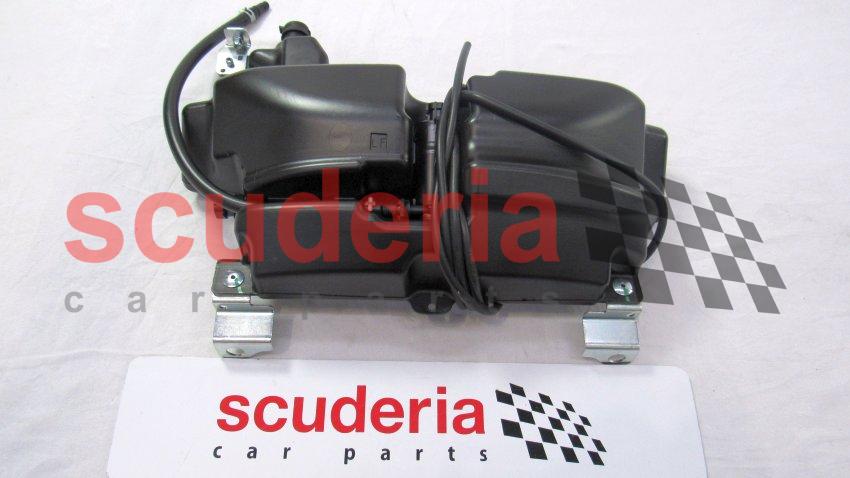

	86626200	Windscreen/Headlight Washer Fluid Resevoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310701	RH HORN	Enquire	To Order
	327396	RH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310702	LH HORN	Enquire	To Order
	327397	LH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83087800	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86839800	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW M5 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791011	NUT	Enquire	To Order
	10791011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65759400	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83982600	ANTI-VIBRATION RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83982500	ANTI-VIBRATION RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87420200	VIBRATION DAMPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	85774200	COMPL. WINDSCREEN WIPER ASSEMBLY	85774200 COMPL. WINDSCREEN WIPER ASSEMBLY Not for GD	-	1	Enquire
1	85890100	COMPL. WINDSCREEN WIPER ASSEMBLY	85890100 COMPL. WINDSCREEN WIPER ASSEMBLY Applicable for GD	-	1	Enquire
2	81511900	DRIVER SIDE WINDSCREEN WIPER ARM	81511900 DRIVER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
2	82964300	DRIVER SIDE WINDSCREEN WIPER ARM	82964300 DRIVER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
3	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	80534900 WINDSCREEN WIPER BLADE DRIVER SIDE LHD Not for GD	-	1	Enquire
3	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	80539000 WINDSCREEN WIPER BLADE DRIVER SIDE RHD Applicable for GD	-	1	Enquire
4	81511800	PASSENGER SIDE WINDSCREEN WIPER ARM	81511800 PASSENGER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
4	82964200	PASSENGER SIDE WINDSCREEN WIPER ARM	82964200 PASSENGER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
5	81511600	WINDSCREEN WIPER BLADE PASSENGER SIDE LHD	81511600 WINDSCREEN WIPER BLADE PASSENGER SIDE LHD Not for GD	-	1	Enquire
5	82964000	Windscreen Wiper Blade Passenger Side RHD	82964000 Windscreen Wiper Blade Passenger Side RHD Applicable for GD	-	1	Enquire
6	86626200	Windscreen/Headlight Washer Fluid Resevoir	86626200 Windscreen/Headlight Washer Fluid Resevoir	-	1	Enquire
7	310701	RH HORN	310701 RH HORN Not for UK	-	1	Enquire
7	327396	RH HORN	327396 RH HORN Applicable for UK	-	1	Enquire
8	310702	LH HORN	310702 LH HORN Not for UK	-	1	Enquire
8	327397	LH HORN	327397 LH HORN Applicable for UK	-	1	Enquire
9	83087800	PIPE	83087800 PIPE From valve to spray nozzle	-	1	Enquire
10	86839800	PIPE	86839800 PIPE From valve to spray nozzle	-	1	Enquire
11	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
12	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
13	16281827	SCREW M5 X 14	16281827 SCREW M5 X 14 M5 X 14	-	2	Enquire
14	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	-	2	Enquire
15	231620	SCREW	231620 SCREW	-	3	Enquire
16	10791011	NUT	10791011 NUT Applicable for GD	-	2	Enquire
16	10791011	NUT	10791011 NUT Not for GD	-	2	Enquire
17	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
18	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	-	2	Enquire
19	65759400	FASTENER CLIP	65759400 FASTENER CLIP	-	13	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
21	12640604	WASHER	12640604 WASHER	-	3	Enquire
22	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	1	Enquire
23	10396180	CABLE GROMMET	10396180 CABLE GROMMET	-	1	Enquire
24	83982600	ANTI-VIBRATION RUBBER PIPE	83982600 ANTI-VIBRATION RUBBER PIPE L. 500 mm	-	1	Enquire
25	83982500	ANTI-VIBRATION RUBBER PIPE	83982500 ANTI-VIBRATION RUBBER PIPE L. 100 mm	-	1	Enquire
26	87420200	VIBRATION DAMPER	87420200 VIBRATION DAMPER	-	1	Enquire
