DASHBOARD - SUBSTRUCTURE of Ferrari Ferrari 488 Spider

View All

Ferrari 488 Spider - DASHBOARD - SUBSTRUCTURE

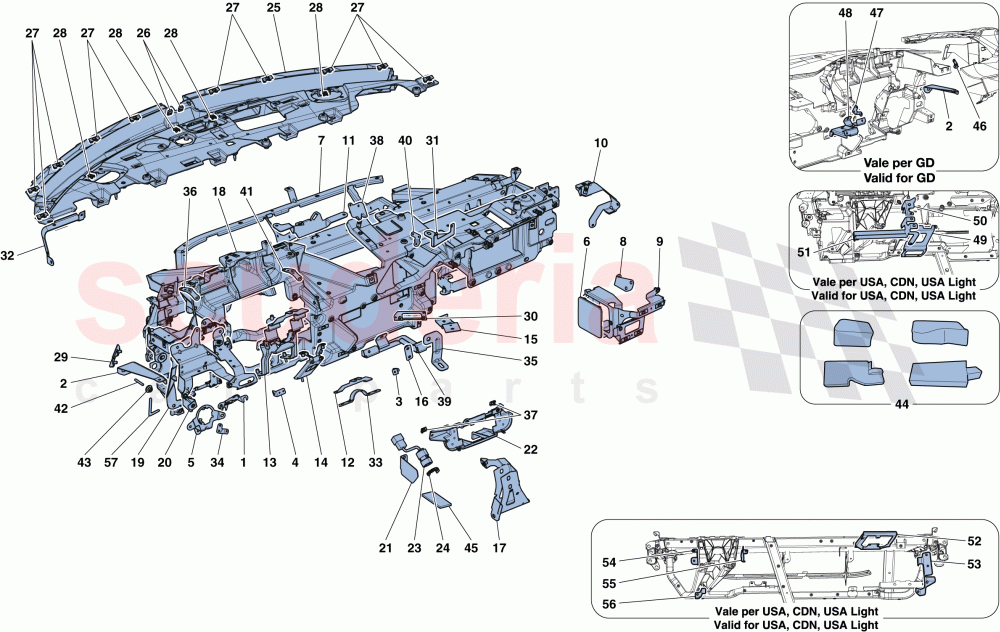

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83739700	BUTTON FASTENER BRACKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	87541900	LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET	$41.56	To Order
	87542100	LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET	$40.11	To Order

Photo	Part No	Description	Price (each)	Stock
	87224100	RH UPPER TRIM FASTENER BRACKET	$10.26	To Order

Photo	Part No	Description	Price (each)	Stock
	87224200	LH UPPER TRIM FASTENER BRACKET	$7.84	To Order

Photo	Part No	Description	Price (each)	Stock
	86181600	LIGHTS CONTROL BRACKET	$27.21	To Order
	87165200	LIGHTS CONTROL BRACKET	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	86185400	MULTIRELAY HATCH	$30.08	To Order

Photo	Part No	Description	Price (each)	Stock
	86180600	DASHBOARD CROSS MEMBER	$2,721.38	To Order
	88914300	DASHBOARD CROSS MEMBER	$2,598.83	To Order
	87016400	DASHBOARD CROSS MEMBER	$3,348.78	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	87115700	MULTIRELAY CONNECTOR BRACKET	$21.48	To Order
	87115900	MULTIRELAY CONNECTOR BRACKET	$21.48	To Order

Photo	Part No	Description	Price (each)	Stock
	86174100	MULTIRELAY MOUNTING BRACKET	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	87037100	LH SIDE LOWER SUBSTRUCTURE EXTENSION BRACKET	$91.45	To Order
	87269900	EXTENSION BRACKET FOR LOWER SUBSTRUCTURE, RH SIDE	$74.52	To Order

Photo	Part No	Description	Price (each)	Stock
	86834800	CENTRE REINFORCEMENT BRACKET FOR LOWER SUBSTRUCTURE	$57.75	To Order
	87401300	CENTRE REINFORCEMENT BRACKET FOR LOWER SUBSTRUCTURE	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	86431700	UPPER STEERING COLUMN TRIM BRACKET	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	86749100	LOWER BRACKET FOR STEERING COLUMN TRIM	$61.44	To Order

Photo	Part No	Description	Price (each)	Stock
	86592000	LOWER BRACKET FOR LOWER STEERING COLUMN TRIM	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	87036800	TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET	$42.98	To Order
	86176600	TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	85441400	PLATE	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86168500	SUPPORT FASTENER BRACKET	$105.89	To Order
	87022600	SUPPORT FASTENER BRACKET	$105.89	To Order

Photo	Part No	Description	Price (each)	Stock
	89130900	COMPL. LOWER DASHBOARD	$1,333.10	To Order
	86168100	COMPL. LOWER DASHBOARD	$1,700.86	To Order
	87039600	COMPL. LOWER DASHBOARD	$1,700.86	To Order

Photo	Part No	Description	Price (each)	Stock
	82512900	COMPL. BODY COMPUTER BRACKET	$105.89	To Order
	82785500	COMPL. BODY COMPUTER BRACKET	$186.33	To Order
	87274700	COMPL. BODY COMPUTER BRACKET	$149.21	To Order

Photo	Part No	Description	Price (each)	Stock
	87541800	LIGHT CONTROL TRIM MOUNTING BRACKET	$192.54	To Order
	87542000	LIGHT CONTROL TRIM MOUNTING BRACKET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	86939600	TEMPERATURE SENSOR SHIELD BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	86167300	A/C PANEL FASTENER BACKPLATE	$12.66	To Order
	87026200	A/C PANEL FASTENER BACKPLATE	$12.66	To Order

Photo	Part No	Description	Price (each)	Stock
	236847	TEMPERATURE SENSOR	$91.69	To Order

Photo	Part No	Description	Price (each)	Stock
	80964300	TEMPERATURE SENSOR BRACKET	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	87408800	FRONT DASHBOARD SUBSTRUCTURE	$1,428.08	To Order
	87030000	DASHBOARD FRONT SUBSTRUCTURE	$1,428.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14188971	BRACKET	$5.92	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	CLIP	$4.15	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	86176800	MOUNTING BRACKET FOR LH DRIVER SIDE VENT CONTROL	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	86572800	MOUNTING BRACKET FOR RH DRIVER SIDE VENT CONTROL	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	86835000	FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE	$42.98	To Order
	87022500	FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	87260100	LH LOWER SUBSTRUCTURE FASTENER BRACKET	$37.25	To Order
	87035800	RH LOWER SUBSTRUCTURE FASTENER BRACKET	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	86431600	UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	$15.07	To Order

Photo	Part No	Description	Price (each)	Stock
	87224400	BRACKET FASTENING CASTING TO LH UPPER TRIM	$24.05	To Order
	87372000	UPPER TRIM FASTENER BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	81528800	BRACKET	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	87225900	UPPER BRACKET FASTENING CASTING TO LH UPPER TRIM	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	86174800	BRACKET FASTENING TRIM TO SUBSTRUCTURE	$25.79	To Order
	87022700	LH SUBSTRUCTURE TRIM PANEL FASTENER BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	87413000	RH UPPER TRIM MOUNTING BRACKET	$70.59	To Order
	86859900	UPPER LH CASTING FASTENER BRACKET	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	86701900	RH UPPER TRIM FASTENER BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	86787600	UPPER CASTING FASTENER BRACKET	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	13541334	STUD BOLT	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	82913100	INNER DASH PULER	$20.84	To Order
	82912600	PULER UNDER STRUCTURE	$87.43	To Order
	82967100	PULER UNDER STRUCTURE	$37.25	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	87204500	RH UPPER TRIM FASTENER BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	87259400	LH UPPER TRIM FASTENER BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	87023600	LH UPPER TRIM PANEL SUPPORT BRACKET	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	87462700	RH LOWER KNEE GUARD BRACKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	87272100	RH KNEE GUARD BRACKET	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	87272000	REINFORCEMENT CROSS PIECE	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	792323	AIRBAG REINFORCEMENT BRACKET	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	87459100	LATERAL GLOVE COMPARTMENT REINFORCEMENT BRACKET	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	87459700	LH DRIVER BRACKET	$30.08	To Order

Photo	Part No	Description	Price (each)	Stock
	87459400	RH DRIVER BRACKET	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	87459800	LH LOWER DRIVER BRACKET	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	67681200	GASKET	$4.10	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	83739700	BUTTON FASTENER BRACKET	83739700 BUTTON FASTENER BRACKET	$19.24	1
2	87541900	LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET	87541900 LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET Not for GD	$41.56	1
2	87542100	LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET	87542100 LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET Applicable for GD	$40.11	1
3	87224100	RH UPPER TRIM FASTENER BRACKET	87224100 RH UPPER TRIM FASTENER BRACKET	$10.26	1
4	87224200	LH UPPER TRIM FASTENER BRACKET	87224200 LH UPPER TRIM FASTENER BRACKET	$7.84	1
5	86181600	LIGHTS CONTROL BRACKET	86181600 LIGHTS CONTROL BRACKET Not for GD	$27.21	1
5	87165200	LIGHTS CONTROL BRACKET	87165200 LIGHTS CONTROL BRACKET Applicable for GD	$51.59	1
6	86185400	MULTIRELAY HATCH	86185400 MULTIRELAY HATCH	$30.08	1
7	86180600	DASHBOARD CROSS MEMBER	86180600 DASHBOARD CROSS MEMBER For Russia:; not applicable for ERA GLONASS system; Not for USA, CDN, GD, USA LIGHT	$2,721.38	1
7	88914300	DASHBOARD CROSS MEMBER	88914300 DASHBOARD CROSS MEMBER Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	$2,598.83	1
7	87016400	DASHBOARD CROSS MEMBER	87016400 DASHBOARD CROSS MEMBER Applicable for GD	$3,348.78	1
7	87475100	DASHBOARD CROSS MEMBER	87475100 DASHBOARD CROSS MEMBER Applicable for USA, CDN, USA LIGHT	$2,817.66	1
8	87115700	MULTIRELAY CONNECTOR BRACKET	87115700 MULTIRELAY CONNECTOR BRACKET Not for CDN, GD, USA LIGHT	$21.48	1
8	87115900	MULTIRELAY CONNECTOR BRACKET	87115900 MULTIRELAY CONNECTOR BRACKET Applicable for GD	$21.48	1
9	86174100	MULTIRELAY MOUNTING BRACKET	86174100 MULTIRELAY MOUNTING BRACKET Not for GD	$240.67	1
10	87037100	LH SIDE LOWER SUBSTRUCTURE EXTENSION BRACKET	87037100 LH SIDE LOWER SUBSTRUCTURE EXTENSION BRACKET Applicable for GD	$91.45	1
10	87269900	EXTENSION BRACKET FOR LOWER SUBSTRUCTURE, RH SIDE	87269900 EXTENSION BRACKET FOR LOWER SUBSTRUCTURE, RH SIDE Not for GD	$74.52	1
11	86834800	CENTRE REINFORCEMENT BRACKET FOR LOWER SUBSTRUCTURE	86834800 CENTRE REINFORCEMENT BRACKET FOR LOWER SUBSTRUCTURE Not for GD	$57.75	1
11	87401300	CENTRE REINFORCEMENT BRACKET FOR LOWER SUBSTRUCTURE	87401300 CENTRE REINFORCEMENT BRACKET FOR LOWER SUBSTRUCTURE Applicable for GD	$78.61	1
12	86431700	UPPER STEERING COLUMN TRIM BRACKET	86431700 UPPER STEERING COLUMN TRIM BRACKET Applicable for electric steering column	$13.31	1
13	86749100	LOWER BRACKET FOR STEERING COLUMN TRIM	86749100 LOWER BRACKET FOR STEERING COLUMN TRIM Applicable for mechanical steering column	$61.44	1
14	86592000	LOWER BRACKET FOR LOWER STEERING COLUMN TRIM	86592000 LOWER BRACKET FOR LOWER STEERING COLUMN TRIM Applicable for electric steering column	$54.46	1
15	87036800	TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET	87036800 TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET Version with telemetry and/or Apple Car Play; Applicable for GD	$42.98	1
15	86176600	TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET	86176600 TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET Version with telemetry and/or Apple Car Play; Not for GD	$42.98	1
16	85441400	PLATE	85441400 PLATE	$5.58	1
17	86168500	SUPPORT FASTENER BRACKET	86168500 SUPPORT FASTENER BRACKET Not for GD	$105.89	1
17	87022600	SUPPORT FASTENER BRACKET	87022600 SUPPORT FASTENER BRACKET Applicable for GD	$105.89	1
18	89130900	COMPL. LOWER DASHBOARD	89130900 COMPL. LOWER DASHBOARD Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	$1,333.10	1
18	86168100	COMPL. LOWER DASHBOARD	86168100 COMPL. LOWER DASHBOARD For Russia:; not applicable for ERA GLONASS system; Not for GD	$1,700.86	1
18	87039600	COMPL. LOWER DASHBOARD	87039600 COMPL. LOWER DASHBOARD Applicable for GD	$1,700.86	1
19	82512900	COMPL. BODY COMPUTER BRACKET	82512900 COMPL. BODY COMPUTER BRACKET Not for USA, CDN, GD, USA LIGHT	$105.89	1
19	82785500	COMPL. BODY COMPUTER BRACKET	82785500 COMPL. BODY COMPUTER BRACKET Applicable for GD	$186.33	1
19	87274700	COMPL. BODY COMPUTER BRACKET	87274700 COMPL. BODY COMPUTER BRACKET Applicable for USA, CDN, USA LIGHT	$149.21	1
20	87541800	LIGHT CONTROL TRIM MOUNTING BRACKET	87541800 LIGHT CONTROL TRIM MOUNTING BRACKET Not for GD	$192.54	1
20	87542000	LIGHT CONTROL TRIM MOUNTING BRACKET	87542000 LIGHT CONTROL TRIM MOUNTING BRACKET Applicable for GD	$192.54	1
21	86939600	TEMPERATURE SENSOR SHIELD BRACKET	86939600 TEMPERATURE SENSOR SHIELD BRACKET Not for GD	$24.05	1
22	86167300	A/C PANEL FASTENER BACKPLATE	86167300 A/C PANEL FASTENER BACKPLATE Not for GD	$12.66	1
22	87026200	A/C PANEL FASTENER BACKPLATE	87026200 A/C PANEL FASTENER BACKPLATE Applicable for GD	$12.66	1
23	236847	TEMPERATURE SENSOR	236847 TEMPERATURE SENSOR	$91.69 MSRP: ~~99.57~~ (7.9% off)	1
24	80964300	TEMPERATURE SENSOR BRACKET	80964300 TEMPERATURE SENSOR BRACKET	$6.18	1
25	87408800	FRONT DASHBOARD SUBSTRUCTURE	87408800 FRONT DASHBOARD SUBSTRUCTURE Not for GD	$1,428.08	1
25	87030000	DASHBOARD FRONT SUBSTRUCTURE	87030000 DASHBOARD FRONT SUBSTRUCTURE Applicable for GD	$1,428.08	1
26	14188971	BRACKET	14188971 BRACKET	$5.92	2
27	68700200	CLIP ARRIVING SOON	68700200 CLIP ARRIVING SOON	$4.15 MSRP: ~~5.50~~ (24.5% off)	10
28	68700800	CLIP	68700800 CLIP	$1.09	4
29	86176800	MOUNTING BRACKET FOR LH DRIVER SIDE VENT CONTROL	86176800 MOUNTING BRACKET FOR LH DRIVER SIDE VENT CONTROL	$24.05	1
30	86572800	MOUNTING BRACKET FOR RH DRIVER SIDE VENT CONTROL	86572800 MOUNTING BRACKET FOR RH DRIVER SIDE VENT CONTROL	$24.05	1
31	86835000	FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE	86835000 FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE Not for GD	$42.98	1
31	87022500	FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE	87022500 FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE Applicable for GD	$42.98	1
32	87260100	LH LOWER SUBSTRUCTURE FASTENER BRACKET	87260100 LH LOWER SUBSTRUCTURE FASTENER BRACKET Not for GD	$37.25	1
32	87035800	RH LOWER SUBSTRUCTURE FASTENER BRACKET	87035800 RH LOWER SUBSTRUCTURE FASTENER BRACKET Applicable for GD	$60.96	1
33	86431600	UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	86431600 UPPER BRACKET FOR LOWER STEERING COLUMN TRIM	$15.07	1
34	87224400	BRACKET FASTENING CASTING TO LH UPPER TRIM	87224400 BRACKET FASTENING CASTING TO LH UPPER TRIM Not for GD	$24.05	1
34	87372000	UPPER TRIM FASTENER BRACKET	87372000 UPPER TRIM FASTENER BRACKET Applicable for GD	$24.05	1
35	81528800	BRACKET	81528800 BRACKET	$11.54	1
36	87225900	UPPER BRACKET FASTENING CASTING TO LH UPPER TRIM	87225900 UPPER BRACKET FASTENING CASTING TO LH UPPER TRIM Not for GD	$22.92	1
37	68700800	CLIP	68700800 CLIP	$1.09	2
38	86174800	BRACKET FASTENING TRIM TO SUBSTRUCTURE	86174800 BRACKET FASTENING TRIM TO SUBSTRUCTURE Not for GD	$25.79	1
38	87022700	LH SUBSTRUCTURE TRIM PANEL FASTENER BRACKET	87022700 LH SUBSTRUCTURE TRIM PANEL FASTENER BRACKET Applicable for GD	$25.79	1
39	87413000	RH UPPER TRIM MOUNTING BRACKET	87413000 RH UPPER TRIM MOUNTING BRACKET Not for GD	$70.59	1
39	86859900	UPPER LH CASTING FASTENER BRACKET	86859900 UPPER LH CASTING FASTENER BRACKET Applicable for GD	$70.59	1
40	86701900	RH UPPER TRIM FASTENER BRACKET	86701900 RH UPPER TRIM FASTENER BRACKET Not for GD	$25.79	1
41	86787600	UPPER CASTING FASTENER BRACKET	86787600 UPPER CASTING FASTENER BRACKET Not for GD	$22.92	1
42	13541334	STUD BOLT	13541334 STUD BOLT	$0.50	1
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
44	82913100	INNER DASH PULER	82913100 INNER DASH PULER 160 X 120 X 60; Applicable for GD	$20.84	1
44	82912600	PULER UNDER STRUCTURE	82912600 PULER UNDER STRUCTURE 400 X 170 X 60; Applicable for GD	$87.43	1
44	82967100	PULER UNDER STRUCTURE	82967100 PULER UNDER STRUCTURE 360 X 120 X 60; Applicable for GD	$37.25	1
44	82913000	INNER DASH PULER	82913000 INNER DASH PULER 230 X 120 X 60; Applicable for GD	$27.21	1
45	255515	BUSH	255515 BUSH 100 x 50 mm	$2.24	1
46	87204500	RH UPPER TRIM FASTENER BRACKET	87204500 RH UPPER TRIM FASTENER BRACKET Applicable for GD	$24.05	1
47	87259400	LH UPPER TRIM FASTENER BRACKET	87259400 LH UPPER TRIM FASTENER BRACKET Applicable for GD	$24.05	1
48	87023600	LH UPPER TRIM PANEL SUPPORT BRACKET	87023600 LH UPPER TRIM PANEL SUPPORT BRACKET Applicable for GD	$107.49	1
49	87462700	RH LOWER KNEE GUARD BRACKET	87462700 RH LOWER KNEE GUARD BRACKET Applicable for USA, CDN, USA LIGHT	$72.19	1
50	87272100	RH KNEE GUARD BRACKET	87272100 RH KNEE GUARD BRACKET Applicable for USA, CDN, USA LIGHT	$64.17	1
51	87272000	REINFORCEMENT CROSS PIECE	87272000 REINFORCEMENT CROSS PIECE Applicable for USA, CDN, USA LIGHT	$75.95	1
52	792323	AIRBAG REINFORCEMENT BRACKET	792323 AIRBAG REINFORCEMENT BRACKET Applicable for airbag 89207500; Applicable for USA, CDN, USA LIGHT	$114.66	1
53	87459100	LATERAL GLOVE COMPARTMENT REINFORCEMENT BRACKET	87459100 LATERAL GLOVE COMPARTMENT REINFORCEMENT BRACKET Applicable for USA, CDN, USA LIGHT	$78.61	1
54	87459700	LH DRIVER BRACKET	87459700 LH DRIVER BRACKET Applicable for USA, CDN, USA LIGHT	$30.08	1
55	87459400	RH DRIVER BRACKET	87459400 RH DRIVER BRACKET Applicable for USA, CDN, USA LIGHT	$46.52	1
56	87459800	LH LOWER DRIVER BRACKET	87459800 LH LOWER DRIVER BRACKET Applicable for USA, CDN, USA LIGHT	$32.08	1
57	67681200	GASKET	67681200 GASKET	$4.10	1
