GLOVE COMPARTMENT of Ferrari Ferrari 488 Spider

View All

Ferrari 488 Spider - GLOVE COMPARTMENT

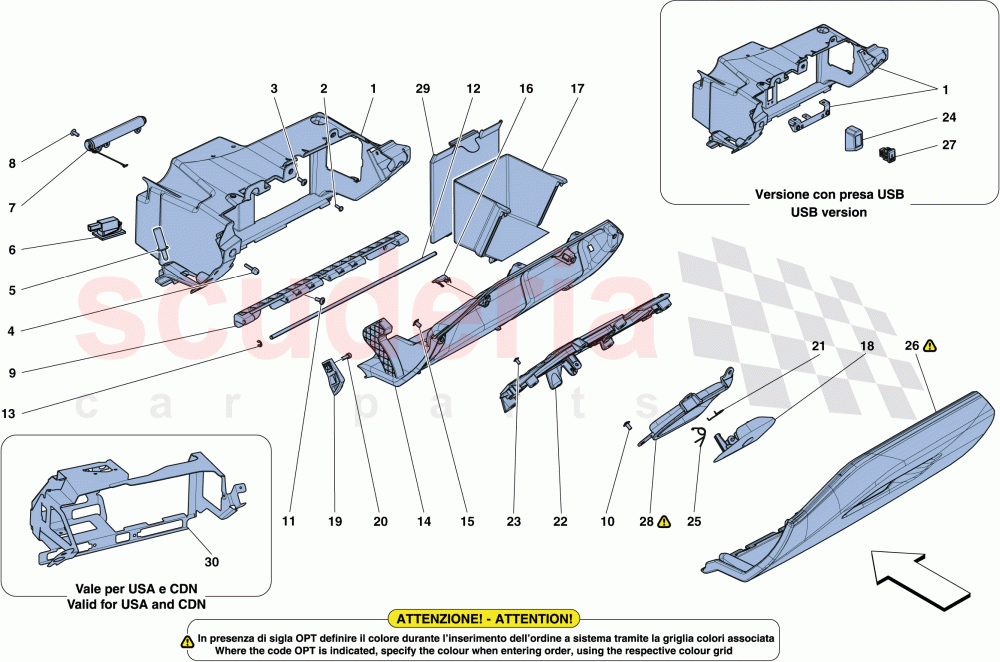

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87476900	COMPL. GLOVE COMPARTMENT WITH OPT USB	Enquire	To Order
	87482700	COMPL. GLOVE COMPARTMENT WITH OPT USB	Enquire	To Order
	87035300	COMPL. GLOVE COMPARTMENT WITH OPT USB	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65361300	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188266	GLOVE COMPARTMENT LIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	86176700	PIOLAX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86166500	GLOVE COMPARTMENT HINGE	Enquire	To Order
	87259300	GLOVE COMPARTMENT HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86174400	GLOVE COMPARTMENT LID PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087776	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87029600	GLOVE COMPARTMENT DOOR BACKING	Enquire	To Order
	87849700	GLOVE COMPARTMENT DOOR BACKING	Enquire	To Order
	86185300	GLOVE COMPARTMENT DOOR BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86167700	LH SCREW COVER PLUG FOR LID BACKING	Enquire	To Order
	87029800	LH GLOVE COMPARTMENT DOOR BACKING SCREW CAP	Enquire	To Order
	86167900	RH SCREW COVER PLUG FOR LID BACKING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86915300	COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING	Enquire	To Order
	87030900	COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86184512	MANIGLIA SPORTELLO VANO CASSETTO -No per GD-	Enquire	To Order
	87029112	MANIGLIA SPORTELLO VANO CASSETTO -Vale per GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67332600	LH STRIKER	Enquire	To Order
	67332500	RH STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13025728	SCREW	Enquire	To Order
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	86702000	LATCH STOP SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86184600	COMPL. LID HANDLE SUBSTRUCTURE	Enquire	To Order
	87028200	COMPL. LID HANDLE SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87273500	USB SOCKET SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87734700	HANDLE RETURN SPRING	Enquire	To Order
	87734800	HANDLE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87272712	GLOVE COMPARTMENT DOOR	Enquire	To Order
	88266500	COMPL. GLOVE COMPARTMENT DOOR	Enquire	To Order
	88265912	COMPL. GLOVE COMPARTMENT DOOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87030312	SUPPORTO MANIGLIA CPL. -INTP- -Pelle- -Vale per GD-	Enquire	To Order
	88323600	COMPL. HANDLE MOUNT	Enquire	To Order
	86754712	COMPL. HANDLE MOUNT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	87207700	SCM HATCH	Enquire	To Order
	86183900	SCM HATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87272500	GLOVE COMPARTMENT REINFORCEMENT BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87476900	COMPL. GLOVE COMPARTMENT WITH OPT USB	87476900 COMPL. GLOVE COMPARTMENT WITH OPT USB Version with USB socket; GS version; Applicable for J	-	1	Enquire
1	87482700	COMPL. GLOVE COMPARTMENT WITH OPT USB	87482700 COMPL. GLOVE COMPARTMENT WITH OPT USB Version with USB socket; GD version; Applicable for J	-	1	Enquire
1	87035300	COMPL. GLOVE COMPARTMENT WITH OPT USB	87035300 COMPL. GLOVE COMPARTMENT WITH OPT USB Version with USB socket; Applicable for GD	-	1	Enquire
1	87850000	COMPL. GLOVE COMPARTMENT WITH OPT USB	87850000 COMPL. GLOVE COMPARTMENT WITH OPT USB Version with USB socket; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87482400	COMPL. GLOVE COMPARTMENT	87482400 COMPL. GLOVE COMPARTMENT Version with CD reader and USB socket; GD version; Applicable for J	-	1	Enquire
1	86739600	COMPL. GLOVE COMPARTMENT WITH OPT USB	86739600 COMPL. GLOVE COMPARTMENT WITH OPT USB Version with USB socket; Not for USA, CDN, J, GD, USA LIGHT	-	1	Enquire
1	87849800	COMPL. GLOVE COMPARTMENT	87849800 COMPL. GLOVE COMPARTMENT Version with CD reader and USB socket; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87476600	COMPL. GLOVE COMPARTMENT	87476600 COMPL. GLOVE COMPARTMENT Version with CD reader and USB socket; GS version; Applicable for J	-	1	Enquire
1	86739300	COMPL. GLOVE COMPARTMENT	86739300 COMPL. GLOVE COMPARTMENT Version with CD reader and USB socket; Not for USA, CDN, J, GD, USA LIGHT	-	1	Enquire
1	87031700	COMPL. GLOVE COMPARTMENT	87031700 COMPL. GLOVE COMPARTMENT Version with CD reader and USB socket; Applicable for GD	-	1	Enquire
1	87476300	COMPL. GLOVE COMPARTMENT	87476300 COMPL. GLOVE COMPARTMENT Version with CD reader; GS version; Applicable for J	-	1	Enquire
1	87482100	COMPL. GLOVE COMPARTMENT	87482100 COMPL. GLOVE COMPARTMENT Version with CD reader; GD version; Applicable for J	-	1	Enquire
1	87026500	COMPL. GLOVE COMPARTMENT	87026500 COMPL. GLOVE COMPARTMENT Version with CD reader; Applicable for GD	-	1	Enquire
1	87850200	COMPL. GLOVE COMPARTMENT	87850200 COMPL. GLOVE COMPARTMENT Version with CD reader; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87849100	COMPL. GLOVE COMPARTMENT	87849100 COMPL. GLOVE COMPARTMENT Standard; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87477300	COMPL. GLOVE COMPARTMENT	87477300 COMPL. GLOVE COMPARTMENT Standard; GS version; Applicable for J	-	1	Enquire
1	87483100	COMPL. GLOVE COMPARTMENT	87483100 COMPL. GLOVE COMPARTMENT Standard; GD version; Applicable for J	-	1	Enquire
1	86738200	COMPL. GLOVE COMPARTMENT	86738200 COMPL. GLOVE COMPARTMENT Version with CD reader; Not for USA, CDN, J, GD, USA LIGHT	-	1	Enquire
1	86183600	COMPL. GLOVE COMPARTMENT	86183600 COMPL. GLOVE COMPARTMENT Standard; Not for USA, CDN, J, GD, USA LIGHT	-	1	Enquire
1	87036100	COMPL. GLOVE COMPARTMENT	87036100 COMPL. GLOVE COMPARTMENT Standard; Applicable for GD	-	1	Enquire
2	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 M6 X 22	-	1	Enquire
3	85833700	SCREW	85833700 SCREW M5 X 8	-	4	Enquire
4	65361300	PIN	65361300 PIN	-	2	Enquire
5	188266	GLOVE COMPARTMENT LIGHT BUTTON	188266 GLOVE COMPARTMENT LIGHT BUTTON	-	1	Enquire
6	188250	DOME LAMP UNIT ARRIVING SOON	188250 DOME LAMP UNIT ARRIVING SOON	-	1	Enquire
7	86176700	PIOLAX	86176700 PIOLAX	-	1	Enquire
8	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
9	86166500	GLOVE COMPARTMENT HINGE	86166500 GLOVE COMPARTMENT HINGE Not for GD	-	1	Enquire
9	87259300	GLOVE COMPARTMENT HINGE	87259300 GLOVE COMPARTMENT HINGE Applicable for GD	-	1	Enquire
10	85833700	SCREW	85833700 SCREW M5 X 10	-	10	Enquire
11	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
12	86174400	GLOVE COMPARTMENT LID PIVOT	86174400 GLOVE COMPARTMENT LID PIVOT	-	1	Enquire
13	11087776	SNAP RING	11087776 SNAP RING	-	2	Enquire
14	87029600	GLOVE COMPARTMENT DOOR BACKING	87029600 GLOVE COMPARTMENT DOOR BACKING Applicable for GD	-	1	Enquire
14	87849700	GLOVE COMPARTMENT DOOR BACKING	87849700 GLOVE COMPARTMENT DOOR BACKING Applicable for USA, CDN, USA LIGHT	-	1	Enquire
14	86185300	GLOVE COMPARTMENT DOOR BACKING	86185300 GLOVE COMPARTMENT DOOR BACKING Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
15	85833700	SCREW	85833700 SCREW M5 X 10	-	3	Enquire
16	86167700	LH SCREW COVER PLUG FOR LID BACKING	86167700 LH SCREW COVER PLUG FOR LID BACKING Not for GD	-	1	Enquire
16	87029800	LH GLOVE COMPARTMENT DOOR BACKING SCREW CAP	87029800 LH GLOVE COMPARTMENT DOOR BACKING SCREW CAP Applicable for GD	-	1	Enquire
16	86167900	RH SCREW COVER PLUG FOR LID BACKING	86167900 RH SCREW COVER PLUG FOR LID BACKING Not for GD	-	1	Enquire
16	87030100	RH GLOVE COMPARTMENT DOOR BACKING SCREW CAP	87030100 RH GLOVE COMPARTMENT DOOR BACKING SCREW CAP Applicable for GD	-	1	Enquire
17	86915300	COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING	86915300 COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING Not for GD	-	1	Enquire
17	87030900	COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING	87030900 COMPL. REMOVABLE GLOVE COMPARTMENT HOUSING Applicable for GD	-	1	Enquire
18	86184512	MANIGLIA SPORTELLO VANO CASSETTO -No per GD-	86184512 MANIGLIA SPORTELLO VANO CASSETTO -No per GD- Not for GD	-	1	Enquire
18	87029112	MANIGLIA SPORTELLO VANO CASSETTO -Vale per GD-	87029112 MANIGLIA SPORTELLO VANO CASSETTO -Vale per GD- Applicable for GD	-	1	Enquire
19	67332600	LH STRIKER	67332600 LH STRIKER	-	1	Enquire
19	67332500	RH STRIKER	67332500 RH STRIKER	-	1	Enquire
20	13025728	SCREW	13025728 SCREW M5 X 10; No longer supplied; Replaced by 14304187	-	2	Enquire
20	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 10 ARRIVING SOON	-	2	Enquire
21	86702000	LATCH STOP SPRING	86702000 LATCH STOP SPRING	-	1	Enquire
22	86184600	COMPL. LID HANDLE SUBSTRUCTURE	86184600 COMPL. LID HANDLE SUBSTRUCTURE Not for GD	-	1	Enquire
22	87028200	COMPL. LID HANDLE SUBSTRUCTURE	87028200 COMPL. LID HANDLE SUBSTRUCTURE Applicable for GD	-	1	Enquire
23	795930	SCREW	795930 SCREW M4 X 8	-	5	Enquire
24	87273500	USB SOCKET SURROUND	87273500 USB SOCKET SURROUND Version with USB socket	-	1	Enquire
25	87734700	HANDLE RETURN SPRING	87734700 HANDLE RETURN SPRING Not for GD	-	1	Enquire
25	87734800	HANDLE RETURN SPRING	87734800 HANDLE RETURN SPRING Applicable for GD	-	1	Enquire
26	87272712	GLOVE COMPARTMENT DOOR	87272712 GLOVE COMPARTMENT DOOR INTP; Leather; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
26	88266500	COMPL. GLOVE COMPARTMENT DOOR	88266500 COMPL. GLOVE COMPARTMENT DOOR INTA; Alcantara; STC1; STC2; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
26	88265912	COMPL. GLOVE COMPARTMENT DOOR	88265912 COMPL. GLOVE COMPARTMENT DOOR INTA; Alcantara; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
26	87027700	COMPL. GLOVE COMPARTMENT DOOR	87027700 COMPL. GLOVE COMPARTMENT DOOR INTP; Leather; STC1; STC2; Applicable for GD	-	1	Enquire
26	88323900	COMPL. GLOVE COMPARTMENT DOOR	88323900 COMPL. GLOVE COMPARTMENT DOOR INTA; Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
26	86186612	SPORTELLO VANO CASSETTO CPL. -INTP- -Pelle- -STC1- -STC2- -No per USA	86186612 SPORTELLO VANO CASSETTO CPL. -INTP- -Pelle- -STC1- -STC2- -No per USA INTP; Leather; STC1; STC2; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
27	303226	USB SOCKET	303226 USB SOCKET Version with USB socket	-	1	Enquire
28	87030312	SUPPORTO MANIGLIA CPL. -INTP- -Pelle- -Vale per GD-	87030312 SUPPORTO MANIGLIA CPL. -INTP- -Pelle- -Vale per GD- INTP; Leather; Applicable for GD	-	1	Enquire
28	88323600	COMPL. HANDLE MOUNT	88323600 COMPL. HANDLE MOUNT INTA; Alcantara; Applicable for GD	-	1	Enquire
28	86754712	COMPL. HANDLE MOUNT	86754712 COMPL. HANDLE MOUNT INTP; Leather; Not for GD	-	1	Enquire
28	88266112	COMPL. HANDLE MOUNT	88266112 COMPL. HANDLE MOUNT INTA; Alcantara; Not for GD	-	1	Enquire
29	87207700	SCM HATCH	87207700 SCM HATCH Applicable for GD	-	1	Enquire
29	86183900	SCM HATCH	86183900 SCM HATCH Not for GD	-	1	Enquire
30	87272500	GLOVE COMPARTMENT REINFORCEMENT BRACKET	87272500 GLOVE COMPARTMENT REINFORCEMENT BRACKET Applicable for USA, CDN, USA LIGHT	-	1	Enquire
