STEERING CONTROL of Ferrari Ferrari 488 GTB

View All

Ferrari 488 GTB - STEERING CONTROL

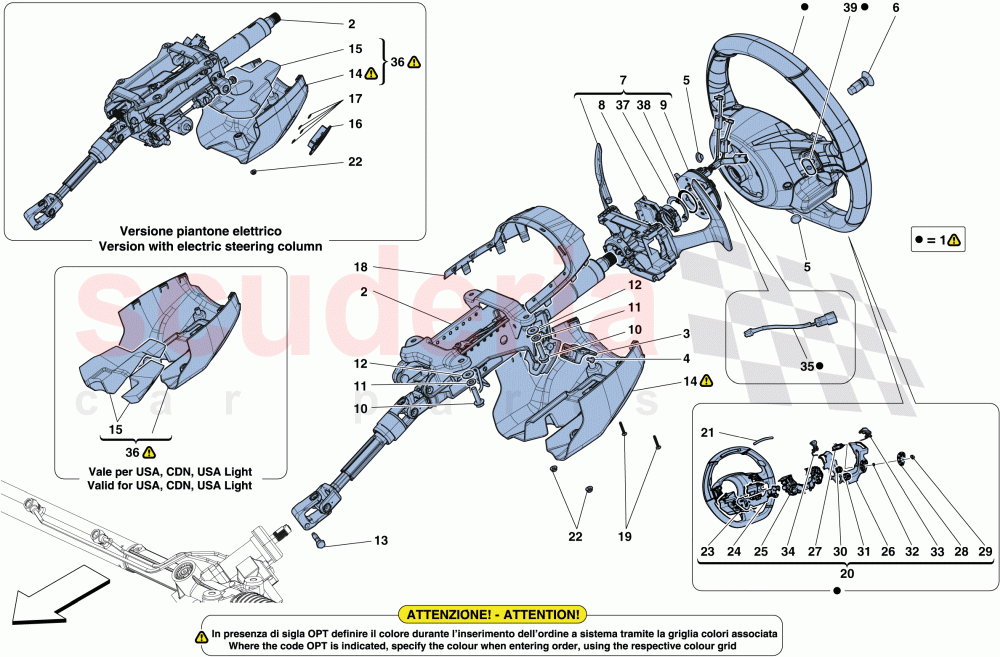

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87711800	COMPL. STEERING WHEEL	Enquire	To Order
	87716400	COMPL. STEERING WHEEL	Enquire	To Order
	87711900	COMPL. STEERING WHEEL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	308063	COMPL. STEERING COLUMN	Enquire	To Order
	325549	COMPL. STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313964	STEERING COLUMN ADJUSTMENT LOCK LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301723	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	931308218	F1 GEARBOX CONTROL SET	Enquire	To Order
	342606	F1 GEARBOX CONTROL SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309296	STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280098	CLOCK SPRING CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245173	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86949500	LOWER STEERING COLUMN SHIELD	Enquire	To Order
	86177912	LOWER STEERING COLUMN TRIM -INTP- -Leather- -Applicable for manual steering column-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86178100	MANUAL STEERING COLUMN IMPACT ABSORBER	Enquire	To Order
	86184900	ELECTRIC STEERING COLUMN IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84001400	JOYSTICK PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14227474	Motif Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85478712	UPPER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314910	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order
	314904	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order
	319960	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214236	LED PLATE FOR STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258336	MAIN SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829169	ELECTRONIC BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258338	MAIN MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314905	SURROUND	Enquire	To Order
	260514	SURROUND	Enquire	To Order
	263762	SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212752	ROTARY SELECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273115	MANETTINO DECAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210986	MANETTINO LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257739	SHOCK ABSORBER HEIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318666	ENGINE START BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308717	WASHER FOR STEERING WHEEL MANETTINO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255430	RH TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255429	LH TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325936	CLOCK SPRING CONNECTOR HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86949500	LOWER STEERING COLUMN SHIELD	Enquire	To Order
	86177800	LOWER STEERING COLUMN SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828381	CLOCK SPRING CONNECTOR LOCK RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828380	CLOCK SPRING CONNECTOR SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291692	RH NIT BUTTON	Enquire	To Order
	292879	LH NIT BUTTON	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87711800	COMPL. STEERING WHEEL	87711800 COMPL. STEERING WHEEL INTP; Leather; Version with upper and lower rim in carbon fibre; With LED; STIC	-	1	Enquire
1	87716400	COMPL. STEERING WHEEL	87716400 COMPL. STEERING WHEEL INTP; Leather; Version with Alcantara upper and lower rim and Nart grey plate; Without LED; INTP for leather colour option, STWA for Alcantara colour; STWA; STIC	-	1	Enquire
1	87711900	COMPL. STEERING WHEEL	87711900 COMPL. STEERING WHEEL INTP; Leather; Version with Alcantara upper and lower rim and smoke grey plate; Without LED; INTP for leather colour option, STWA for Alcantara colour; STWA; STIC	-	1	Enquire
1	87716300	COMPL. STEERING WHEEL	87716300 COMPL. STEERING WHEEL INTP; Leather; Version in leather with NART grey plate; Without LED; STIC	-	1	Enquire
1	87711600	COMPL. STEERING WHEEL	87711600 COMPL. STEERING WHEEL INTP; Leather; Version in leather with burnished grey plate; Without LED; STIC	-	1	Enquire
2	308063	COMPL. STEERING COLUMN	308063 COMPL. STEERING COLUMN Electric version	-	1	Enquire
2	325549	COMPL. STEERING COLUMN	325549 COMPL. STEERING COLUMN Manual version	-	1	Enquire
3	313964	STEERING COLUMN ADJUSTMENT LOCK LEVER	313964 STEERING COLUMN ADJUSTMENT LOCK LEVER Applicable for manual steering column	-	1	Enquire
4	13273977	SCREW	13273977 SCREW Applicable for manual steering column	-	1	Enquire
5	14506587	PLUG	14506587 PLUG	-	2	Enquire
6	301723	SCREW	301723 SCREW	-	1	Enquire
7	931308218	F1 GEARBOX CONTROL SET	931308218 F1 GEARBOX CONTROL SET NART grey	-	1	Enquire
7	342606	F1 GEARBOX CONTROL SET	342606 F1 GEARBOX CONTROL SET Carbon	-	1	Enquire
8	309296	STEERING ANGLE SENSOR	309296 STEERING ANGLE SENSOR	-	1	Enquire
9	280098	CLOCK SPRING CONNECTOR	280098 CLOCK SPRING CONNECTOR	-	1	Enquire
10	16287321	SCREW	16287321 SCREW	-	4	Enquire
11	84653800	WASHER	84653800 WASHER	-	4	Enquire
12	12646704	WASHER	12646704 WASHER	-	4	Enquire
13	245173	SCREW	245173 SCREW	-	1	Enquire
14	86949500	LOWER STEERING COLUMN SHIELD	86949500 LOWER STEERING COLUMN SHIELD INTP; Leather; Applicable for electric steering column; Order complete 86949500, ref. 36; No longer supplied	-	1	Enquire
14	86177912	LOWER STEERING COLUMN TRIM -INTP- -Leather- -Applicable for manual steering column-	86177912 LOWER STEERING COLUMN TRIM -INTP- -Leather- -Applicable for manual steering column- INTP; Leather; Applicable for manual steering column	-	1	Enquire
15	86178100	MANUAL STEERING COLUMN IMPACT ABSORBER	86178100 MANUAL STEERING COLUMN IMPACT ABSORBER Applicable for manual steering column; After depletion, order compl. 86177800 pos. 36; Applicable for USA, CDN, USA LIGHT; Applicable until depletion	-	1	Enquire
15	86184900	ELECTRIC STEERING COLUMN IMPACT ABSORBER	86184900 ELECTRIC STEERING COLUMN IMPACT ABSORBER Applicable for electric steering column; After depletion, order compl. 86949500 pos. 36; Applicable until depletion	-	1	Enquire
16	84001400	JOYSTICK PANEL	84001400 JOYSTICK PANEL Applicable for electric steering column	-	1	Enquire
17	14227474	Motif Clip	14227474 Motif Clip Applicable for electric steering column	-	4	Enquire
18	85478712	UPPER STEERING COLUMN TRIM	85478712 UPPER STEERING COLUMN TRIM Leather	-	1	Enquire
19	15689201	SCREW	15689201 SCREW	-	2	Enquire
20	314910	STEERING WHEEL MOUNTED CONTROLS	314910 STEERING WHEEL MOUNTED CONTROLS Carbon fibre surround with LED	-	1	Enquire
20	314904	STEERING WHEEL MOUNTED CONTROLS	314904 STEERING WHEEL MOUNTED CONTROLS NART grey button panel	-	1	Enquire
20	319960	STEERING WHEEL MOUNTED CONTROLS	319960 STEERING WHEEL MOUNTED CONTROLS Burnished grey button panel	-	1	Enquire
21	214236	LED PLATE FOR STEERING WHEEL	214236 LED PLATE FOR STEERING WHEEL Applicable for carbon steering wheel with LEDs	-	1	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for electric steering column	-	1	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for manual steering column	-	2	Enquire
23	258336	MAIN SHELL	258336 MAIN SHELL	-	1	Enquire
24	829169	ELECTRONIC BOARD	829169 ELECTRONIC BOARD	-	1	Enquire
25	258338	MAIN MOUNT	258338 MAIN MOUNT	-	1	Enquire
26	314905	SURROUND	314905 SURROUND NART grey	-	1	Enquire
26	260514	SURROUND	260514 SURROUND Carbon	-	1	Enquire
26	263762	SURROUND	263762 SURROUND Burnished grey	-	1	Enquire
27	212752	ROTARY SELECTOR	212752 ROTARY SELECTOR	-	1	Enquire
28	273115	MANETTINO DECAL	273115 MANETTINO DECAL	-	1	Enquire
29	210986	MANETTINO LEVER	210986 MANETTINO LEVER	-	1	Enquire
30	257739	SHOCK ABSORBER HEIGHT BUTTON	257739 SHOCK ABSORBER HEIGHT BUTTON	-	1	Enquire
31	318666	ENGINE START BUTTON	318666 ENGINE START BUTTON	-	1	Enquire
32	308717	WASHER FOR STEERING WHEEL MANETTINO	308717 WASHER FOR STEERING WHEEL MANETTINO	-	1	Enquire
33	255430	RH TURN INDICATOR	255430 RH TURN INDICATOR	-	1	Enquire
34	255429	LH TURN INDICATOR	255429 LH TURN INDICATOR	-	1	Enquire
35	325936	CLOCK SPRING CONNECTOR HARNESS	325936 CLOCK SPRING CONNECTOR HARNESS Only applicable for spare parts	-	1	Enquire
36	86949500	LOWER STEERING COLUMN SHIELD	86949500 LOWER STEERING COLUMN SHIELD INTP; Leather; Applicable for electric steering column	-	1	Enquire
36	86177800	LOWER STEERING COLUMN SHIELD	86177800 LOWER STEERING COLUMN SHIELD INTP; Leather; Applicable for manual steering column; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
37	828381	CLOCK SPRING CONNECTOR LOCK RING	828381 CLOCK SPRING CONNECTOR LOCK RING	-	1	Enquire
38	828380	CLOCK SPRING CONNECTOR SPRING	828380 CLOCK SPRING CONNECTOR SPRING	-	1	Enquire
39	291692	RH NIT BUTTON	291692 RH NIT BUTTON	-	1	Enquire
39	292879	LH NIT BUTTON	292879 LH NIT BUTTON	-	1	Enquire
