Fuel Tanks And Filler Neck

Ferrari 488 GTB

Find Your Part

Ferrari 488 GTB - FUEL TANKS AND FILLER NECK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
326606 RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS $3,579.84 To Order
Photo Part No Description Price (each) Stock
326607 LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS $3,579.84 To Order
Photo Part No Description Price (each) Stock
320027 FUEL TANK CONNECTOR PIPE $137.98 To Order
311436 FUEL TANK CONNECTOR PIPE $139.58 To Order
Photo Part No Description Price (each) Stock
302682 COLLAR $2.95 To Order
Photo Part No Description Price (each) Stock
330105 DUAL DIAMETER HOSE CONNECTOR $67.38 To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.77 To Order
Photo Part No Description Price (each) Stock
305831 FUEL CONNECTOR HOSE PROTECTIVE SLEEVE $62.56 To Order
Photo Part No Description Price (each) Stock
275275 RUBBER SHIM $13.31 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
320029 TANK CONNECTOR PIPE MOUNTING BRACKET Enquire To Order
311464 TANK CONNECTOR PIPE MOUNTING BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
791355 SCREW $4.85 To Order
Photo Part No Description Price (each) Stock
284428 FILLER NECK HEAT SHIELD $68.98 To Order
Photo Part No Description Price (each) Stock
880911 COMPL. FUEL FILLER NECK $673.92 To Order
Photo Part No Description Price (each) Stock
295356 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
318291 FUEL FILLER PIPE PROTECTION BRACKET $62.56 To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.77 To Order
Photo Part No Description Price (each) Stock
309340 BRACKET WITH SHEATH $8.01 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.39 IN STOCK
Photo Part No Description Price (each) Stock
322519 CLIP Enquire To Order
View All

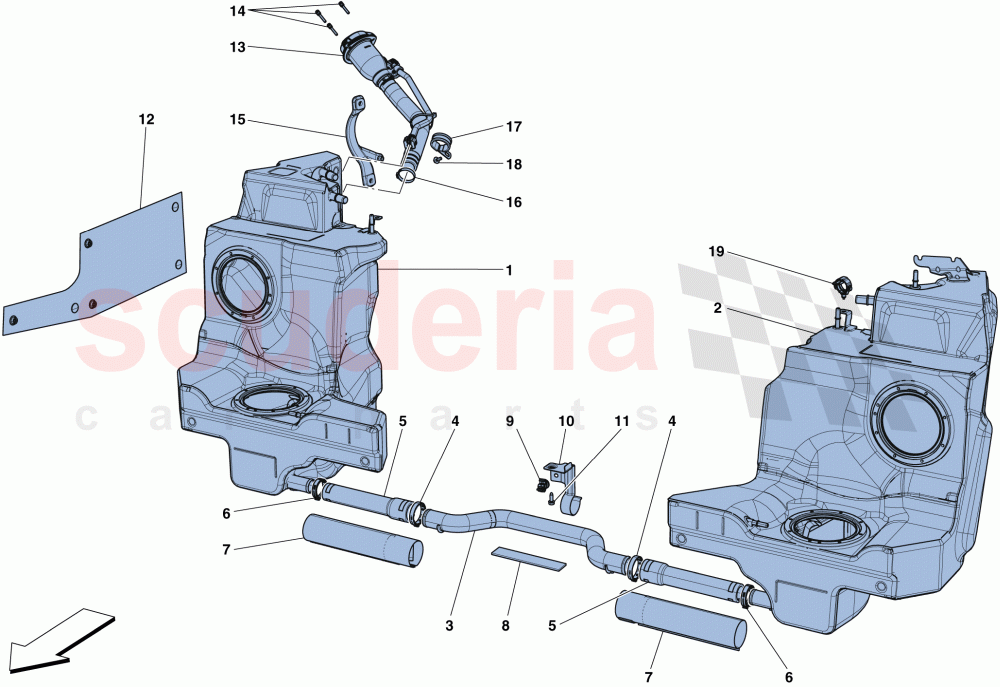

FUEL TANKS AND FILLER NECK of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 326606
RH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS 		$3,579.84 1
2 326607
LH FUEL TANK WITH CAPS AND PAINT AND VIBRATION DAMPERS 		$3,579.84 1
3 320027
FUEL TANK CONNECTOR PIPE
Applicable from Ass. No. 155388 		$137.98 1
3 311436
FUEL TANK CONNECTOR PIPE
Applicable up to Ass. No. 155387 		$139.58 1
4 302682
COLLAR 		$2.95 2
5 330105
DUAL DIAMETER HOSE CONNECTOR 		$67.38 2
6 11449470
COLLAR 		$2.77 2
7 305831
FUEL CONNECTOR HOSE PROTECTIVE SLEEVE 		$62.56 2
8 275275
RUBBER SHIM 		$13.31 1
9 250318
SNAP CLIP
IN STOCK 		$0.26 1
10 320029
TANK CONNECTOR PIPE MOUNTING BRACKET
Applicable from Ass. No. 155388 		- 1 Enquire
10 311464
TANK CONNECTOR PIPE MOUNTING BRACKET
Applicable up to Ass. No. 155387 		$67.38 1
11 791355
SCREW 		$4.85 1
12 284428
FILLER NECK HEAT SHIELD 		$68.98 1
13 880911
COMPL. FUEL FILLER NECK 		$673.92 1
14 295356
SCREW 		$0.52 3
15 318291
FUEL FILLER PIPE PROTECTION BRACKET 		$62.56 1
16 11449470
COLLAR 		$2.77 1
17 309340
BRACKET WITH SHEATH 		$8.01 1
18 11625824
SCREW
M6 X 16
IN STOCK 		$0.39 (61% off) 1
19 322519
CLIP
No longer supplied 		- 2 Enquire
