FUEL TANKS - FASTENERS AND GUARDS of Ferrari Ferrari 488 GTB

View All

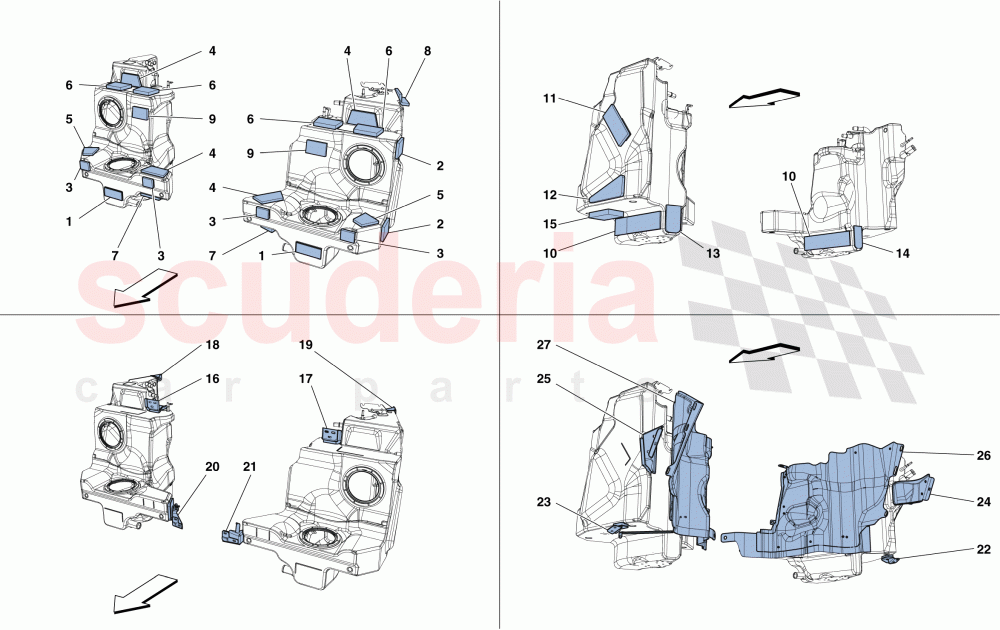

Ferrari 488 GTB - FUEL TANKS - FASTENERS AND GUARDS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	305859	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305865	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308386	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316942	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316943	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316945	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316947	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308339	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313310	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305860	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305866	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313312	RH VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order
	313313	LH VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313568	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313569	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322511	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order
	316946	VIBRATION DAMPER PAD FOR TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317185	INNER RH UPPER TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317184	INNER LH UPPER TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312974	RH UPPER TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312973	LH UPPER TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313507	RH CENTRE TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313508	LH CENTRE TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311187	RH TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311186	LH TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313514	RH REAR TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313513	LH REAR TANK RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320229	RH TANK HEAT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320230	LH TANK HEAT INSULATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	305859	VIBRATION DAMPER PAD FOR TANKS	305859 VIBRATION DAMPER PAD FOR TANKS 100 X 40 X 5; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	2	Enquire
2	305865	VIBRATION DAMPER PAD FOR TANKS	305865 VIBRATION DAMPER PAD FOR TANKS 70 X 60 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	4	Enquire
3	308386	VIBRATION DAMPER PAD FOR TANKS	308386 VIBRATION DAMPER PAD FOR TANKS 50 X 40 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	4	Enquire
4	316942	VIBRATION DAMPER PAD FOR TANKS	316942 VIBRATION DAMPER PAD FOR TANKS 120 X 55 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	4	Enquire
5	316943	VIBRATION DAMPER PAD FOR TANKS	316943 VIBRATION DAMPER PAD FOR TANKS 70 X 70 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	2	Enquire
6	316945	VIBRATION DAMPER PAD FOR TANKS	316945 VIBRATION DAMPER PAD FOR TANKS 100 X 70 X 15; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	4	Enquire
7	316947	VIBRATION DAMPER PAD FOR TANKS	316947 VIBRATION DAMPER PAD FOR TANKS 110 X 60 X 15; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	2	Enquire
8	308339	VIBRATION DAMPER PAD FOR TANKS	308339 VIBRATION DAMPER PAD FOR TANKS 120 X 70 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	2	Enquire
9	313310	VIBRATION DAMPER PAD FOR TANKS	313310 VIBRATION DAMPER PAD FOR TANKS 80 X 50 X 15; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	2	Enquire
10	305860	VIBRATION DAMPER PAD FOR TANKS	305860 VIBRATION DAMPER PAD FOR TANKS 260 X 65 X 5; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	4	Enquire
11	305866	VIBRATION DAMPER PAD FOR TANKS	305866 VIBRATION DAMPER PAD FOR TANKS 150 X 60 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	2	Enquire
12	313312	RH VIBRATION DAMPER PAD FOR TANKS	313312 RH VIBRATION DAMPER PAD FOR TANKS Th. 10 mm; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	1	Enquire
12	313313	LH VIBRATION DAMPER PAD FOR TANKS	313313 LH VIBRATION DAMPER PAD FOR TANKS Th. 10 mm; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	1	Enquire
13	313568	VIBRATION DAMPER PAD FOR TANKS	313568 VIBRATION DAMPER PAD FOR TANKS 100 X 55 X 10; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	1	Enquire
14	313569	VIBRATION DAMPER PAD FOR TANKS	313569 VIBRATION DAMPER PAD FOR TANKS 100 X 45 X 5; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	1	Enquire
15	322511	VIBRATION DAMPER PAD FOR TANKS	322511 VIBRATION DAMPER PAD FOR TANKS 120 X 70 X 20; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	1	Enquire
15	316946	VIBRATION DAMPER PAD FOR TANKS	316946 VIBRATION DAMPER PAD FOR TANKS 120 X 70 X 20; Included with compl. fuel tank tab.10 ref.1-2; Applicable until depletion	-	1	Enquire
16	317185	INNER RH UPPER TANK RETAINER	317185 INNER RH UPPER TANK RETAINER	-	1	Enquire
17	317184	INNER LH UPPER TANK RETAINER	317184 INNER LH UPPER TANK RETAINER	-	1	Enquire
18	312974	RH UPPER TANK RETAINER	312974 RH UPPER TANK RETAINER	-	1	Enquire
19	312973	LH UPPER TANK RETAINER	312973 LH UPPER TANK RETAINER	-	1	Enquire
20	313507	RH CENTRE TANK RETAINER	313507 RH CENTRE TANK RETAINER	-	1	Enquire
21	313508	LH CENTRE TANK RETAINER	313508 LH CENTRE TANK RETAINER	-	1	Enquire
22	311187	RH TANK RETAINER	311187 RH TANK RETAINER	-	1	Enquire
23	311186	LH TANK RETAINER	311186 LH TANK RETAINER	-	1	Enquire
24	313514	RH REAR TANK RETAINER	313514 RH REAR TANK RETAINER	-	1	Enquire
25	313513	LH REAR TANK RETAINER	313513 LH REAR TANK RETAINER	-	1	Enquire
26	320229	RH TANK HEAT INSULATION	320229 RH TANK HEAT INSULATION	-	1	Enquire
27	320230	LH TANK HEAT INSULATION	320230 LH TANK HEAT INSULATION	-	1	Enquire
