SERVO BRAKE SYSTEM of Ferrari Ferrari 488 GTB

View All

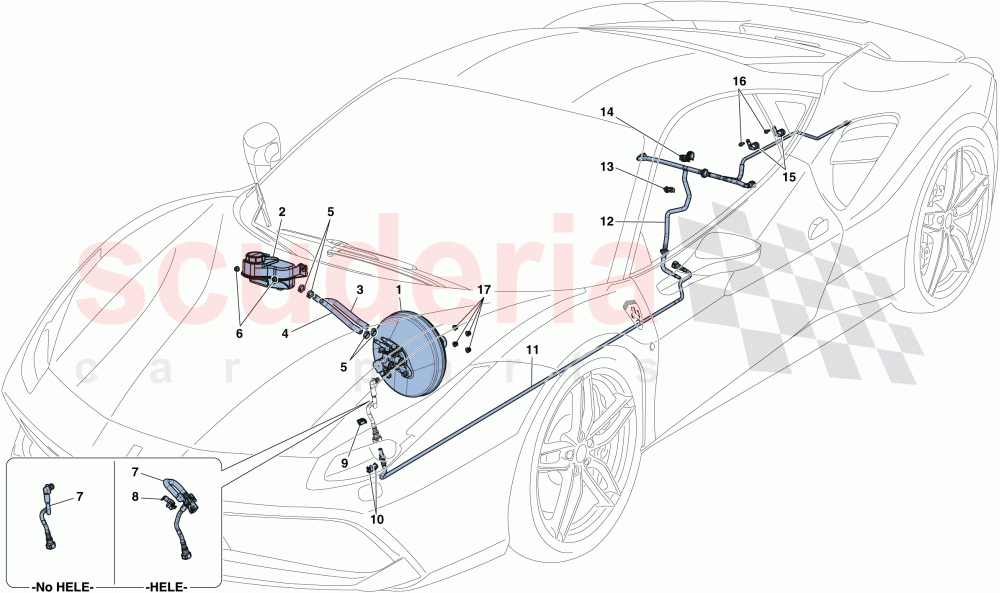

Ferrari 488 GTB - SERVO BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248907	BRAKE SERVO COMPL. WITH PUMP	Enquire	To Order
	244010	BRAKE SERVO WITH PUMP LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	956155	BRAKE FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262569	RUBBER PIPE	Enquire	To Order
	238606	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262570	RUBBER PIPE	Enquire	To Order
	238607	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275505	COMPL. FRONT VACUUM PIPE	Enquire	To Order
	273670	COMPL. FRONT VACUUM PIPE	Enquire	To Order
	262431	COMPL. FRONT VACUUM PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	204777	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250733	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320099	UNDERBODY BRAKE SERVO VACUUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315060	DEPRESSOR CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319839	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318111	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248907	BRAKE SERVO COMPL. WITH PUMP	248907 BRAKE SERVO COMPL. WITH PUMP Applicable for GD	-	1	Enquire
1	244010	BRAKE SERVO WITH PUMP LHD	244010 BRAKE SERVO WITH PUMP LHD Not for GD	-	1	Enquire
2	956155	BRAKE FLUID RESERVOIR	956155 BRAKE FLUID RESERVOIR	-	1	Enquire
3	262569	RUBBER PIPE	262569 RUBBER PIPE Applicable for GD	-	1	Enquire
3	238606	RUBBER PIPE	238606 RUBBER PIPE Not for GD	-	1	Enquire
4	262570	RUBBER PIPE	262570 RUBBER PIPE Applicable for GD	-	1	Enquire
4	238607	RUBBER PIPE	238607 RUBBER PIPE Not for GD	-	1	Enquire
5	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	4	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
7	275505	COMPL. FRONT VACUUM PIPE	275505 COMPL. FRONT VACUUM PIPE Applicable for HELE; Applicable for GD	-	1	Enquire
7	273670	COMPL. FRONT VACUUM PIPE	273670 COMPL. FRONT VACUUM PIPE Applicable for HELE; Not for GD	-	1	Enquire
7	262431	COMPL. FRONT VACUUM PIPE	262431 COMPL. FRONT VACUUM PIPE Not for HELE; Applicable for GD	-	1	Enquire
7	263409	COMPL. FRONT VACUUM PIPE	263409 COMPL. FRONT VACUUM PIPE Not for HELE; Not for GD	-	1	Enquire
8	204777	CLIP	204777 CLIP Applicable for HELE; Not for GD	-	1	Enquire
9	250733	CLIP	250733 CLIP	-	1	Enquire
10	140130	CLIP	140130 CLIP	-	2	Enquire
11	320099	UNDERBODY BRAKE SERVO VACUUM PIPE	320099 UNDERBODY BRAKE SERVO VACUUM PIPE	-	1	Enquire
12	315060	DEPRESSOR CONNECTOR PIPE	315060 DEPRESSOR CONNECTOR PIPE	-	1	Enquire
13	198273	CLIP	198273 CLIP	-	1	Enquire
14	319839	CLIP	319839 CLIP	-	1	Enquire
15	318111	BRACKET WITH SHEATH	318111 BRACKET WITH SHEATH Not for GD	-	2	Enquire
16	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
17	12578211	NUT	12578211 NUT	-	4	Enquire
