Ferrari 488 GTB - COOLING - HEADER TANK AND PIPES

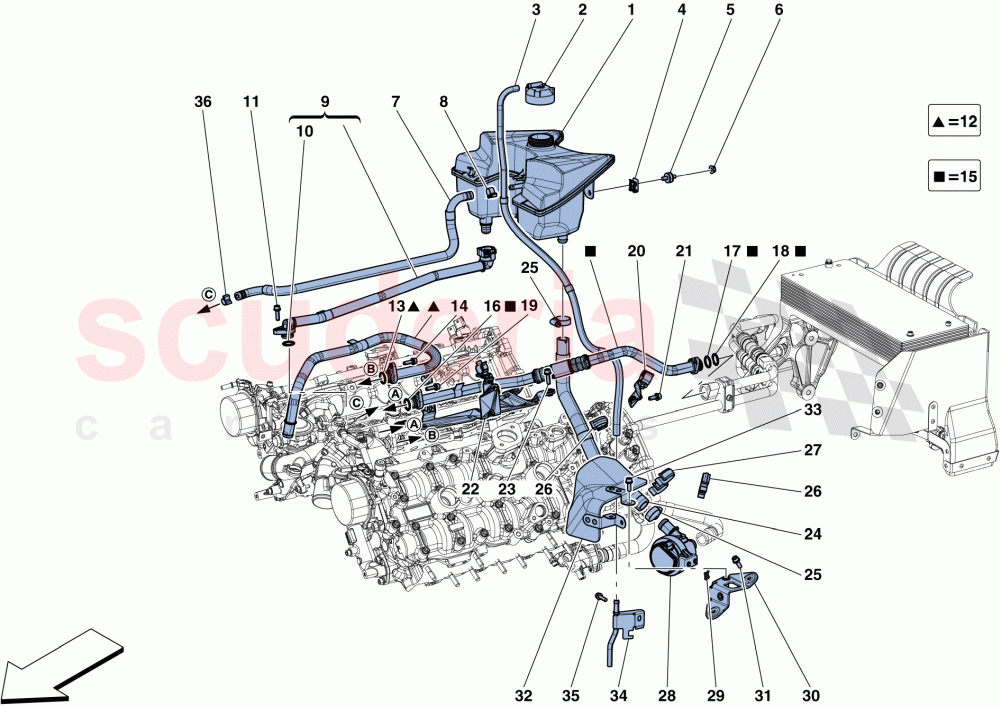

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	321090	COMPL. HEADER TANK RUBBER DRAIN HOSE	$73.80	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	SCRE CLIP M6	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	323681	RUBBER HEADER TANK PIPE	$125.14	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	317021	HEADER TANK PIPE	$136.37	To Order

Photo	Part No	Description	Price (each)	Stock
	130295	O-RING	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	322388	COMPL. PIPING	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	287632	O-RING	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	318109	WATER RETURN PIPE FROM SINGLE OIL HEAT EXCHANGER	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	287632	O-RING	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	318989	O-RING	$5.28	To Order

Photo	Part No	Description	Price (each)	Stock
	318329	O-RING	$38.20	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	310680	SINGLE OIL HEAT EXCHANGER RETURN PIPE MOUNTING BRACKET	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	312851	COMPL. HEADER TANK AND DISCONNECTER PIPE BRACKET	$110.70	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	$0.36	To Order
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	320947	PUMP DELIVERY PIPE	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	$7.15	To Order

Photo	Part No	Description	Price (each)	Stock
	303560	SWIVEL CLIP	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	160013	CLIP	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	291349	WATER RECIRCULATION PUMP	$3,679.96	To Order

Photo	Part No	Description	Price (each)	Stock
	291645	CLIP	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	320964	PUMP MOUNTING BRACKET	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	324937	PUMP HEAT SHIELD	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	320347	HEADER TANK RIGID DRAIN PIPE	$63.05	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	$320.90	1
3	321090	COMPL. HEADER TANK RUBBER DRAIN HOSE	321090 COMPL. HEADER TANK RUBBER DRAIN HOSE	$73.80	1
4	62766300	SCRE CLIP M6	62766300 SCRE CLIP M6	$0.76	2
5	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	2	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 No longer supplied; Replaced by 14039614	$1.51	2
7	323681	RUBBER HEADER TANK PIPE	323681 RUBBER HEADER TANK PIPE	$125.14	1
8	13126970	COLLAR	13126970 COLLAR	$1.56	1
9	317021	HEADER TANK PIPE	317021 HEADER TANK PIPE	$136.37	1
10	130295	O-RING	130295 O-RING	$1.49	1
11	231619	SCREW	231619 SCREW M6 X 18	$0.31	1
11	231619	SCREW	231619 SCREW M6 X 22; No longer supplied; Replaced by 231617	$0.31	1
12	322388	COMPL. PIPING	322388 COMPL. PIPING	$133.17	1
13	287632	O-RING	287632 O-RING Also comes with engine gasket set	$3.23	1
14	231619	SCREW	231619 SCREW M6 X 20	$0.31	1
15	318109	WATER RETURN PIPE FROM SINGLE OIL HEAT EXCHANGER	318109 WATER RETURN PIPE FROM SINGLE OIL HEAT EXCHANGER	$272.34	1
16	287632	O-RING	287632 O-RING Also comes with engine gasket set	$3.23	1
17	318989	O-RING	318989 O-RING Also comes with engine gasket set	$5.28	1
18	318329	O-RING	318329 O-RING Also comes with engine gasket set	$38.20	1
19	231619	SCREW	231619 SCREW M6 X 20	$0.31	1
20	310680	SINGLE OIL HEAT EXCHANGER RETURN PIPE MOUNTING BRACKET	310680 SINGLE OIL HEAT EXCHANGER RETURN PIPE MOUNTING BRACKET	$25.66	1
21	248334	SCREW	248334 SCREW M6 X 16	$0.68	1
22	312851	COMPL. HEADER TANK AND DISCONNECTER PIPE BRACKET	312851 COMPL. HEADER TANK AND DISCONNECTER PIPE BRACKET	$110.70	1
23	231622	SCREW	231622 SCREW M6 X 22	$0.36 MSRP: ~~0.50~~ (28% off)	3
23	231619	SCREW	231619 SCREW M6 X 22; No longer supplied; Replaced by 231622	$0.31	3
24	320947	PUMP DELIVERY PIPE	320947 PUMP DELIVERY PIPE	$158.84	1
25	296778	SCREW COLLAR	296778 SCREW COLLAR	$7.15	2
26	303560	SWIVEL CLIP	303560 SWIVEL CLIP	$1.26	2
27	160013	CLIP	160013 CLIP	$0.92	1
28	291349	WATER RECIRCULATION PUMP	291349 WATER RECIRCULATION PUMP	$3,679.96	1
29	291645	CLIP	291645 CLIP	$4.10	2
30	320964	PUMP MOUNTING BRACKET	320964 PUMP MOUNTING BRACKET	$48.12	1
31	231619	SCREW	231619 SCREW M6 X 18	$0.31	2
32	324937	PUMP HEAT SHIELD	324937 PUMP HEAT SHIELD	$157.66	1
33	231619	SCREW	231619 SCREW M6 X 18	$0.31	2
34	320347	HEADER TANK RIGID DRAIN PIPE	320347 HEADER TANK RIGID DRAIN PIPE	$63.05	1
35	231619	SCREW	231619 SCREW M6 X 22	$0.31	1
36	13126970	COLLAR	13126970 COLLAR	$1.56	1
