COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM of Ferrari Ferrari 488 GTB

View All

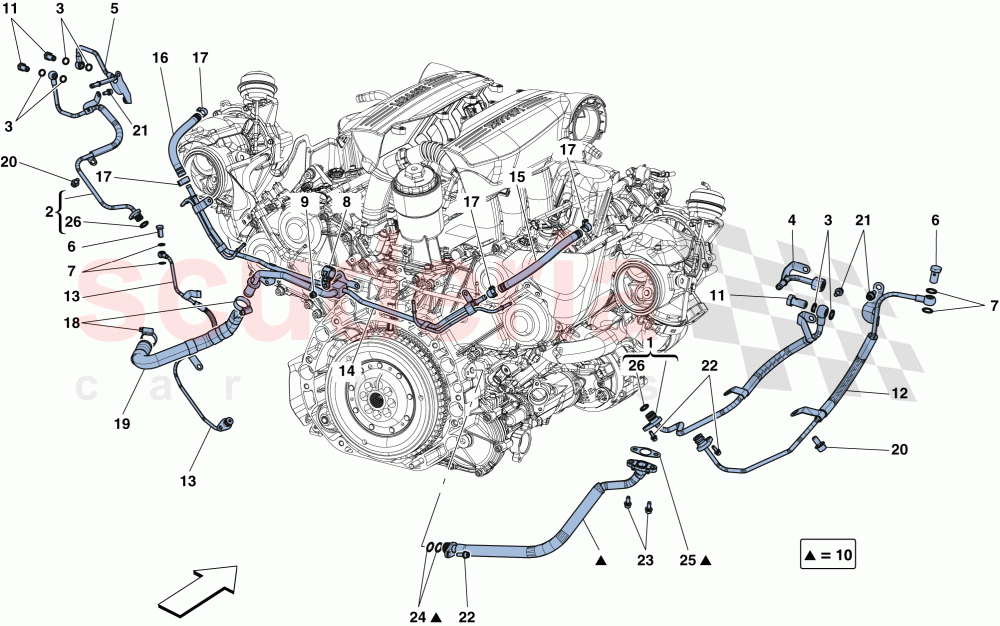

Ferrari 488 GTB - COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314531	WATER DELIVERY PIPE TO RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320746	WATER DELIVERY PIPE TO LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317597	WATER RETURN PIPE FROM RH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317598	WATER RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315276	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317090	OIL RETURN PIPE FROM RH TURBO	Enquire	To Order
	317008	OIL RETURN PIPE FROM LH TURBO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308429	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320963	COMPL. RIGID COOLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318497	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318500	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320949	AUX PUMP RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287722	O-RING 15.08 x 2.62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308203	OIL RECOVERY PIPE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	314531	WATER DELIVERY PIPE TO RH TURBO	314531 WATER DELIVERY PIPE TO RH TURBO	-	1	Enquire
2	320746	WATER DELIVERY PIPE TO LH TURBO	320746 WATER DELIVERY PIPE TO LH TURBO	-	1	Enquire
3	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Also comes with engine gasket set	-	6	Enquire
4	317597	WATER RETURN PIPE FROM RH TURBO	317597 WATER RETURN PIPE FROM RH TURBO	-	1	Enquire
5	317598	WATER RETURN PIPE FROM LH TURBO	317598 WATER RETURN PIPE FROM LH TURBO	-	1	Enquire
6	315276	HOSE CONNECTOR	315276 HOSE CONNECTOR	-	2	Enquire
7	10260160	Copper Washer D. 10 - 14 x 1	10260160 Copper Washer D. 10 - 14 x 1 Also comes with engine gasket set	-	4	Enquire
8	320599	CLIP	320599 CLIP	-	1	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
10	317090	OIL RETURN PIPE FROM RH TURBO	317090 OIL RETURN PIPE FROM RH TURBO	-	1	Enquire
10	317008	OIL RETURN PIPE FROM LH TURBO	317008 OIL RETURN PIPE FROM LH TURBO	-	1	Enquire
11	308429	HOSE CONNECTOR	308429 HOSE CONNECTOR	-	3	Enquire
14	320963	COMPL. RIGID COOLING PIPE	320963 COMPL. RIGID COOLING PIPE	-	1	Enquire
15	318497	RUBBER PIPE	318497 RUBBER PIPE	-	1	Enquire
16	318500	RUBBER PIPE	318500 RUBBER PIPE	-	1	Enquire
17	13126970	COLLAR	13126970 COLLAR	-	4	Enquire
18	296778	SCREW COLLAR	296778 SCREW COLLAR	-	2	Enquire
19	320949	AUX PUMP RETURN PIPE	320949 AUX PUMP RETURN PIPE	-	1	Enquire
20	231627	SCREW	231627 SCREW M8 X 16	-	2	Enquire
21	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
22	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	6	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	4	Enquire
24	287722	O-RING 15.08 x 2.62	287722 O-RING 15.08 x 2.62	-	4	Enquire
25	308203	OIL RECOVERY PIPE SEAL	308203 OIL RECOVERY PIPE SEAL	-	2	Enquire
26	14456981	GASKET	14456981 GASKET	-	2	Enquire
