REAR SUSPENSION - ARMS

Find Your Part

Ferrari 488 GTB - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
299933 LH REAR HUB CARRIER $2,548.09 ARRIVING SOON
299935 RH REAR HUB CARRIER $2,548.09 To Order
Photo Part No Description Price (each) Stock
259687 REAR UPPER ARM $449.27 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $336.95 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
329244 COMPL. LOWER RH REAR ARM $997.18 To Order
810463 RH Lower Rear Suspension Arm $1,347.85 To Order
911176 LH LOWER REAR ARM $1,139.25 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
343376 BALL JOINT $22.45 To Order
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $25.85 To Order
Photo Part No Description Price (each) Stock
238063 NUT $4.17 To Order
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $192.54 To Order
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $17.63 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $33.39 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
13578321 WASHER $0.52 To Order
Photo Part No Description Price (each) Stock
262546 ADJUSTER SHIM $9.50 To Order
262545 ADJUSTER SHIM $9.50 To Order
262544 ADJUSTER SHIM $9.50 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
269415 ABS SENSOR $401.13 To Order
Photo Part No Description Price (each) Stock
251744 TRIPLE CLIP $1.46 To Order
Photo Part No Description Price (each) Stock
312826 WASHER $0.47 To Order
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
316888 CLIP $0.24 To Order
View All

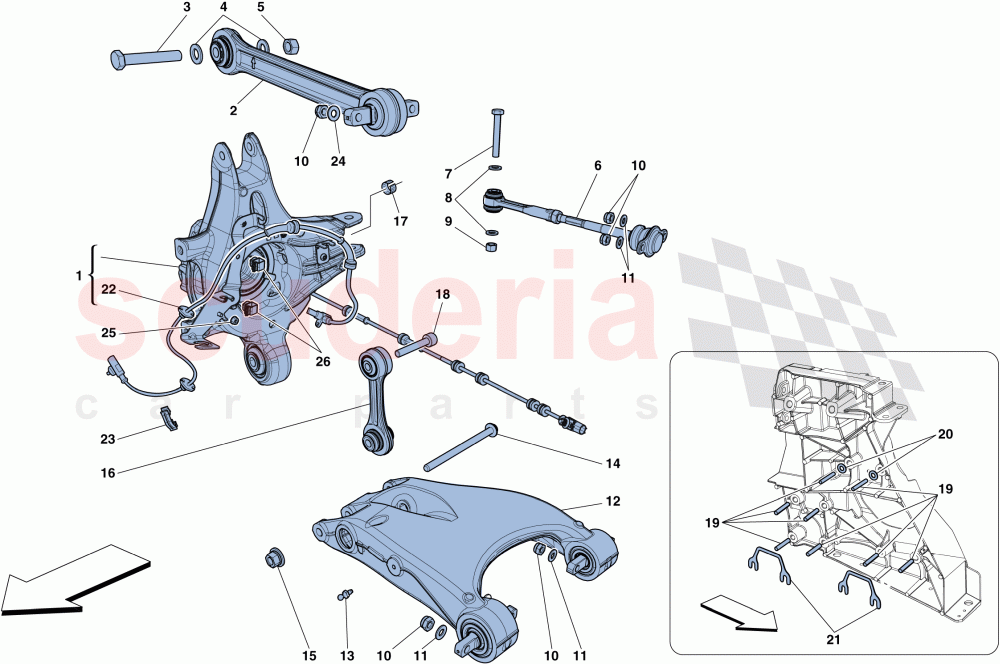

REAR SUSPENSION - ARMS of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 299933
LH REAR HUB CARRIER
ARRIVING SOON 		$2,548.09 (23.9% off) 1
1 299935
RH REAR HUB CARRIER 		$2,548.09 1
2 259687
REAR UPPER ARM 		$449.27 (27.4% off) 2
3 15541434
SCREW 		$2.12 (28.9% off) 2
4 12643778
BLACK WASHER D.6.45-18X1.5 		$0.28 (44% off) 4
5 203666
NUT 		$0.94 (53% off) 2
6 245161
TIE ROD REAR SUSPENSION 		$336.95 (25.1% off) 2
7 15541434
SCREW 		$2.12 (28.9% off) 2
8 12643778
BLACK WASHER D.6.45-18X1.5 		$0.28 (44% off) 4
9 203666
NUT 		$0.94 (53% off) 2
10 12574521
Nyloc Nut 		$0.92 (54% off) 16
11 126648
WASHER D.10.5-21 X 2 		$1.91 12
12 329244
COMPL. LOWER RH REAR ARM
Applicable from Ass. No. 137582 		$997.18 1
12 810463
RH Lower Rear Suspension Arm
Order directly from supplier (see technical bulletin no.105) 		$1,347.85 1
12 911176
LH LOWER REAR ARM
Applicable from Ass. No. 137582 		$1,139.25 1
12 810450
LH Rear Lower Arm
Applicable up to Ass. No. 137581 		$1,347.85 1
13 343376
BALL JOINT 		$22.45 2
14 238656
SPECIAL SCREW 		$25.85 (5.6% off) 2
15 238063
NUT 		$4.17 (24.2% off) 2
16 259688
ANTI-ROTATION LINKAGE 		$192.54 2
17 222956
COMPENSATOR RING 		$17.63 2
18 238258
SCREW 		$33.39 2
19 264528
THREADED ROD 		$3.94 16
20 13578321
WASHER
No longer supplied 		$0.52 4
21 262546
ADJUSTER SHIM
Th. 1.5 mm; Installed if necessary 		$9.50 4
21 262545
ADJUSTER SHIM
Th. 1 mm; Installed if necessary 		$9.50 4
21 262544
ADJUSTER SHIM
Th. 0.5 mm; Installed if necessary 		$9.50 4
21 262543
ADJUSTER SHIM
Th. 4 mm; Installed if necessary 		$9.50 4
21 262542
ADJUSTER SHIM
Th. 3.5 mm; Installed if necessary 		$9.50 4
21 262541
ADJUSTER SHIM
Th. 3 mm; Installed if necessary 		$9.50 4
21 262540
ADJUSTER SHIM
Th. 2.5 mm; Installed if necessary 		$9.50 4
21 262539
ADJUSTER SHIM
Th. 2 mm; Installed if necessary 		$9.50 4
22 269415
ABS SENSOR 		$401.13 2
23 251744
TRIPLE CLIP 		$1.46 (23.2% off) 4
24 312826
WASHER 		$0.47 4
24 126648
WASHER D.10.5-21 X 2 		$1.91 4
25 13046011
NUT 		$0.39 2
26 316888
CLIP 		$0.24 4
