Rear Suspension - Shock Absorber And Brake Disc

Ferrari 430 Spider

Find Your Part

Ferrari 430 Spider - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
212543 Rear Shock Absorber Enquire To Order
Photo Part No Description Price (each) Stock
190677 REAR COIL SPRING Enquire To Order
Photo Part No Description Price (each) Stock
245623 UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
174727 UPPER SPRING RETENTION CAP Enquire To Order
Photo Part No Description Price (each) Stock
174728 SHOCK ABSORBER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
174725 RING NUT, SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
174726 THREADED RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
230083 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
162606 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10460287 RUBBER RING Enquire To Order
Photo Part No Description Price (each) Stock
222340 REAR BRAKE DISC Enquire To Order
213484 Brake Disc Enquire To Order
202180 REAR BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
212948 Silent Block Enquire To Order
Photo Part No Description Price (each) Stock
11306934 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
204974 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
129225 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
161110 LH Spherical Tie-Rod Enquire To Order
161109 RH Ball Tie Rod Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
210234 REAR STABILISER BAR Enquire To Order
Photo Part No Description Price (each) Stock
10791014 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
170716 RH Bar Buffer Enquire To Order
Photo Part No Description Price (each) Stock
170717 LH Bar Buffer Enquire To Order
Photo Part No Description Price (each) Stock
175861 LH ARM Enquire To Order
Photo Part No Description Price (each) Stock
170950 ALLEN SCREW M10 X 1.25 Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
194134 Hub Bearing Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
180591 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10732414 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
209184 NUT Enquire To Order
Photo Part No Description Price (each) Stock
104370 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
View All

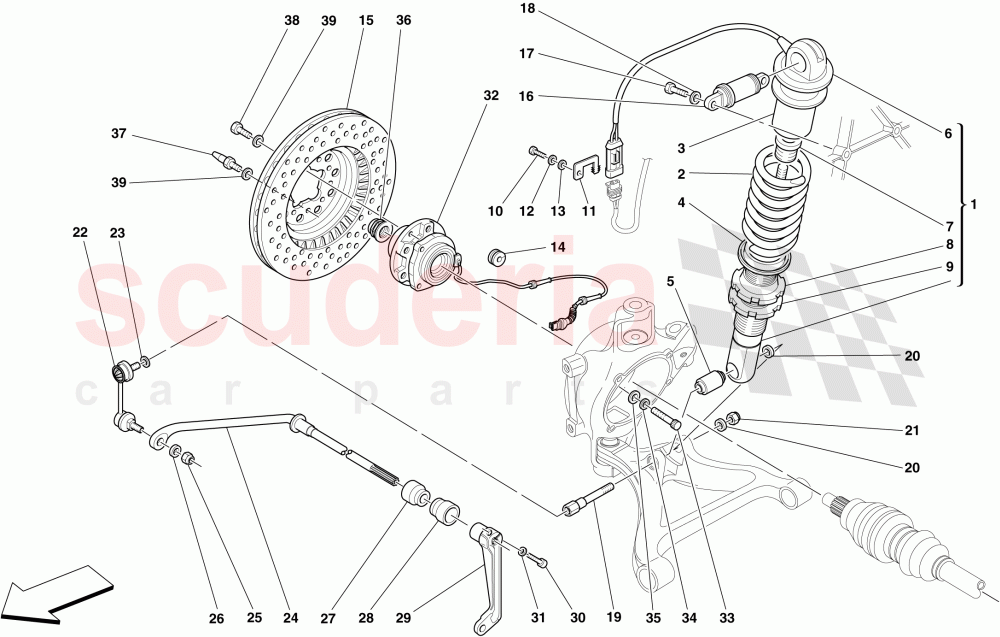

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

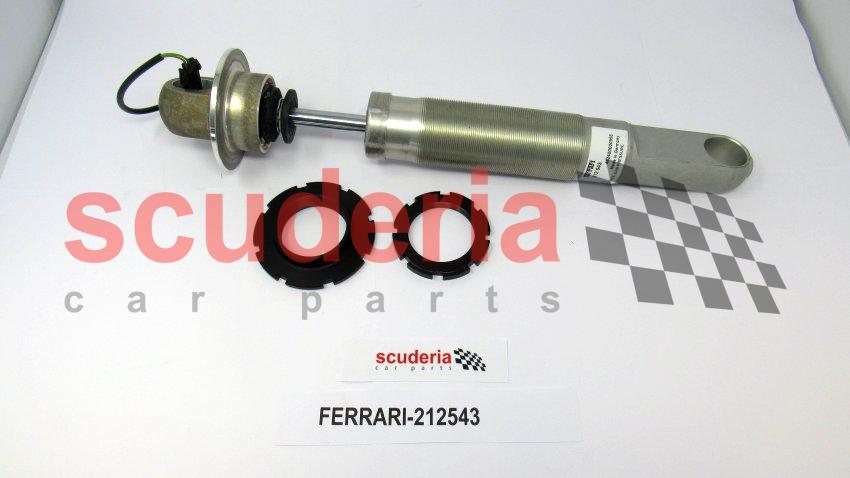

1 212543
Rear Shock Absorber 		- 2 Enquire
2 190677
REAR COIL SPRING 		- 2 Enquire
3 245623
UPPER SPACER 		- 2 Enquire
4 181408
LOWER SPACER 		- 2 Enquire
5 157630
BALL JOINT
ARRIVING SOON 		- 2 Enquire
6 174727
UPPER SPRING RETENTION CAP 		- 2 Enquire
7 174728
SHOCK ABSORBER BUSHING 		- 2 Enquire
8 174725
RING NUT, SHOCK ABSORBER 		- 2 Enquire
9 174726
THREADED RING NUT 		- 2 Enquire
10 10977524
SCREW
No longer supplied; Replaced by 230083 		- 2 Enquire
10 230083
SCREW 		- 2 Enquire
11 162606
CLIP 		- 2 Enquire
12 127494
WASHER 		- 2 Enquire
13 12643724
WASHER 		- 2 Enquire
14 10460287
RUBBER RING 		- 2 Enquire
15 222340
REAR BRAKE DISC
Version with CCM brakes; Replace as a pair; Applicable from Ass. No. 64741; Applicable after depletion of 202180 		- 2 Enquire

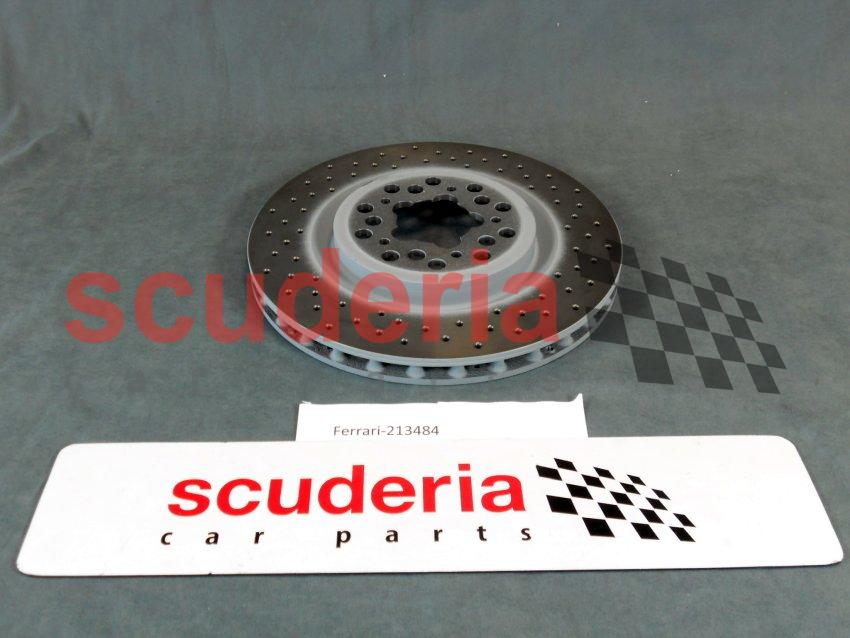

15 213484
Brake Disc
Cast iron version 		- 2 Enquire
15 202180
REAR BRAKE DISC
Version with CCM brakes; Replace as a pair; Applicable up to Ass. No. 64740; Applicable until depletion 		- 2 Enquire
16 212948
Silent Block 		- 2 Enquire
17 11306934
SCREW 		- 4 Enquire
18 160092
WASHER 		- 4 Enquire
19 204974
SCREW 		- 2 Enquire
20 129225
WASHER 		- 4 Enquire
21 148020
NUT 		- 2 Enquire
22 161110
LH Spherical Tie-Rod 		- 1 Enquire
22 161109
RH Ball Tie Rod 		- 1 Enquire
23 160092
WASHER 		- 2 Enquire
24 210234
REAR STABILISER BAR 		- 1 Enquire
25 10791014
NUT 		- 2 Enquire
26 12601474
WAVY WASHER 10MM 		- 2 Enquire
27 170716
RH Bar Buffer 		- 1 Enquire
28 170717
LH Bar Buffer 		- 1 Enquire
29 175861
LH ARM 		- 1 Enquire
30 170950
ALLEN SCREW M10 X 1.25 		- 1 Enquire
31 12601474
WAVY WASHER 10MM 		- 1 Enquire

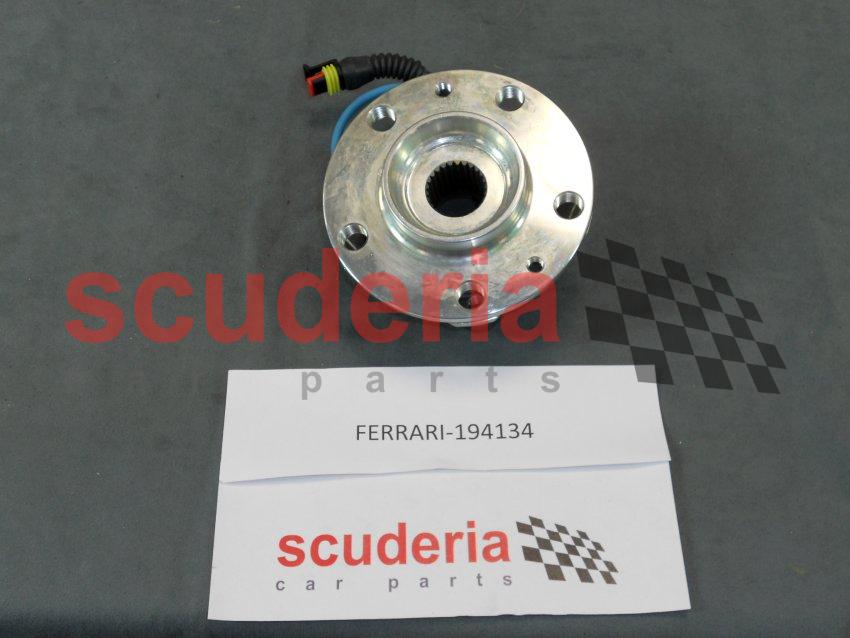

32 194134
Hub Bearing
ARRIVING SOON 		- 2 Enquire
33 180591
SCREW 		- 8 Enquire
34 160092
WASHER 		- 8 Enquire
35 10732414
WASHER 		- 8 Enquire
36 209184
NUT 		- 2 Enquire
37 104370
SCREW 		- 2 Enquire
38 14306924
SCREW 		- 2 Enquire
39 127496
WASHER 		- 4 Enquire
