Name: STEERING CONTROL
Rating: 4.2 (1 reviews)

STEERING CONTROL of Ferrari Ferrari 430 Spider

View All

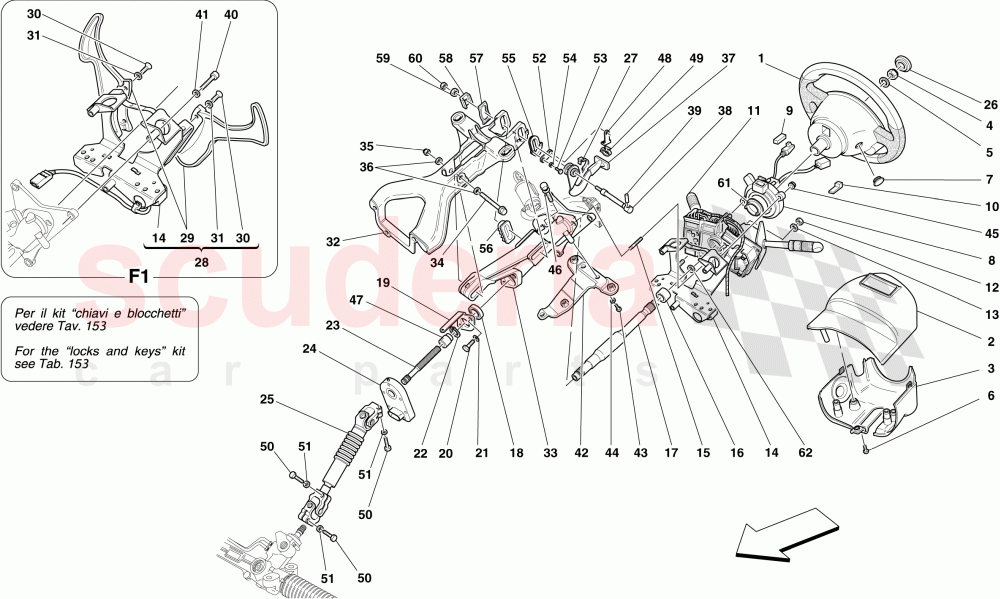

Ferrari 430 Spider - STEERING CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80898200	COMPL. STEERING WHEEL WITH AIRBAG	$5,194.20	To Order
	69394900	COMPL. STEERING WHEEL WITH AIRBAG	$5,092.36	To Order
	80898100	COMPL. STEERING WHEEL WITH AIRBAG	$5,975.62	To Order

Photo	Part No	Description	Price (each)	Stock
	68097900	UPPER TRIM	$320.90	To Order
	68098200	UPPER TRIM	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	68097800	STEERING COLUMN LOWER TRIM	$401.13	To Order
	68161600	LOWER COVER	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	299557	NUT	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	152034	WASHER	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	15960507	SCREW	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	185486	CAP	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	213671	CLOCK SPRING CONTACT	$118.95	To Order

Photo	Part No	Description	Price (each)	Stock
	163816	CLOCK SPRING CONNECTOR RESISTOR	$35.28	To Order

Photo	Part No	Description	Price (each)	Stock
	135355	CONNECTOR	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	177585	STEERING COLUMN SWITCH ASSEMBLY	$387.47	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204155	CLOCKSPRING CONNECTOR MOUNTING BRACKET	$71.66	To Order
	203317	GEAR SHIFT BRACKET	$370.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11001424	STUD BOLT	$3.83	To Order

Photo	Part No	Description	Price (each)	Stock
	199094	ROLLER BEARING	$65.84	To Order

Photo	Part No	Description	Price (each)	Stock
	197701	UPPER SHAFT STEERING COLUMN	$2,339.49	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	$29.40	To Order

Photo	Part No	Description	Price (each)	Stock
	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	183993	LOWER COLUMN AXLE	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	195590	STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	$2,466.25	To Order

Photo	Part No	Description	Price (each)	Stock
	299558	NUT CAP	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	171531	PIN RETENTION SPRING	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	226099	COMPLETE SHIFT F1 PADDLE ASSEMBLY	$1,509.25	To Order
	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	$3,175.09	To Order

Photo	Part No	Description	Price (each)	Stock
	226092	SCREW	$2.03	To Order
	13308977	SCREW	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	12606673	WASHER	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	197702	STEERING COLUMN MOUNTING BRACKET	$946.70	To Order
	209191	STEERING COLUMN MOUNTING BRACKET	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	197700	COLUMN MOUNTING	$786.24	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	171535	TRIMMED LEVER	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	$106.08	To Order

Photo	Part No	Description	Price (each)	Stock
	13274611	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164200	BRACKET	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	61002200	NUT	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	200970	RING NUT	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	177977	PLATE	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	192229	HEXAGONAL SCREW	$21.49	To Order

Photo	Part No	Description	Price (each)	Stock
	192230	WASHER	$6.81	To Order

Photo	Part No	Description	Price (each)	Stock
	171523	PLATE	$34.18	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	171544	ARM SIDE SLIPPER	$110.70	To Order

Photo	Part No	Description	Price (each)	Stock
	171501	SPLINED FIXED SLIPPER	$117.74	To Order

Photo	Part No	Description	Price (each)	Stock
	171502	SLIPPER SPRING	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	171529	MOBILE SPLINED SLIPPER	$121.93	To Order

Photo	Part No	Description	Price (each)	Stock
	171542	NUT	$7.26	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	199784	BUSHING	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	203213	WASHER	$4.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80898200	COMPL. STEERING WHEEL WITH AIRBAG	80898200 COMPL. STEERING WHEEL WITH AIRBAG Without airbag module; Optional; Steering wheel hub and panel trimmed in carbon	$5,194.20	1
1	69394900	COMPL. STEERING WHEEL WITH AIRBAG	69394900 COMPL. STEERING WHEEL WITH AIRBAG Without airbag module; Optional; Carbon trimmed plate	$5,092.36	1
1	80898100	COMPL. STEERING WHEEL WITH AIRBAG	80898100 COMPL. STEERING WHEEL WITH AIRBAG Without airbag module; Standard	$5,975.62	1
2	68097900	UPPER TRIM	68097900 UPPER TRIM Applicable for F1 gearbox	$320.90	1
2	68098200	UPPER TRIM	68098200 UPPER TRIM Not for F1 gearbox	$320.90	1
3	68097800	STEERING COLUMN LOWER TRIM	68097800 STEERING COLUMN LOWER TRIM Not for F1 gearbox	$401.13	1

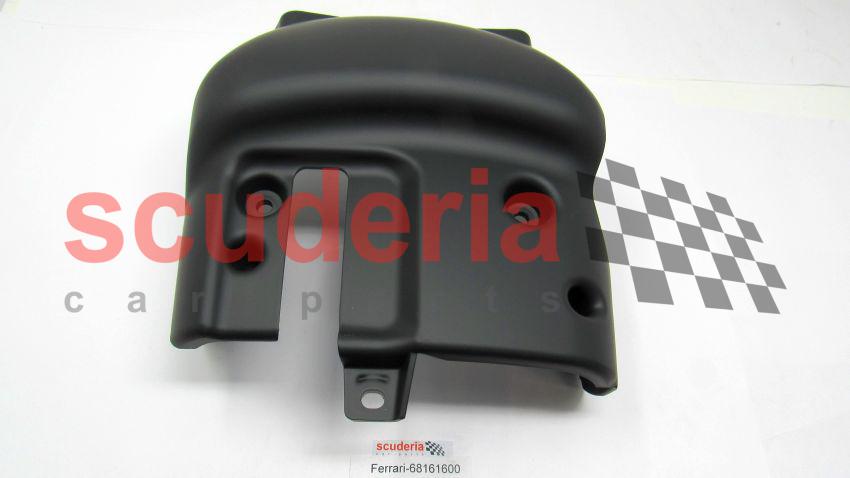

3	68161600	LOWER COVER	68161600 LOWER COVER Applicable for F1 gearbox	$401.13	1
4	299557	NUT	299557 NUT	$1.36	1
5	152034	WASHER	152034 WASHER	$6.90 MSRP: ~~8.50~~ (18.8% off)	1
6	15960507	SCREW	15960507 SCREW	$0.49 MSRP: ~~0.62~~ (21% off)	5
7	185486	CAP	185486 CAP	$3.94 MSRP: ~~4.52~~ (12.8% off)	2
8	213671	CLOCK SPRING CONTACT	213671 CLOCK SPRING CONTACT	$118.95 MSRP: ~~358.70~~ (66.8% off)	1
9	163816	CLOCK SPRING CONNECTOR RESISTOR	163816 CLOCK SPRING CONNECTOR RESISTOR	$35.28	1
10	135355	CONNECTOR	135355 CONNECTOR	$0.63	1
11	177585	STEERING COLUMN SWITCH ASSEMBLY	177585 STEERING COLUMN SWITCH ASSEMBLY	$387.47 MSRP: ~~650.76~~ (40.5% off)	1
12	15896470	NUT	15896470 NUT	$7.33	2
13	12604178	Washer	12604178 Washer	-	2	Enquire
14	204155	CLOCKSPRING CONNECTOR MOUNTING BRACKET	204155 CLOCKSPRING CONNECTOR MOUNTING BRACKET Not for F1 gearbox	$71.66	1
14	203317	GEAR SHIFT BRACKET	203317 GEAR SHIFT BRACKET Applicable for F1 gearbox; No longer supplied	$370.44	1
15	11001424	STUD BOLT	11001424 STUD BOLT	$3.83	2
16	199094	ROLLER BEARING	199094 ROLLER BEARING	$65.84	1
17	197701	UPPER SHAFT STEERING COLUMN	197701 UPPER SHAFT STEERING COLUMN	$2,339.49	1
18	171540	BALL BEARING	171540 BALL BEARING	$29.40	1
19	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	201016 COMPLETE STEERING SENSOR MOUNTING BRACKET	$114.66	1
20	10902224	SCREW M6 X 16	10902224 SCREW M6 X 16	$0.06 MSRP: ~~0.45~~ (86.7% off)	2
21	11181874	WASHER	11181874 WASHER	$0.02	2
22	11067376	SEEGER RING	11067376 SEEGER RING	$1.31	1
23	183993	LOWER COLUMN AXLE	183993 LOWER COLUMN AXLE	$882.51	1
24	195590	STEERING ANGLE SENSOR	195590 STEERING ANGLE SENSOR	-	1	Enquire
25	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT	$2,466.25	1
26	299558	NUT CAP	299558 NUT CAP	$0.62	1
27	171531	PIN RETENTION SPRING	171531 PIN RETENTION SPRING	$52.94	1
29	226099	COMPLETE SHIFT F1 PADDLE ASSEMBLY	226099 COMPLETE SHIFT F1 PADDLE ASSEMBLY Applicable for F1 gearbox	$1,509.25	1
29	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	226101 COMPLETE SHIFT F1 PADDLE ASSEMBLY Carbon; Optional; Applicable for F1 gearbox	$3,175.09	1
30	226092	SCREW	226092 SCREW Applicable for arm assemblies 226099 and 226101 ref. 28; Applicable for F1 gearbox	$2.03	4
30	13308977	SCREW	13308977 SCREW Applicable for arm assemblies 201682 and 218518 ref. 28; Applicable for F1 gearbox	$4.55	4
31	12606673	WASHER	12606673 WASHER Applicable for arm assemblies 201682 and 218518 ref. 28; Applicable for F1 gearbox	$1.33 MSRP: ~~2.80~~ (52.5% off)	4
32	197702	STEERING COLUMN MOUNTING BRACKET	197702 STEERING COLUMN MOUNTING BRACKET Not for GD	$946.70	1
32	209191	STEERING COLUMN MOUNTING BRACKET	209191 STEERING COLUMN MOUNTING BRACKET Applicable for GD	$609.73	1
33	197700	COLUMN MOUNTING	197700 COLUMN MOUNTING	$786.24	1
34	180632	SCREW	180632 SCREW	$14.28	1
35	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	1
36	12625224	WASHER	12625224 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	2
37	171535	TRIMMED LEVER	171535 TRIMMED LEVER	$465.32	1
38	171503	ARM PIN	171503 ARM PIN	$65.77	1
39	10336630	PIN	10336630 PIN	$106.08	1
40	13274611	SCREW	13274611 SCREW Applicable for F1 gearbox	$0.10	3
41	12604178	Washer	12604178 Washer Applicable for F1 gearbox	-	3	Enquire
42	65164200	BRACKET	65164200 BRACKET	$22.45	1
43	13273977	SCREW	13273977 SCREW	$0.28	3
44	62769800	WASHER	62769800 WASHER	$0.23 MSRP: ~~0.30~~ (23.3% off)	3
45	61002200	NUT	61002200 NUT	$0.58	2
46	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	$2.61 MSRP: ~~4.75~~ (45.1% off)	1
47	200970	RING NUT	200970 RING NUT	$94.66	1
48	177977	PLATE	177977 PLATE	$24.05	1
49	178430	FASTENER CLIP	178430 FASTENER CLIP	$0.41 MSRP: ~~0.75~~ (45.3% off)	1
50	192229	HEXAGONAL SCREW	192229 HEXAGONAL SCREW	$21.49	3
51	192230	WASHER	192230 WASHER	$6.81	3
52	171523	PLATE	171523 PLATE	$34.18	1
53	10977724	SCREW	10977724 SCREW	$0.06	2
54	11181574	WASHER	11181574 WASHER	$0.02	2
55	171544	ARM SIDE SLIPPER	171544 ARM SIDE SLIPPER	$110.70	1
56	171501	SPLINED FIXED SLIPPER	171501 SPLINED FIXED SLIPPER	$117.74	1
57	171502	SLIPPER SPRING	171502 SLIPPER SPRING	$60.96	1
58	171529	MOBILE SPLINED SLIPPER	171529 MOBILE SPLINED SLIPPER	$121.93	1
59	171542	NUT	171542 NUT	$7.26	1
60	147985	NUT	147985 NUT	$0.16 MSRP: ~~0.50~~ (68% off)	1
61	199784	BUSHING	199784 BUSHING	$8.33	1
62	203213	WASHER	203213 WASHER	$4.52	1
