DIFFERENTIAL AND AXLE SHAFT of Ferrari Ferrari 430 Spider

View All

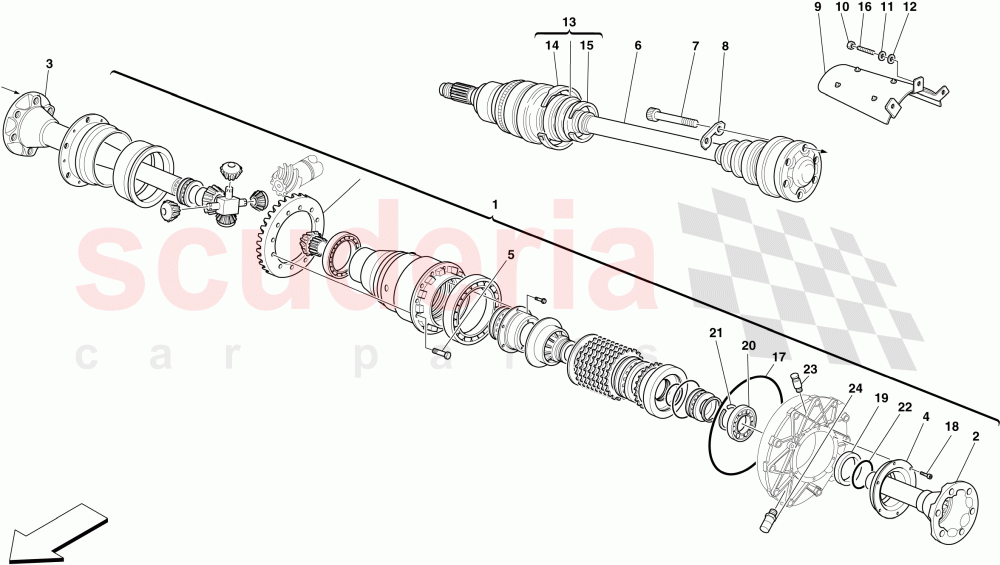

Ferrari 430 Spider - DIFFERENTIAL AND AXLE SHAFT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238599	COMPLETE DIFFERENTIAL	Enquire	To Order
	220371	COMPLETE DIFFERENTIAL	Enquire	To Order
	238598	COMPLETE DIFFERENTIAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	199744	LEFT DIFFERENTIAL OUTPUT SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199743	RIGHT DIFFERENTIAL OUTPUT SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205745	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201911	COMPLETE AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	SHIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208327	AXLE SHAFT GUARD SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172347	BIG CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154213	SMALL CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14468781	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181617	LH Rotating Oil Sealing Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14460981	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205741	BREATHER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	742238	Oil Pressure Sensor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	238599	COMPLETE DIFFERENTIAL	238599 COMPLETE DIFFERENTIAL Also see Power Unit table; Applicable for Taiwan; Applicable from Ass. No. 77101; Applicable from gearbox No. 19	-	1	Enquire
1	220371	COMPLETE DIFFERENTIAL	220371 COMPLETE DIFFERENTIAL Also see Power Unit table; Applicable for Taiwan; Applicable up to Ass. No. 77100; Applicable up to gearbox No. 18	-	1	Enquire
1	238598	COMPLETE DIFFERENTIAL	238598 COMPLETE DIFFERENTIAL Also see Power Unit table; Not for Taiwan; Applicable from Ass. No. 77101; Applicable from gearbox No. 19	-	1	Enquire
1	207545	COMPLETE DIFFERENTIAL	207545 COMPLETE DIFFERENTIAL Also see Power Unit table; Not for Taiwan; Applicable up to Ass. No. 77100; Applicable up to gearbox No. 18	-	1	Enquire
2	199744	LEFT DIFFERENTIAL OUTPUT SHAFT	199744 LEFT DIFFERENTIAL OUTPUT SHAFT	-	1	Enquire
3	199743	RIGHT DIFFERENTIAL OUTPUT SHAFT	199743 RIGHT DIFFERENTIAL OUTPUT SHAFT	-	1	Enquire
4	205745	COVER	205745 COVER	-	1	Enquire
5	16043634	SCREW	16043634 SCREW	-	11	Enquire
6	201911	COMPLETE AXLE SHAFT	201911 COMPLETE AXLE SHAFT	-	2	Enquire
7	223916	Screw	223916 Screw	-	12	Enquire
8	222679	SHIM PLATE	222679 SHIM PLATE	-	6	Enquire
9	208327	AXLE SHAFT GUARD SHIELD	208327 AXLE SHAFT GUARD SHIELD	-	2	Enquire
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
11	12601374	WASHER	12601374 WASHER	-	6	Enquire
12	12639724	WASHER	12639724 WASHER No longer supplied; Replaced by 12647727	-	6	Enquire
12	12643724	WASHER	12643724 WASHER	-	12	Enquire
14	172347	BIG CLAMP	172347 BIG CLAMP	-	4	Enquire
15	154213	SMALL CLAMP	154213 SMALL CLAMP	-	4	Enquire
16	13540724	STUD BOLT	13540724 STUD BOLT	-	6	Enquire
17	14468781	GASKET	14468781 GASKET	-	1	Enquire
18	14305321	SCREW	14305321 SCREW	-	6	Enquire
19	181617	LH Rotating Oil Sealing Ring	181617 LH Rotating Oil Sealing Ring	-	1	Enquire
20	184995	BEARING	184995 BEARING	-	1	Enquire
21	184994	SNAP RING	184994 SNAP RING	-	1	Enquire
22	14460981	O-RING	14460981 O-RING	-	1	Enquire
23	205741	BREATHER VALVE	205741 BREATHER VALVE	-	1	Enquire
24	742238	Oil Pressure Sensor	742238 Oil Pressure Sensor	-	1	Enquire
