EXTERNAL GEARBOX CONTROLS of Ferrari Ferrari 430 Spider

View All

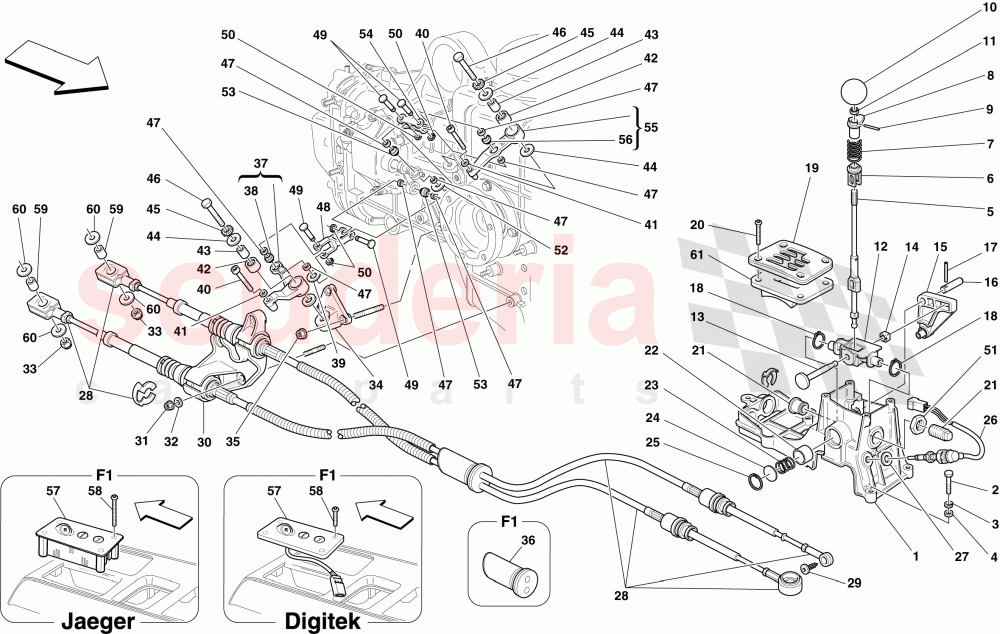

Ferrari 430 Spider - EXTERNAL GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	181751	GEARBOX CONTROL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180936	GEAR LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174967	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147561	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199070	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13896070	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160480	GEAR LEVER KNOB	Enquire	To Order
	223130	KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108010	CHECKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176626	PIVOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176425	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172934	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176642	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176419	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14160570	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172918	SAFETY RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179844	GEAR SELECTOR	Enquire	To Order
	220439	GEAR SELECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159357	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181752	REAR BUSHING	Enquire	To Order
	181753	FRONT BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177029	LATERAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177027	LATERAL SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177028	SPRING RETAINER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11058976	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115980A	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180701	COMPLETE GEARBOX CONTROL CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14567187	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177812	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202619	MOUNTING FOR LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059911	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180127	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178840	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178423	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171677	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174984	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171671	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171673	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174911	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174974	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11065674	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182391	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178423	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174912	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178932	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68123900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182237	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219570	SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	181751	GEARBOX CONTROL HOUSING	181751 GEARBOX CONTROL HOUSING Not for F1 gearbox	-	1	Enquire
2	16044024	SCREW	16044024 SCREW Not for F1 gearbox	-	4	Enquire
3	12601374	WASHER	12601374 WASHER Not for F1 gearbox	-	4	Enquire
4	14496524	WASHER	14496524 WASHER Not for F1 gearbox	-	4	Enquire
5	180936	GEAR LEVER	180936 GEAR LEVER Not for F1 gearbox	-	1	Enquire
6	174967	BUSH	174967 BUSH Not for F1 gearbox	-	1	Enquire
7	147561	SPRING	147561 SPRING Not for F1 gearbox	-	1	Enquire
8	199070	BUSHING	199070 BUSHING Not for F1 gearbox	-	1	Enquire
9	13896070	PIN	13896070 PIN Not for F1 gearbox	-	1	Enquire
10	160480	GEAR LEVER KNOB	160480 GEAR LEVER KNOB Standard version; Not for F1 gearbox	-	1	Enquire
10	223130	KNOB	223130 KNOB Carbon version; Not for F1 gearbox	-	1	Enquire
11	108010	CHECKNUT	108010 CHECKNUT Not for F1 gearbox	-	1	Enquire
12	176626	PIVOT	176626 PIVOT Not for F1 gearbox	-	1	Enquire
13	176425	PIN	176425 PIN Not for F1 gearbox	-	1	Enquire
14	172934	VIBRATION DAMPER	172934 VIBRATION DAMPER Not for F1 gearbox	-	1	Enquire
15	176642	ARM	176642 ARM Not for F1 gearbox	-	1	Enquire
16	176419	PIN	176419 PIN Not for F1 gearbox	-	1	Enquire
17	14160570	PIN	14160570 PIN Not for F1 gearbox	-	1	Enquire
18	172918	SAFETY RING	172918 SAFETY RING Not for F1 gearbox	-	2	Enquire
19	179844	GEAR SELECTOR	179844 GEAR SELECTOR Standard version; Not for F1 gearbox	-	1	Enquire
19	220439	GEAR SELECTOR	220439 GEAR SELECTOR For trim version with carbon knob; Not for F1 gearbox	-	1	Enquire
20	159357	Screw	159357 Screw Not for F1 gearbox	-	4	Enquire
21	181752	REAR BUSHING	181752 REAR BUSHING Not for F1 gearbox	-	1	Enquire
21	181753	FRONT BUSHING	181753 FRONT BUSHING Not for F1 gearbox	-	1	Enquire
22	177029	LATERAL ADJUSTER SCREW	177029 LATERAL ADJUSTER SCREW Not for F1 gearbox	-	1	Enquire
23	177027	LATERAL SPRING	177027 LATERAL SPRING Not for F1 gearbox	-	1	Enquire
24	177028	SPRING RETAINER CAP	177028 SPRING RETAINER CAP Not for F1 gearbox	-	1	Enquire
25	11058976	SNAP RING	11058976 SNAP RING Not for F1 gearbox	-	1	Enquire
26	115980A	SWITCH	115980A SWITCH Not for F1 gearbox	-	1	Enquire
27	84653800	WASHER	84653800 WASHER Not for F1 gearbox	-	1	Enquire
28	180701	COMPLETE GEARBOX CONTROL CABLES	180701 COMPLETE GEARBOX CONTROL CABLES Not for F1 gearbox	-	1	Enquire
29	14567187	BUTTON	14567187 BUTTON Not for F1 gearbox	-	1	Enquire
30	177812	CABLE RETAINER BRACKET	177812 CABLE RETAINER BRACKET Not for F1 gearbox	-	1	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Not for F1 gearbox	-	3	Enquire
32	10519424	WASHER	10519424 WASHER Not for F1 gearbox	-	3	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Not for F1 gearbox	-	2	Enquire
34	202619	MOUNTING FOR LINKAGE	202619 MOUNTING FOR LINKAGE Not for F1 gearbox	-	1	Enquire
35	14059911	NUT	14059911 NUT Not for F1 gearbox	-	3	Enquire
36	180127	PLUG	180127 PLUG Applicable for F1 gearbox	-	1	Enquire
37	178840	ARM	178840 ARM Not for F1 gearbox	-	1	Enquire
38	109407	BALL-JOINT	109407 BALL-JOINT Not for F1 gearbox	-	1	Enquire
39	178423	SHIM	178423 SHIM Not for F1 gearbox	-	1	Enquire
40	231622	SCREW	231622 SCREW M6 X 35; Not for F1 gearbox	-	2	Enquire
41	12643724	WASHER	12643724 WASHER Not for F1 gearbox	-	2	Enquire
42	171677	ROLLER BEARING	171677 ROLLER BEARING Not for F1 gearbox	-	2	Enquire
43	174984	BUSHING	174984 BUSHING Not for F1 gearbox	-	2	Enquire
44	171671	WASHER	171671 WASHER Not for F1 gearbox	-	4	Enquire
45	12601374	WASHER	12601374 WASHER Not for F1 gearbox	-	2	Enquire
46	16044024	SCREW	16044024 SCREW Not for F1 gearbox	-	2	Enquire
47	171673	SHIM	171673 SHIM Not for F1 gearbox	-	8	Enquire
48	174911	FORK	174911 FORK Not for F1 gearbox	-	1	Enquire
49	174974	PIN	174974 PIN Not for F1 gearbox	-	4	Enquire
50	11065674	SEEGER RING	11065674 SEEGER RING Not for F1 gearbox	-	4	Enquire
51	182391	NUT	182391 NUT Not for F1 gearbox	-	1	Enquire
52	178423	SHIM	178423 SHIM Not for F1 gearbox	-	1	Enquire
53	109407	BALL-JOINT	109407 BALL-JOINT Not for F1 gearbox	-	2	Enquire
54	174912	FORK	174912 FORK Not for F1 gearbox	-	1	Enquire
55	178932	ARM	178932 ARM Not for F1 gearbox	-	1	Enquire
56	109407	BALL-JOINT	109407 BALL-JOINT Not for F1 gearbox	-	1	Enquire
58	68123900	SCREW	68123900 SCREW M5 X 60; Applicable for Jaeger panel ref. 57; Applicable for F1 gearbox	-	4	Enquire
59	182237	BUSHING	182237 BUSHING Not for F1 gearbox	-	2	Enquire
60	12643724	WASHER	12643724 WASHER Not for F1 gearbox	-	4	Enquire
61	219570	SHIM	219570 SHIM Not for F1 gearbox	-	1	Enquire
