FRONT AND REAR BRAKE CALLIPERS

Find Your Part

Ferrari 430 Spider - FRONT AND REAR BRAKE CALLIPERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
228011 REAR LH CALLIPER WITH PADS $931.48 To Order
228015 REAR LH CALLIPER WITH PADS $931.48 To Order
179600 REAR LH CALLIPER WITH PADS $614.22 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
195167 SCREW $19.69 To Order
175947 BOLT M12 X 1.5 X 72 $6.26 To Order
195167 SCREW $19.69 To Order
Photo Part No Description Price (each) Stock
182123 CONNECTOR PIPE $43.31 To Order
198012 CONNECTOR PIPE $32.08 To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
152955 PROTECTIVE CAP $5.67 To Order
Photo Part No Description Price (each) Stock
70001085 Front Pad Set With Spring $405.40 To Order
70001086 Front Pad Set With Spring $1,412.94 To Order
Photo Part No Description Price (each) Stock
70000936 Rear Pad Set With Spring $419.98 To Order
70001087 Rear Pad Set With Spring $1,322.37 To Order
Photo Part No Description Price (each) Stock
182122 GAITER FOR CYLINDER $101.43 To Order
Photo Part No Description Price (each) Stock
182121 GAITER FOR CYLINDER $99.61 To Order
Photo Part No Description Price (each) Stock
198014 SCREW $10.96 To Order
Photo Part No Description Price (each) Stock
198015 TIE-ROD $67.38 To Order
View All

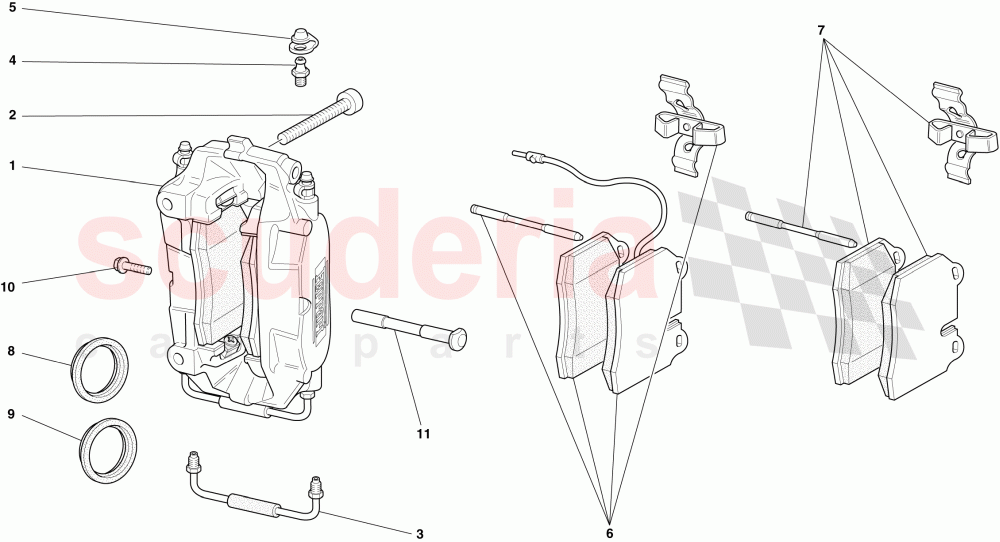

FRONT AND REAR BRAKE CALLIPERS of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 228011
REAR LH CALLIPER WITH PADS
Red; Applicable from Ass. No. 68251; Applicable after depletion of 179600 		$931.48 1
1 228015
REAR LH CALLIPER WITH PADS
Silver; Applicable from Ass. No. 68251; Applicable after depletion of 179602 		$931.48 1
1 179600
REAR LH CALLIPER WITH PADS
Red; Applicable up to Ass. No. 68250; Applicable until depletion 		$614.22 1
1 193772
REAR LH CALLIPER WITH PADS
Modena Yellow; Applicable up to Ass. No. 68250; Applicable until depletion 		$732.99 1
1 228017
REAR LH CALLIPER WITH PADS
Modena Yellow; Applicable from Ass. No. 68251; Applicable after depletion of 193772 		$931.48 (38.7% off) 1
1 179602
REAR LH CALLIPER WITH PADS
Silver; Applicable up to Ass. No. 68250; Applicable until depletion 		$732.99 1
1 248507
REAR LH CALLIPER WITH PADS
Anodised Black; Version with CCM brakes; No longer supplied 		$2,563.40 1
1 228009
REAR LH CALLIPER WITH PADS
Standard colour; Applicable from Ass. No. 68251; Applicable after depletion of 165862 		$928.53 1
1 228012
REAR RH CALLIPER WITH PADS
Red; Applicable from Ass. No. 68251; Applicable after depletion of 179603 		$931.48 1
1 165862
REAR LH CALLIPER WITH PADS
Standard colour; Applicable up to Ass. No. 68250; Applicable until depletion 		$700.87 1
1 228016
REAR RH CALLIPER WITH PADS
Silver; Applicable from Ass. No. 68251; Applicable after depletion of 179605 		$931.48 1
1 179603
REAR RH CALLIPER WITH PADS
Red; Applicable up to Ass. No. 68250; Applicable until depletion 		$568.11 1
1 228018
REAR RH CALLIPER WITH PADS
Modena Yellow; Applicable from Ass. No. 68251; Applicable after depletion of 193770 		$931.48 1
1 179605
REAR RH CALLIPER WITH PADS
Silver; Applicable up to Ass. No. 68250; Applicable until depletion 		$625.70 1
1 193770
REAR RH CALLIPER WITH PADS
Modena Yellow; Applicable up to Ass. No. 68250; Applicable until depletion 		$625.70 1
1 248506
REAR RH CALLIPER WITH PADS
Anodised Black; Version with CCM brakes; No longer supplied 		$2,563.40 1
1 228010
REAR RH CALLIPER WITH PADS
Standard colour; Applicable from Ass. No. 68251; Applicable after depletion of 165861 		$928.53 1
1 165861
REAR RH CALLIPER WITH PADS
Standard colour; Applicable up to Ass. No. 68250; Applicable until depletion 		$700.87 1
1 248503
FRONT LH CALLIPER WITH PADS
Anodised Black; Version with CCM brakes; No longer supplied 		$2,971.42 1
1 248502
FRONT RH CALLIPER WITH PADS
Anodised Black; Version with CCM brakes; No longer supplied 		$2,971.42 1
2 195167
SCREW
Rear part; Version with CCM brakes 		$19.69 4
2 175947
BOLT M12 X 1.5 X 72
Cast iron version 		$6.26 8
2 195167
SCREW
Front part; Version with CCM brakes 		$19.69 4
3 182123
CONNECTOR PIPE
Cast iron version 		$43.31 2
3 198012
CONNECTOR PIPE
Version with CCM brakes 		$32.08 (8.3% off) 2
4 152954
BLEED NIPPLE SCREW 		$6.37 4
5 152955
PROTECTIVE CAP 		$5.67 (24.4% off) 4
6 70001085
Front Pad Set With Spring
Cast iron version 		$405.40 (9.5% off) 1

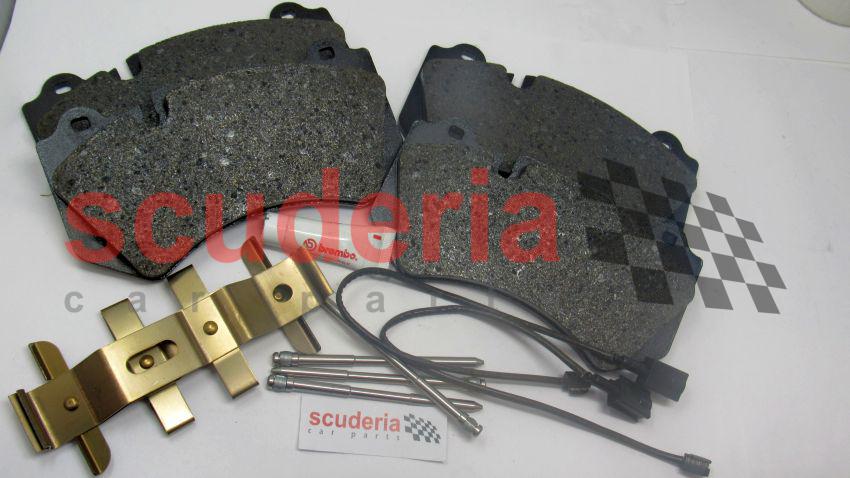

6 70001086
Front Pad Set With Spring
Version with CCM brakes 		$1,412.94 (22.2% off) 1

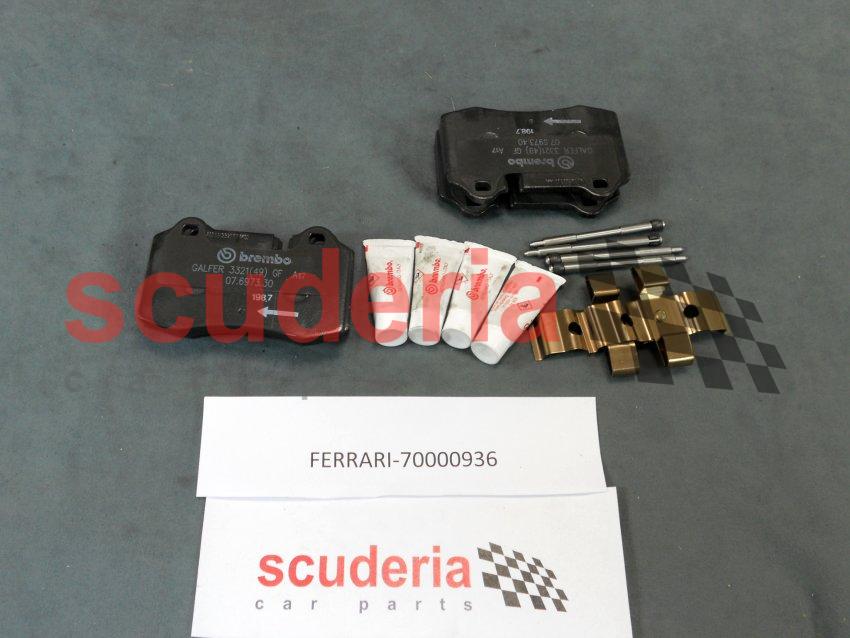

7 70000936
Rear Pad Set With Spring
Cast iron version 		$419.98 1

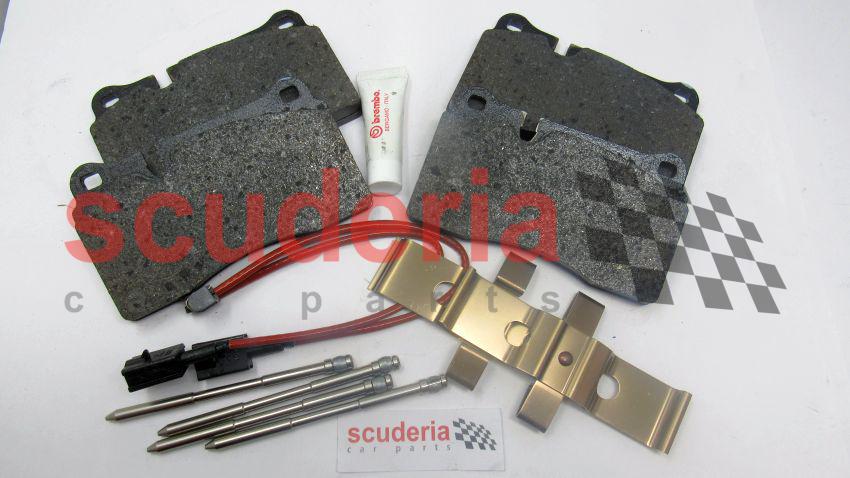

7 70001087
Rear Pad Set With Spring
Version with CCM brakes 		$1,322.37 (29.1% off) 1
8 182122
GAITER FOR CYLINDER
D. 42; Not for CCM version 		$101.43 4
9 182121
GAITER FOR CYLINDER
D. 38; Not for CCM version 		$99.61 4
10 198014
SCREW
Applicable for CCM front calliper 		$10.96 2
11 198015
TIE-ROD
Applicable for CCM front calliper 		$67.38 2
