SECONDARY SHAFT GEARS of Ferrari Ferrari 430 Spider

View All

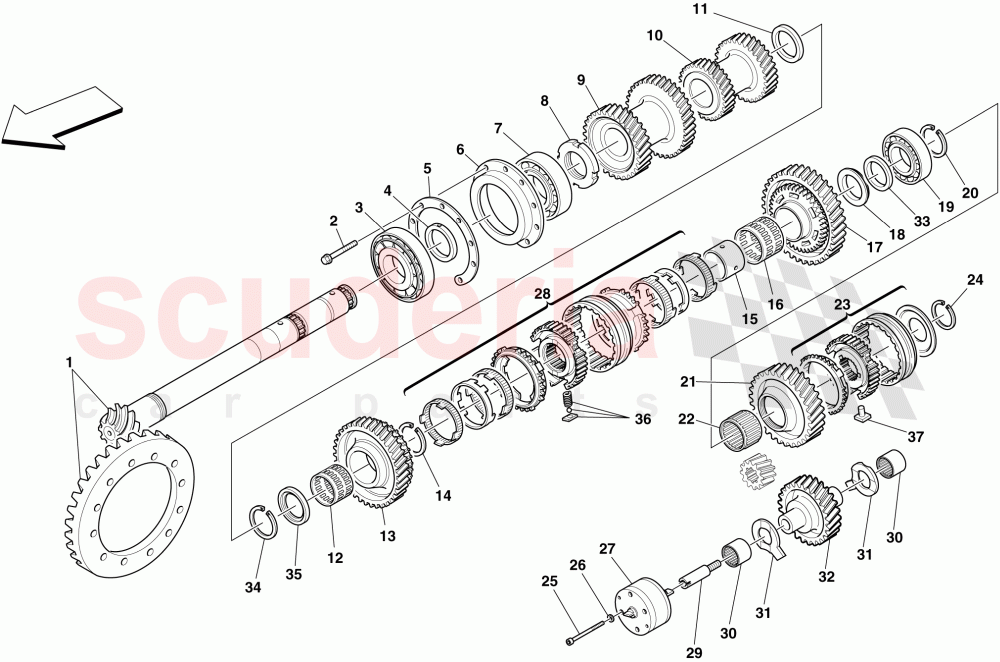

Ferrari 430 Spider - SECONDARY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197811	COMPLETE BEVEL GEAR PAIR	Enquire	To Order
	218502	COMPLETE BEVEL GEAR PAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185022	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185045	RING ADJUSTER	Enquire	To Order
	185027	RING ADJUSTER	Enquire	To Order
	185028	RING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185043	RING ADJUSTER	Enquire	To Order
	185044	RING ADJUSTER	Enquire	To Order
	185042	RING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185020	BEARING MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185021	Roller Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196667	GEARBOX RING NUT M45 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185018	3rd AND 4th SPEED GEAR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198620	5th AND 6th SPEED GEAR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188497	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183946	2nd SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183976	SNAP RING	Enquire	To Order
	185036	SNAP RING	Enquire	To Order
	185037	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183971	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184016	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183945	1st SPEED GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183972	CENTRE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184020	Roller Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199752	REVERSE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184018	ROLLER BEARING CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326260	REVERSE SPEED SYNCHRONISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184041	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10571379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216271	GEARBOX OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185164	COMPLETE 1st AND 2nd SPEED SYNCHRONISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185050	PUMP DRIVE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184017	DRAWN CUP NEEDLE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183975	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199737	REVERSE IDLER GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200924	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183976	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203800	RING	Enquire	To Order
	203801	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193440	SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	197811	COMPLETE BEVEL GEAR PAIR	197811 COMPLETE BEVEL GEAR PAIR Not for Taiwan	-	1	Enquire
1	218502	COMPLETE BEVEL GEAR PAIR	218502 COMPLETE BEVEL GEAR PAIR Applicable for Taiwan	-	1	Enquire
2	16287730	SCREW	16287730 SCREW	-	7	Enquire
3	185022	ROLLER BEARING	185022 ROLLER BEARING	-	1	Enquire
4	185045	RING ADJUSTER	185045 RING ADJUSTER Th. 7.1 mm	-	1	Enquire
4	185027	RING ADJUSTER	185027 RING ADJUSTER Th. 6.4 mm; Installed if necessary	-	1	Enquire
4	185028	RING ADJUSTER	185028 RING ADJUSTER Th. 6 mm; Installed if necessary	-	1	Enquire
5	185043	RING ADJUSTER	185043 RING ADJUSTER Th. 2.5 mm; Installed if necessary	-	1	Enquire
5	185044	RING ADJUSTER	185044 RING ADJUSTER Th. 2.2 mm; Installed if necessary	-	1	Enquire
5	185042	RING ADJUSTER	185042 RING ADJUSTER Th. 2.8 mm	-	1	Enquire
6	185020	BEARING MOUNTING	185020 BEARING MOUNTING	-	1	Enquire
7	185021	Roller Bearing	185021 Roller Bearing	-	1	Enquire
8	196667	GEARBOX RING NUT M45 X 1.5	196667 GEARBOX RING NUT M45 X 1.5	-	1	Enquire
9	185018	3rd AND 4th SPEED GEAR CONTROL	185018 3rd AND 4th SPEED GEAR CONTROL	-	1	Enquire
10	198620	5th AND 6th SPEED GEAR CONTROL	198620 5th AND 6th SPEED GEAR CONTROL	-	1	Enquire
11	188497	SHIM	188497 SHIM	-	1	Enquire
12	184014	ROLLER BEARING CAGE	184014 ROLLER BEARING CAGE	-	1	Enquire
13	183946	2nd SPEED GEAR	183946 2nd SPEED GEAR	-	1	Enquire
14	183976	SNAP RING	183976 SNAP RING Th. 2.1 mm	-	1	Enquire
14	185036	SNAP RING	185036 SNAP RING Th. 1.85 mm; Installed if necessary	-	1	Enquire
14	185037	SNAP RING	185037 SNAP RING Th. 1.6 mm; Installed if necessary	-	1	Enquire
15	183971	BUSHING	183971 BUSHING	-	1	Enquire
16	184016	ROLLER BEARING CAGE	184016 ROLLER BEARING CAGE	-	1	Enquire
17	183945	1st SPEED GEAR	183945 1st SPEED GEAR	-	1	Enquire
18	183972	CENTRE BEARING	183972 CENTRE BEARING Th. 5.1 mm	-	1	Enquire
19	184020	Roller Bearing	184020 Roller Bearing	-	1	Enquire
20	184042	SNAP RING	184042 SNAP RING	-	1	Enquire
21	199752	REVERSE GEAR	199752 REVERSE GEAR	-	1	Enquire
22	184018	ROLLER BEARING CAGE	184018 ROLLER BEARING CAGE	-	1	Enquire
23	326260	REVERSE SPEED SYNCHRONISER	326260 REVERSE SPEED SYNCHRONISER	-	1	Enquire
24	184041	SNAP RING	184041 SNAP RING	-	1	Enquire
25	14302424	SCREW	14302424 SCREW	-	4	Enquire
26	10571379	WASHER	10571379 WASHER	-	4	Enquire
27	216271	GEARBOX OIL PUMP	216271 GEARBOX OIL PUMP	-	1	Enquire
28	185164	COMPLETE 1st AND 2nd SPEED SYNCHRONISER	185164 COMPLETE 1st AND 2nd SPEED SYNCHRONISER	-	1	Enquire
29	185050	PUMP DRIVE SHAFT	185050 PUMP DRIVE SHAFT	-	1	Enquire
30	184017	DRAWN CUP NEEDLE BEARING	184017 DRAWN CUP NEEDLE BEARING	-	2	Enquire
31	183975	RING	183975 RING	-	2	Enquire
32	199737	REVERSE IDLER GEAR	199737 REVERSE IDLER GEAR	-	1	Enquire
33	200924	SHIM	200924 SHIM	-	1	Enquire
34	183976	SNAP RING	183976 SNAP RING Th. 2.1 mm	-	1	Enquire
35	203800	RING	203800 RING	-	1	Enquire
35	203801	RING	203801 RING Alternative solution	-	1	Enquire
36	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	188320 SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	-	1	Enquire
37	193440	SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	193440 SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	-	1	Enquire
