Air Conditioning System

Ferrari 348 TB (1993)

Find Your Part

Ferrari 348 TB (1993) - Air Conditioning System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
62992500 COMPLETE ELECTROFAN Enquire To Order
Photo Part No Description Price (each) Stock
62642500 PIPE FROM CONDENSER TO CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
62658900 FREON DELIVERY PIPE UNDER THE FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
62659000 FREON RETURN PIPE UNDER THE FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
62658700 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
62642400 PIPE FROM DELIVERY TO CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
62642700 PIPE FROM EVAPORATOR TO RETURN PIPE Enquire To Order
62850600 PIPE FROM EVAPORATOR TO RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
62642600 PIPE FROM CLEANER TO EVAPORATOR Enquire To Order
62850900 PIPE FROM CLEANER TO EVAPORATOR Enquire To Order
Photo Part No Description Price (each) Stock
62655500 DEHYDRATOR FILTER WITH PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
62433300 Pressostat for filter Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
62165800 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10515471 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
60659100 Caged Captive Nut 6mm Enquire To Order
Photo Part No Description Price (each) Stock
103550 Spacer bush -Only for Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
10902511 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62591100 AIR CONVEYOR GASKET Enquire To Order
Photo Part No Description Price (each) Stock
63250600 AIR CONVEYOR Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14664790 CAGE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62590600 A.C. CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
14664790 CAGE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
140808 COMPLETE ELECTROFAN Enquire To Order
Photo Part No Description Price (each) Stock
148246 BLOWER Enquire To Order
Photo Part No Description Price (each) Stock
63004700 HOOD FOR ELECTROFAN Enquire To Order
Photo Part No Description Price (each) Stock
10398780 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
60679700 CABLE GROMMET Enquire To Order
View All

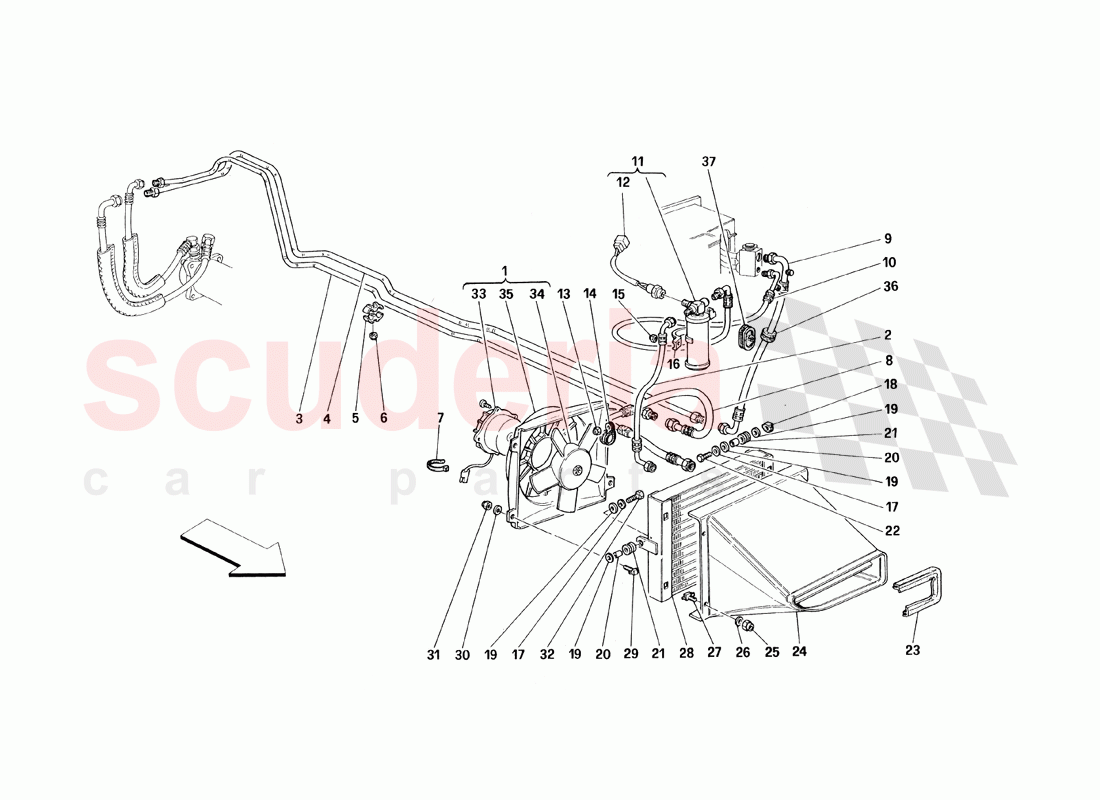

Air Conditioning System of Ferrari Ferrari 348 TB (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 62992500
COMPLETE ELECTROFAN 		- 1 Enquire
2 62642500
PIPE FROM CONDENSER TO CLEANER 		- 1 Enquire
3 62658900
FREON DELIVERY PIPE UNDER THE FLOOR 		- 1 Enquire
4 62659000
FREON RETURN PIPE UNDER THE FLOOR 		- 1 Enquire
5 62658700
CLIP 		- 12 Enquire
6 14059290
FLANGED NUT M6 		- 6 Enquire
7 10815787
CLAMP 		- 1 Enquire
8 62642400
PIPE FROM DELIVERY TO CONDENSER 		- 1 Enquire
9 62642700
PIPE FROM EVAPORATOR TO RETURN PIPE
Not for GD 		- 1 Enquire
9 62850600
PIPE FROM EVAPORATOR TO RETURN PIPE
Valid for GD 		- 1 Enquire
10 62642600
PIPE FROM CLEANER TO EVAPORATOR
Not for GD 		- 1 Enquire
10 62850900
PIPE FROM CLEANER TO EVAPORATOR
Valid for GD 		- 1 Enquire
11 62655500
DEHYDRATOR FILTER WITH PRESSURE SWITCH 		- 1 Enquire
12 62433300
Pressostat for filter 		- 1 Enquire
13 14059290
FLANGED NUT M6 		- 1 Enquire
13 12643724
WASHER 		- 6 Enquire
14 291225
P clip Bracket With Sheath 		- 1 Enquire
15 14059290
FLANGED NUT M6 		- 2 Enquire
16 62165800
BRACKET 		- 1 Enquire
17 10515471
WASHER 		- 3 Enquire
18 60659100
Caged Captive Nut 6mm 		- 1 Enquire
20 103550
Spacer bush -Only for 		- 3 Enquire
21 812273
CABLE GROMMET 		- 3 Enquire
22 10902511
SCREW 		- 2 Enquire
23 62591100
AIR CONVEYOR GASKET 		- 1 Enquire
24 63250600
AIR CONVEYOR 		- 1 Enquire
25 14059290
FLANGED NUT M6 		- 4 Enquire
26 10519424
WASHER 		- 4 Enquire
27 14664790
CAGE SCREW 		- 4 Enquire
28 62590600
A.C. CONDENSER 		- 1 Enquire
29 14664790
CAGE SCREW 		- 4 Enquire
30 10519424
WASHER 		- 4 Enquire
31 14059290
FLANGED NUT M6 		- 4 Enquire
32 10977524
SCREW 		- 1 Enquire
33 140808
COMPLETE ELECTROFAN 		- 1 Enquire
34 148246
BLOWER 		- 1 Enquire
35 63004700
HOOD FOR ELECTROFAN 		- 1 Enquire
36 10398780
CABLE GROMMET
Not for GD 		- 1 Enquire
37 60679700
CABLE GROMMET
Valid for GD 		- 1 Enquire
