Front Part Structures of Ferrari Ferrari 348 TB (1993)

View All

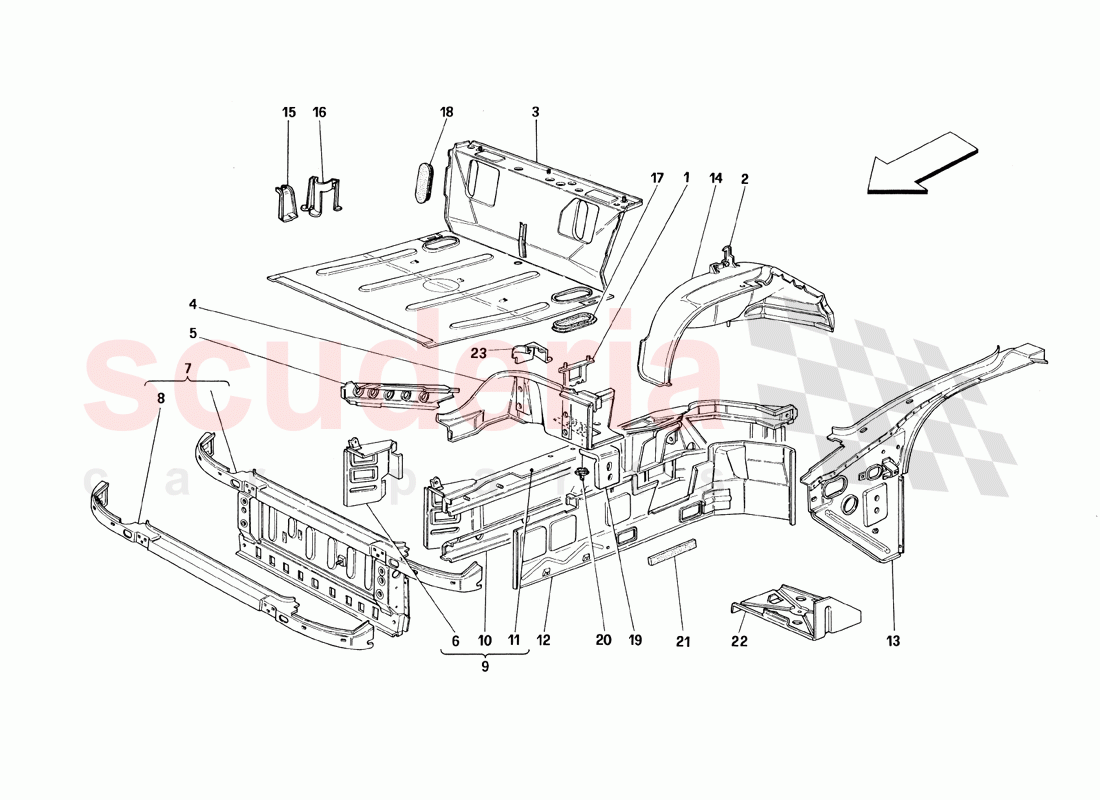

Ferrari 348 TB (1993) - Front Part Structures

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62166000	BRACKET FOR CONTROL UNIT FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62068300	LH BRACKET FOR FRONT HOOD LOCK	Enquire	To Order
	62068200	RH BRACKET FOR FRONT HOOD LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63540800	TRUNK BOTTOM	Enquire	To Order
	63589300	TRUNK BOTTOM -Not for GD-	Enquire	To Order
	63589300	TRUNK BOTTOM -Not for GD-	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	63537200	L.H. LIGHT AROUND FRAMEWORK	Enquire	To Order
	64299200	R.H. LIGHT AROUND FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63597700	REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	Enquire	To Order
	63597600	REINFORCEMENT FOR FRONT RH SIDE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62096300	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	Enquire	To Order
	63343800	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	Enquire	To Order
	62096200	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	63315600	COMPLETE FRONT FRAMEWORK	Enquire	To Order
	64312800	COMPLETE FRONT FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000611	UPPER CROSS MEMBER FOR FRONT FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63505200	LH FRONT LATERAL STRUCTURE ASSEMBLY	Enquire	To Order
	63618400	LH FRONT LATERAL STRUCTURE ASSEMBLY	Enquire	To Order
	63640200	LH FRONT LATERAL STRUCTURE ASSEMBLY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	62083100	L.H. LOWER SPRAG	Enquire	To Order
	62083000	R.H. LOWER SPRAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63541100	L.H. UPPER SPRAG	Enquire	To Order
	63347700	LH. UPPER SPRAG	Enquire	To Order
	63510300	L.H. UPPER SPRAG	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	63510100	SPRAGS L.H. LATERAL WALL	Enquire	To Order
	62182100	SPRAGS R.H. LATERAL WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65290900	RH FENDER SUPPORT WALL	Enquire	To Order
	64899400	R.H. FENDER SUPPORT WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65335000	L.H. FRONT WHEELHOUSE	Enquire	To Order
	65354800	L.H. FRONT WHEELHOUSE	Enquire	To Order
	62986500	LH. FRONT WHEELHOUSE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	62165400	WINDSHIELD WASHER BAG FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62165600	DEHYDRATOR FILTER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62678500	PLUG FOR HOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62921200	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62121200	BUMPER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63013000	R.H. PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63512800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63381800	PLATE FOR BATTERY SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63512300	BRACKET FOR BATTERY CUT OUT SWITCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63343900	R.H FRONT LATERAL STRUCTURE ASSEMBLY	63343900 R.H FRONT LATERAL STRUCTURE ASSEMBLY Valid for CDN Valid till car Nr. 95080 TB,Nr. 94925 TS	-	1	Enquire
-	63640300	R.H FRONT LATERAL STRUCTURE ASSEMBLY	63640300 R.H FRONT LATERAL STRUCTURE ASSEMBLY Valid foi CDN Valid from car Nr. 95081 TB,Nr. 94926 TS	-	1	Enquire
-	63640100	R.H FRONT LATERAL STRUCTURE ASSEMBLY	63640100 R.H FRONT LATERAL STRUCTURE ASSEMBLY Valid for GD	-	1	Enquire
-	63618300	RH FRONT LATERAL STRUCTURE ASSEMBLY	63618300 RH FRONT LATERAL STRUCTURE ASSEMBLY Not for CDN and GD Valid till stock exhaustion	-	1	Enquire
1	62166000	BRACKET FOR CONTROL UNIT FIXING	62166000 BRACKET FOR CONTROL UNIT FIXING	-	1	Enquire
2	62068300	LH BRACKET FOR FRONT HOOD LOCK	62068300 LH BRACKET FOR FRONT HOOD LOCK	-	1	Enquire
2	62068200	RH BRACKET FOR FRONT HOOD LOCK	62068200 RH BRACKET FOR FRONT HOOD LOCK	-	1	Enquire
3	63540800	TRUNK BOTTOM	63540800 TRUNK BOTTOM Valid for GD Valid till stock exhaustion	-	1	Enquire
3	63589300	TRUNK BOTTOM -Not for GD-	63589300 TRUNK BOTTOM -Not for GD- Not for GD Valid till stock exhaustion	-	1	Enquire
3	63589300	TRUNK BOTTOM -Not for GD-	63589300 TRUNK BOTTOM -Not for GD-	-	1	Enquire
3	63589300	TRUNK BOTTOM -Not for GD-	63589300 TRUNK BOTTOM -Not for GD- Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS	-	1	Enquire
3	63589900	TRUNK BOTTOM -Valid for GD-	63589900 TRUNK BOTTOM -Valid for GD- Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS	-	1	Enquire
4	63537200	L.H. LIGHT AROUND FRAMEWORK	63537200 L.H. LIGHT AROUND FRAMEWORK Completed with bracket 1	-	1	Enquire
4	64299200	R.H. LIGHT AROUND FRAMEWORK	64299200 R.H. LIGHT AROUND FRAMEWORK Completed with brackets 15 and 16	-	1	Enquire
5	63597700	REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	63597700 REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	-	1	Enquire
5	63597600	REINFORCEMENT FOR FRONT RH SIDE STRUCTURE	63597600 REINFORCEMENT FOR FRONT RH SIDE STRUCTURE	-	1	Enquire
6	62096300	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	62096300 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE Not for CON	-	1	Enquire
6	63343800	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	63343800 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE Valid for CON	-	1	Enquire
6	62096200	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	62096200 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE Not for CON	-	1	Enquire
6	63343700	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	63343700 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE Valid for CON	-	1	Enquire
7	63315600	COMPLETE FRONT FRAMEWORK	63315600 COMPLETE FRONT FRAMEWORK Valid for CON	-	1	Enquire
7	64312800	COMPLETE FRONT FRAMEWORK	64312800 COMPLETE FRONT FRAMEWORK Not for CON	-	1	Enquire
8	70000611	UPPER CROSS MEMBER FOR FRONT FRAMEWORK	70000611 UPPER CROSS MEMBER FOR FRONT FRAMEWORK	-	1	Enquire
9	63505200	LH FRONT LATERAL STRUCTURE ASSEMBLY	63505200 LH FRONT LATERAL STRUCTURE ASSEMBLY Valid for CDN Valid till car Nr. 95080 TB,Nr. 94925 TS	-	1	Enquire
9	63618400	LH FRONT LATERAL STRUCTURE ASSEMBLY	63618400 LH FRONT LATERAL STRUCTURE ASSEMBLY Not for CDN and GD Valid till stock exhaustion	-	1	Enquire
9	63640200	LH FRONT LATERAL STRUCTURE ASSEMBLY	63640200 LH FRONT LATERAL STRUCTURE ASSEMBLY Valid for GD	-	1	Enquire
9	63640400	LH FRONT LATERAL STRUCTURE ASSEMBLY	63640400 LH FRONT LATERAL STRUCTURE ASSEMBLY Valid for CDN Valid from car Nr. 95081 TB,Nr. 94926 TS	-	1	Enquire
10	62083100	L.H. LOWER SPRAG	62083100 L.H. LOWER SPRAG Without reinforcements	-	1	Enquire
10	62083000	R.H. LOWER SPRAG	62083000 R.H. LOWER SPRAG Without reinforcements	-	1	Enquire
11	63541100	L.H. UPPER SPRAG	63541100 L.H. UPPER SPRAG Valid for CDN Valid for front battery cars	-	1	Enquire
11	63347700	LH. UPPER SPRAG	63347700 LH. UPPER SPRAG Valid for CDN Valid for rear battery cars	-	1	Enquire
11	63510300	L.H. UPPER SPRAG	63510300 L.H. UPPER SPRAG Not for CDN	-	1	Enquire
11	62175200	R.H. UPPER SPRAG	62175200 R.H. UPPER SPRAG Not for CDD	-	1	Enquire
11	63347600	R.H. UPPER SPRAG	63347600 R.H. UPPER SPRAG Valid for CDN	-	1	Enquire
12	63510100	SPRAGS L.H. LATERAL WALL	63510100 SPRAGS L.H. LATERAL WALL	-	1	Enquire
12	62182100	SPRAGS R.H. LATERAL WALL	62182100 SPRAGS R.H. LATERAL WALL	-	1	Enquire
13	65290900	RH FENDER SUPPORT WALL	65290900 RH FENDER SUPPORT WALL	-	1	Enquire
13	64899400	R.H. FENDER SUPPORT WALL	64899400 R.H. FENDER SUPPORT WALL	-	1	Enquire
14	65335000	L.H. FRONT WHEELHOUSE	65335000 L.H. FRONT WHEELHOUSE Not for GD valid till car nr. 95080 TB Nr. 94925 TS and Nr. 94268 USA TS	-	1	Enquire
14	65354800	L.H. FRONT WHEELHOUSE	65354800 L.H. FRONT WHEELHOUSE Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS	-	1	Enquire
14	62986500	LH. FRONT WHEELHOUSE	62986500 LH. FRONT WHEELHOUSE Valid for GD Valid till car Nr. 95080 TB and Nr. 94925 TS	-	1	Enquire
14	65335000	L.H. FRONT WHEELHOUSE	65335000 L.H. FRONT WHEELHOUSE Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS	-	1	Enquire
14	63590100	R.H. FRONT WHEELHOUSE	63590100 R.H. FRONT WHEELHOUSE Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS	-	1	Enquire
14	63589700	R.H. FRONT WHEELHOUSE	63589700 R.H. FRONT WHEELHOUSE Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS	-	1	Enquire
14	62986400	RH FRONT WHEELHOUSE	62986400 RH FRONT WHEELHOUSE Valid for GD Valid till car Nr. 95080 TB and Nr. 94925 TS	-	1	Enquire
14	63589700	R.H. FRONT WHEELHOUSE	63589700 R.H. FRONT WHEELHOUSE Not for GD Valid till car Nr. 95080 TB,Nr. 94925 TS and Nr. 94268 USATS	-	1	Enquire
15	62165400	WINDSHIELD WASHER BAG FIXING BRACKET	62165400 WINDSHIELD WASHER BAG FIXING BRACKET	-	1	Enquire
16	62165600	DEHYDRATOR FILTER FIXING BRACKET	62165600 DEHYDRATOR FILTER FIXING BRACKET	-	1	Enquire
17	62678500	PLUG FOR HOLE	62678500 PLUG FOR HOLE	-	2	Enquire
18	62921200	PLUG	62921200 PLUG	-	2	Enquire
19	62121200	BUMPER FIXING BRACKET	62121200 BUMPER FIXING BRACKET	-	2	Enquire
20	63013000	R.H. PLUG	63013000 R.H. PLUG	-	2	Enquire
21	63512800	GASKET	63512800 GASKET valid for front battery cars	-	1	Enquire
22	63381800	PLATE FOR BATTERY SUPPORT	63381800 PLATE FOR BATTERY SUPPORT valid for front battery cars	-	1	Enquire
23	63512300	BRACKET FOR BATTERY CUT OUT SWITCH	63512300 BRACKET FOR BATTERY CUT OUT SWITCH valid for front battery cars	-	1	Enquire
