InstrumenTS of Ferrari Ferrari 348 TB (1993)

View All

Ferrari 348 TB (1993) - InstrumenTS

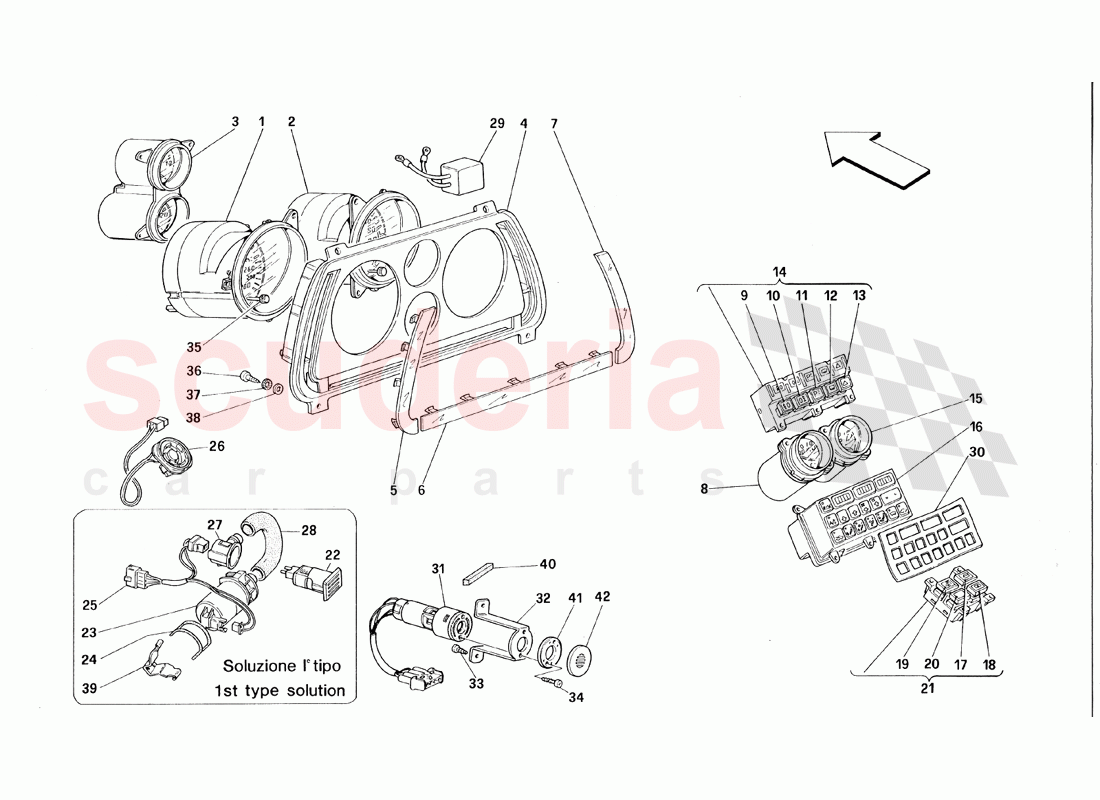

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	145872	SPEEDOMETER	Enquire	To Order
	142777	SPEEDOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154644	ELECTRONIC REVOLUTION COUNTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136625	COMBINED INSTRUMENT OIL PRESS. + WATER TEMP.	Enquire	To Order
	134401	COMBINED INSTRUMENT OIL PRESS. + WATER TEMP.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145428	INSTRUMENTS BOARD WITH PI LOT LIGHTS	Enquire	To Order
	147138	INSTRUMENTS BOARD WITH PILOT LIGHTS	Enquire	To Order
	147141	INSTRUMENTS BOARD WITH PILOT LIGHTS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136629	OIL THERMOMETER	Enquire	To Order
	134405	OIL THERMOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134412	FOG LIGHT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132389	DUMMY SWITCH	Enquire	To Order
	134411	REAR FOG LIGHT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134409	PARKING LIGHT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134410	SWITCH FOR THERMIC REAR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134408	EMERGENCY LIGHTS SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147108	COMPLETE UPPER PUSH BUTTON PANEL	Enquire	To Order
	147109	COMPLETE UPPER PUSH-BUTTON PANEL	Enquire	To Order
	157168	COMPLETE UPPER PUSH-BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134404	FUEL LEVEL INDICATOR	Enquire	To Order
	136628	FUEL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151710	A.C. CONTROL PUSH BUTTON PANEL	Enquire	To Order
	151711	A.C. CONTROL PUSH BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134422	DOOR UNLOCKING CONTROL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134419	FUEL DOOR CONTROL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134421	DOOR LOCKING CONTROL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132389	DUMMY SWITCH	Enquire	To Order
	137670	ROOF LIGHT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149546	COMPLETE PUSH BUTTON PANEL ON TUNNEL	Enquire	To Order
	147110	COMPLETE PUSH BUTTON PANEL ON TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61079100	INNER COMPARTMENT TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61983500	Suction fan for sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120065	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	119430	Sensor cable for internal temp.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174681	LOUD SPEAKER TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61079200	SENSOR SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61089300	PIPE FROM FAN TO SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134406	RHEOSTAT FOR INSTRUMENT INDICATOR LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147115	BI ADHESIVE SHEET FOR A.C. PUSH BUTTON PANEL FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62745900	INNER COMPARTMENT TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62746600	SENSOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15902670	SCREW -Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62925500	Speedometer knob	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12598079	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61089500	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62748900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63994600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63994500	SENSOR GRILLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	145872	SPEEDOMETER	145872 SPEEDOMETER Valid for M. 2.5 Not for USA and GB Valid till stock exhaustion	-	1	Enquire
1	142777	SPEEDOMETER	142777 SPEEDOMETER	-	1	Enquire
2	154644	ELECTRONIC REVOLUTION COUNTER	154644 ELECTRONIC REVOLUTION COUNTER Valid for cars without antenna preamplifier See Table 121 Part. 22 Valid till stock exhaustion	-	1	Enquire
3	136625	COMBINED INSTRUMENT OIL PRESS. + WATER TEMP.	136625 COMBINED INSTRUMENT OIL PRESS. + WATER TEMP. Valid for USA, GB and ZA	-	1	Enquire
3	134401	COMBINED INSTRUMENT OIL PRESS. + WATER TEMP.	134401 COMBINED INSTRUMENT OIL PRESS. + WATER TEMP. Not for USA, GB and ZA	-	1	Enquire
4	145428	INSTRUMENTS BOARD WITH PI LOT LIGHTS	145428 INSTRUMENTS BOARD WITH PI LOT LIGHTS Valid for M. 2.5 Not for USA	-	1	Enquire
4	147138	INSTRUMENTS BOARD WITH PILOT LIGHTS	147138 INSTRUMENTS BOARD WITH PILOT LIGHTS Valid for M. 2.5 Valid for USA	-	1	Enquire
4	147141	INSTRUMENTS BOARD WITH PILOT LIGHTS	147141 INSTRUMENTS BOARD WITH PILOT LIGHTS Valid for M. 2.7 Valid for USA	-	1	Enquire
4	149747	INSTRUMENTS BOARD WITH PILOT LIGHTS	149747 INSTRUMENTS BOARD WITH PILOT LIGHTS Valid for M. 2.7 Not for USA	-	1	Enquire
5	-		Not as spare part With the complete instruments board	-	1	Enquire
6	-		Not as spare part With the complete instruments board	-	1	Enquire
7	-		Not as spare part With the complete instruments board	-	1	Enquire
8	136629	OIL THERMOMETER	136629 OIL THERMOMETER Valid for USA and GB	-	1	Enquire
8	134405	OIL THERMOMETER	134405 OIL THERMOMETER Not for USA and GB	-	1	Enquire
9	134412	FOG LIGHT SWITCH	134412 FOG LIGHT SWITCH Not for CDN	-	1	Enquire
10	132389	DUMMY SWITCH	132389 DUMMY SWITCH Valid for USA and CDN For CDN Qty 2	-	1	Enquire
10	134411	REAR FOG LIGHT SWITCH	134411 REAR FOG LIGHT SWITCH Not for USA and CON	-	1	Enquire
11	134409	PARKING LIGHT SWITCH	134409 PARKING LIGHT SWITCH	-	1	Enquire
12	134410	SWITCH FOR THERMIC REAR WINDOW	134410 SWITCH FOR THERMIC REAR WINDOW	-	1	Enquire
13	134408	EMERGENCY LIGHTS SWITCH	134408 EMERGENCY LIGHTS SWITCH	-	1	Enquire
14	147108	COMPLETE UPPER PUSH BUTTON PANEL	147108 COMPLETE UPPER PUSH BUTTON PANEL Not for USA and CDN	-	1	Enquire
14	147109	COMPLETE UPPER PUSH-BUTTON PANEL	147109 COMPLETE UPPER PUSH-BUTTON PANEL Valid for USA-	-	1	Enquire
14	157168	COMPLETE UPPER PUSH-BUTTON PANEL	157168 COMPLETE UPPER PUSH-BUTTON PANEL Valid for CDN-	-	1	Enquire
15	134404	FUEL LEVEL INDICATOR	134404 FUEL LEVEL INDICATOR Not for catalyzed cars-	-	1	Enquire
15	136628	FUEL LEVEL INDICATOR	136628 FUEL LEVEL INDICATOR Valid for catalyzed cars-	-	1	Enquire
16	151710	A.C. CONTROL PUSH BUTTON PANEL	151710 A.C. CONTROL PUSH BUTTON PANEL Not for USA and GB-	-	1	Enquire
16	151711	A.C. CONTROL PUSH BUTTON PANEL	151711 A.C. CONTROL PUSH BUTTON PANEL Valid for USA and GB-	-	1	Enquire
17	134422	DOOR UNLOCKING CONTROL SWITCH	134422 DOOR UNLOCKING CONTROL SWITCH	-	1	Enquire
18	134419	FUEL DOOR CONTROL SWITCH	134419 FUEL DOOR CONTROL SWITCH	-	1	Enquire
19	134421	DOOR LOCKING CONTROL SWITCH	134421 DOOR LOCKING CONTROL SWITCH	-	1	Enquire
20	132389	DUMMY SWITCH	132389 DUMMY SWITCH	-	1	Enquire
20	137670	ROOF LIGHT SWITCH	137670 ROOF LIGHT SWITCH	-	1	Enquire
21	149546	COMPLETE PUSH BUTTON PANEL ON TUNNEL	149546 COMPLETE PUSH BUTTON PANEL ON TUNNEL Valid for roof light switch 137670 Part. 20	-	1	Enquire
21	147110	COMPLETE PUSH BUTTON PANEL ON TUNNEL	147110 COMPLETE PUSH BUTTON PANEL ON TUNNEL Valid for dummy switch 132389 Part. 20	-	1	Enquire
22	61079100	INNER COMPARTMENT TEMPERATURE SENSOR	61079100 INNER COMPARTMENT TEMPERATURE SENSOR	-	1	Enquire
23	61983500	Suction fan for sensor	61983500 Suction fan for sensor	-	1	Enquire
24	120065	O-Ring	120065 O-Ring	-	1	Enquire
25	119430	Sensor cable for internal temp.	119430 Sensor cable for internal temp.	-	1	Enquire
26	174681	LOUD SPEAKER TWEETER	174681 LOUD SPEAKER TWEETER	-	2	Enquire
27	61079200	SENSOR SEAT	61079200 SENSOR SEAT	-	1	Enquire
28	61089300	PIPE FROM FAN TO SENSOR	61089300 PIPE FROM FAN TO SENSOR	-	1	Enquire
29	134406	RHEOSTAT FOR INSTRUMENT INDICATOR LAMP	134406 RHEOSTAT FOR INSTRUMENT INDICATOR LAMP	-	1	Enquire
30	147115	BI ADHESIVE SHEET FOR A.C. PUSH BUTTON PANEL FASTENING	147115 BI ADHESIVE SHEET FOR A.C. PUSH BUTTON PANEL FASTENING	-	1	Enquire
31	62745900	INNER COMPARTMENT TEMPERATURE SENSOR	62745900 INNER COMPARTMENT TEMPERATURE SENSOR	-	1	Enquire
32	62746600	SENSOR SUPPORT	62746600 SENSOR SUPPORT Valid for USA-	-	1	Enquire
33	15902670	SCREW -Valid for USA-	15902670 SCREW -Valid for USA- Valid for USA-	-	2	Enquire
34	15915977	SCREW	15915977 SCREW	-	2	Enquire
35	62925500	Speedometer knob	62925500 Speedometer knob	-	1	Enquire
36	15688170	SCREW	15688170 SCREW	-	4	Enquire
37	12598079	WASHER	12598079 WASHER	-	4	Enquire
38	10519224	WASHER	10519224 WASHER	-	4	Enquire
39	61089500	BRACKET	61089500 BRACKET	-	1	Enquire
40	62748900	GASKET	62748900 GASKET Valid for USA Valid till car Ass. Nr. 13970	-	1	Enquire
41	63994600	WASHER	63994600 WASHER	-	1	Enquire
42	63994500	SENSOR GRILLE	63994500 SENSOR GRILLE	-	1	Enquire
