Ferrari 348 TB (1993) - SeaTS and Safety Belts -Valid for Cars With Passive Safety Belts - Valid From Car Ass. Nr. 5298

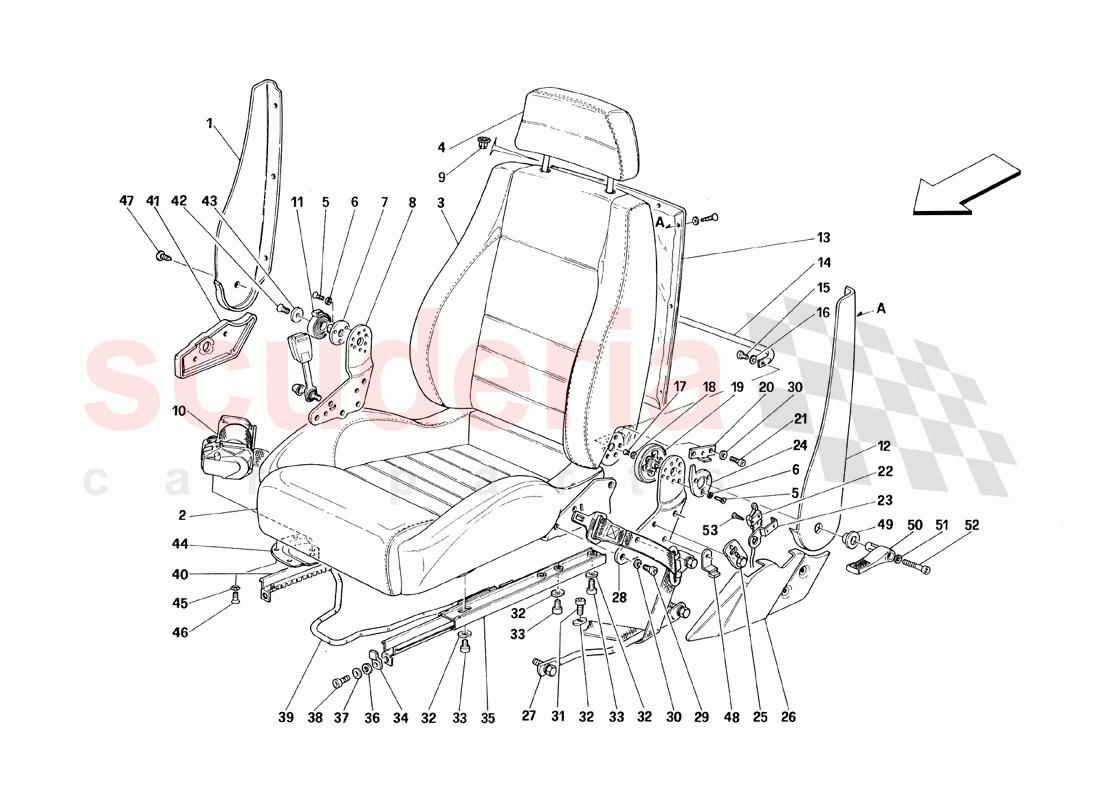

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	627537	LH INNER BACK SEAT JOINT-COVER	Enquire	To Order
	627536	LH LINING	Enquire	To Order
	627533	RH INNER BACK SEAT JOINT-COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	629959	CUSHION TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	629960	SEAT BACK TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	626892	COVERED HEAD REST SUPPORT	Enquire	To Order
	626888	TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63622600	SCREW	$1.93	To Order

Photo	Part No	Description	Price (each)	Stock
	12606876	WASHER	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	62652000	SPRING RETAINING BUSH	$21.31	To Order

Photo	Part No	Description	Price (each)	Stock
	62595000	RH JOINT FIXING PLATE	$38.54	To Order

Photo	Part No	Description	Price (each)	Stock
	62738000	ABDOMINAL BELTS COMPLETE SERIES	$1,409.03	To Order
	20058905	BUSHINGS FOR HEAD-REST	$21.17	To Order

Photo	Part No	Description	Price (each)	Stock
	62741900	L.H. complete abdominal belt	$295.26	To Order
	62732400	R.H. complete abdominal belt	$341.96	To Order

Photo	Part No	Description	Price (each)	Stock
	62651900	SEAT BACK RETURNING SPRING	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	627539	L.H OUTER BACK-SEAT JOINT-COVER	Enquire	To Order
	627534	RH LINING	Enquire	To Order
	627536	LH LINING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	627541	BACK-SEAT REAR SIDE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63294300	JOINTS CONNECTION	$16.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14302931	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	10615276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63325100	SCREW	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	62652400	L.H. side back-seat adjuster	$60.75	To Order
	62652200	R.H. side back-seat adjuster	$60.75	To Order

Photo	Part No	Description	Price (each)	Stock
	62887300	PLATE FOR SEAT BACK FASTENING	$21.22	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	146486	MICRO-SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62750100	RH MICRO SWITCH SUPPORT	$5.66	To Order
	62750200	RH MICRO-SWITCH SUPPORT	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	62955800	CLAMP FOR L.H. SEAT BACK	$44.91	To Order
	62955700	CLAMP FOR R.H.SEAT BACK	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	63382500	ANCHORAGE BRACKET (ASSEM.)	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	627552	LH CUSHION OUTER COVERING	Enquire	To Order
	627549	RH CUSHION OUTER COVERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62594900	LH. JOINT FIXING PLATE	$38.54	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	62844500	PLATE FOR SEAT BACK FASTENING	$35.32	To Order

Photo	Part No	Description	Price (each)	Stock
	64339400	L.H. GUIDE	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	62752800	L.H. GUIDE CONTROL FORK	$41.91	To Order
	62750500	R.H. GUIDE CONTROL FORK	$41.91	To Order

Photo	Part No	Description	Price (each)	Stock
	64339300	R.H. GUIDE	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	627546	L.H. CUSHION INNER JOINT COVER	Enquire	To Order
	627544	R.H. CUSHION INNER JOINT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	62778200	L.H. rolling device fastening bracket	$15.67	To Order
	62592800	R.H. rolling device fastening bracket	$15.67	To Order

Photo	Part No	Description	Price (each)	Stock
	12606876	WASHER	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14441327	SCREW	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	14592587	FIXING BUTTON	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	62750300	LH BRACKET	$5.01	To Order
	62750400	RH BRACKET	$5.01	To Order

Photo	Part No	Description	Price (each)	Stock
	62752500	BUSHING	$5.62	To Order

Photo	Part No	Description	Price (each)	Stock
	63294200	L.H. HANDLE FOR SEAT RELEASE	$64.62	To Order
	63294100	R.H. HANDLE FOR SEAT RELEASE	$64.62	To Order

Photo	Part No	Description	Price (each)	Stock
	149951	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14358926	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	15639801	SCREW	$0.05	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	627523	LH SEAT WITH GUIDES	627523 LH SEAT WITH GUIDES	-	1	Enquire
-	627522	RH SEAT WITH GUIDES	627522 RH SEAT WITH GUIDES	-	1	Enquire
1	627537	LH INNER BACK SEAT JOINT-COVER	627537 LH INNER BACK SEAT JOINT-COVER	-	1	Enquire
1	627536	LH LINING	627536 LH LINING	-	1	Enquire
1	627533	RH INNER BACK SEAT JOINT-COVER	627533 RH INNER BACK SEAT JOINT-COVER	-	1	Enquire
1	627534	RH LINING	627534 RH LINING	-	1	Enquire
2	629959	CUSHION TRIM	629959 CUSHION TRIM	-	2	Enquire
3	629960	SEAT BACK TRIM	629960 SEAT BACK TRIM	-	2	Enquire
4	626892	COVERED HEAD REST SUPPORT	626892 COVERED HEAD REST SUPPORT	-	2	Enquire
4	626888	TRIM	626888 TRIM	-	2	Enquire
5	63622600	SCREW	63622600 SCREW	$1.93	6
6	12606876	WASHER	12606876 WASHER	$0.10 MSRP: ~~0.35~~ (71.4% off)	12
7	62652000	SPRING RETAINING BUSH	62652000 SPRING RETAINING BUSH	$21.31 MSRP: ~~35.50~~ (40% off)	2
8	62595000	RH JOINT FIXING PLATE	62595000 RH JOINT FIXING PLATE	$38.54	2
9	62738000	ABDOMINAL BELTS COMPLETE SERIES	62738000 ABDOMINAL BELTS COMPLETE SERIES	$1,409.03	4
9	20058905	BUSHINGS FOR HEAD-REST	20058905 BUSHINGS FOR HEAD-REST	$21.17	4
10	62741900	L.H. complete abdominal belt	62741900 L.H. complete abdominal belt	$295.26	1
10	62732400	R.H. complete abdominal belt	62732400 R.H. complete abdominal belt	$341.96	1
11	62651900	SEAT BACK RETURNING SPRING	62651900 SEAT BACK RETURNING SPRING	$20.84 MSRP: ~~38.35~~ (45.7% off)	2
12	627539	L.H OUTER BACK-SEAT JOINT-COVER	627539 L.H OUTER BACK-SEAT JOINT-COVER	-	1	Enquire
12	627534	RH LINING	627534 RH LINING	-	1	Enquire
12	627536	LH LINING	627536 LH LINING	-	1	Enquire
12	627535	RH OUTER BACK-SEAT JOINT-COVER	627535 RH OUTER BACK-SEAT JOINT-COVER	-	1	Enquire
13	627541	BACK-SEAT REAR SIDE LINING	627541 BACK-SEAT REAR SIDE LINING	-	2	Enquire
14	63294300	JOINTS CONNECTION	63294300 JOINTS CONNECTION	$16.61 MSRP: ~~22.28~~ (25.4% off)	2
15	14302931	SCREW	14302931 SCREW	$0.81 MSRP: ~~1.00~~ (19% off)	4
16	10615276	WASHER	10615276 WASHER	-	4	Enquire
17	63325100	SCREW	63325100 SCREW	$2.61	12
18	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	12
19	62652400	L.H. side back-seat adjuster	62652400 L.H. side back-seat adjuster	$60.75 MSRP: ~~154.50~~ (60.7% off)	1
19	62652200	R.H. side back-seat adjuster	62652200 R.H. side back-seat adjuster	$60.75 MSRP: ~~96.21~~ (36.9% off)	1
20	62887300	PLATE FOR SEAT BACK FASTENING	62887300 PLATE FOR SEAT BACK FASTENING	$21.22	4
21	40294308	SCREW	40294308 SCREW	$4.59 MSRP: ~~4.90~~ (6.3% off)	8
22	146486	MICRO-SWITCH	146486 MICRO-SWITCH	-	2	Enquire
23	62750100	RH MICRO SWITCH SUPPORT	62750100 RH MICRO SWITCH SUPPORT	$5.66	1
23	62750200	RH MICRO-SWITCH SUPPORT	62750200 RH MICRO-SWITCH SUPPORT	$5.66	1
24	62955800	CLAMP FOR L.H. SEAT BACK	62955800 CLAMP FOR L.H. SEAT BACK	$44.91	1
24	62955700	CLAMP FOR R.H.SEAT BACK	62955700 CLAMP FOR R.H.SEAT BACK	$10.89	1
25	63382500	ANCHORAGE BRACKET (ASSEM.)	63382500 ANCHORAGE BRACKET (ASSEM.)	$91.45	1
26	627552	LH CUSHION OUTER COVERING	627552 LH CUSHION OUTER COVERING	-	1	Enquire
26	627549	RH CUSHION OUTER COVERING	627549 RH CUSHION OUTER COVERING	-	1	Enquire
27	-		Not as spare part With assembly 62732400 and 62741 900 -Part. 10	-	2	Enquire
28	62594900	LH. JOINT FIXING PLATE	62594900 LH. JOINT FIXING PLATE	$38.54	2
29	40294308	SCREW	40294308 SCREW	$4.59 MSRP: ~~4.90~~ (6.3% off)	12
30	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	8
31	40294308	SCREW	40294308 SCREW	$4.59 MSRP: ~~4.90~~ (6.3% off)	4
32	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	$0.39 MSRP: ~~0.90~~ (56.7% off)	16
33	40294308	SCREW	40294308 SCREW	$4.59 MSRP: ~~4.90~~ (6.3% off)	12
34	62844500	PLATE FOR SEAT BACK FASTENING	62844500 PLATE FOR SEAT BACK FASTENING	$35.32	4
35	64339400	L.H. GUIDE	64339400 L.H. GUIDE	$385.09	2
36	13550405	WASHER	13550405 WASHER	$0.06 MSRP: ~~0.20~~ (70% off)	4
37	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
38	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	14306374 ALLEN SCREW SOCKET HEAD M8 X 20	$0.28 MSRP: ~~1.00~~ (72% off)	4
39	62752800	L.H. GUIDE CONTROL FORK	62752800 L.H. GUIDE CONTROL FORK	$41.91	1
39	62750500	R.H. GUIDE CONTROL FORK	62750500 R.H. GUIDE CONTROL FORK	$41.91	1
40	64339300	R.H. GUIDE	64339300 R.H. GUIDE	$385.09	2
41	627546	L.H. CUSHION INNER JOINT COVER	627546 L.H. CUSHION INNER JOINT COVER	-	1	Enquire
41	627544	R.H. CUSHION INNER JOINT COVER	627544 R.H. CUSHION INNER JOINT COVER	-	1	Enquire
42	14441234	SCREW	14441234 SCREW	$0.18 MSRP: ~~0.30~~ (40% off)	2
43	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5	$0.28 MSRP: ~~0.50~~ (44% off)	2
44	62778200	L.H. rolling device fastening bracket	62778200 L.H. rolling device fastening bracket	$15.67	1
44	62592800	R.H. rolling device fastening bracket	62592800 R.H. rolling device fastening bracket	$15.67	1
45	12606876	WASHER	12606876 WASHER	$0.10 MSRP: ~~0.35~~ (71.4% off)	6
46	14441327	SCREW	14441327 SCREW	$0.89 MSRP: ~~2.90~~ (69.3% off)	6
47	14592587	FIXING BUTTON	14592587 FIXING BUTTON	$0.11 MSRP: ~~0.75~~ (85.3% off)	2
48	62750300	LH BRACKET	62750300 LH BRACKET	$5.01	1
48	62750400	RH BRACKET	62750400 RH BRACKET	$5.01	1
49	62752500	BUSHING	62752500 BUSHING	$5.62	2
50	63294200	L.H. HANDLE FOR SEAT RELEASE	63294200 L.H. HANDLE FOR SEAT RELEASE	$64.62 MSRP: ~~90.58~~ (28.7% off)	1
50	63294100	R.H. HANDLE FOR SEAT RELEASE	63294100 R.H. HANDLE FOR SEAT RELEASE	$64.62 MSRP: ~~205.00~~ (68.5% off)	1
51	149951	WASHER	149951 WASHER	$0.31	2
52	14358926	SCREW	14358926 SCREW	$0.44	2
53	15639801	SCREW	15639801 SCREW	$0.05	4
