Lights Lifting Device and HeadLights of Ferrari Ferrari 348 TB (1993)

View All

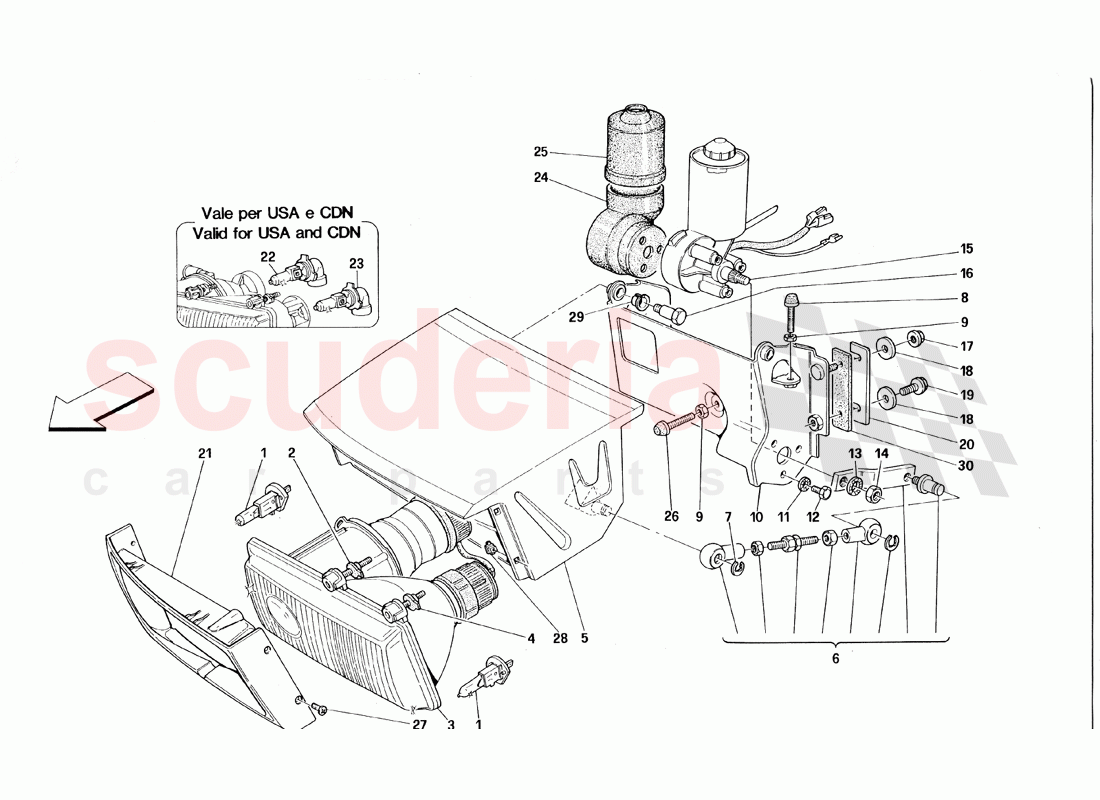

Ferrari 348 TB (1993) - Lights Lifting Device and HeadLights

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14151095	Lamp -Valid for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148086	FIXED POINT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146158	L.H. HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	133087	LH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	133081	L.H. HEADLIGHT LOW/HIGH BEAM	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	148088	HEADLIGHT ADJUSTING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63501800	L.H. LIGHT CONTAINER	Enquire	To Order
	63501700	R.H. LIGHT CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62608300A	COMPLETE CONNECTING ROD AND HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16160976	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63346800	HEADLIGHT ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62131400	L.H. BRACKET FOR LIGHTS SUPPORT	Enquire	To Order
	62131300	R.H. BRACKET FOR LIGHTS SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172535	Lifting motor for L.H. headlamp	Enquire	To Order
	172534	Lifting motor for R.H. headlamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63346400	LIGHT CONTAINER ARM SUPPORT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13832201	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13838911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62227600	INNER SPACER FOR LIGHT ADJUSTMENT	Enquire	To Order
	62227500	OUTER SPACER FOR LIGHT ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62071310	L.H. LIGHT FRAME	Enquire	To Order
	62071210	R.H. LIGHT FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143165	HB4 12V 55W BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143166	HB3 12V 65W BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60331303	LOWER GUARD FOR LH LIGHT LIFTING MOTOR	Enquire	To Order
	60331204	LOWER GUARD FOR RH LIGHT LIFTING MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60331402	UPPER GUARD FOR LIGHT LIFTING MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63346800	HEADLIGHT ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13297377	SCREW M4 X 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63595100	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62998000	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63344900	INNER GASKET	Enquire	To Order
	63344800	OUTER GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	14151095	Lamp -Valid for USA-	14151095 Lamp -Valid for USA- Not for USA and CON	-	4	Enquire
2	148086	FIXED POINT PIN	148086 FIXED POINT PIN	-	2	Enquire
3	146158	L.H. HEADLIGHT LOW/HIGH BEAM	146158 L.H. HEADLIGHT LOW/HIGH BEAM Valid for J	-	1	Enquire
3	133087	LH HEADLIGHT LOW/HIGH BEAM	133087 LH HEADLIGHT LOW/HIGH BEAM Valid for F	-	1	Enquire
3	133081	L.H. HEADLIGHT LOW/HIGH BEAM	133081 L.H. HEADLIGHT LOW/HIGH BEAM Valid for GD	-	1	Enquire
3	133083	L.H. HEADLIGHT LOW/HIGH BEAM	133083 L.H. HEADLIGHT LOW/HIGH BEAM Valid for USA and CDN	-	1	Enquire
3	133081	L.H. HEADLIGHT LOW/HIGH BEAM	133081 L.H. HEADLIGHT LOW/HIGH BEAM Not for USA, CDN.GD, FandJ	-	1	Enquire
3	133082	R.H. HEADLIGHT LOW/HIGH BEAM	133082 R.H. HEADLIGHT LOW/HIGH BEAM Valid for USA and CDN	-	1	Enquire
3	133084	R.H. HEADLIGHT LOW/HIGH BEAM	133084 R.H. HEADLIGHT LOW/HIGH BEAM Valid for GD	-	1	Enquire
3	133086	RH HEADLIGHT LOW/HIGH BEAM	133086 RH HEADLIGHT LOW/HIGH BEAM Valid for F	-	1	Enquire
3	146157	R.H. HEADLIGHT LOW/HIGH BEAM	146157 R.H. HEADLIGHT LOW/HIGH BEAM Valid for J	-	1	Enquire
3	133080	R.H. HEADLIGHT LOW/HIGH BEAM	133080 R.H. HEADLIGHT LOW/HIGH BEAM Not for USA, CDN, GD, F and J	-	1	Enquire
4	148088	HEADLIGHT ADJUSTING SCREW	148088 HEADLIGHT ADJUSTING SCREW	-	4	Enquire
5	63501800	L.H. LIGHT CONTAINER	63501800 L.H. LIGHT CONTAINER	-	1	Enquire
5	63501700	R.H. LIGHT CONTAINER	63501700 R.H. LIGHT CONTAINER	-	1	Enquire
6	62608300A	COMPLETE CONNECTING ROD AND HANDLE	62608300A COMPLETE CONNECTING ROD AND HANDLE	-	1	Enquire
7	16160976	SNAP RING	16160976 SNAP RING	-	2	Enquire
8	63346800	HEADLIGHT ADJUSTER SCREW	63346800 HEADLIGHT ADJUSTER SCREW	-	4	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
10	62131400	L.H. BRACKET FOR LIGHTS SUPPORT	62131400 L.H. BRACKET FOR LIGHTS SUPPORT	-	1	Enquire
10	62131300	R.H. BRACKET FOR LIGHTS SUPPORT	62131300 R.H. BRACKET FOR LIGHTS SUPPORT	-	1	Enquire
11	12601374	WASHER	12601374 WASHER	-	6	Enquire
12	81591700	SCREW	81591700 SCREW	-	6	Enquire
13	12601374	WASHER	12601374 WASHER	-	2	Enquire
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
15	172535	Lifting motor for L.H. headlamp	172535 Lifting motor for L.H. headlamp	-	1	Enquire
15	172534	Lifting motor for R.H. headlamp	172534 Lifting motor for R.H. headlamp	-	1	Enquire
16	63346400	LIGHT CONTAINER ARM SUPPORT PIN	63346400 LIGHT CONTAINER ARM SUPPORT PIN	-	4	Enquire
17	13832201	NUT	13832201 NUT	-	4	Enquire
18	12625224	WASHER	12625224 WASHER Possible fitting	-	8	Enquire
19	13838911	SCREW	13838911 SCREW	-	4	Enquire
20	62227600	INNER SPACER FOR LIGHT ADJUSTMENT	62227600 INNER SPACER FOR LIGHT ADJUSTMENT	-	4	Enquire
20	62227500	OUTER SPACER FOR LIGHT ADJUSTMENT	62227500 OUTER SPACER FOR LIGHT ADJUSTMENT	-	4	Enquire
21	62071310	L.H. LIGHT FRAME	62071310 L.H. LIGHT FRAME	-	1	Enquire
21	62071210	R.H. LIGHT FRAME	62071210 R.H. LIGHT FRAME	-	1	Enquire
22	143165	HB4 12V 55W BULB	143165 HB4 12V 55W BULB Valid for USA and CDN	-	2	Enquire
23	143166	HB3 12V 65W BULB	143166 HB3 12V 65W BULB Valid for USA and CDN	-	2	Enquire
24	60331303	LOWER GUARD FOR LH LIGHT LIFTING MOTOR	60331303 LOWER GUARD FOR LH LIGHT LIFTING MOTOR	-	1	Enquire
24	60331204	LOWER GUARD FOR RH LIGHT LIFTING MOTOR	60331204 LOWER GUARD FOR RH LIGHT LIFTING MOTOR	-	1	Enquire
25	60331402	UPPER GUARD FOR LIGHT LIFTING MOTOR	60331402 UPPER GUARD FOR LIGHT LIFTING MOTOR	-	2	Enquire
26	63346800	HEADLIGHT ADJUSTER SCREW	63346800 HEADLIGHT ADJUSTER SCREW	-	2	Enquire
27	13297377	SCREW M4 X 10	13297377 SCREW M4 X 10	-	8	Enquire
28	63595100	NUT	63595100 NUT	-	8	Enquire
29	62998000	BUSHING	62998000 BUSHING	-	4	Enquire
30	63344900	INNER GASKET	63344900 INNER GASKET	-	2	Enquire
30	63344800	OUTER GASKET	63344800 OUTER GASKET	-	2	Enquire
