Windshield Wiper and Movement of Ferrari Ferrari 348 TB (1993)

View All

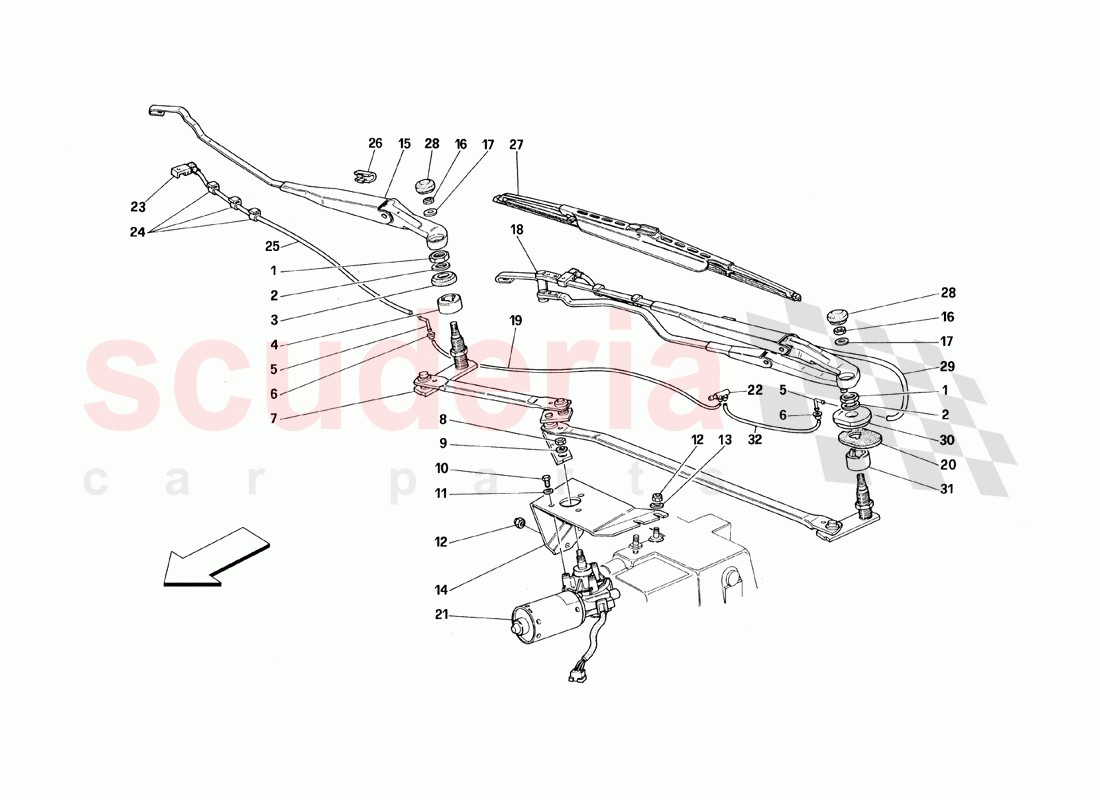

Ferrari 348 TB (1993) - Windshield Wiper and Movement

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62661300	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62661100	WASHER (PASSENGER SIDE PIN)	Enquire	To Order
	63288800	WASHER (PILOT SIDE PIN)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62661000	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62660900	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62830100	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61444900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62916100	WINDSHIELD WIPER LEVERAGE	Enquire	To Order
	62885800	WINDSHIELD WIPER LEVERAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62885600	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62885700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1264660112647624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62512100	WINDSHIELD WIPER MOTOR FASTENING BRACKET	Enquire	To Order
	144091	WINDSHIELD WIPER MOTOR FASTENING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62463300	R.H. ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62886400	L.H. ARM	Enquire	To Order
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62463400	L.H. ARM	Enquire	To Order
	62886300	R.H. ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62834300	PIPE FROM UNION TO RH ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62990900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61528100	WINDSHIELD WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209006	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61537500	R.H. AND L.H. JET FOR WINDOW	Enquire	To Order
	61541500	L.H. JET FOR WINDOW WASHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61559400	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63305700	PIPE ON PASSENGER SIDE ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63305900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65661700	WINDSCREEN WIPER BLADE PASSENGER SIDE	Enquire	To Order
	65661700	WINDSCREEN WIPER BLADE PASSENGER SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62663400	ARM SMALL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63305800	SMALL PIPE FOR L.H. WINDSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62661200	PANTOGRAPH FIXING PLATE	Enquire	To Order
	62886500	TWO BRUSH ARM FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62657000	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62834200	PIPE FROM UNION TO LH ARM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	62661300	RING NUT	62661300 RING NUT	-	2	Enquire
2	62661100	WASHER (PASSENGER SIDE PIN)	62661100 WASHER (PASSENGER SIDE PIN)	-	1	Enquire
2	63288800	WASHER (PILOT SIDE PIN)	63288800 WASHER (PILOT SIDE PIN)	-	1	Enquire
3	62661000	SPACER	62661000 SPACER	-	1	Enquire
4	62660900	SPACER	62660900 SPACER	-	1	Enquire
5	62830100	UNION	62830100 UNION	-	2	Enquire
6	61444900	BUSHING	61444900 BUSHING	-	2	Enquire
7	62916100	WINDSHIELD WIPER LEVERAGE	62916100 WINDSHIELD WIPER LEVERAGE Valid for GDNUT	-	1	Enquire
7	62885800	WINDSHIELD WIPER LEVERAGE	62885800 WINDSHIELD WIPER LEVERAGE Not for GD-	-	1	Enquire
8	62885600	NUT	62885600 NUT	-	1	Enquire
9	62885700	WASHER	62885700 WASHER	-	1	Enquire
10	81591700	SCREW	81591700 SCREW	-	3	Enquire
11	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	3	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
13	1264660112647624	WASHER	1264660112647624 WASHER	-	2	Enquire
14	62512100	WINDSHIELD WIPER MOTOR FASTENING BRACKET	62512100 WINDSHIELD WIPER MOTOR FASTENING BRACKET Not for GD-	-	1	Enquire
14	144091	WINDSHIELD WIPER MOTOR FASTENING BRACKET	144091 WINDSHIELD WIPER MOTOR FASTENING BRACKET Valid for GD-	-	1	Enquire
15	62463300	R.H. ARM	62463300 R.H. ARM Not for GD-	-	1	Enquire
16	62886400	L.H. ARM	62886400 L.H. ARM Valid for GD-	-	1	Enquire
16	14059311	NUT	14059311 NUT	-	2	Enquire
17	127496	WASHER	127496 WASHER	-	2	Enquire
18	62463400	L.H. ARM	62463400 L.H. ARM Not for GD-	-	1	Enquire
18	62886300	R.H. ARM	62886300 R.H. ARM Valid for GD-	-	1	Enquire
19	62834300	PIPE FROM UNION TO RH ARM	62834300 PIPE FROM UNION TO RH ARM	-	1	Enquire
20	62990900	GASKET	62990900 GASKET	-	1	Enquire
21	61528100	WINDSHIELD WIPER MOTOR	61528100 WINDSHIELD WIPER MOTOR	-	1	Enquire
22	209006	UNION	209006 UNION	-	1	Enquire
23	61537500	R.H. AND L.H. JET FOR WINDOW	61537500 R.H. AND L.H. JET FOR WINDOW Valid for GD-	-	2	Enquire
23	61541500	L.H. JET FOR WINDOW WASHING	61541500 L.H. JET FOR WINDOW WASHING Not for GD-	-	2	Enquire
24	61559400	Spring	61559400 Spring	-	5	Enquire
25	63305700	PIPE ON PASSENGER SIDE ARM	63305700 PIPE ON PASSENGER SIDE ARM	-	1	Enquire
26	63305900	BRACKET	63305900 BRACKET	-	2	Enquire
27	65661700	WINDSCREEN WIPER BLADE PASSENGER SIDE	65661700 WINDSCREEN WIPER BLADE PASSENGER SIDE Not for GD-	-	2	Enquire
27	65661700	WINDSCREEN WIPER BLADE PASSENGER SIDE	65661700 WINDSCREEN WIPER BLADE PASSENGER SIDE Valid for GD-	-	2	Enquire
28	62663400	ARM SMALL COVER	62663400 ARM SMALL COVER	-	2	Enquire
29	63305800	SMALL PIPE FOR L.H. WINDSHIELD	63305800 SMALL PIPE FOR L.H. WINDSHIELD	-	1	Enquire
30	62661200	PANTOGRAPH FIXING PLATE	62661200 PANTOGRAPH FIXING PLATE Not for GD-	-	1	Enquire
30	62886500	TWO BRUSH ARM FIXING PLATE	62886500 TWO BRUSH ARM FIXING PLATE Valid for GD-	-	1	Enquire
31	62657000	SPACER	62657000 SPACER	-	1	Enquire
32	62834200	PIPE FROM UNION TO LH ARM	62834200 PIPE FROM UNION TO LH ARM	-	1	Enquire
